Penjoy Canada Standard Passive House Wood windows Customized Alu-wood Triple Glazed windows
Product Description
Product Description
Passive house is a building standard that is truly energy efficient, comfortable, affordable, and ecological at the same time. It is a construction concept that can be applied by anyone and has stood the test of practice. A passive house window can reduce heat losses by more than 70% compared to existing double-glazed windows. Passive house buildings not only save money over the long term, but also are surprisingly affordable to begin with. "Affordable Luxury" guides us to bring a comfortable, quiet, and luxurious life to more families.
Our Best Performance

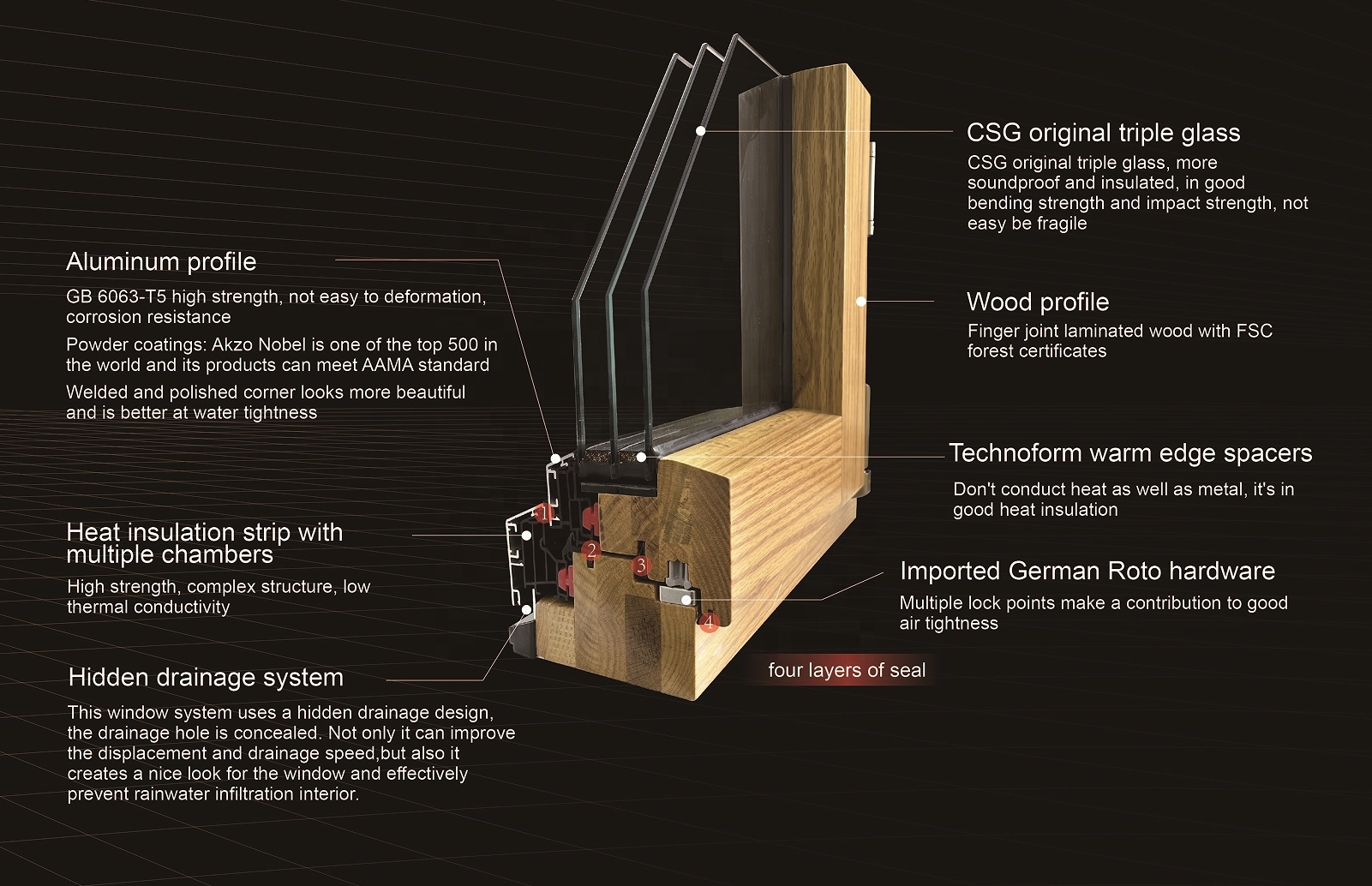

With a total 130mm frame thickness and 4 layers of rubber strips, wind load pressure and water penetration resistance achieve the highest standard levels for windows.
Our Best Energy Rating

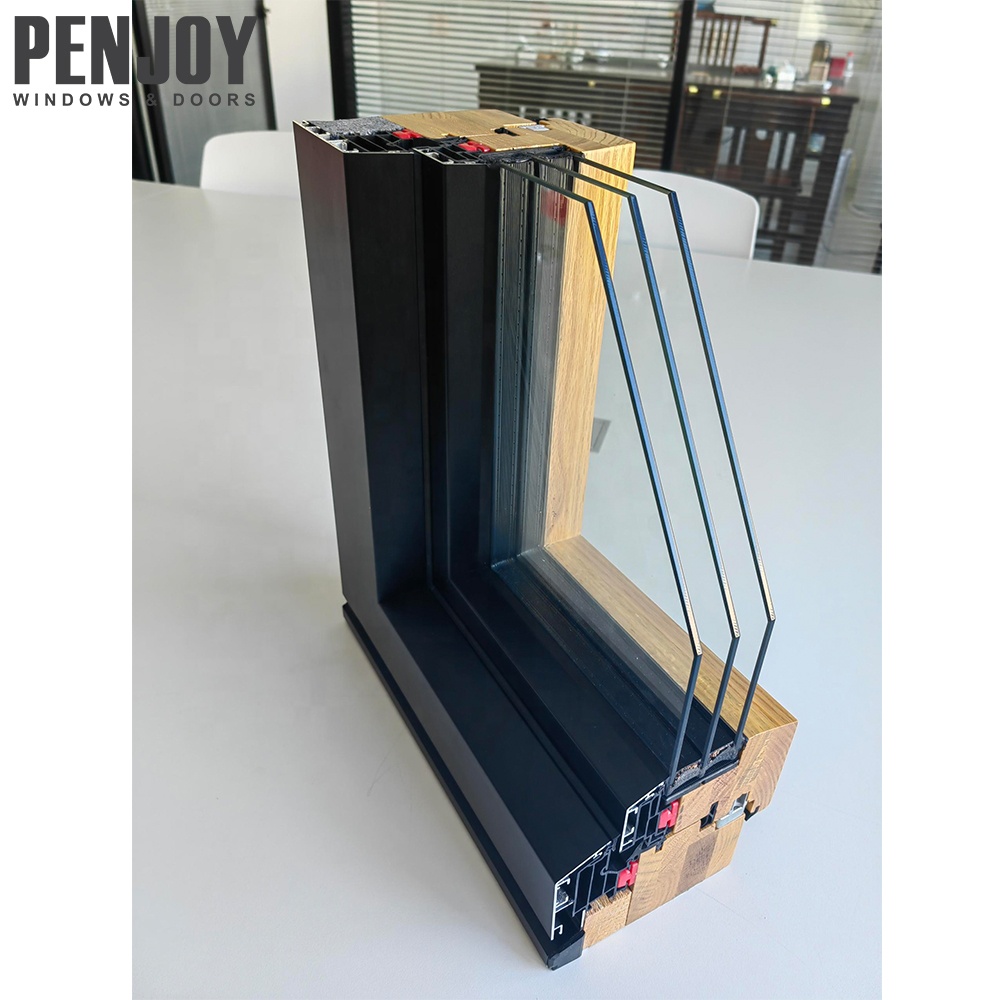

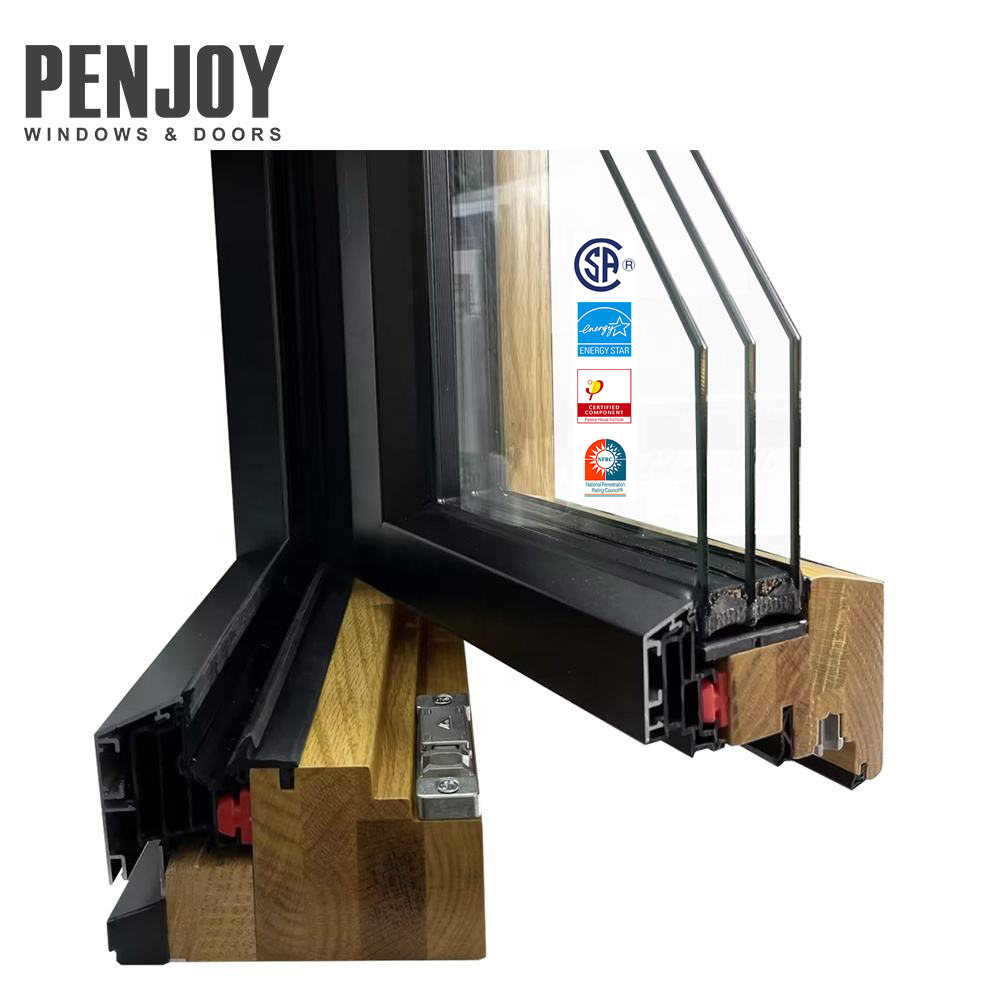

PH 130 features triple glazing (5+16ar+5 Low-E+16ar+5 Low-E), warm edge spacers, and argon gas filling. The natural wood frame is non-conductive compared to aluminum, optimizing thermal insulation. The U-value of the entire window reaches 0.789 W/(m²·K).
Certified Standards
Earned CSA and PHI certifications, accompanied by an NFRC certificate, meeting Energy Star standards. The best U-Factor reaches 0.11 BTU/(h·ft²·°F).

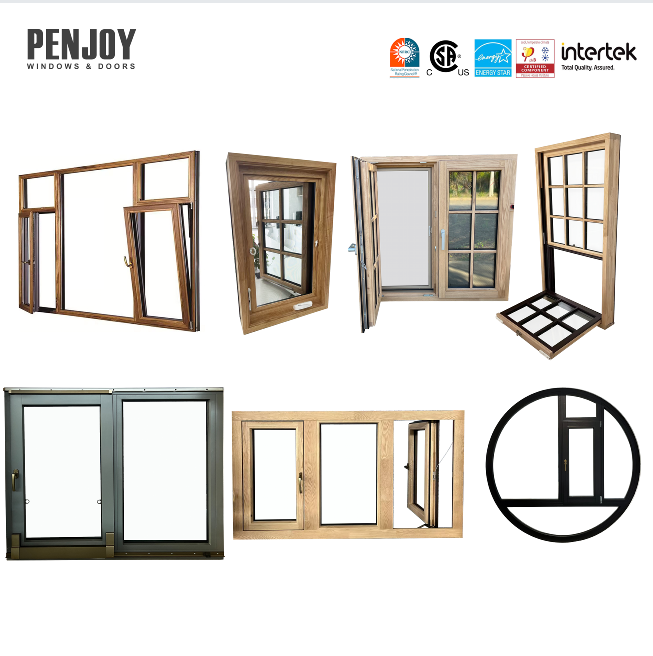

We can customize various styles of the following types of openings: Fixed windows, In-swing/Tilt and turn windows, and In-swing doors.
| Frame profile | Aluminum clad wood |
| Hardware | Imported German hardware: ROTO, Hoppe, Siegenia, etc. |
| Finish |
Aluminum: AKZO powder coating Wood: Imported German water lacquer painting (Remmers is available) |
| Open style | Tilt and turn window; fixed window; turn only; tilt only; Hinge door |
| Glass | All tempered glass. Low-E, warm edge spacer, and argon gas are available (additional configuration). |
Thermal Performance & Glazing
Our PH130 passive products have passed the PHI certification, with the best U-value performance reaching 3 Cool-temperate.
Glass Configuration
Glass types can be fully customized.
Standard configuration: 5 + 16ar + 5 Low-E + 16ar + 5 Low-E warm edge spacers.
Total thickness of glass: 47mm | Standard glass: Auto-grade float glass.
Focuses on Product Details, Promotes Durable Windows
- Proper adjustment of the gap between the glass and the window sash frame successfully achieved.
- Secure connection established between the glass and the window sash.
- Structural stability engineered to prevent the window sash from tilting downward.
Colors & Wood Customization
Standard aluminum colors: Black, white, grey, and brown. Additional colors can be customized according to the RAL color chart.
Wood options: Oak, pine, walnut, teak, and more. Oak and pine serve as standard selections.

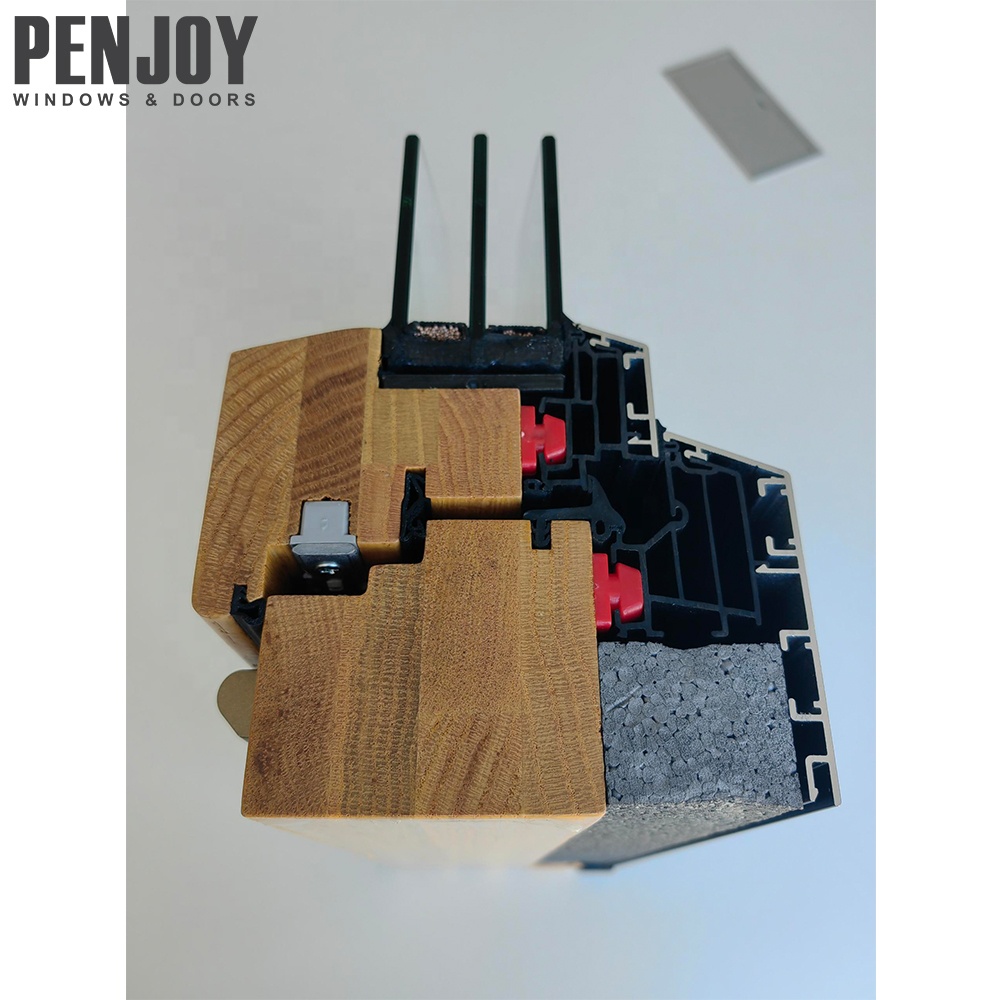

Solid Finger-Joint Laminated Wood
Finger-joint laminated wood with lengths exceeding 600mm and 4 layers of unpainted solid wood. The finger-joint process minimizes adhesive usage, meeting the E0 environmental protection standard for pure, health-safe indoor environments.
Water Lacquer Painting
Wood surfaces are finished with German Remmers eco-friendly, plant-extracted water-based lacquer using an advanced "2 times primer, 2 times finish" coating procedure, ensuring optimal waterproof, anti-corrosion, and anti-UV durability.
Aluminum Powder Coatings
Partnered with global Fortune 500 coating specialist Akzo Nobel. All applied coating series comply with AAMA standards tested under Florida, USA climate conditions.
Hidden Hardware: Seamless Minimalism
Concealed hinges, discrete drainage, and hidden hardware combine to provide a clean, uncluttered aesthetic. Perfectly complements contemporary homes seeking sleek architectural sophistication.
Manufacturing & Product Display
About Hebei Penjoy Windows Doors Co., Ltd.
Hebei Penjoy Windows Doors Co., Ltd is a professional windows and doors manufacturer located in Dingxing County, Baoding City, Hebei Province, situated 60 km from Beijing Daxing Airport. Our products encompass thermal break aluminum windows and doors, wood windows and doors, as well as passive house certified fenestration systems.
Our primary markets span America, Canada, Australia, and New Zealand. Product lines are engineered specifically to comply with regional windows standards and specialized installation methods, fully tested against the four target countries' codes. Clients from Europe and worldwide are warmly welcomed.
Frequently Asked Questions
Q1
What is the delivery time for passive house windows?
Standard delivery requires approximately 30 days following receipt of deposit and technical drawing confirmation. Custom configurations for passive house windows require an additional 15 days.
Q2
What international certifications and test reports do your products hold?
Penjoy holds multiple international certifications including New Zealand standard NZS4211:2008, Australian standard AS2047:2014, and American/Canadian standard AAMA/WDMA/CSA/NAFS 2011, alongside PHI and NFRC certifications.
Q3
What are the standard sizes and design configurations available?
All windows and doors are fully customized. The maximum height of operable windows can reach up to 2100 mm. Custom designs and engineering optimization suggestions are tailored to project requirements.
Q4
What payment methods are supported?
We accept T/T and Alibaba Secure Payment. Alternative payment terms remain negotiable based on order specifics.
Q5
What warranty coverage is provided?
We offer a comprehensive 10-year quality warranty supported by durable construction and strategic hardware partnerships.
Q6
Can aluminum colors and interior wood species be customized?
Yes. Aluminum frames come in standard black, white, grey, and brown, with full custom RAL matching available. Interior solid wood types include standard oak and pine, alongside premium walnut and teak options.
