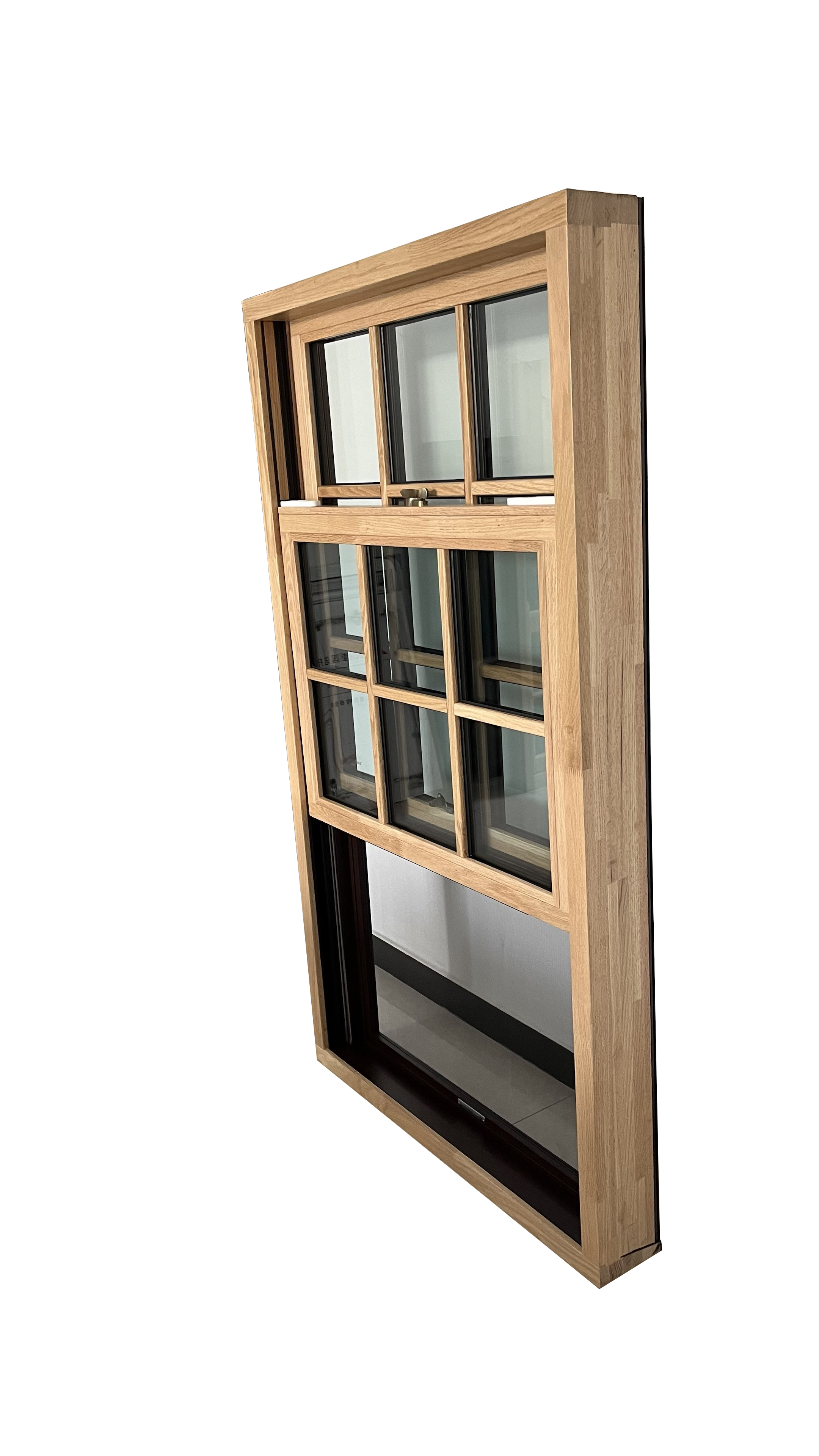

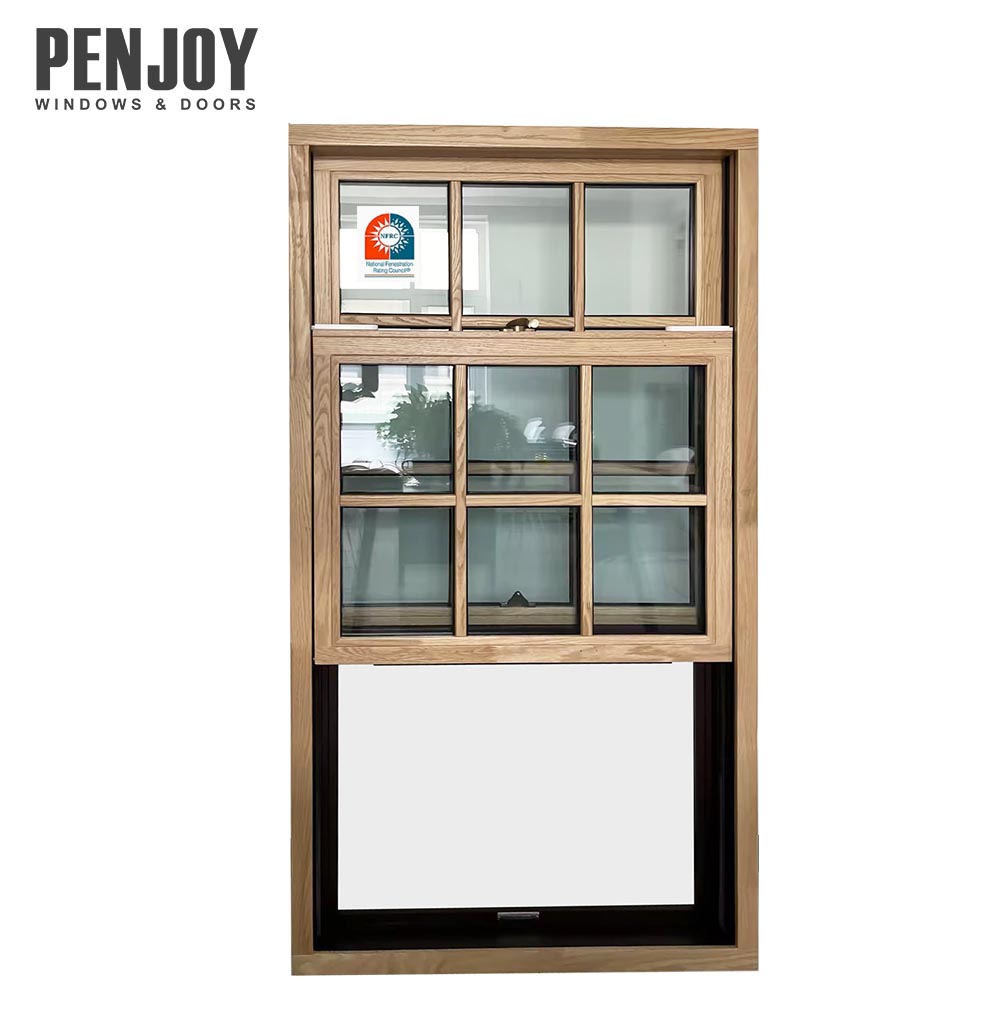

Penjoy Craftsman Solid Wood Single Hung Window Aluminum Clad Wood Double Glazed Real Wood Interior American Classic
Product Description
Elevate your home's elegance and efficiency with our Alu Clad Wood Single Hung Window. This premium window combines the timeless beauty of wood with the durability of aluminum, offering a U-Factor of 0.22 BTU/(h·ft²·°F) for exceptional thermal insulation.
The window's air leakage rate is an impressive 0.18 cfm/ft², providing superior sealing and reducing energy loss. Certified by NFRC, this window is a smart choice for enhancing your home's comfort and reducing energy costs.
Experience the perfect blend of classic style and modern performance with our Alu Clad Wood Single Hung Window. Ideal for both residential and commercial applications, it's not just a window; it's a statement of quality and sustainability.
PRODUCT DESCRIPTION
✔
Easy to use: Easy to open and operate.
✔
Ventilation: By allowing air to travel through both sashes, they provide more ventilation.
✔
Easy to install: Since their upper sashes don’t need operable parts, single-hung windows are easier to install.
✔
Energy efficient: Single-hung window only allows one sash to open, allowing your HVAC system to regulate the temperature more effectively. Energy-efficient windows will reduce your monthly utility expenses and provide a more comfortable atmosphere for your home.
Compared with solid wood hung Window, aluminum clad wood hung Window add aluminum structure, making it more durable. It's easier to clean it when it's open.

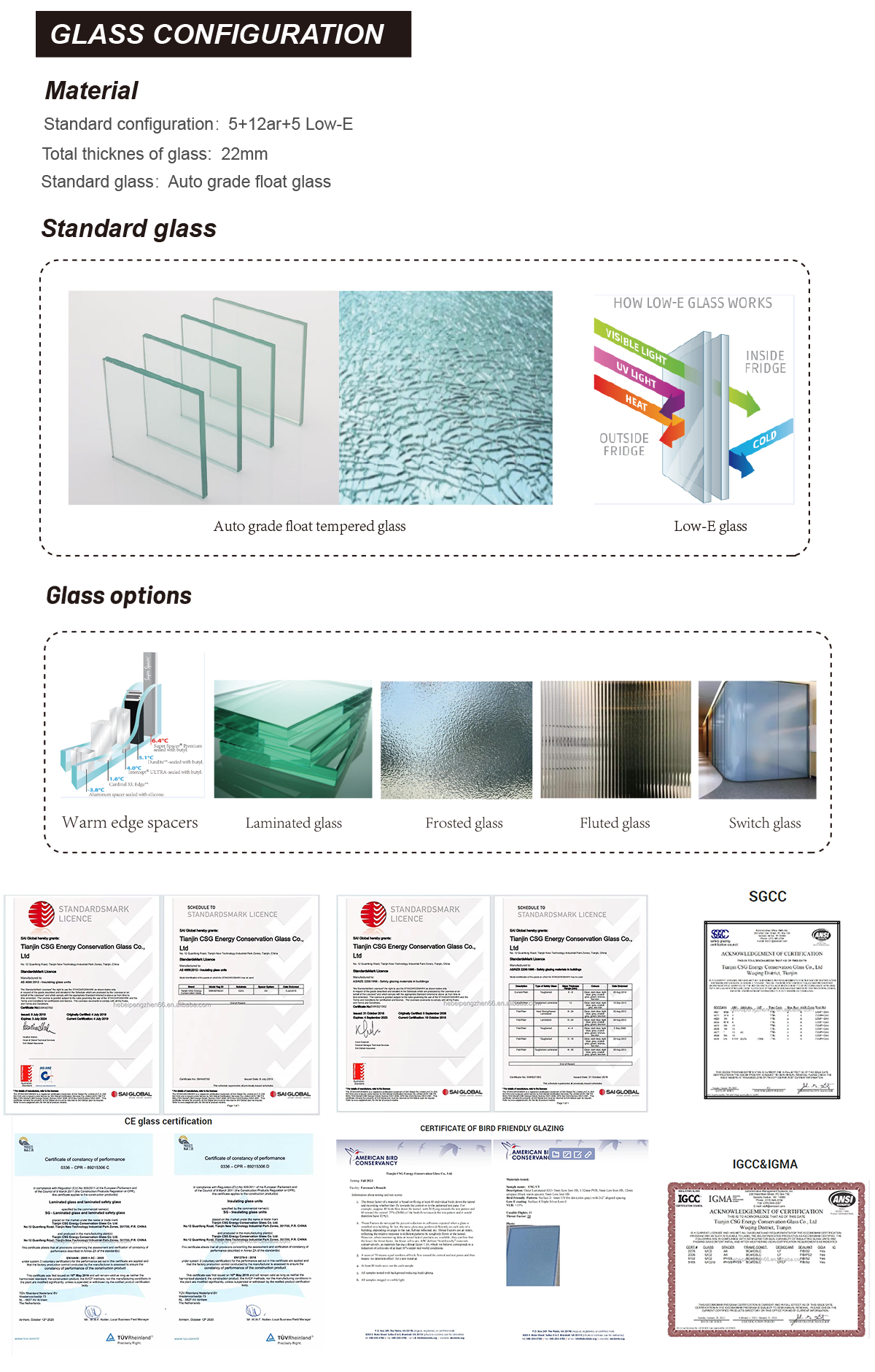

GLASS CONFIGURATION
Standard Configuration
5 + 12ar + 5 Low-E
Total Thickness
22 mm
Standard Glass Type
Auto grade float tempered glass
COLOR & MATERIAL CUSTOMIZATION
Colors are customizable.
Our standard aluminum color: black, white, grey and brown. More colors can be customized according to the RAL color chart. There are many options of wood type, such as oak, pine, walnut, teak… Oak and pine are standard.
MATERIAL CRAFTSMANSHIP & SURFACE TREATMENT
We choose finger joint laminated wood with a length of over 600mm 4 layers of unpainted solid wood. And our finger joint process can reduce the amount of glue used and achieve better environmental protection effects. Our environmental protection effect can reach the E0 level. So products made with finger joint laminated wood are environmentally friendly and harmless to health.
WATER LACQUER PAINTING
The surface of wood is treated by environmental friendly water based lacquer, German Remmers high specification coating process with "2 times primer, 2 times finish". The layers ensure waterproof, anti-corrosion and anti-UV of the wood.
ALUMINUM POWDER COATINGS
Powder coatings, we work with Akzo Nobel which is one of the top 500 in the world and has 5 factories in China. Akzo Nobel has different series and all these products meet the AAMA standard which were tested in Florida, USA.
PRODUCTION EQUIPMENT
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine. PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
ABOUT THE MANUFACTURER
Hebei Penjoy Windows & Doors Co., Ltd. is a specialized system window and door manufacturer with 15 years of deep experience in export markets, dedicated to providing fully certified, code-compliant solutions for North America, Australia, and Europe. Our products meet AAMA performance standards, AS2047 / NZS4211 dual certification for Australia & New Zealand, Passive House certification for Europe, as well as CSA and NFRC certifications across multiple product categories.
We offer three core product lines: premium aluminum-clad wood series, energy-efficient Passive House series, and cost-effective thermal-break aluminum systems. Breaking the conventional high-MOQ model for custom windows and doors, we support orders from as low as 1 square meter, with small-batch quick response within 15 days and 100% on-time delivery.
We insist on using high-end fast turnaround, including German imported hardware and Akzo Nobel (Fortune Global 500) powder coatings, backed by a 10-year extended warranty and technical installation support. Our founding team travels annually to the US, Canada, Australia, and New Zealand to gain deep local market insights, ensuring our products fully comply with regional building codes. With Penjoy, “Made in China” becomes a quality guarantee of compliance, high performance, and punctuality for your projects.
FREQUENTLY ASKED QUESTIONS (FAQ)
What are the thermal performance metrics of the Alu Clad Wood Single Hung Window?
The window offers an exceptional U-Factor of 0.22 BTU/(h·ft²·°F) and an air leakage rate of 0.18 cfm/ft², providing superior sealing, lower energy loss, and high thermal insulation certified by NFRC.
What glass configuration is standard for these windows?
The standard configuration features auto-grade float tempered glass configured as 5mm + 12ar (argon gas) + 5mm Low-E, with an overall glass thickness of 22mm.
What finish and paint treatments are applied to the wood and aluminum?
The wood uses an eco-friendly German Remmers water-based lacquer applied via a "2 times primer, 2 times finish" process. The exterior aluminum profile is finished with premium Akzo Nobel powder coatings meeting AAMA standards.
Can colors and wood species be customized?
Yes. Standard aluminum colors include black, white, grey, and brown, with custom RAL colors available. Standard wood species are oak and pine, with alternatives like walnut and teak available upon request.
What certifications do Hebei Penjoy windows hold for international markets?
Penjoy products comply with AAMA standards, AS2047 / NZS4211 dual certification (Australia/New Zealand), European Passive House certification, as well as CSA and NFRC certifications for North America.
What is the Minimum Order Quantity (MOQ) and lead time?
Orders are accepted from as low as 1 square meter. Small batches benefit from a fast response within 15 days, 100% on-time delivery, and a 10-year extended warranty.
