Engineered Double Swing Systems & High-Performance Extrusions
From ultra-slim European French exterior doors and hurricane storefront doors to precision industrial thermal break extrusions, DERCHI delivers custom architectural door solutions engineered for structural longevity, acoustic isolation, and weather resistance.
Structural Physics, Thermal Dynamics & Fenestration Mechanics

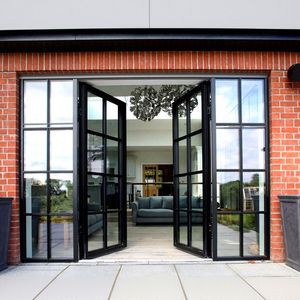

Architectural aluminum double swing doors—commonly specified as French swing doors, double casement entrance systems, or commercial hinged storefront pairs—represent the pinnacle of fenestration complexity. Balancing ultra-wide clear openings with airtightness, seismic stability, and thermal efficiency demands specialized fabrication control.
Extrusion Alloy & T6 Tempering
DERCHI utilizes architectural grade 6063-T6 and high-tensile 6061-T6 aluminum alloys. Featuring a wall thickness exceeding 2.0mm to 3.0mm on active structural stiles, our extrusions resist wind pressure deflection and torsion under cyclic loading.
- Tensile strength exceeding 205 MPa for oversized active panels
- Precision corner crimping with injected two-part structural epoxy
- Integrated multi-chamber thermal breaks via glass-fiber reinforced PA66 polyamide bars
Astragal Sealing & EPDM Compression
The central meeting stile (astragal) of a double swing door is historically vulnerable to water ingress. DERCHI solves this with an interlocking dual-rabbet astragal system combined with continuous vulcanized EPDM triple-gasket perimeter seals.
- Class 4 air permeability seal under EN 12207 standards
- Zero water leakage at test pressures up to 450 Pascals (AS 2047 compliance)
- Heavy-duty German ROTO and Siegenia multi-point shoot-bolt locking mechanisms
Surface Metallurgy & Marine Resistance
Designed to withstand rigorous coastal climates across Australia, New Zealand, Florida, and the Pacific Islands, each profile undergoes Qualicoat Class 2 certified electrostatic powder coating or 3-coat fluorocarbon PVDF finishing.
- Exceeds AAMA 2605 specification: 3000+ hours acetic acid salt spray resistance
- UV gloss retention rating delta E < 5 after 10-year accelerated Florida sun testing
- Corrosion-proof 316-grade stainless steel concealed butt hinges and pivot assemblies
Architectural Door Specification Benchmarks
Direct comparison of structural, thermal, and mechanical criteria across DERCHI Aluminum Double Swing Systems compared with standard commercial baseline products.
| Performance Dimension | DERCHI Heavy-Duty Double Swing System | Standard Commercial Commodity Door | International Verification Standard |
|---|---|---|---|
| Profile Wall Thickness | 2.2mm – 3.0mm Structural Profile | 1.2mm – 1.4mm Non-structural | ASTM B221 / GB/T 5237 |
| Structural Wind Load (ULS) | N6 Serviceability (Up to 4500 Pa) | N2 / N3 (1200 – 1500 Pa) | AS 2047 / AS 4055 / ASTM E330 |
| Thermal Transmittance (U-Value) | Uw 1.1 – 1.6 W/m²·K (Thermal Break + Argon IGU) | Uw 3.8 – 5.2 W/m²·K (Non-thermal break) | ISO 10077-1 / NFRC 100 |
| Acoustic Attenuation (STC / Rw) | Rw 38 dB – 44 dB (Acoustic PVB Laminated) | Rw 25 dB – 28 dB (Single float glass) | ISO 717-1 / ASTM E413 |
| Cycle Durability & Operation | 100,000+ Opening Cycles (Grade 4 Heavy Duty) | 20,000 Cycles standard residential | EN 12400 / EN 1191 |
| Water Tightness Under Pressure | Class 9A (600 Pa) with Sub-Sill Weep Drainage | Class 2A – 3A (150 Pa max) | EN 12208 / AS 2047 Section 2 |
Global Industry Trends Transforming Double Swing Door Sourcing
For architects, project managers, and property developers sourcing from China, procurement criteria have transitioned from pure unit price to whole-lifecycle performance, embodied carbon reduction, and rapid digital fabrication compliance.
Ultra-Narrow Sightlines & Oversized Sashes
Modern architectural aesthetics mandate minimalist sightlines without sacrificing structural rigidity. The market has shifted toward door stiles under 45mm face width capable of bearing 250kg glass leaf weights via concealed heavy-duty 3D adjustable pivot hinges.
- Max panel heights exceeding 3500mm for luxury villa grand entrances
- Floor-to-ceiling double swing doors eliminating transoms for unobstructed sight
- Concealed magnetic closers and integrated overhead overhead concealed stops
Low-Carbon Aluminum & EPD Verification
European and Australasian government tenders now require Environmental Product Declarations (EPD). Chinese premier fabricators are investing in hydro-powered smelted aluminum ingots, drastically reducing scope 3 embodied carbon.
- Recycled aluminum utilization rate exceeding 40% in framing profiles
- Lead-free and VOC-free powder coats compliant with RoHS and REACH
- Thermal efficiency contributing directly to LEED, BREEAM, and Green Star credits
Smart Biometric & Access Automation
Commercial double swing doors are converging with smart access protocols. Active and inactive leaves are increasingly retrofitted with motorized multi-point latching systems, European DIN standard concealed electro-magnetic strikes, and biometric entry.
- Concealed wiring chases within thermal break channels
- Facial recognition, RFID, and BACnet/Modbus smart building integration
- Anti-panic exit hardware integration (EN 1125 / ANSI Grade 1 crash bars)
From Architectural CAD to Site Handover: 5-Stage Execution
Ensuring zero discrepancy on high-stakes residential and commercial contracts through transparent shop drawings, pre-assembly quality control, and export-grade protective crating.
Frequently Asked Technical & Logistics Questions
Direct answers to commercial specifications, regional code approvals, structural load requirements, and custom manufacturing constraints.
Request Engineering Dossier & Factory-Direct Quotation
Connect with Guangdong Dejiyoupin's facade engineering desk. Submit your door schedules, architectural elevations, or structural requirements for rapid CAD layout review, thermal calculations, and certified B2B export pricing within 24 hours.
