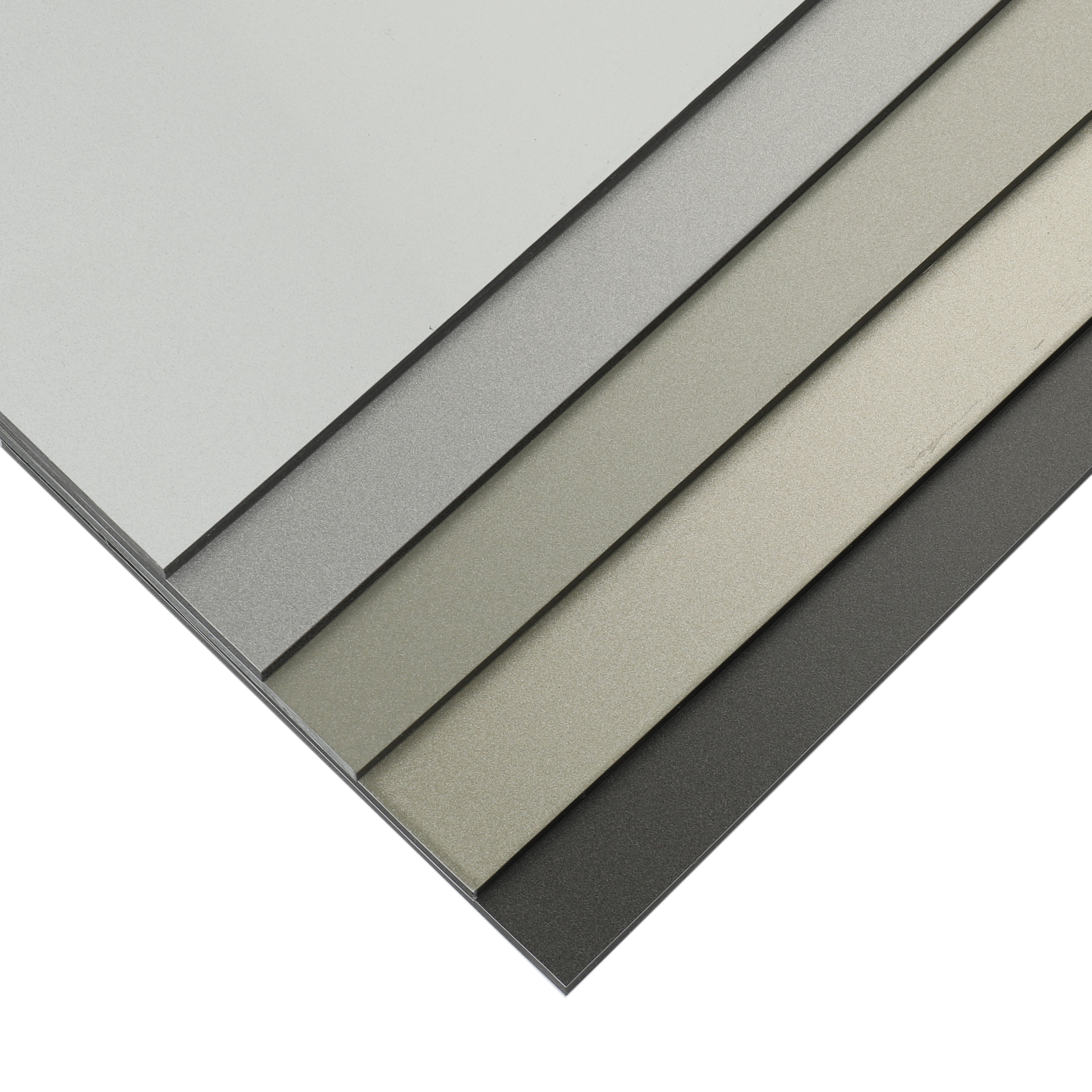

Alucom 4x8 Feet 3mm Acp Toyo Fireproof Antibacterial Aluminum Core Composite Clading Sheets Panel Outdoor Doors 1 Year Warranty
Product Description
Product Parameters

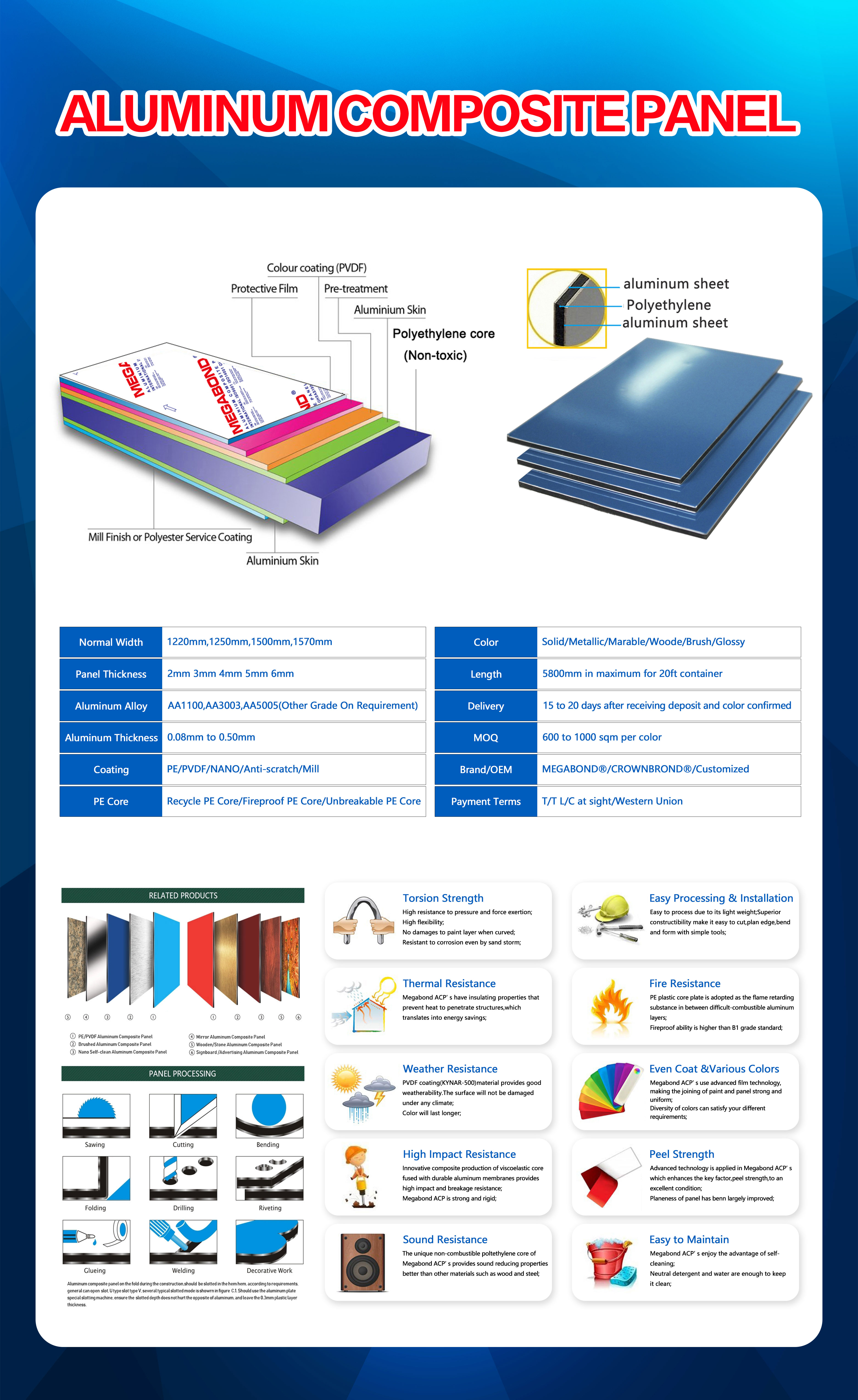

PVDF COATING Aluminum Composite Panel

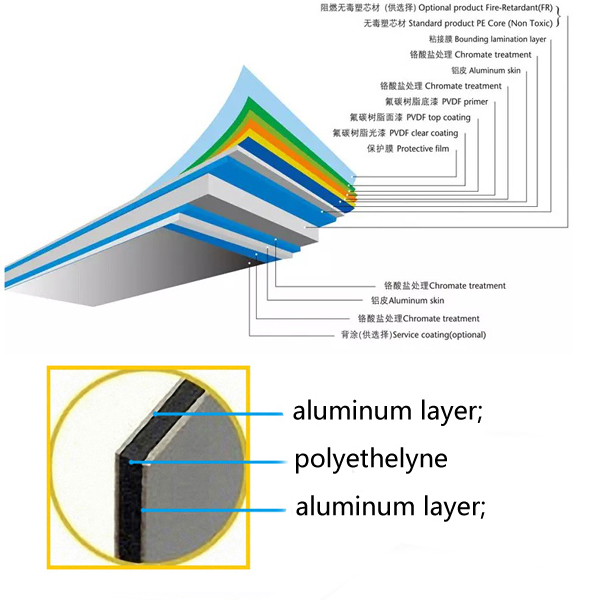

The aluminum-plastic composite panel is composed of multiple layers of materials. The upper and lower layers are high-purity aluminum alloy plates, and the middle layer is non-toxic low-density PE core board. The front side of the board is also coated with a protective film. For outdoor applications, the front of the aluminum-plastic plate is coated with PVDF, while for indoor uses, the front can be coated with non-fluorocarbon resin.
Products Description
| Front side | Aluminum Alloy(3003) coated with Fluorin carbon resin (PVDF) or Polyester resin (PE) roasting painting |

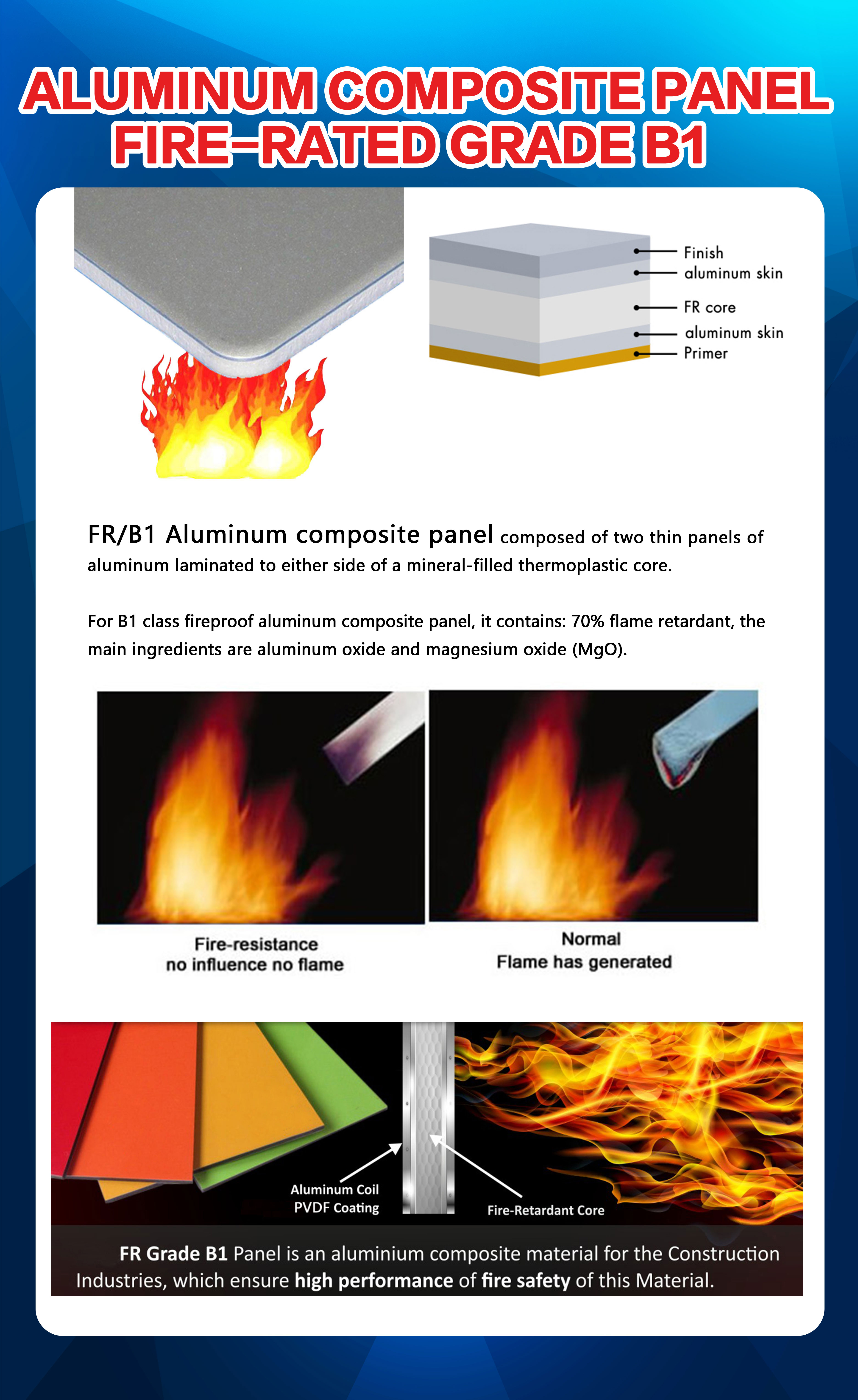

| Core | Non-toxic polyethylene or Plastic fireproof materials(B1/A2) |
| Back side | Aluminium alloy sheet coated with polyester resin painting |
| Panel Thickness | 2mm, 3mm, 4mm, 5mm, 6mm are available |
| Alu thickness | 0.5mm, 0.4mm, 0.3mm, 0.21mm, 0.18mm, 0.15mm, 0.12mm, 0.1mm, 0.06mm |
| Width | 1220mm(regular), 1250mm, 1300mm, 1500mm, 1550mm, 1570mm, 1575mm(Maximum) |
| Length | 2440mm(regular), and or by customer’s offers, 5800mm(Maximum) |
| Standard size | 1220(Width)x2440(Length)x3mm(Thickness); 1250(Width)x2440(Length)x4mm(Thickness); |
| Surface Finish | MIRROR, MARBLE IMITATION, WOOD IMITATION, BRUSH, PVC FILM, PP FILM, PEARL SERIES, GLOSSY SURFACE, MATT SURFACE |
| Core material | (Normal non toxic polyethylene, one side unbroken polyethylene, two side unbroken polyethylene, virgin LDPE,) B1 non-combustible mineral filled core, A2 non-combustible mineral filled core |
| Coating | PE COATING, PVDF COATING, FEVE COATING, ANODIZED COATING |
| Standard | According to China National Standard GB/t 17748-2016 |
Technical Data of PVDF Aluminum Composite Panel
| Thickness of coating | PVDF paint ≥25 um | 26um to 28um |
| Coating Flexibility (T-bend) | PVDF paint ≤2T | 2T |
| Coating Adhesion | ≤1 grade for 10*10mm2 gridding test | 1 grade |
| Pencil Hardness | ≥HB | HB |
| Resist Solvent | No change for 200 times (MEK) | No change |
| Chemical Resistance | 5%HCL or 5%NAOH-No change for 24hours | No change |
| Boiling Water Resistance | coating no tear off for 2 hours boiling | no tear off |
| Color difference | ΔE≤2.0 (follow color sample) | 0.5 |
| Panel Peeling Strength | 7 N/mm for 4mm panel with 0.5mm aluminium skin | 7N/mm |
| Impact Test for paint | 50Kg.cm impact--paint no split for panel | no split |
| Abrasion Resistance(L/Mil) | ASTM D968 | 44 |
| Chemical Resistance | ASTM D1308 | Appearance: No change |
| Film Adhesion | ASTM D3359(Note 1) | 5B |
| Detergent Resistance(3%) | ASTM D2248 | Appearance: No change |
| Stripping Strength(kgf/inch) | ASTM D903 | 18.5 |
| Humidity Resistance | ASTM D2247 (3000hrs, 100%RH, 100°F) | Appearance: No change |
| Salt Spray Resistance | ASTM B117 (3000hrs, 5% salt) | Appearance: No change |

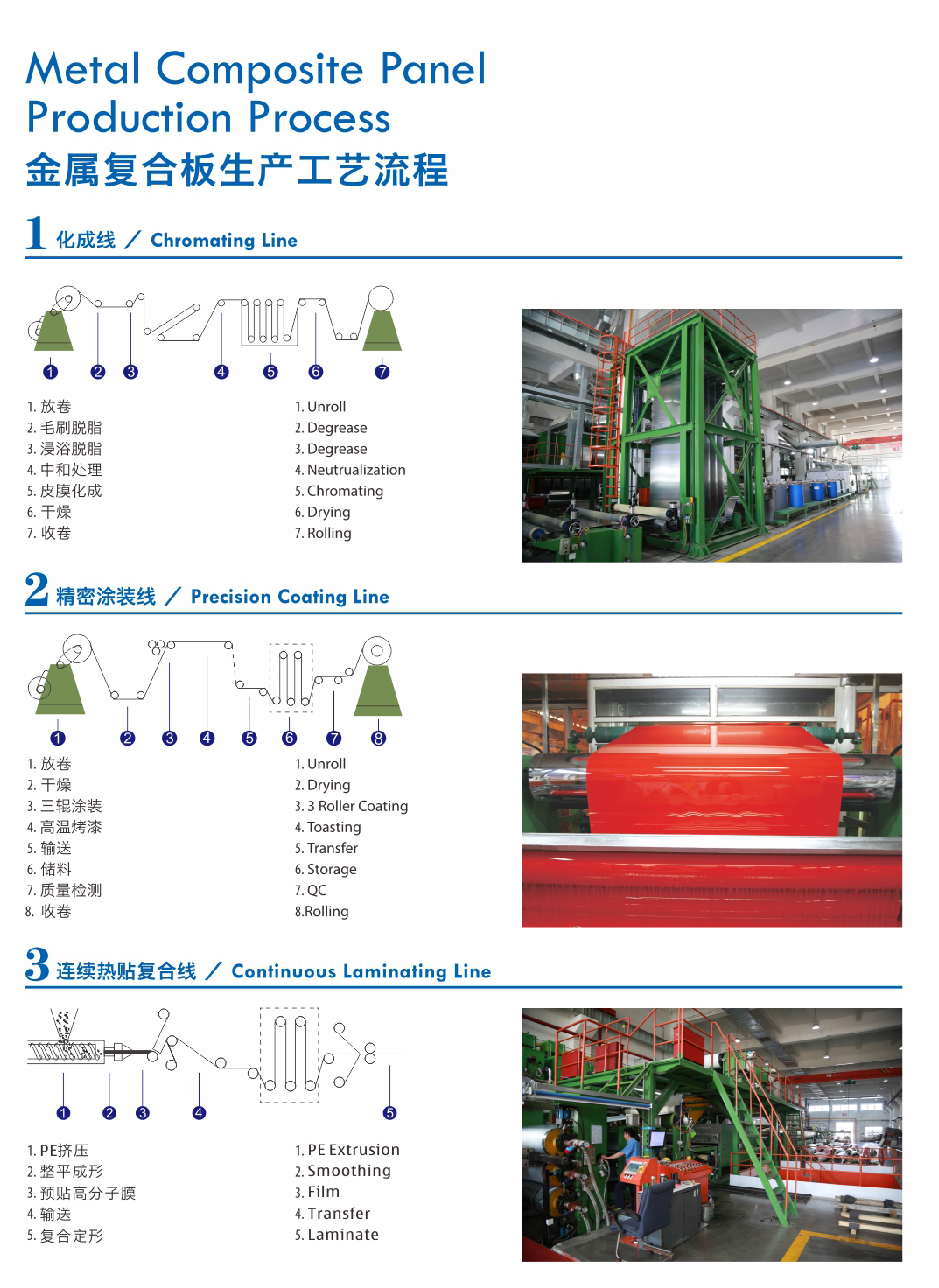

Manufacturing Process

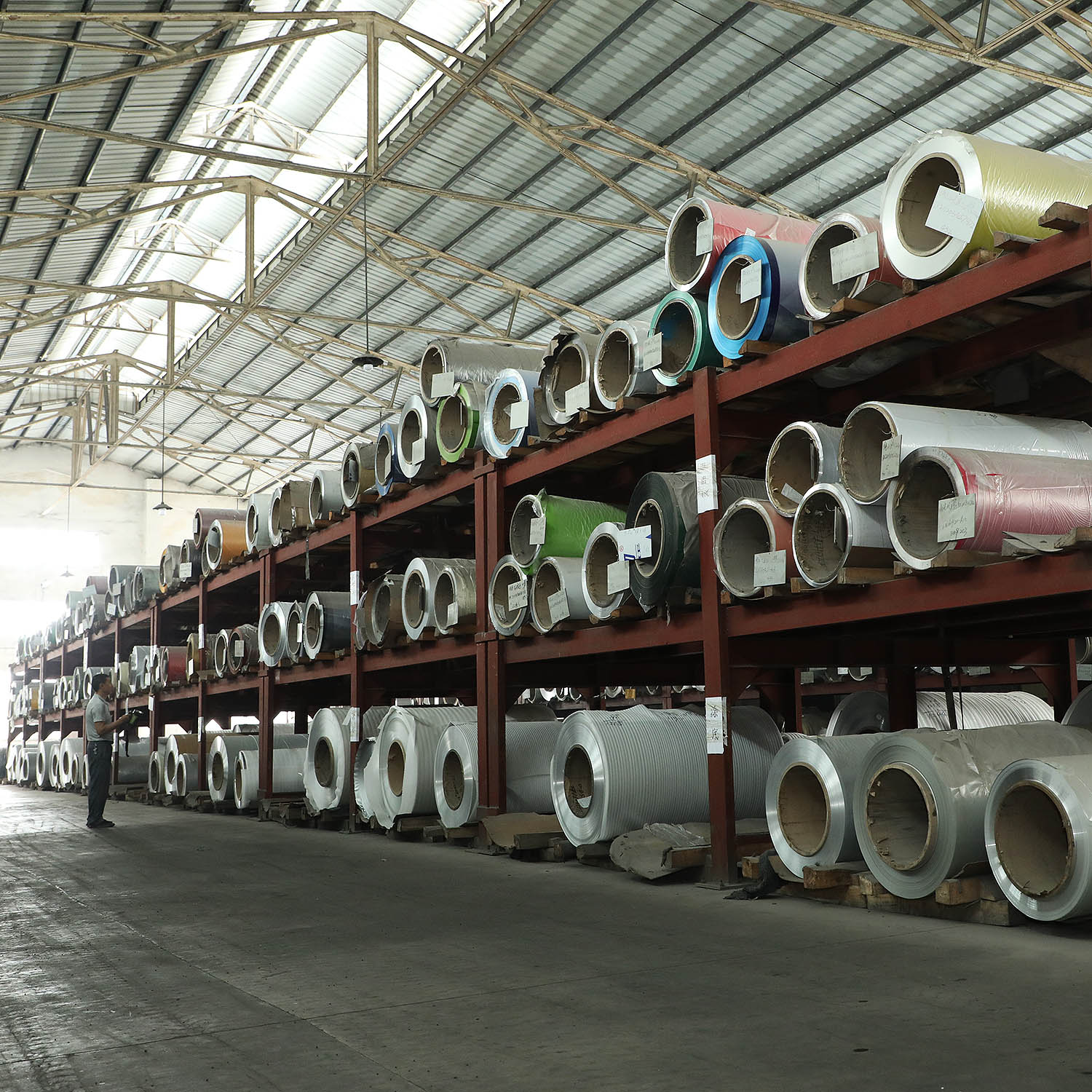

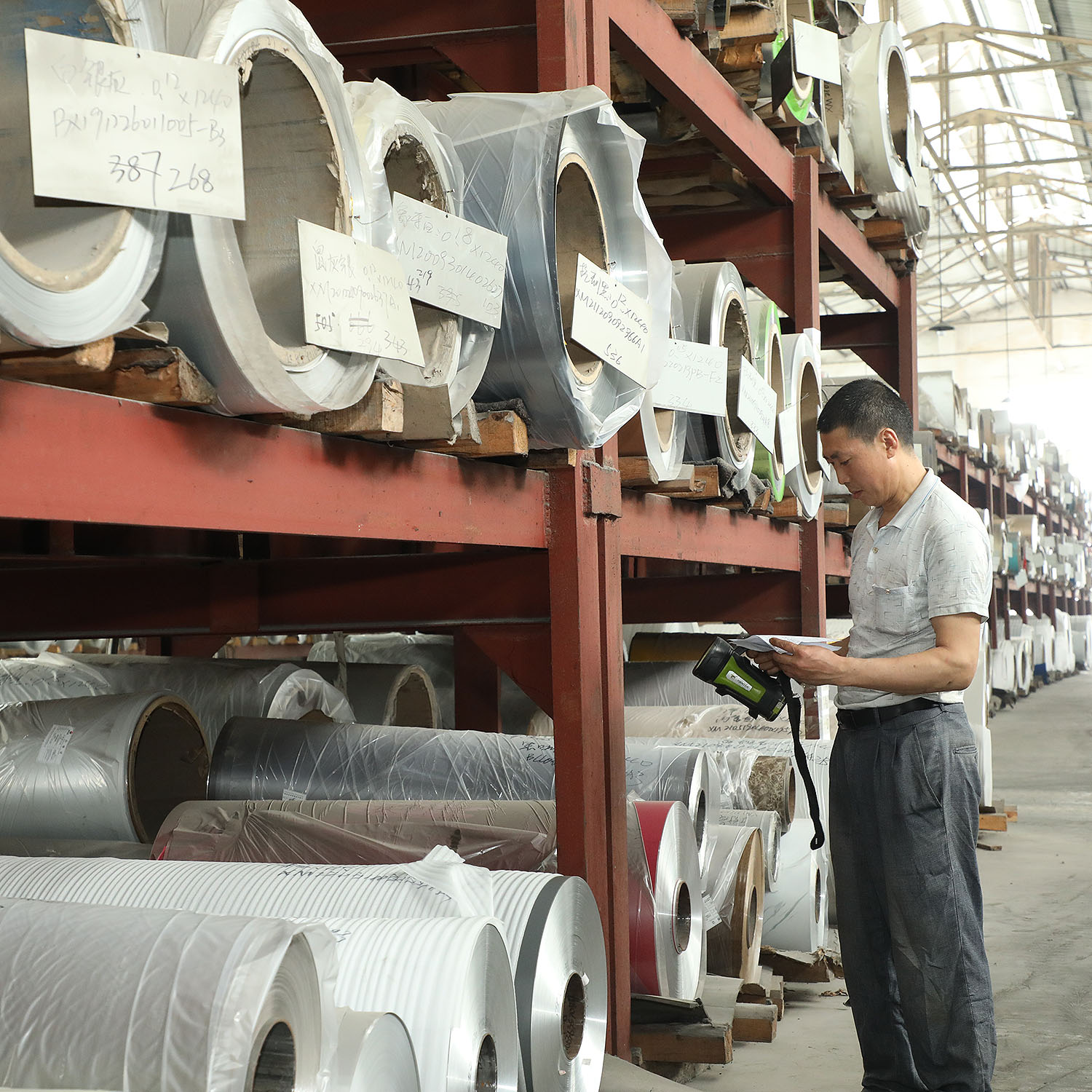

Aluminum Coils

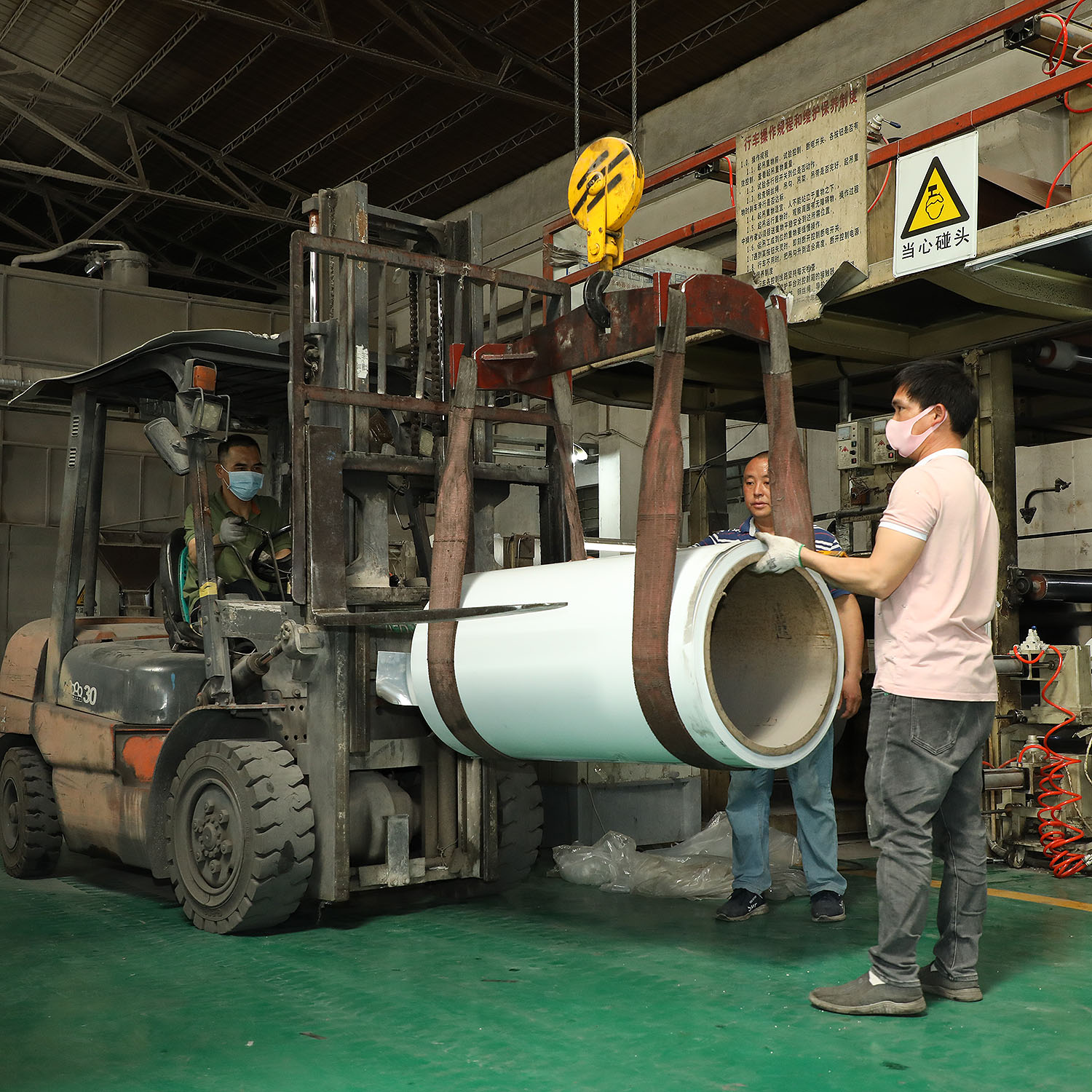

Coils Transfer

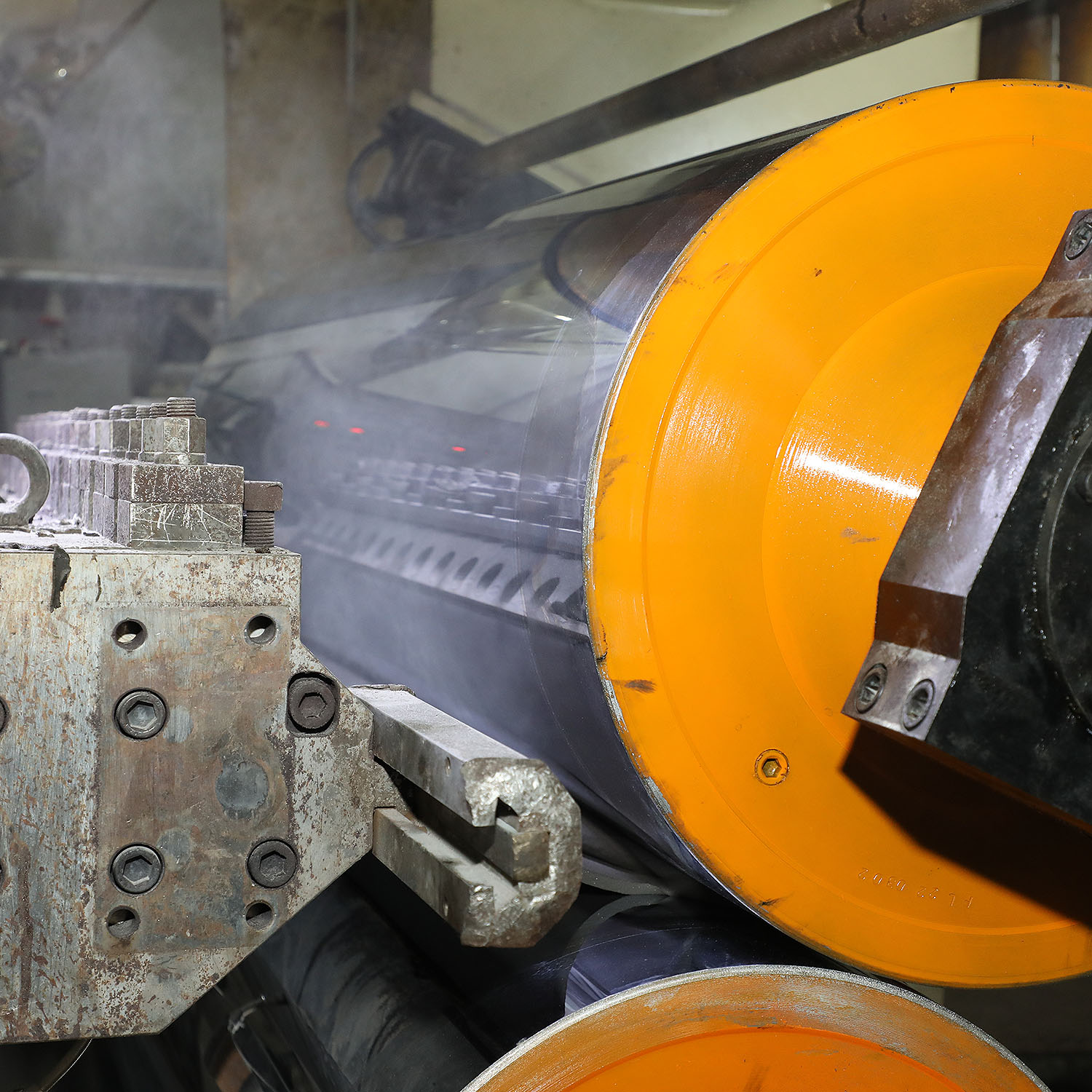

PE Extrusion

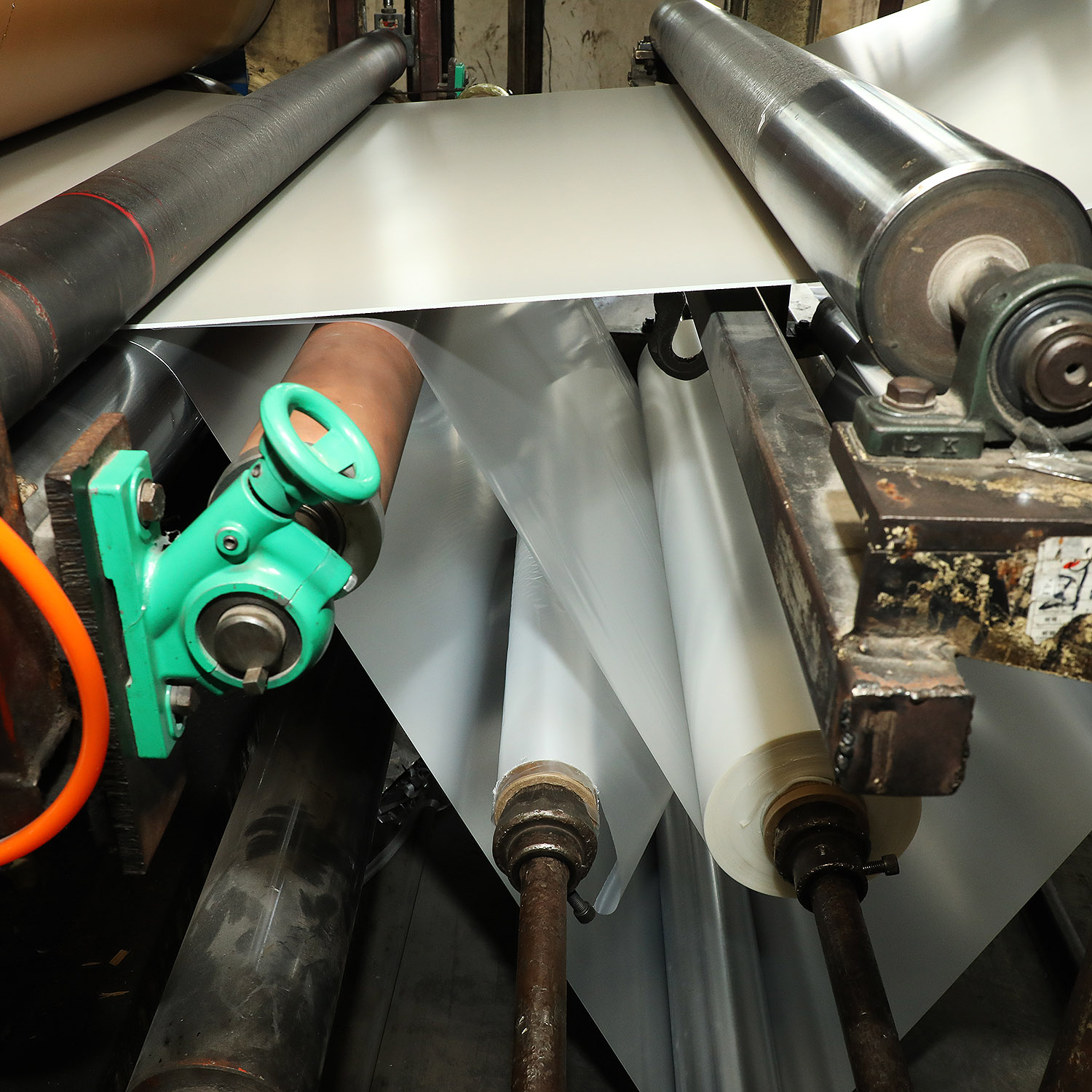

Poly Film Lamination

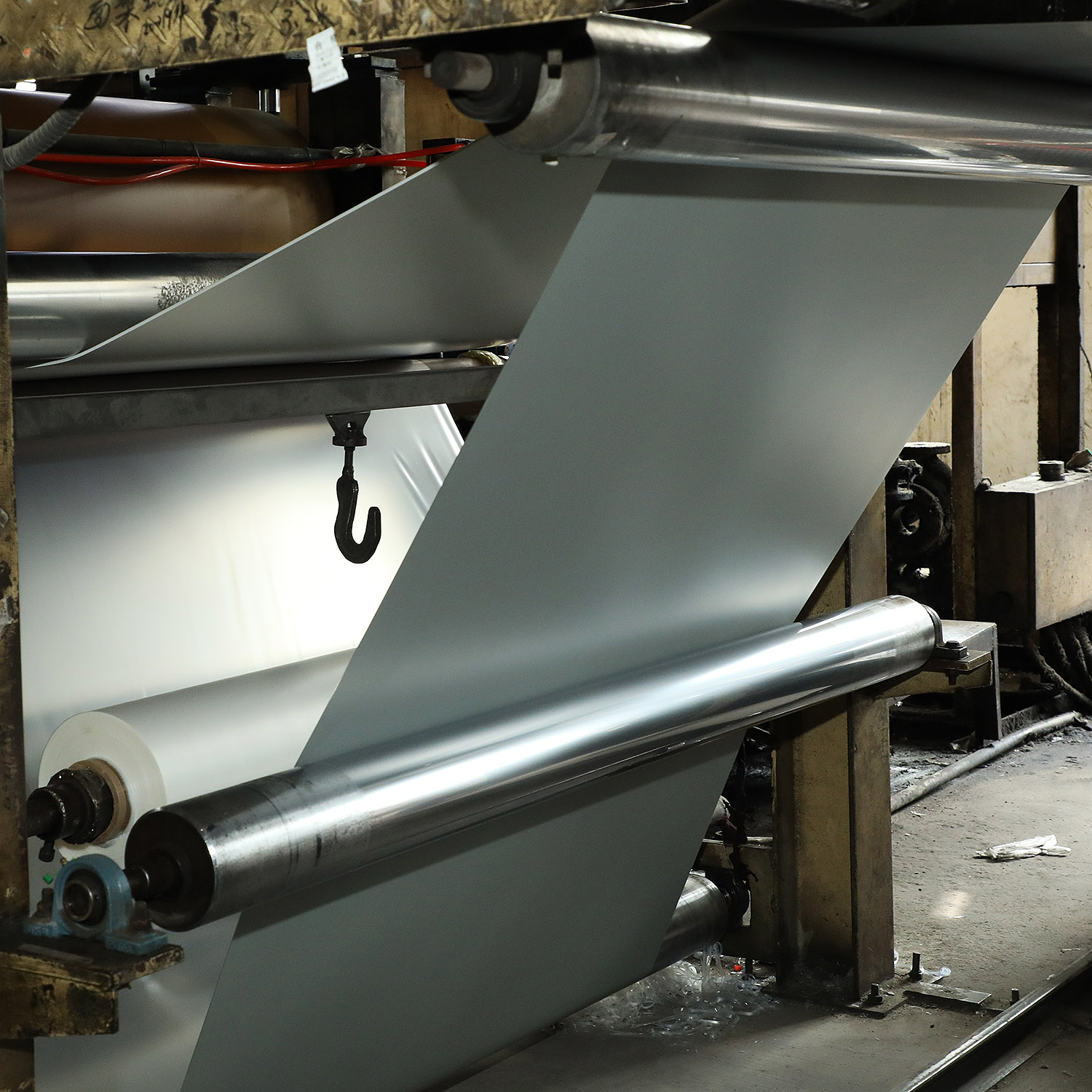

Composite

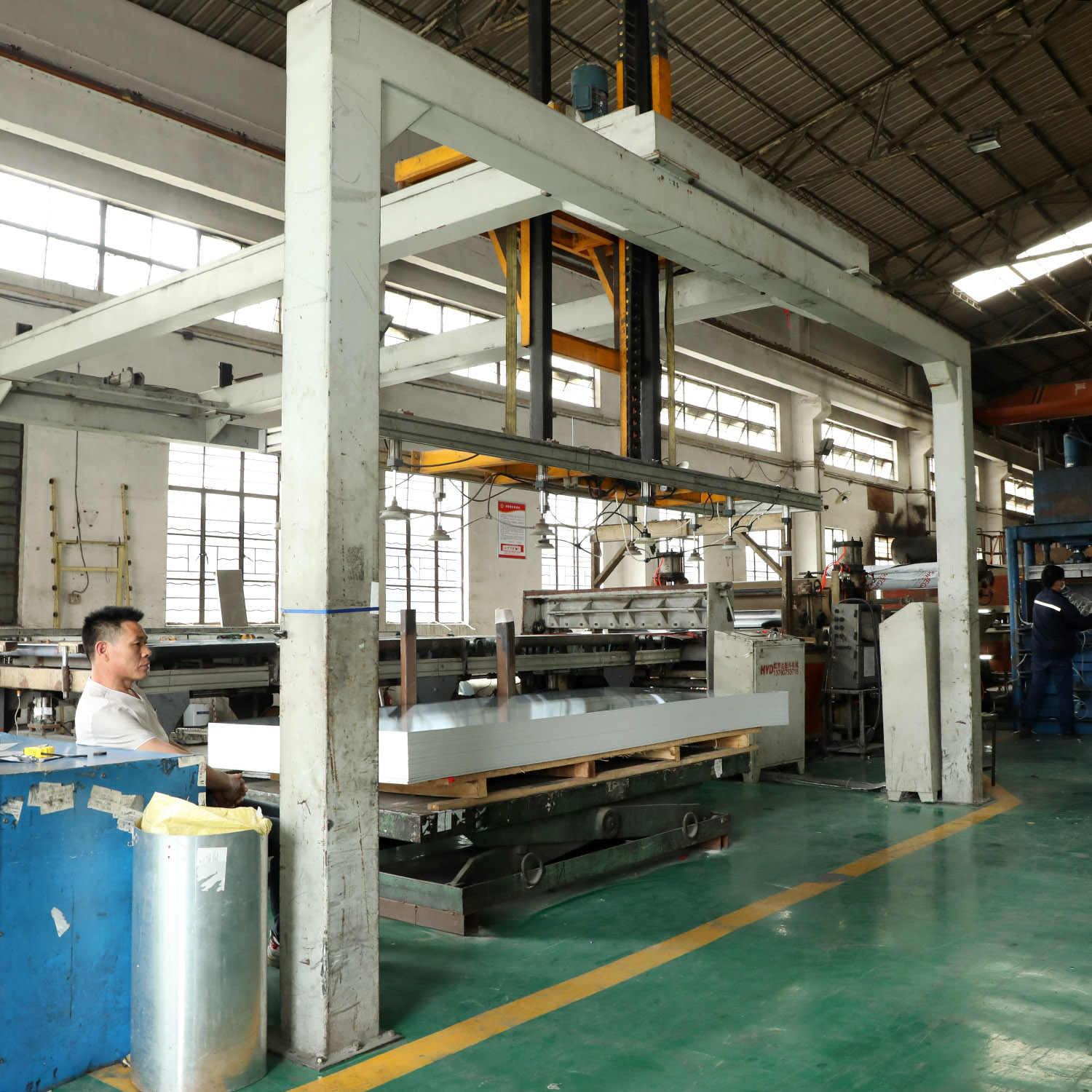

Trim and Cutting
Products Testing

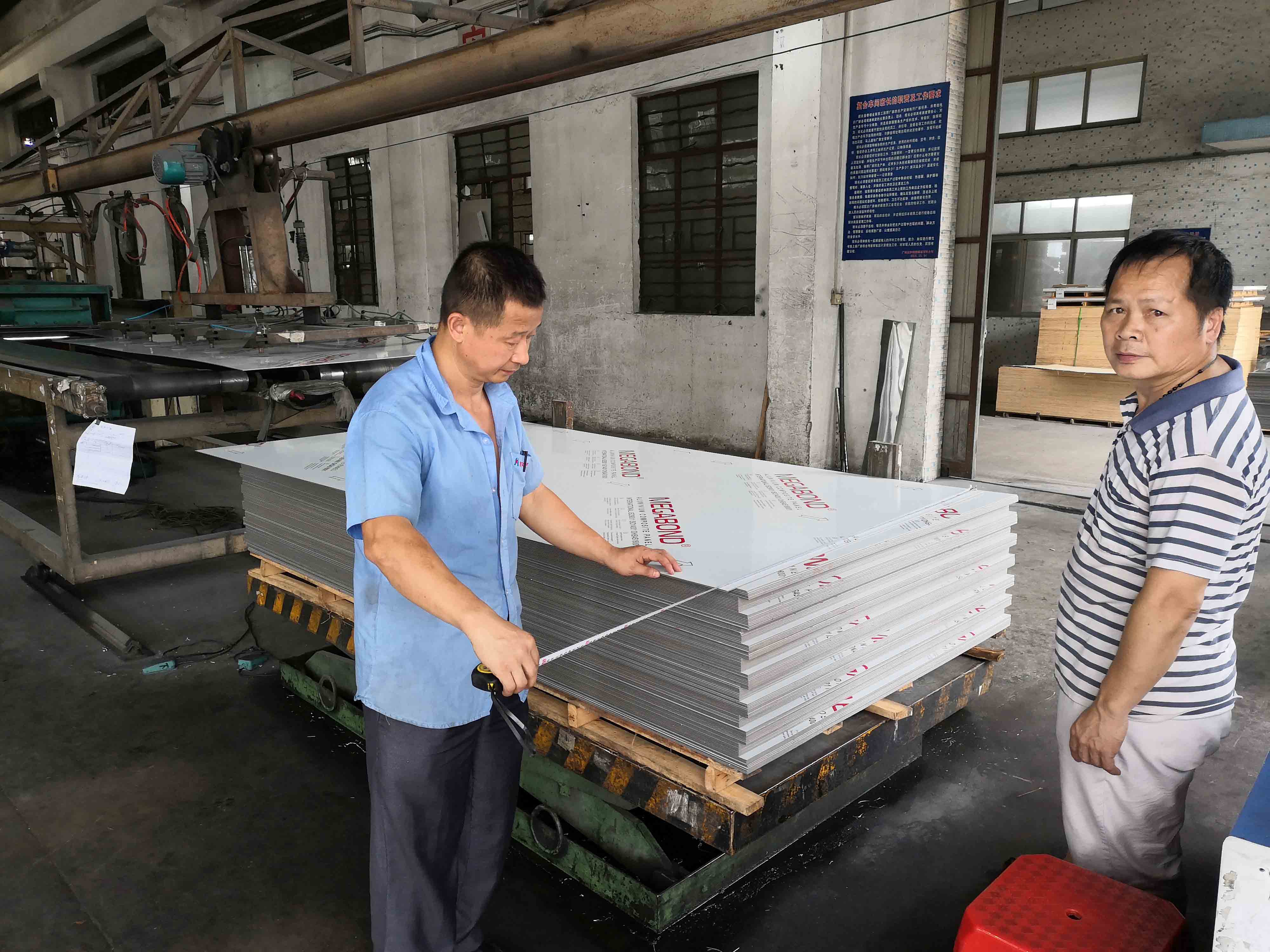

Width Checking

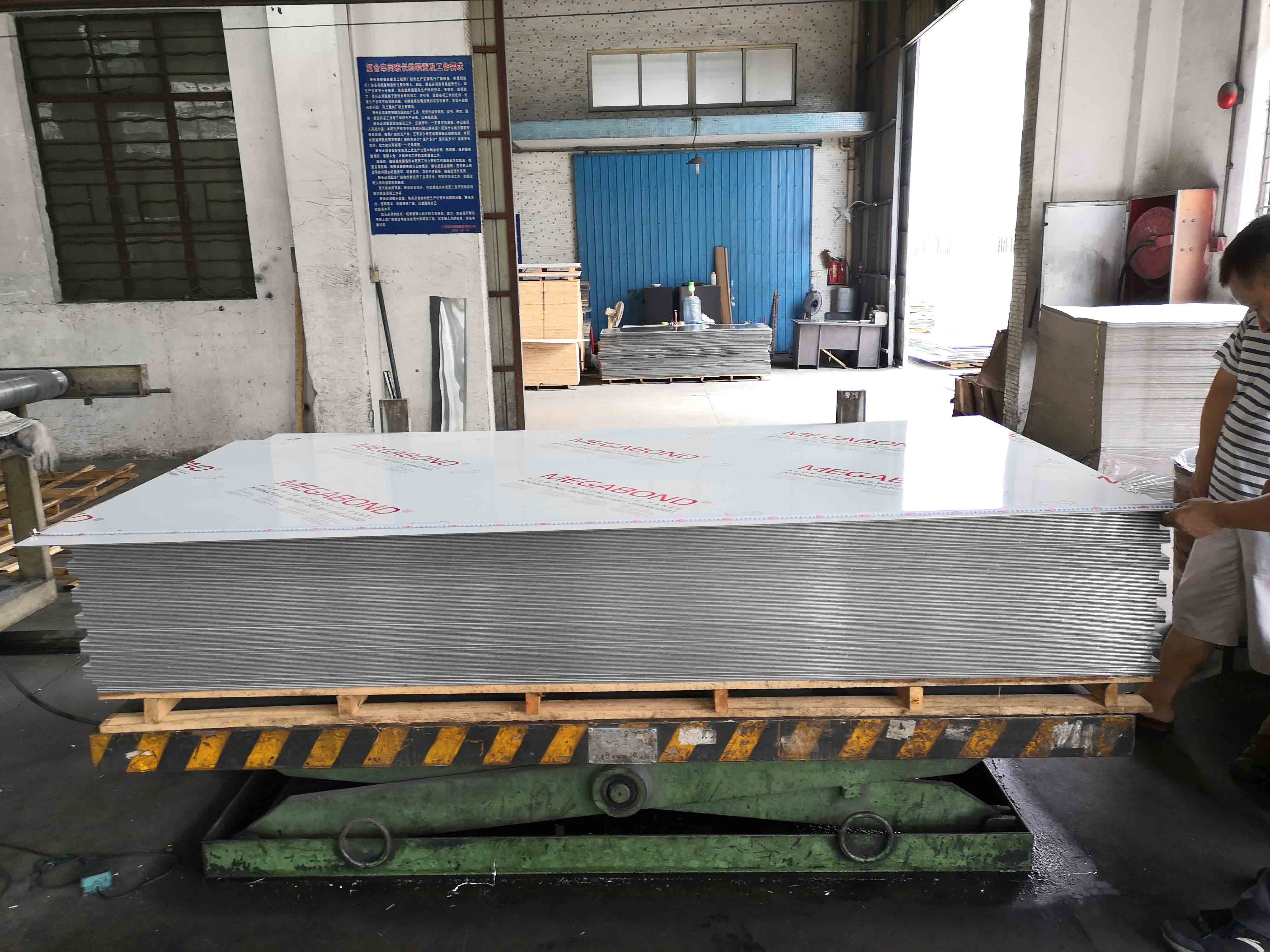

Length Checking

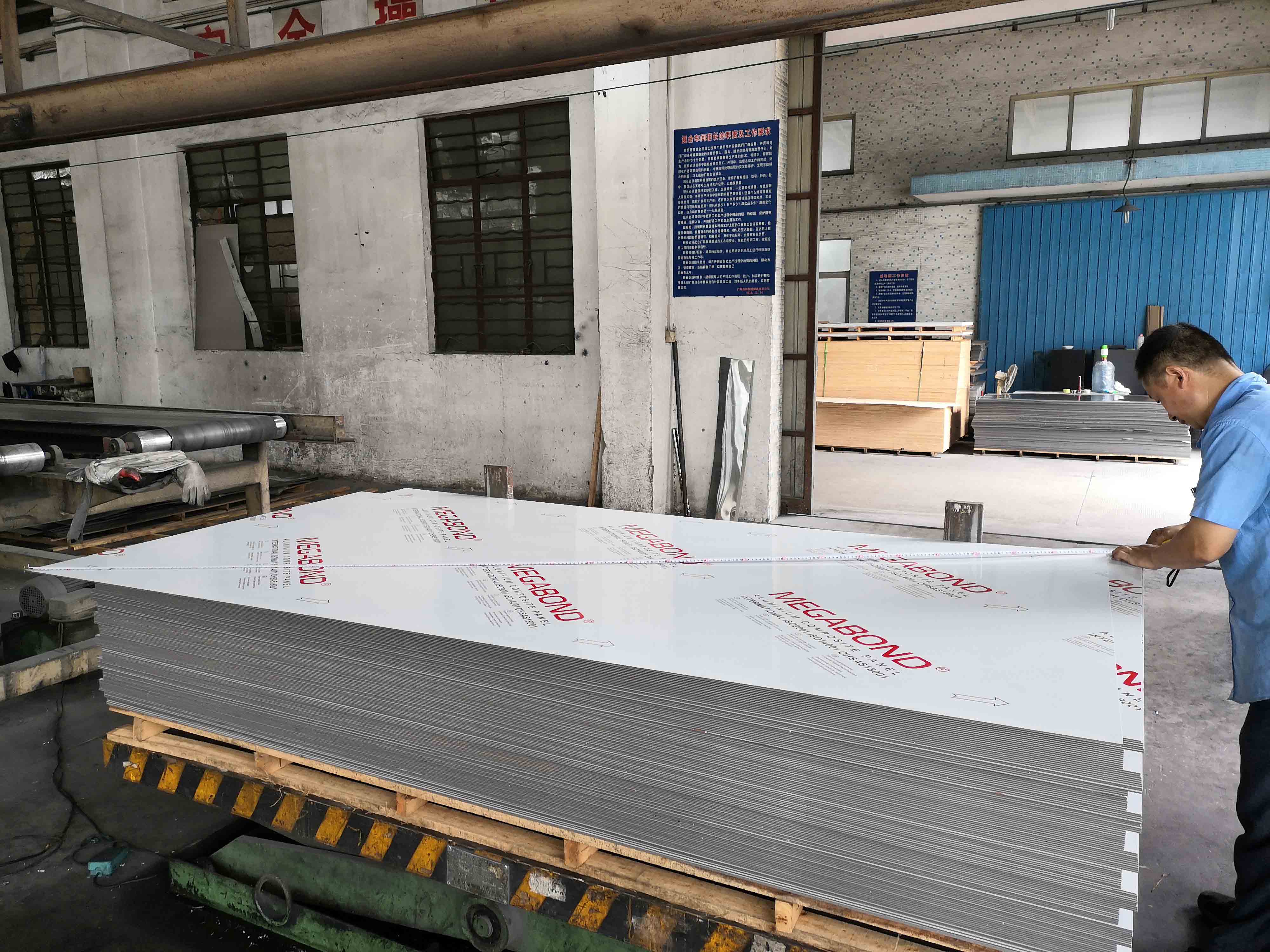

Diagonal Line Checking

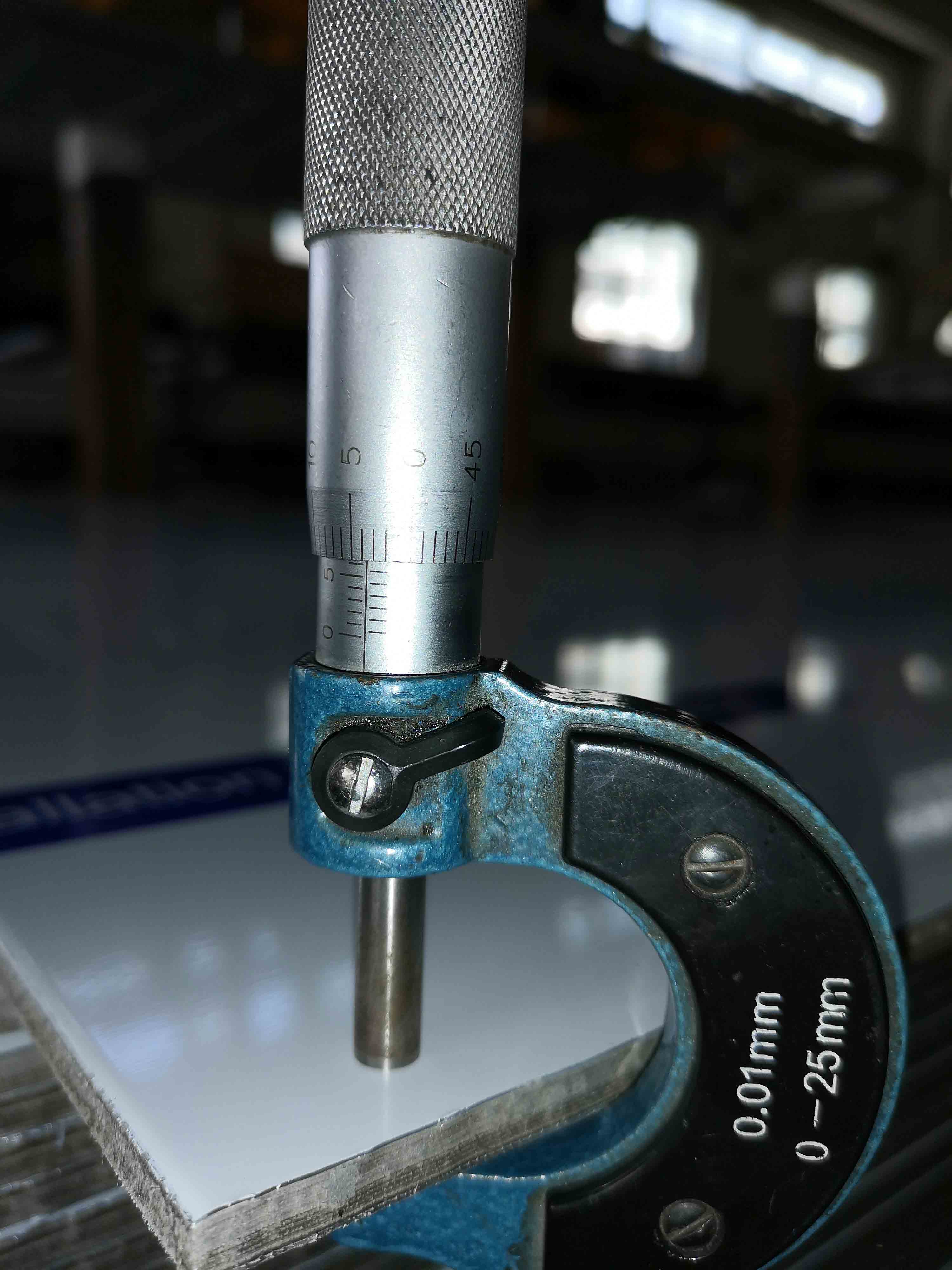

Thickness Checking

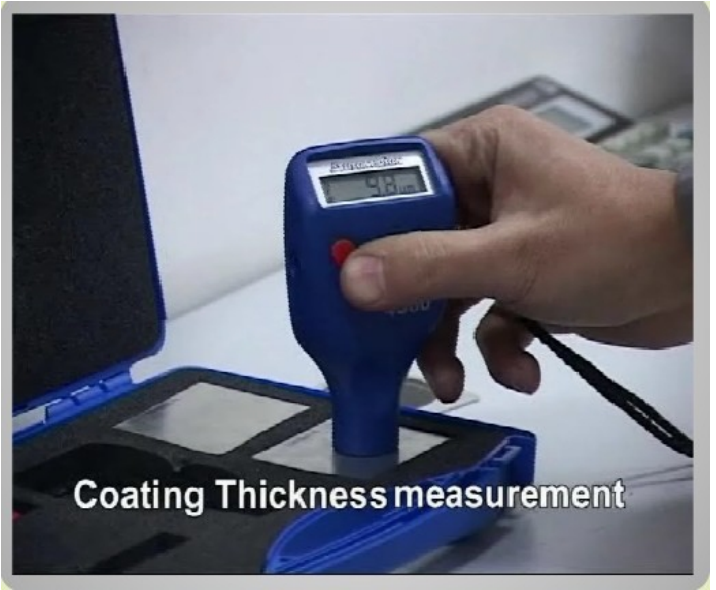

Coating Thickness Measurement

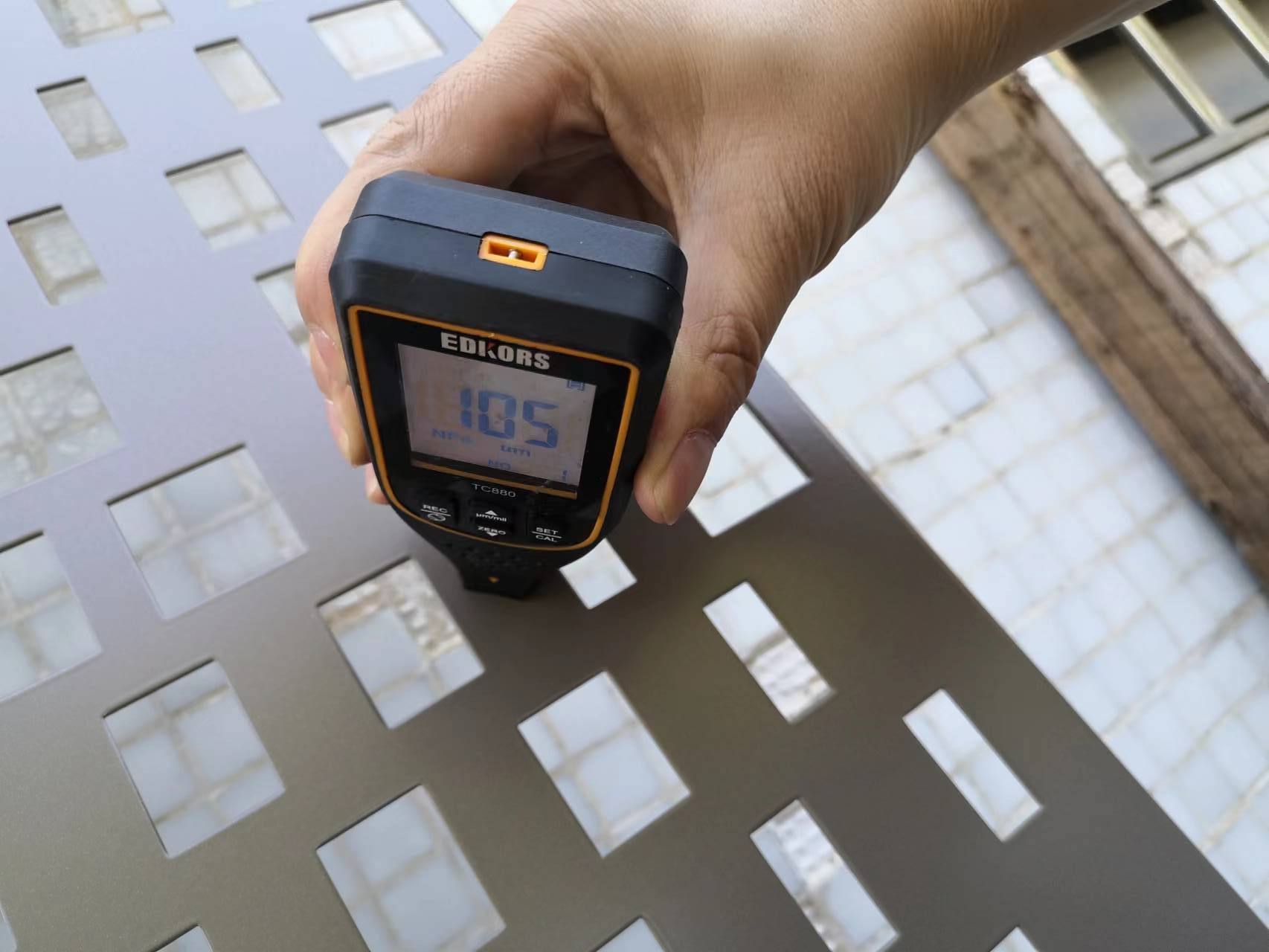

Color Deviation Delta E Testing

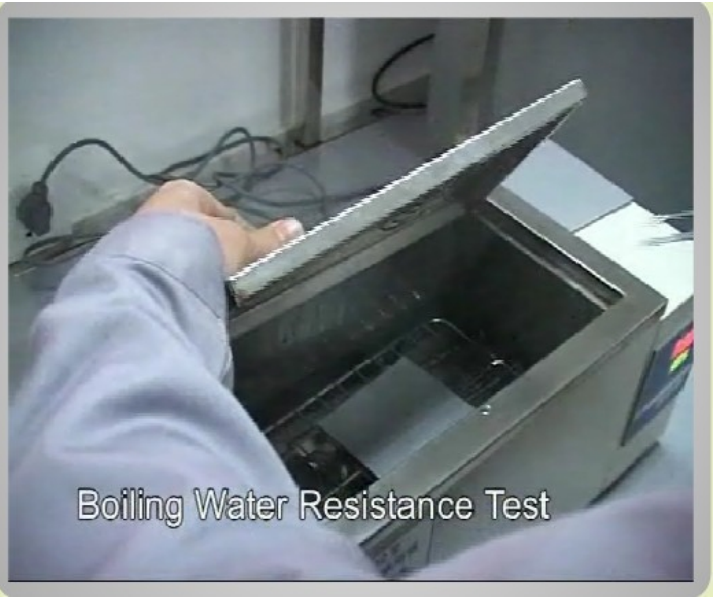

Boiling Water Resistance Test

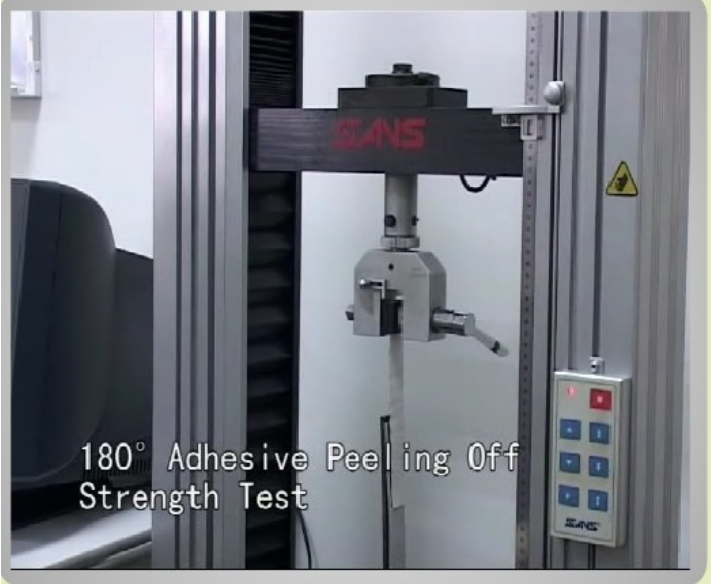

180° Peeling Off Strength Test

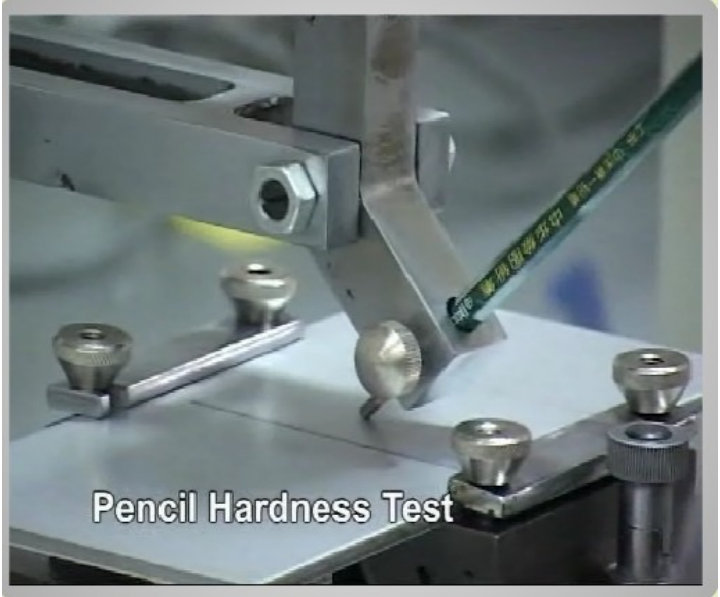

Pencil Hardness Testing

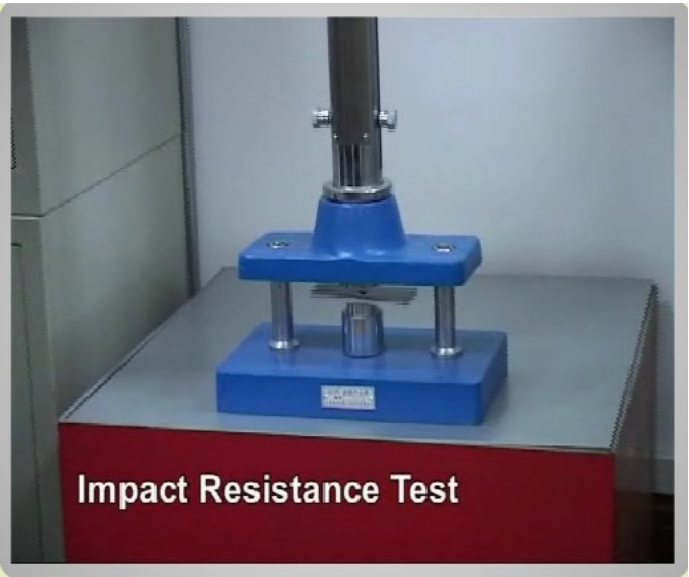

Impact Resistance Test

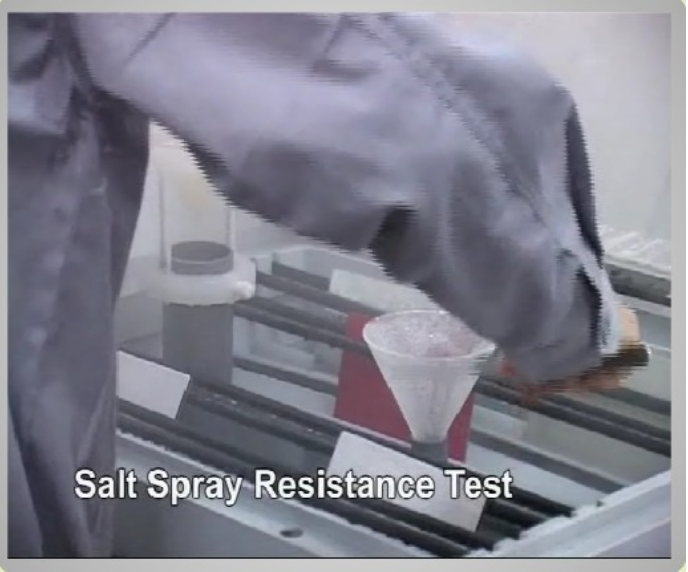

Salt Spray Resistance Test

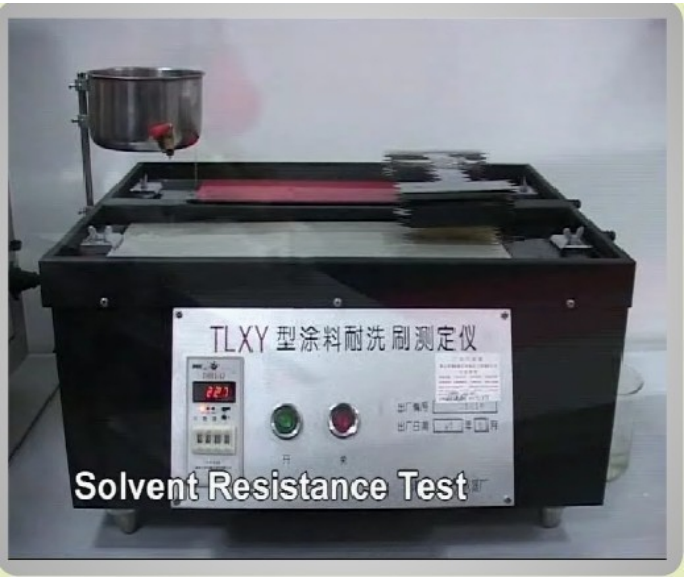

Solvent Resistance Test

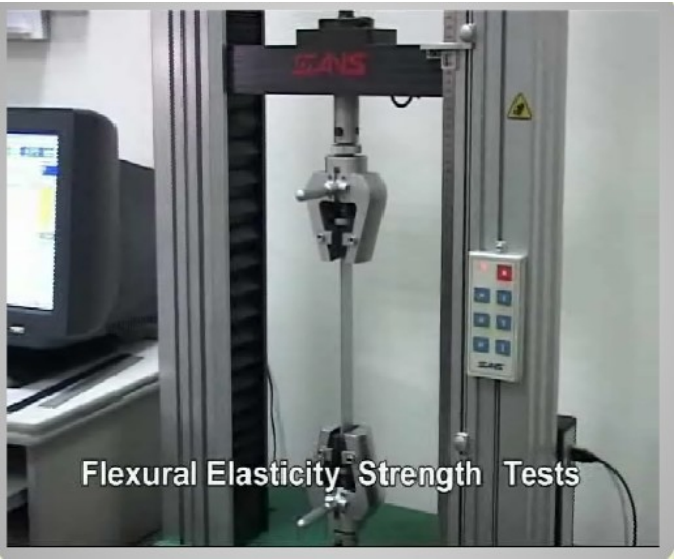

Flexural Elasticity Strength Tests

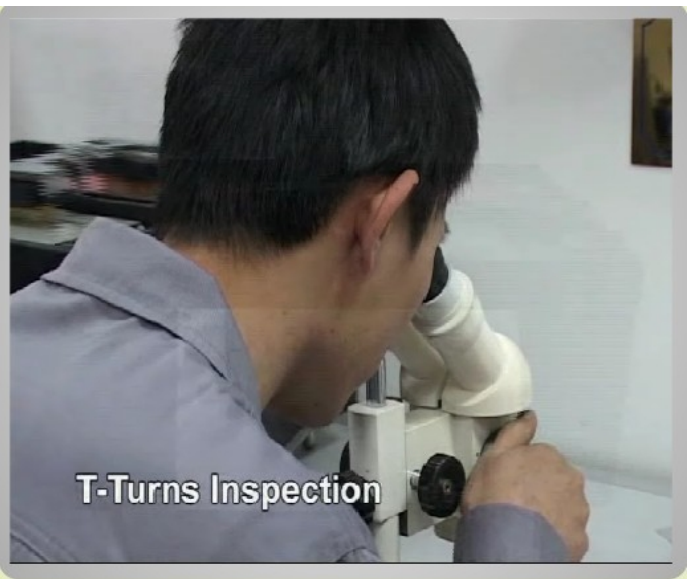

T Turns Testing

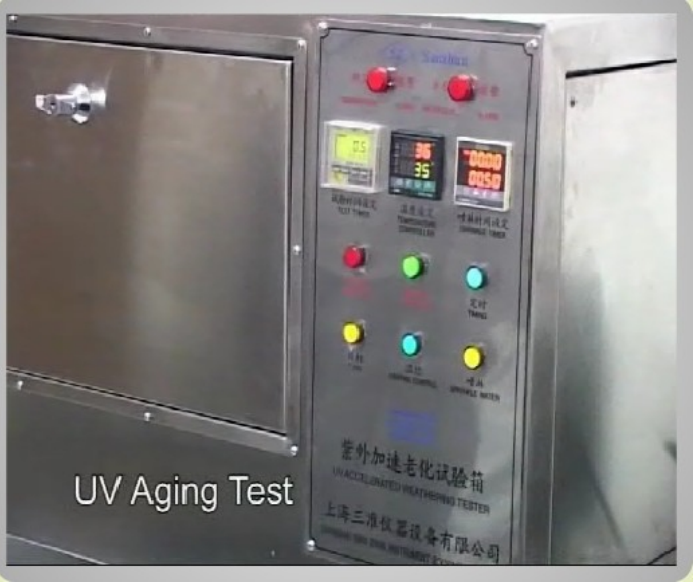

UV Aging Test

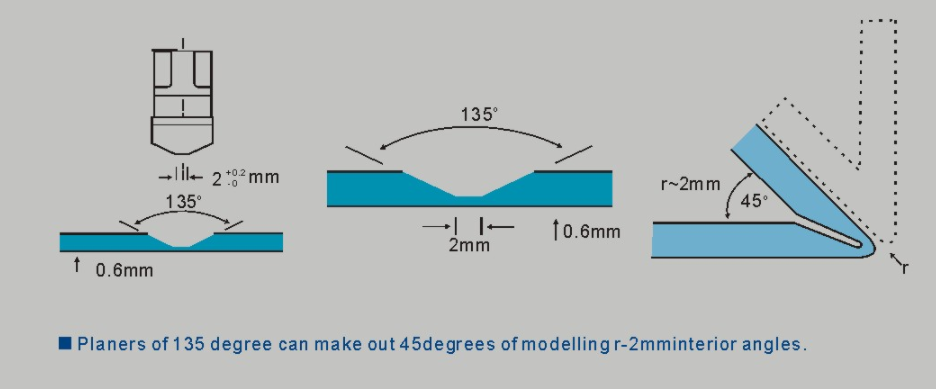

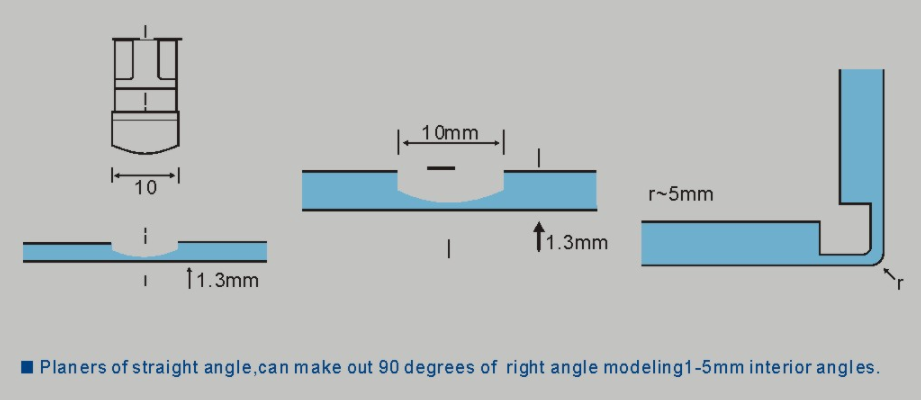

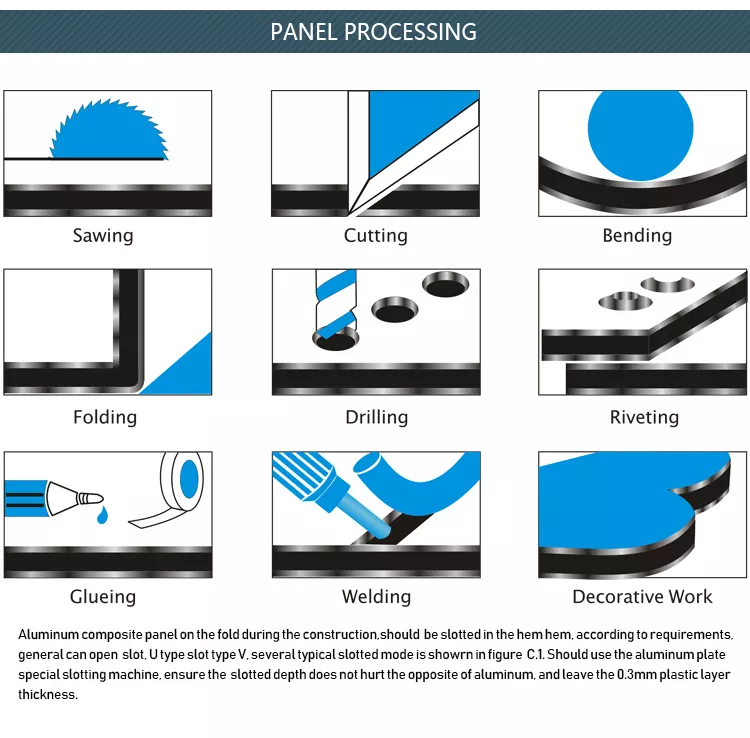

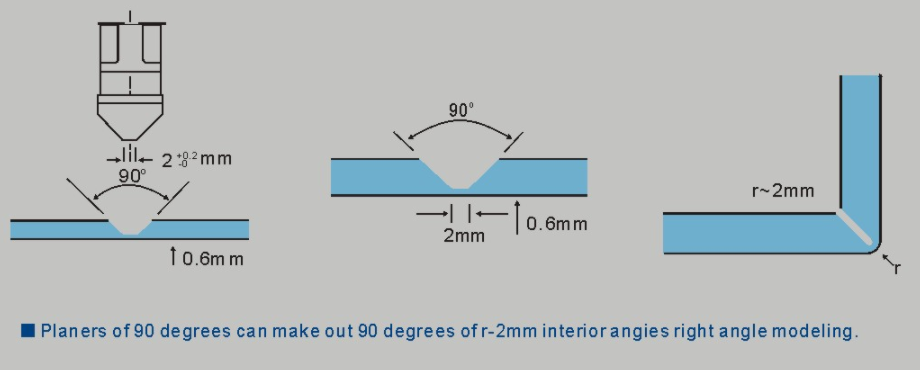

Production & Fabrication

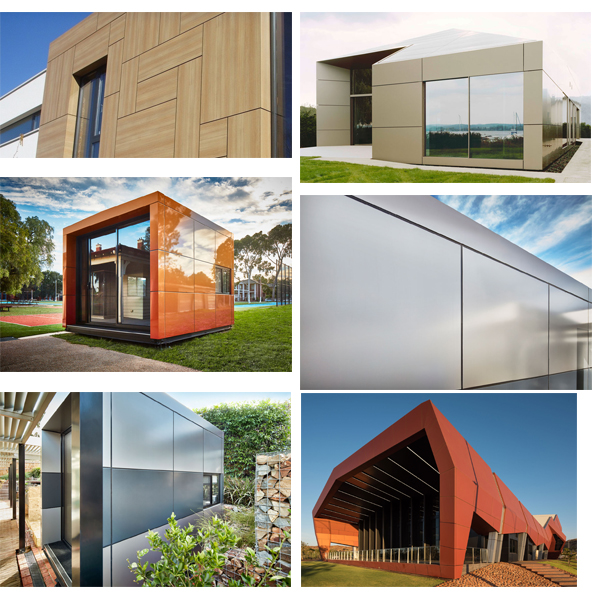

Aluminum Composite Panel Applications
- 1. Constructional exterior curtain walls
- 2. Decorative renovation for store-added old buildings
- 3. Indoors decoration for interior walls, ceilings, bathrooms, kitchens, and balconies
- 4. Galleries, exhibitions, saloons, stores, offices, banks, hotels, restaurants, and apartments
- 5. Advertisement boards, display platforms, and signboards
- 6. Raw materials for industrial purposes
- 7. Materials used for vehicles and boats

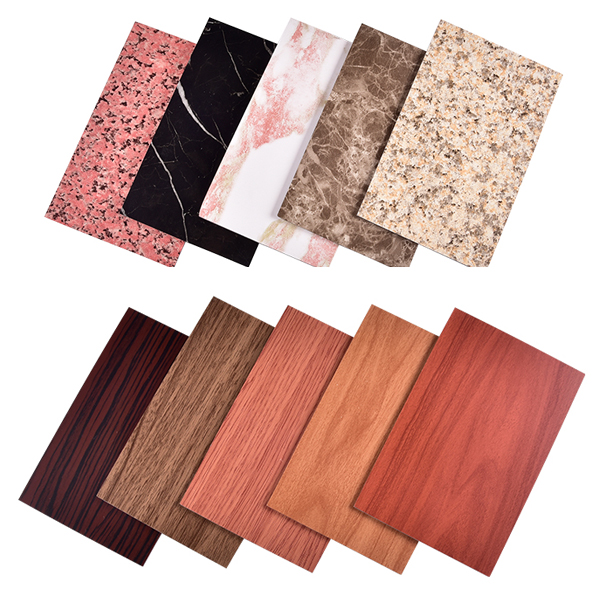

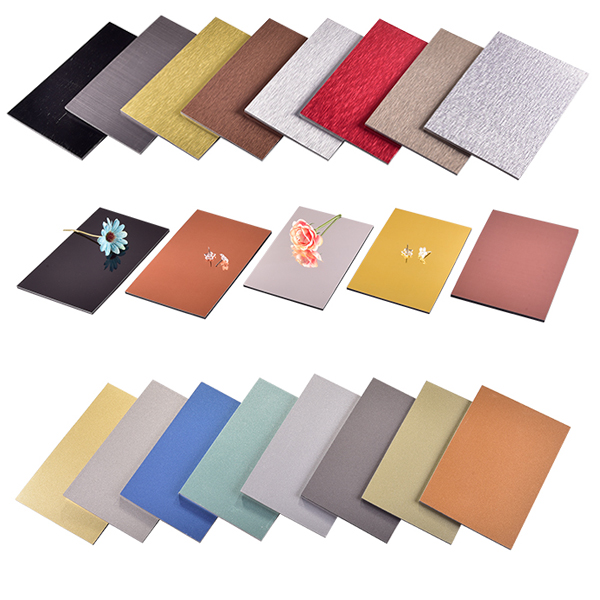

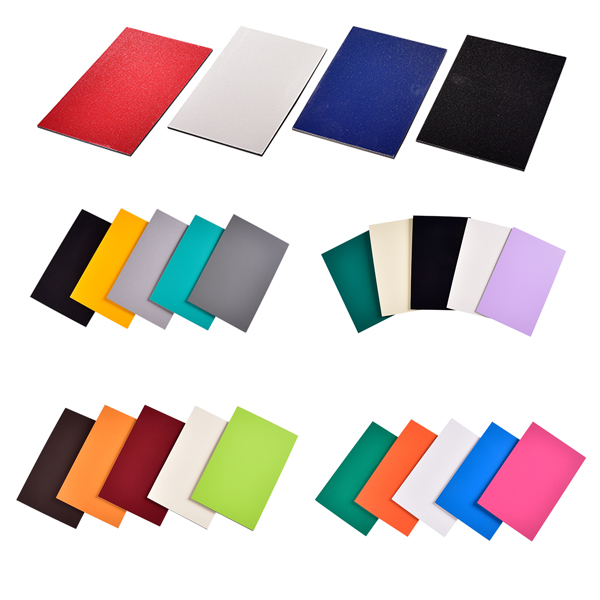

Hot Sale Series

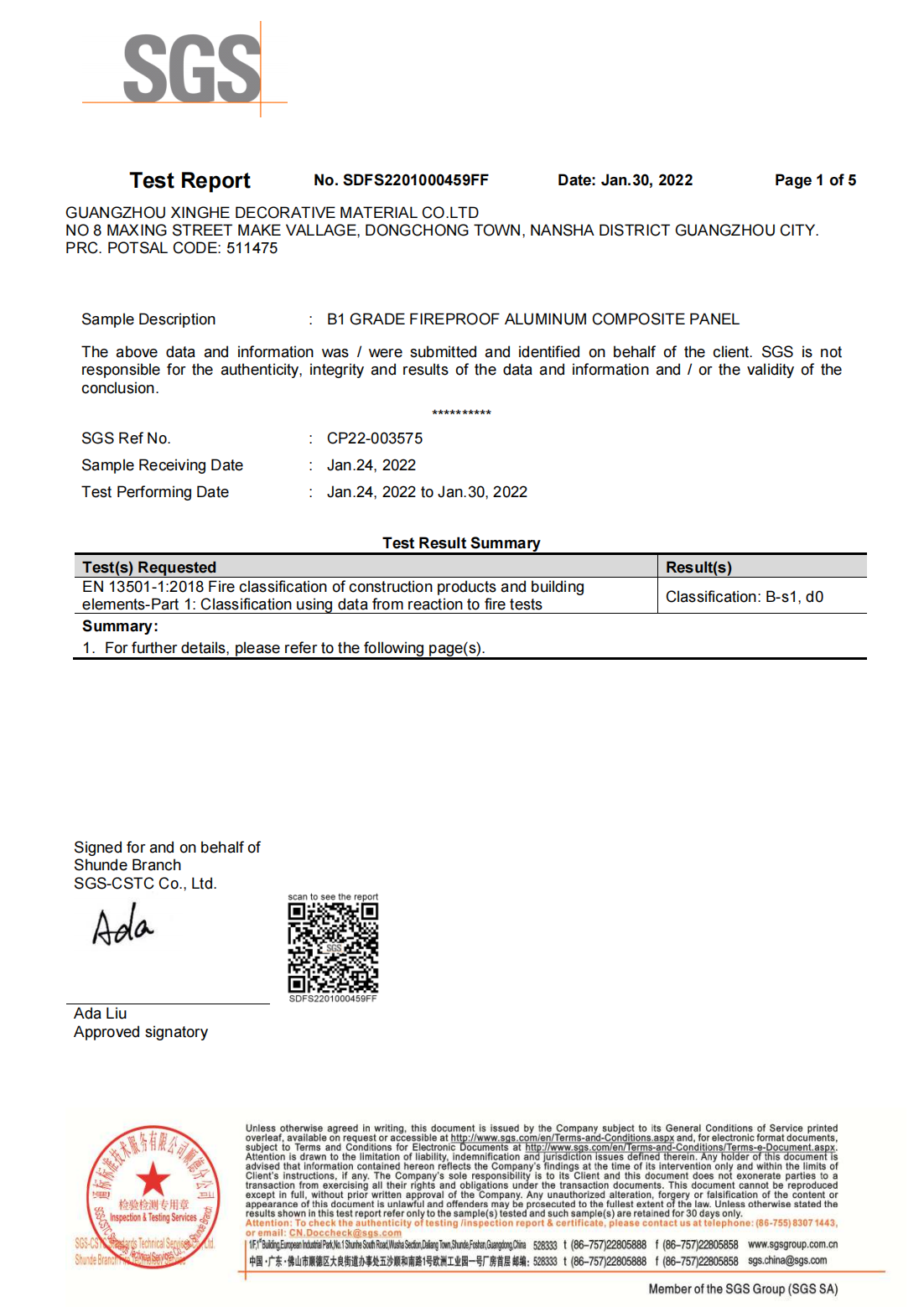

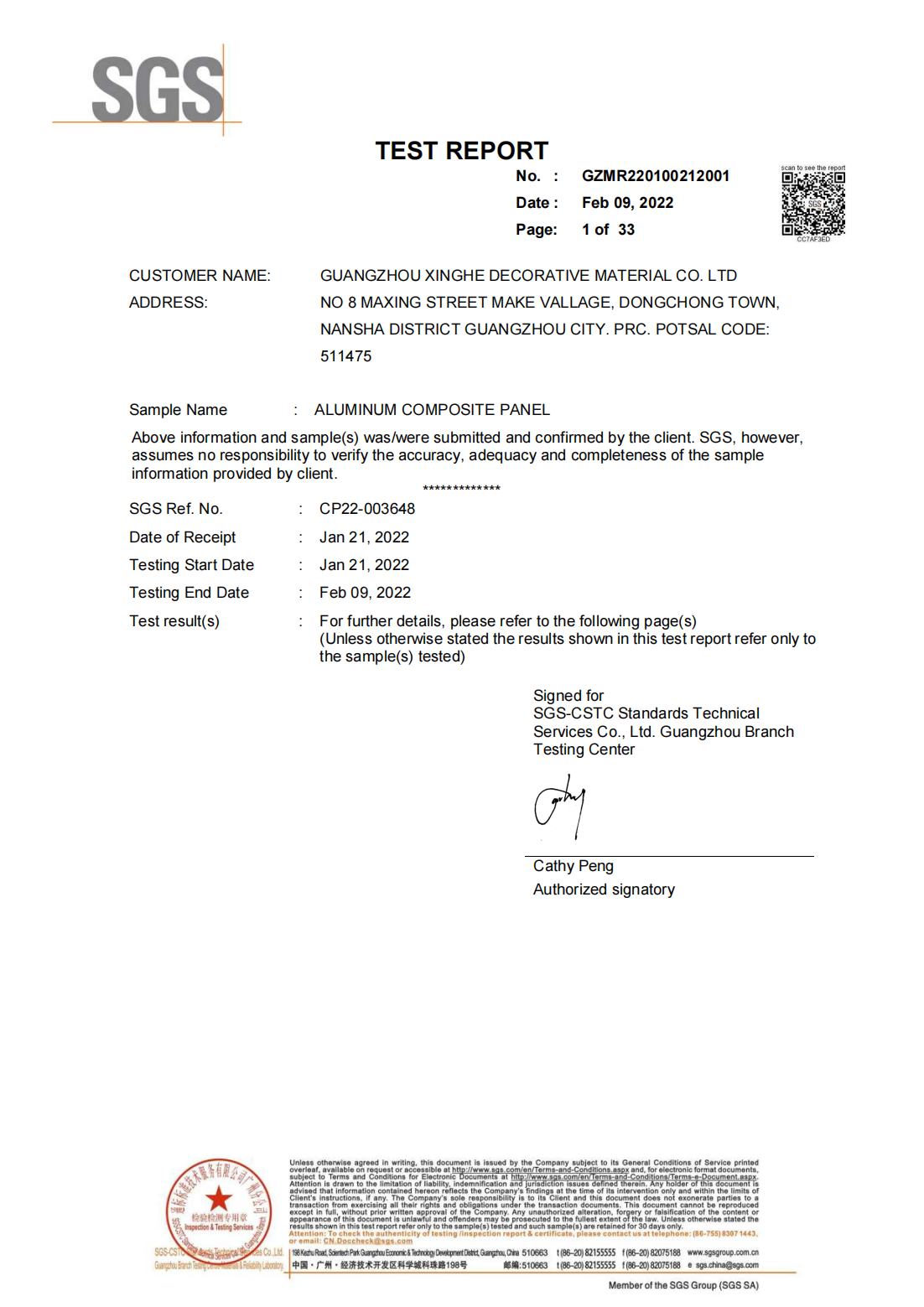

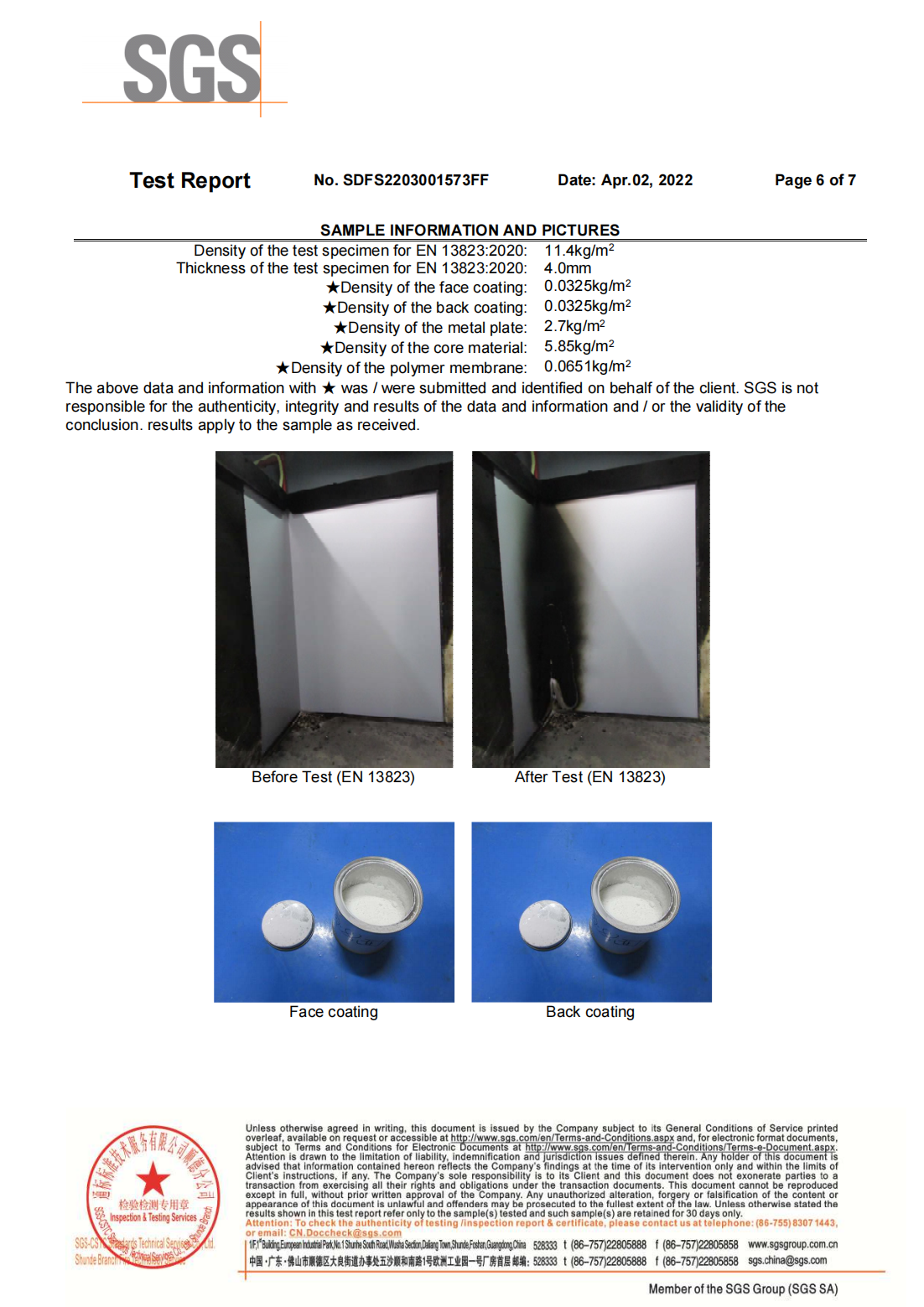

Certifications

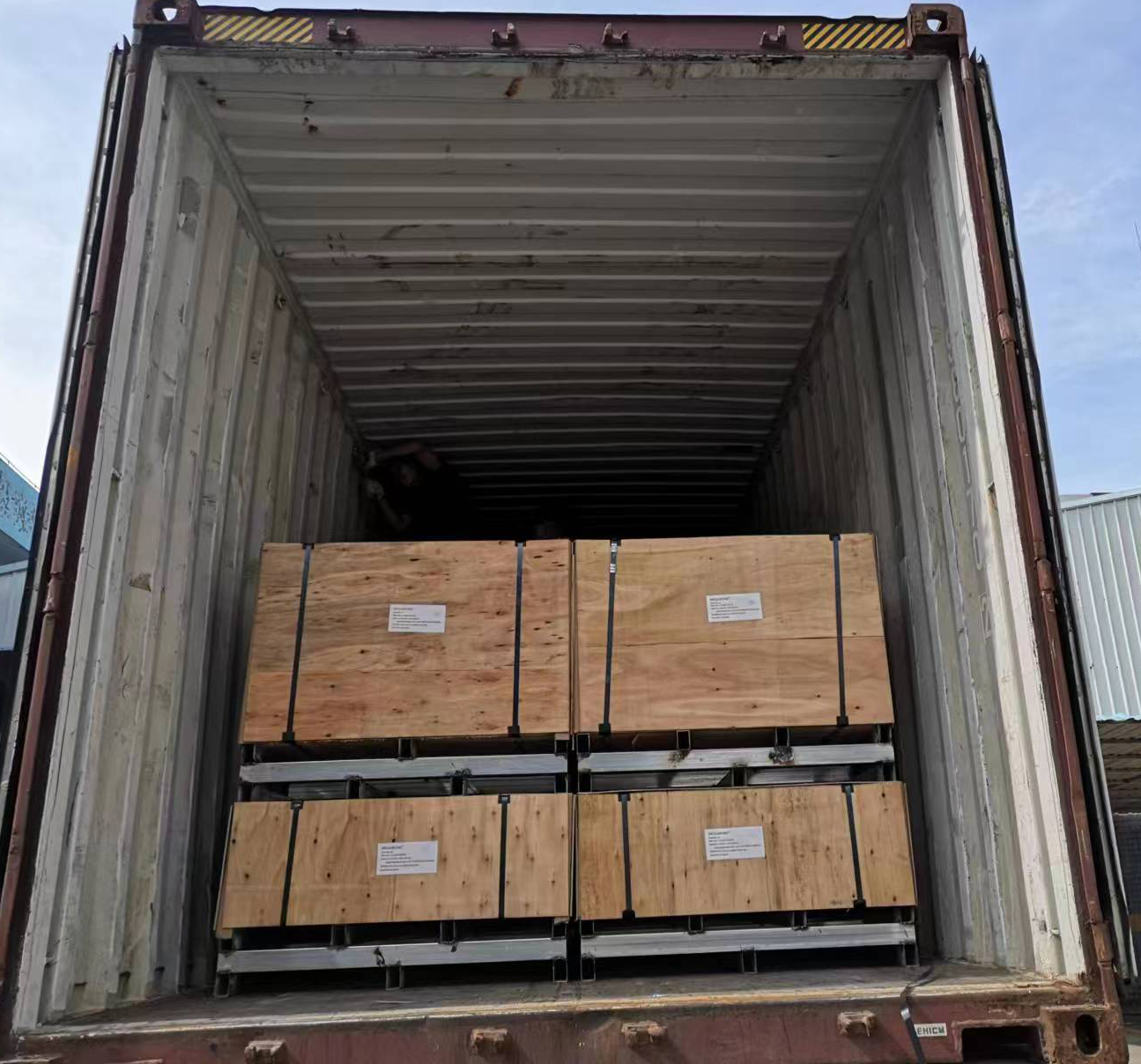

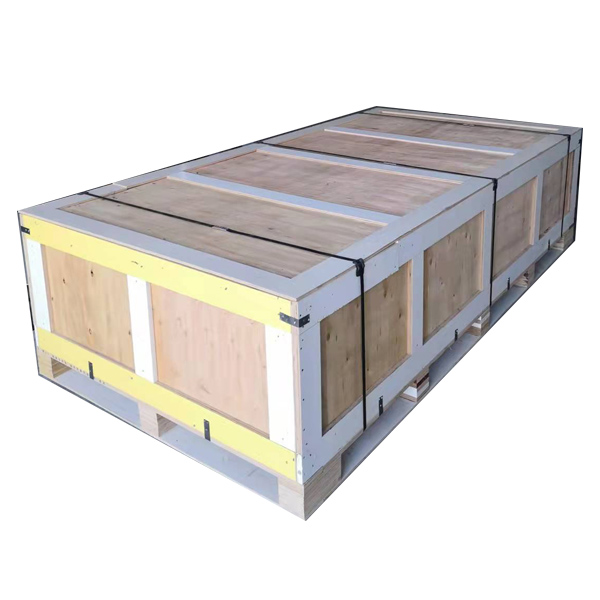

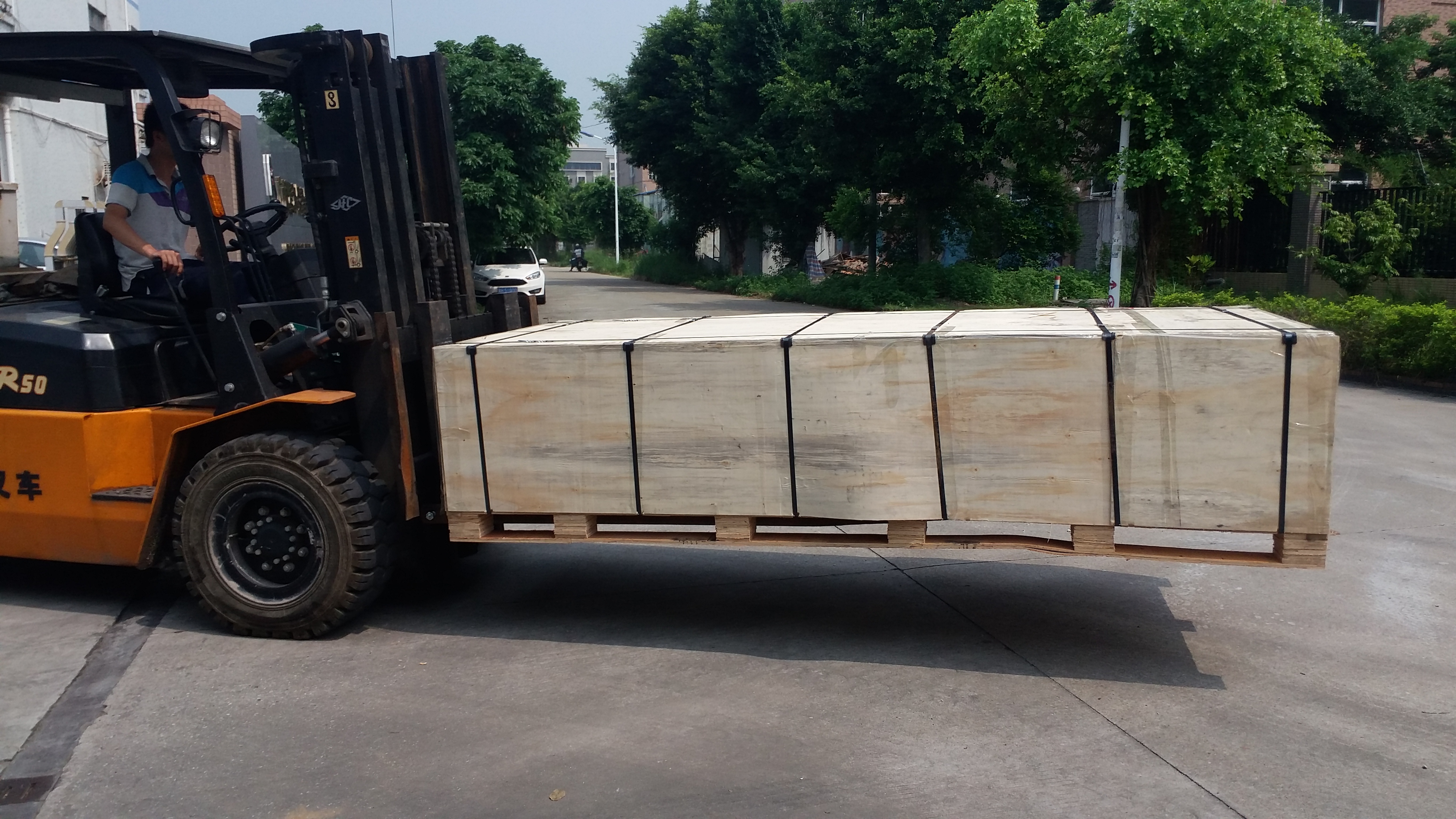

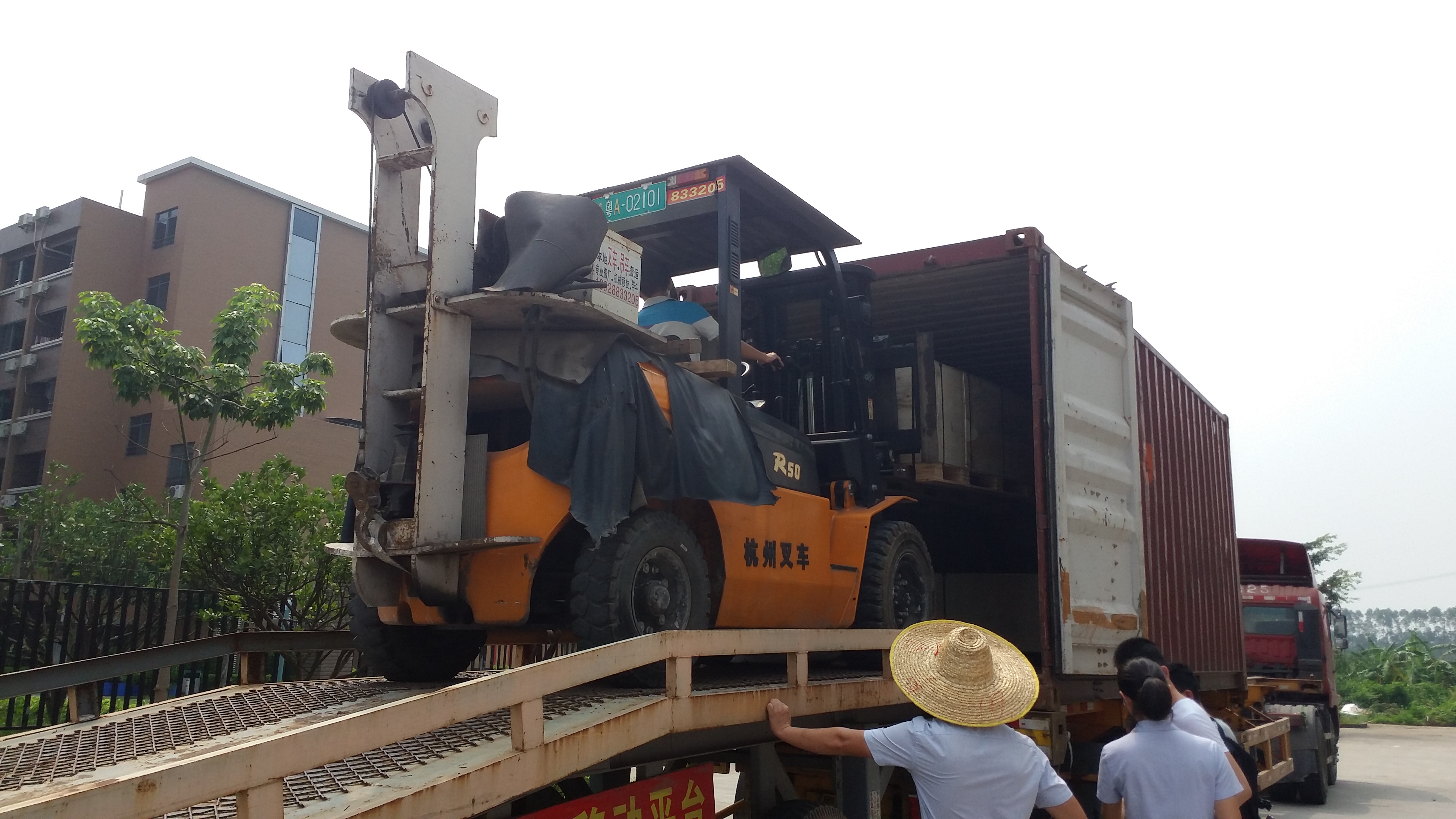

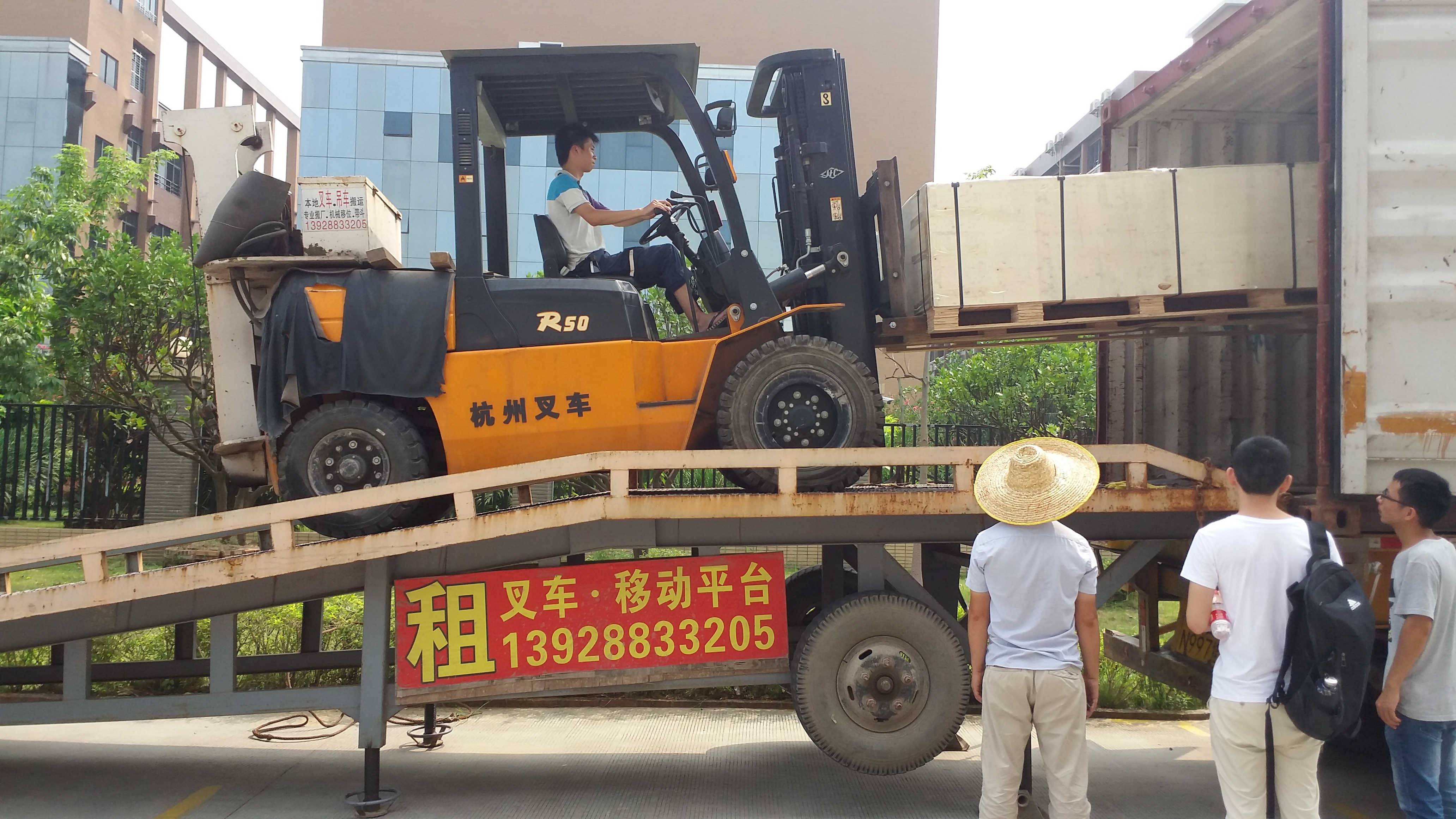

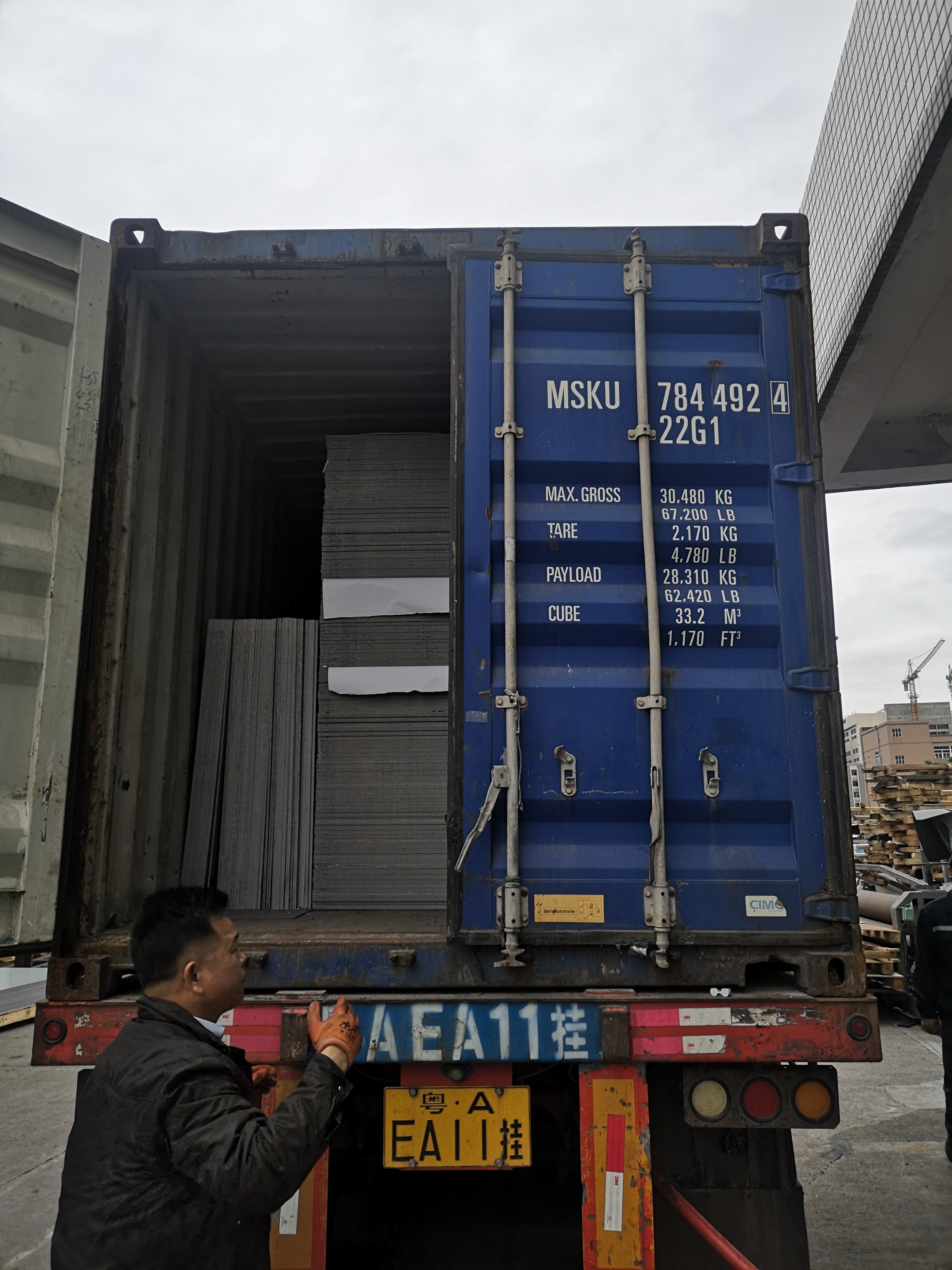

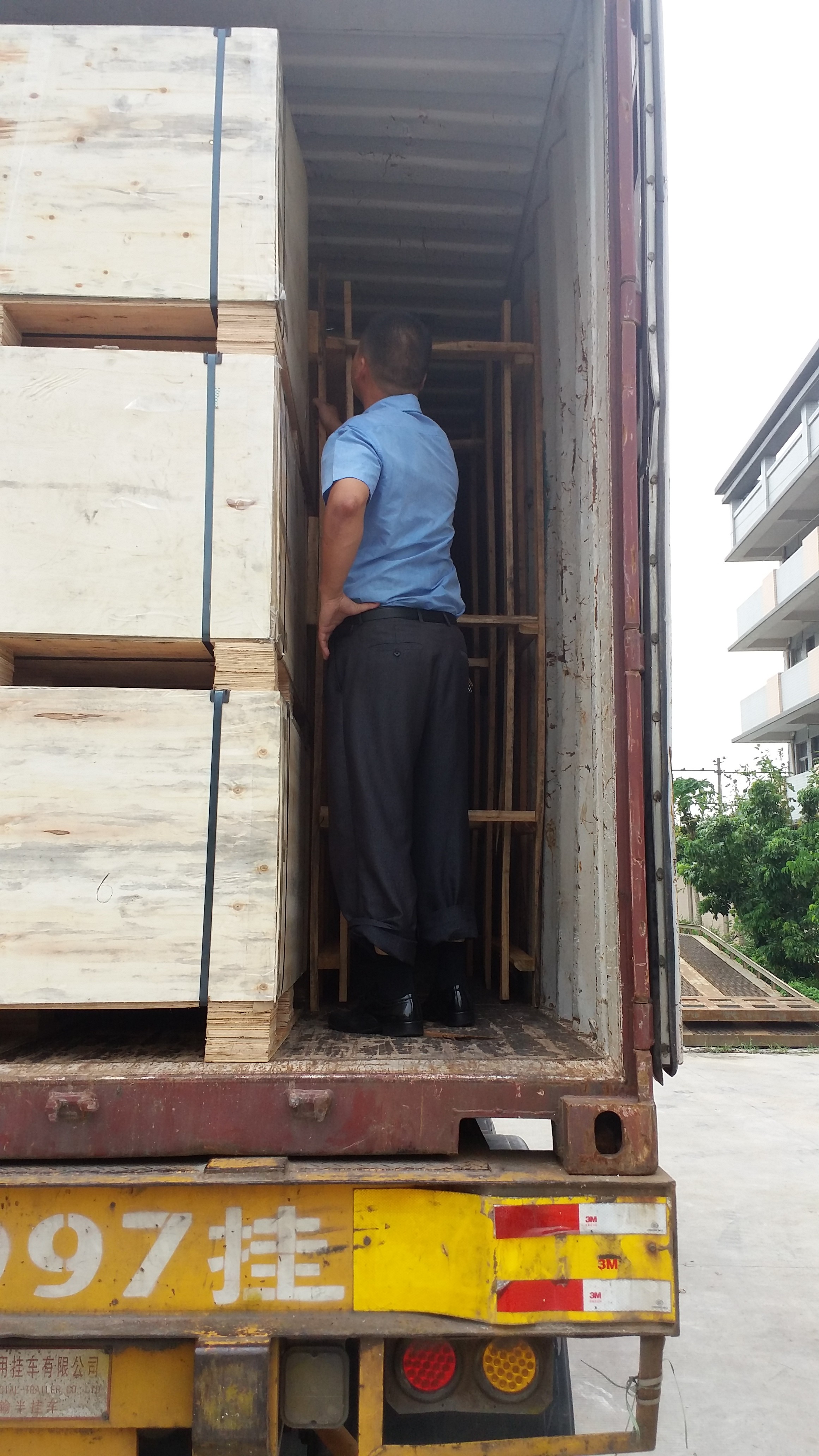

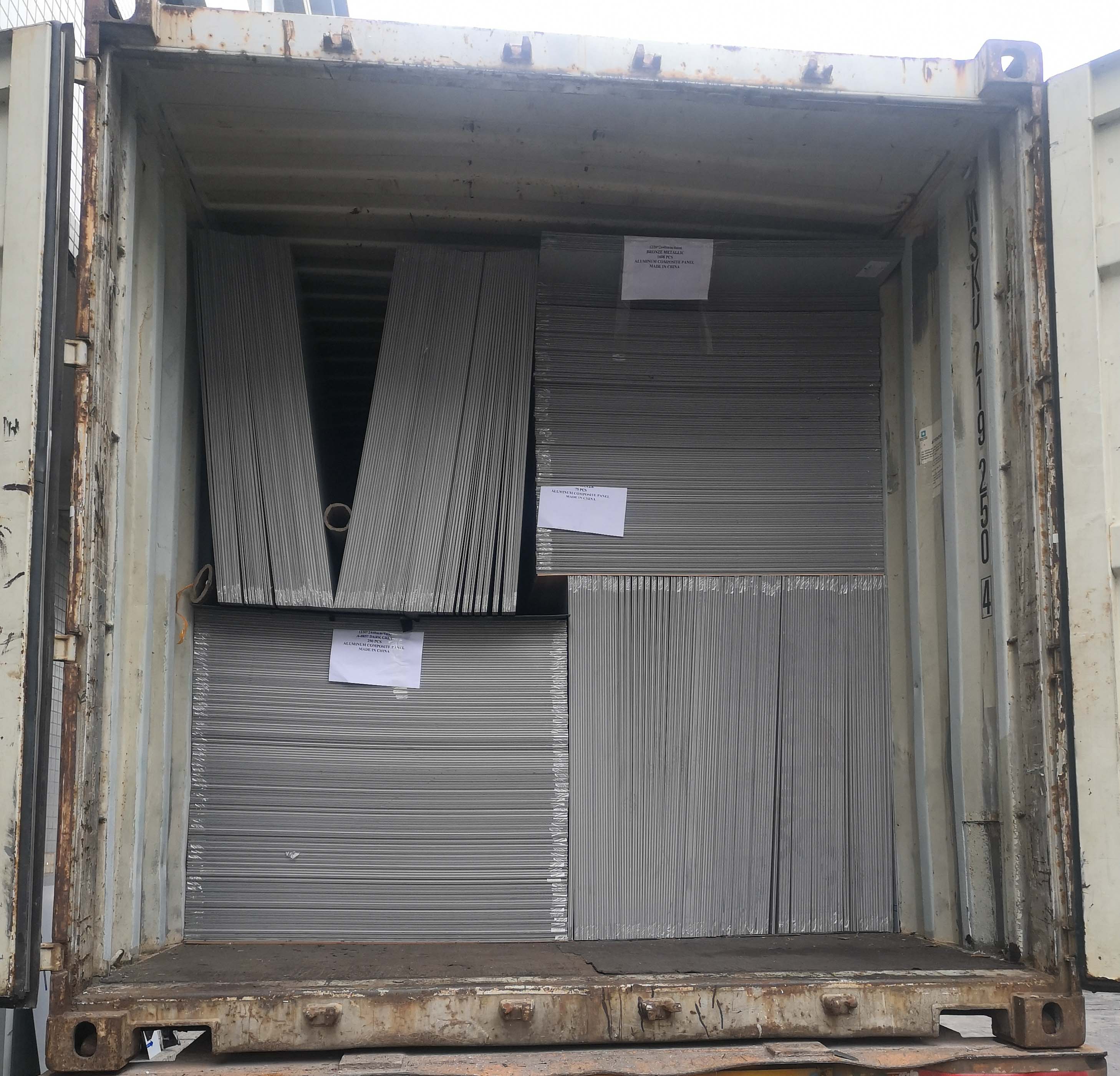

Package and Shipment
Exhibitions
Thailand 19's Architecture
Canton Trade Fair
Philippines WorldBex
Why Choose Us?
| 20+ Years History | Professional in manufacturing, marketing and service for 20+ years. |
| Production Capacity | 4 aluminum coils coating lines, 10 production lines, 60,000 meter square/day. Your order lead time is warranted. |
| Selected Material Suppliers | PPG / AkzoNobel / Kynar 500 / CHALCO, fast delivery of materials. |
| Flexible MOQ | Small order will be accepted depending on stocking color and thickness of Aluminum coils. |
| Excellent Color Customization | Color picture, RAL/Pantone color codes, or sample provided to us for custom matching. |
| More Options for Width | Standard: 1220, 1250, 1500, 1570, 1575mm. Special width customization: 610mm, 900mm, 1100mm, etc. |
| OEM Available | Provide your design information, and we can brand your logo onto protective films. |
| Superior Location | Guangzhou Nansha, convenient access to Baiyun Airport and the Canton Fair complex. |
| Strict Quality Control | ISO9001:2018, PPG, SGS, KYNAR500 certified. |
| Free Sample | Free samples available, delivered within 7 days. |

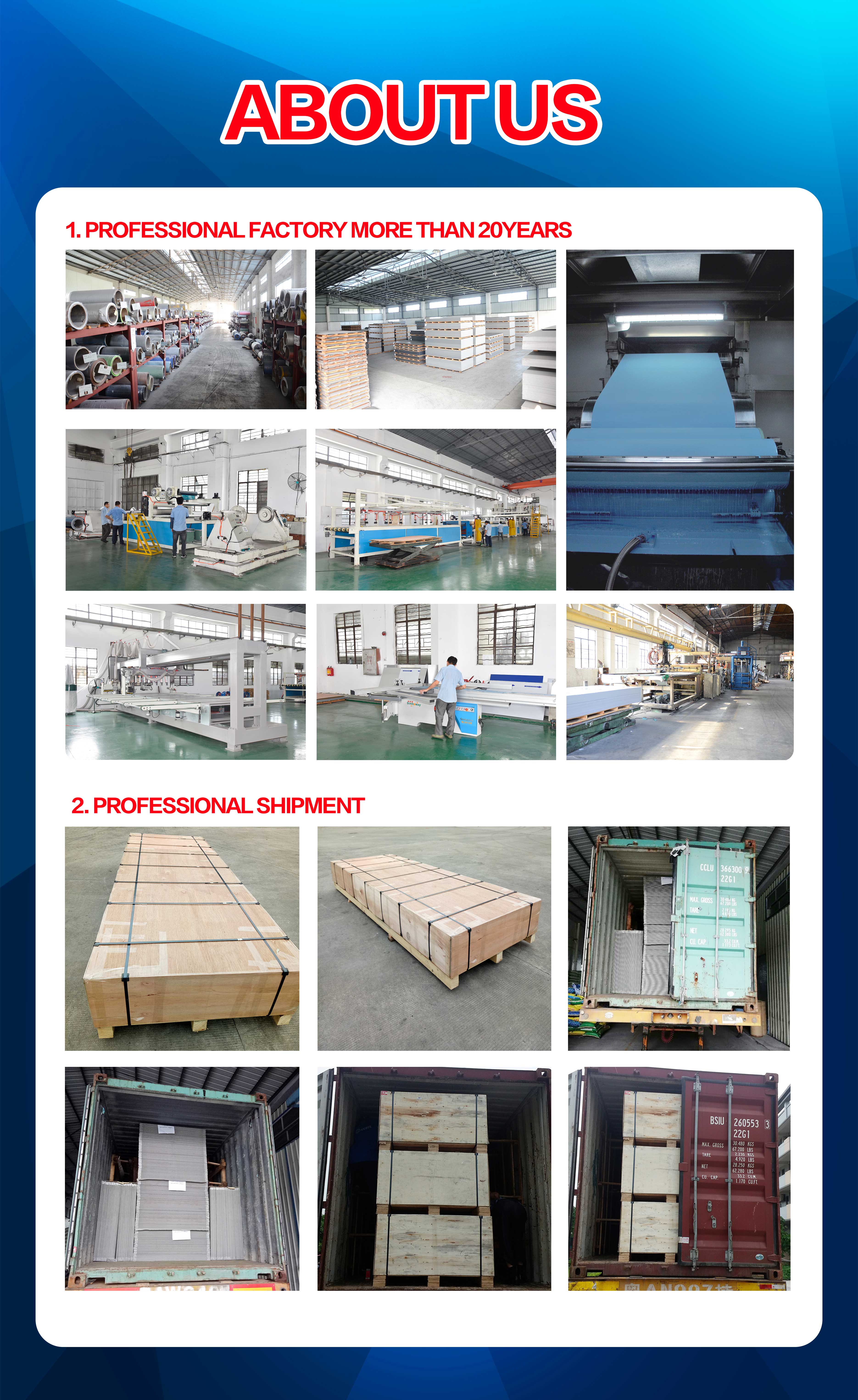

Company Profile
Guangzhou Xinghe Decorative Material Co., Ltd is one of the largest decorative building materials enterprises in China. It is specialized in producing decorative building materials such as Fire-rated B1 Aluminum Composite Panel, Fire-rated A2 Aluminum Composite Panel, PE/PVDF/FEVE Aluminum Composite Panel, Film Coated Aluminum Composite Panel, Aluminum Honeycomb Panel Fire-rated A2, Aluminum Solid Panel Fire-rated A2, and Aluminum Ceiling Systems. Founded in 1999, the factory covers an area of 20,000 square meters, supported by nearly 100 professionals across advanced management, design development, and production. Equipped with 12 advanced international technology production lines, it produces up to 2-meter width composite panels for curtain walls, achieving an annual capacity of 15 million square meters of ACP and 5 million square meters of honeycomb panels.
Frequently Asked Questions (FAQ)
Q How soon can I get a reply?
Within 1 hour during daytime, and within 6-8 hours outside office hours.
Q Can I get a sample?
Yes, samples are free of charge. Freight collection applies (approximately $30-$60 for 1kg).
Q Can my order be produced under my own brand name?
Yes, OEM service is fully supported. We can print your brand or LOGO directly onto the protective film.
Q What is your typical delivery time?
Standard production lead time is 20 days after receiving the deposit. Orders can be completed within 10 days if raw materials are in stock.
Q Is there a minimum order quantity (MOQ)?
The MOQ depends on the aluminum thickness; for example, 0.3mm aluminum requires a minimum order of 600 m².
Q Do you provide installation accessories alongside ACP panels?
Yes, we provide related system accessories, including aluminum extrusions and structural sealants.
