Engineered Aluminum Side Doors & Architectural Fenestration Systems
Our ISO-certified manufacturing base produces high-performance aluminum side entrance doors, utility egress systems, and weather-sealed casement assemblies tailored to high-wind, coastal, and thermally demanding climates.
Engineering Standards for Commercial & Residential Aluminum Side Doors
An aluminum side door—frequently deployed as a secondary perimeter egress, side-passage entrance, utility corridor door, or garage-to-exterior entrance—endures localized mechanical stresses, differential environmental pressure, and aggressive microclimates. Sourcing through China's premier manufacturing corridor requires evaluating extrusion alloys, structural thermal breaks, and specialized hardware resilience rather than merely surface aesthetics.
Extrusion Chemistry: 6063-T5 vs. 6061-T6
DERCHI implements virgin primary billet 6063-T5/T6 alloy profiles exceeding 2.0mm wall thickness for structural outer frames. This chemistry ensures tensile strength (≥ 160 MPa) and yield strength (≥ 110 MPa), eliminating thermal warping caused by solar absorption on dark finishes.
Acoustic & Thermal Barrier Design

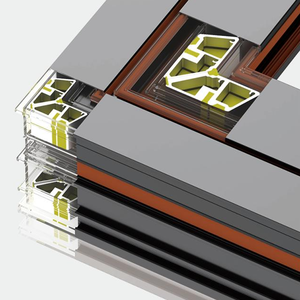

By incorporating Polyamide PA66 GF25 (polyamide reinforced with 25% glass fiber) thermal break struts, internal aluminum skins stay thermally decoupled from exterior surfaces. This prevents condensation, drops U-values below 1.6 W/m²K, and cuts sound penetration by 35dB.
Perimeter Compression & Ingress Defense
Unlike standard utility swing doors relying on single rubber strips, DERCHI side doors utilize three-tier continuous co-extruded EPDM weatherstripping gaskets paired with multipoint concealed locking cams that pull the door sash tightly into the frame under positive wind loads.
Comparative Engineering Matrix: Side Door Manufacturing Grades
| Evaluation Parameter | DERCHI Tier-1 Export Specification | Generic Commodity Wholesale Level |
|---|---|---|
| Billet Material Standard | 100% Primary Virgin Billet Al 6063-T6; wall thickness 2.0mm–2.5mm | Recycled aluminum content; sub-standard 1.2mm–1.4mm thickness |
| Thermal Decoupling | Multi-chamber PA66 GF25 Technoperform strut bars | PVC or ABS crimped strips prone to embrittlement and UV failure |
| Corrosion Resistance | Marine-grade AkzoNobel Qualicoat Class 2 powder coating / Fluorocarbon (PVDF) | Standard domestic batch powder coating (< 40 microns thickness) |
| Wind & Water Infiltration | Complies with AS 2047 N6 rating; water resistance > 450 Pa | Basic uncertified weatherstrip failing above 150 Pa water pressure |
| Hardware & Security | Multipoint 304/316 stainless steel drive-rod mechanisms & anti-lift pins | Single-point deadbolt with cast zinc handles prone to stripping |
Future Sourcing & Procurement Trends (2025–2030)
International procurement managers, developers, and quantity surveyors are rapidly shifting how they procure aluminum side doors and perimeter envelope components from China. Strategic buyers no longer evaluate FOB prices in isolation; they analyze lifecycle durability, installation efficiency, and carbon embodied metrics.
1. Prefabricated Sub-frame Integration
Developers are eliminating on-site shimming and dry-wall jamb fabrication by specifying complete sub-frame installation kits. DERCHI provides factory-milled aluminum sub-sills with integrated drainage weep-holes, reducing contractor installation hours by up to 40% per door opening.
2. Stringent Building Envelope Mandates
With regulations like Australia’s NCC 2022 / AS 2047, the UK's Part L, and California's Title 24 elevating envelope airtightness, side doors must feature verified air permeability ratings. DERCHI side doors integrate continuous dual-seal systems achieving near-zero air leakage at 300 Pa.
3. Commercial Access Control Harmonization
Modern architectural projects require smart access integration at every side entrance. Factory-prepped wire channels, integrated magnetic sensor recesses, and smart motorized mortise locks (RFID, biometric, and Zigbee/Matter protocols) are pre-fitted during initial assembly.
Guangdong Dejiyoupin (DERCHI) Enterprise Advantages
Recognized as one of China's Top 10 Door and Window Brands, DERCHI operates an end-to-end industrial ecosystem in Foshan, Guangdong. Sourcing directly from our production base eliminates intermediate broker margins while ensuring total project accountability.
Complete Single-Source Production
Across our 180,000 m² base, we oversee aluminum profile extrusion, thermal break insertion, CNC precision mitering, surface finishing, and glass tempering in-house, ensuring traceable batch consistency.
Global Testing Compliance
Our assemblies are rigorously tested to AS 2047 (N6 Cyclonic wind load), CE (EN 14351-1), ISO 9001, and UL fire standards, backed by third-party laboratory test certificates for local certifier sign-offs.
Comprehensive CAD Shop Drawings
Prior to extrusion, our dedicated facade engineering team reviews your architectural door schedule and generates 1:1 scale shop drawings detailing wall anchoring, thermal breaks, and structural interfaces.
Marine-Grade Coastal Defense
Projects located within 1,000 meters of the coastline receive specialized architectural fluorocarbon (PVDF 3-coat) or Qualicoat Marine powder finishes tested to withstand 3,000+ hours of continuous salt spray.
Export-Grade Solid Wood Crating
Every door leaves Foshan strapped in fumigated multi-layer timber cases with high-density shock absorbers, corner guards, and vacuum moisture desiccant, ensuring flawless container transit to any major port.
English-Speaking Engineering Team
Eliminate project communication hurdles. Our international project coordinators work directly alongside your site superintendents and architects across North American, European, and Australasian time zones.
Frequently Asked Questions: Aluminum Side Door Sourcing
What engineering standards must be specified for side doors exposed to wind-driven rain?
How does DERCHI ensure corner joint stability against sagging over decades?
Can customized locking hardware and access control be pre-machined at the factory?
What are typical production lead times for custom-dimension commercial side doors?
How are glass units protected against thermal stress and site impacts?
Request Project Shop Drawings & Factory-Direct B2B Pricing
Submit your architectural schedule, structural requirements, or door dimensions. Our senior facade engineering department will deliver comprehensive CAD details and an itemized quotation within 24 hours.
