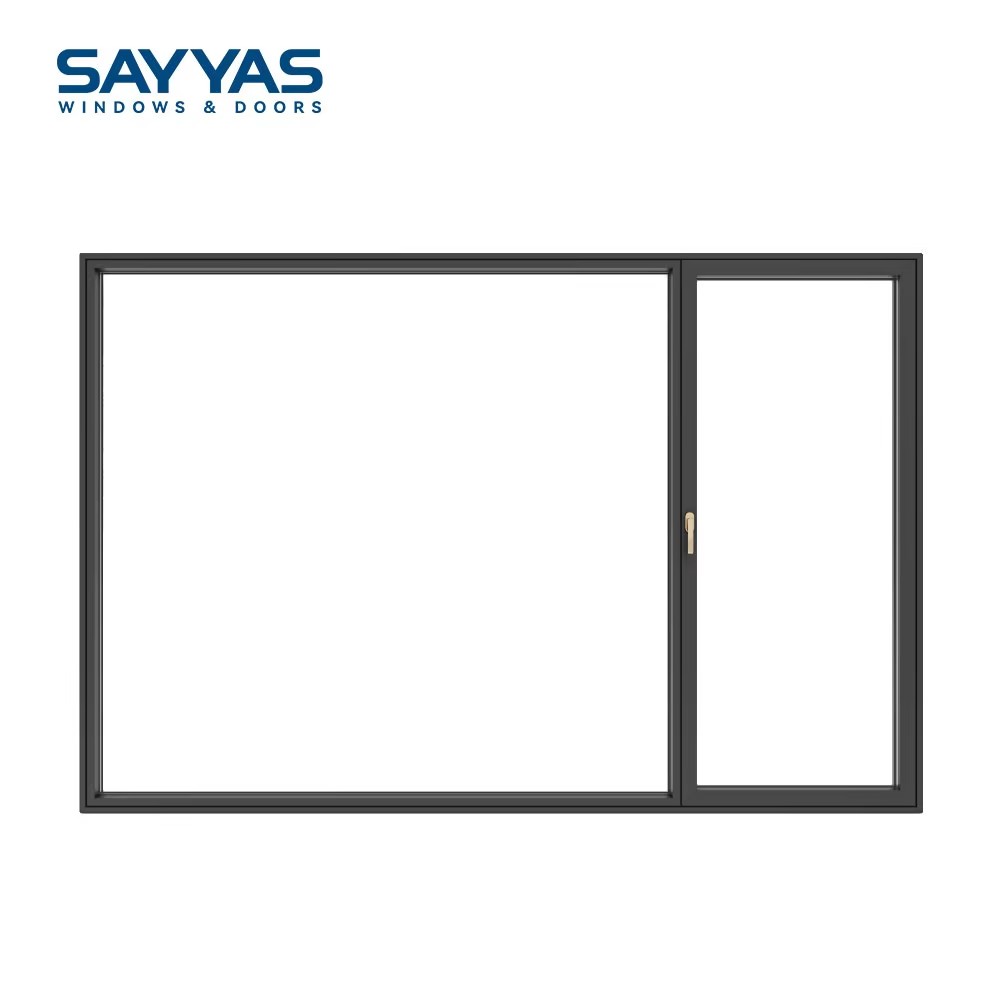

SAYYAS Windows Luxury Aluminum-clad Heat Insulation Triple Glazed Soundproof Casement UPVC Windows Manufacturer China
Product Description
Product Highlights
UPVC Window: Sayyas DC105 high-performance UPVC window system featuring multi-chamber profiles for extreme thermal insulation and energy saving.
Vinyl Window: Sustainable vinyl window design with reinforced structural integrity and maintenance-free finish for modern luxury residential homes.
Aluminum Clad PVC: Sayyas premium aluminum clad PVC symbiosis structure combining 6060-T66 aluminum durability with superior interior thermal warmth.
Soundproof Window: Advanced noise reduction technology with triple gasket sealing achieving STC 40+ for a quiet and peaceful home sanctuary.
Energy Efficient Window: German-engineered thermal break technology achieving ultra-low Uw ratings for net zero building and sustainable green projects.
Engineering Excellence: 28 years manufacturing experience with ISO certified 5G smart factory for global high-end project delivery and supply.

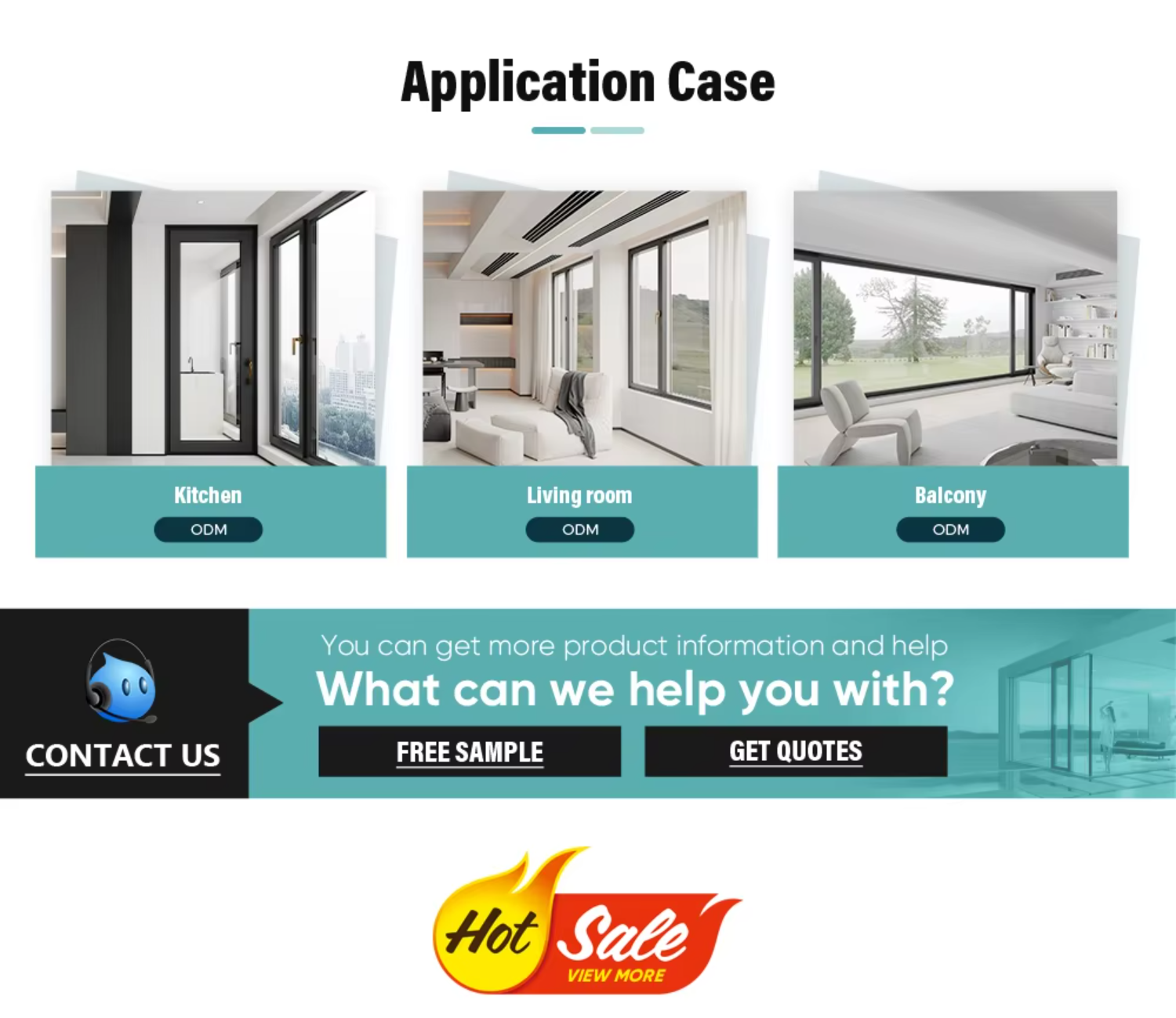

Scene Image
Recommended Products

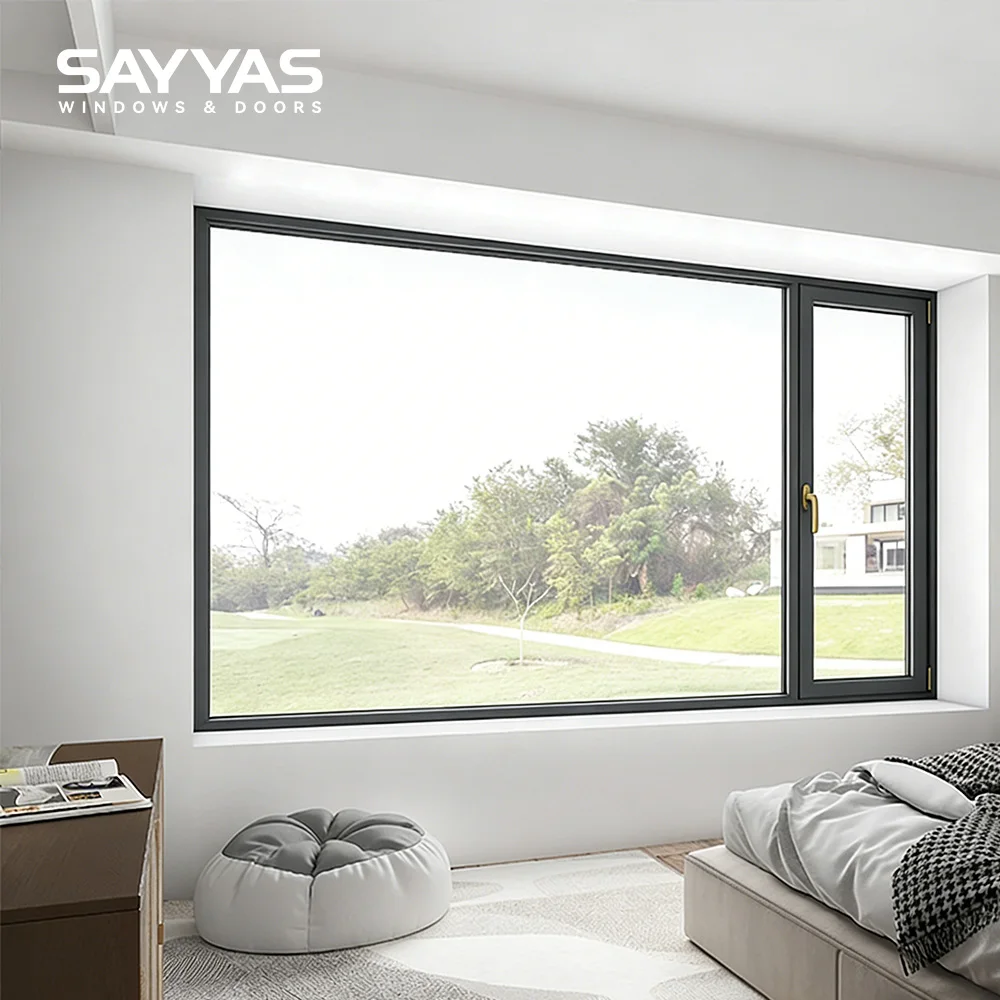

Classic White Fusion Welded Seamless Corner Clean Look UPVC Fixed Window Triple Insulated Glass Heat Insulation
US $111.0 - 426.0 / Piece

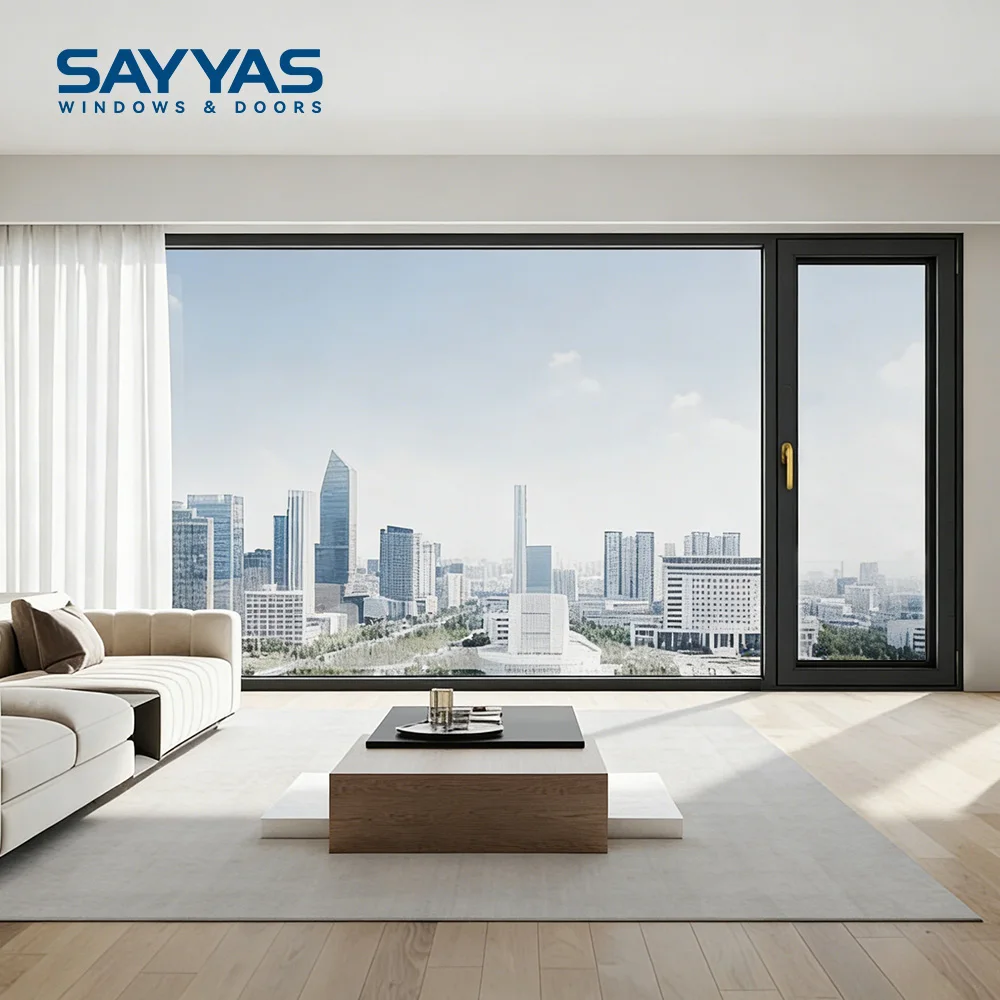

High Performance Triple Glazed Low-E Argon Gas Filled Thermal Insulated Modern UPVC Window for Bathroom Bedroom
US $111.0 - 426.0 / Piece

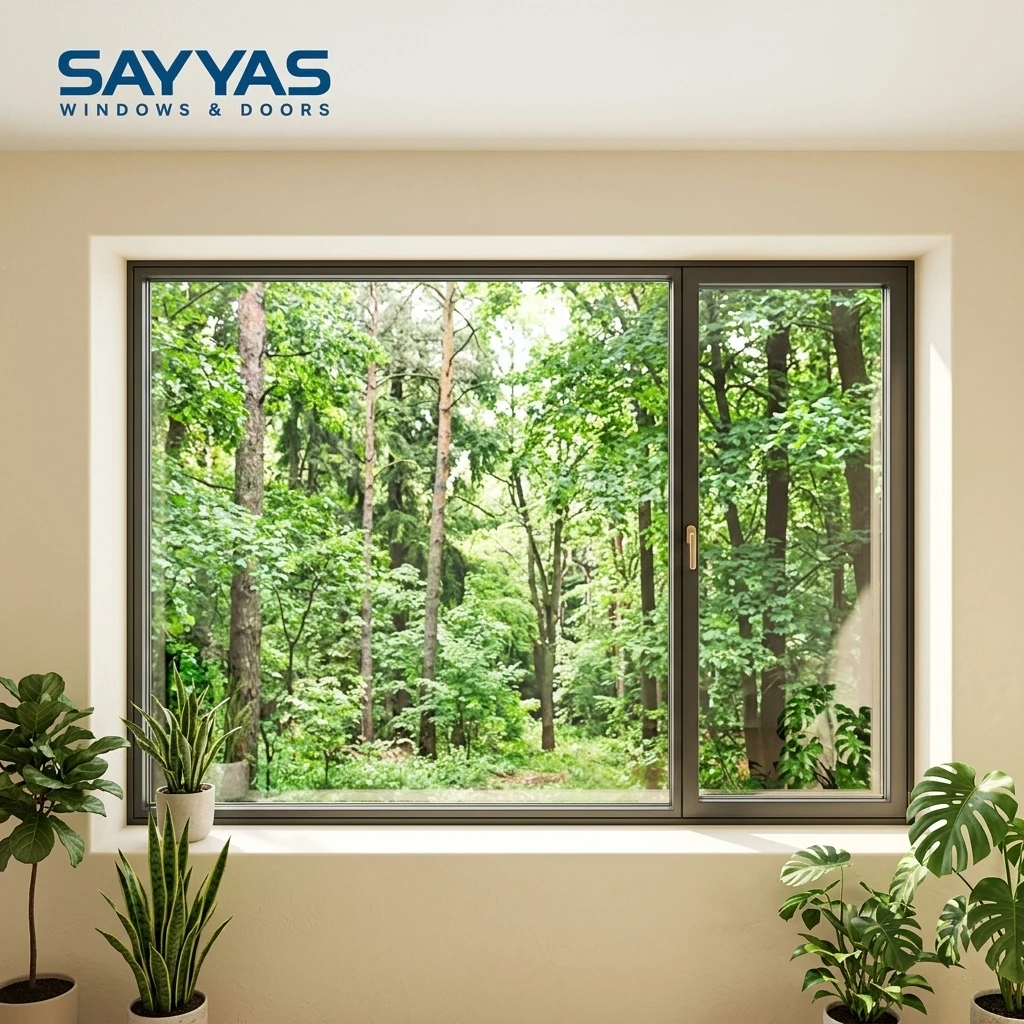

Sayyas DC105 Thermal Break PVC Triple Pane Vinyl Soundproof Aluminium Clad Modern Hotel Window Custom Design
US $119.0 - 395.0 / Square Meter

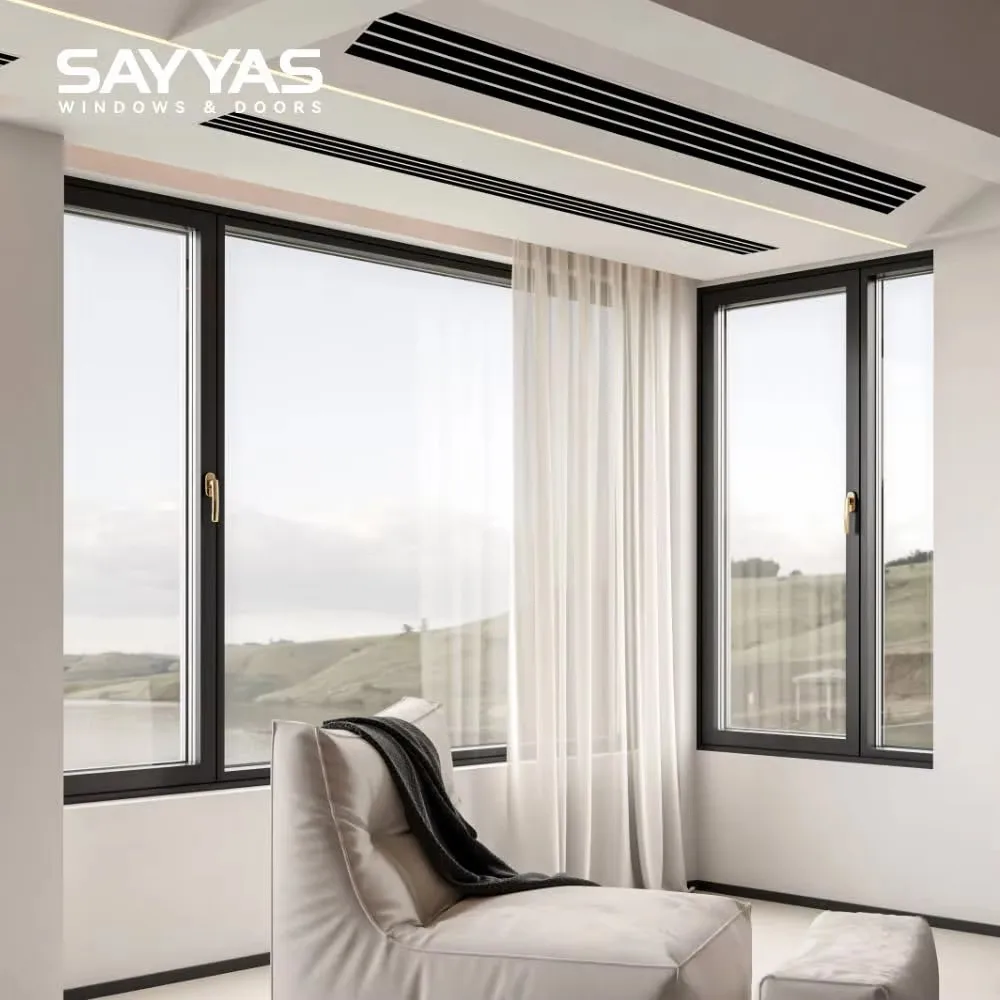

Waterproof PVC Window Built-in Blinds Modern Design Heat Insulation Soundproof Apartment Kitchen Bathroom Wet Areas
US $119.0 - 395.0 / Square Meter
Detail Shot
Product Specifications

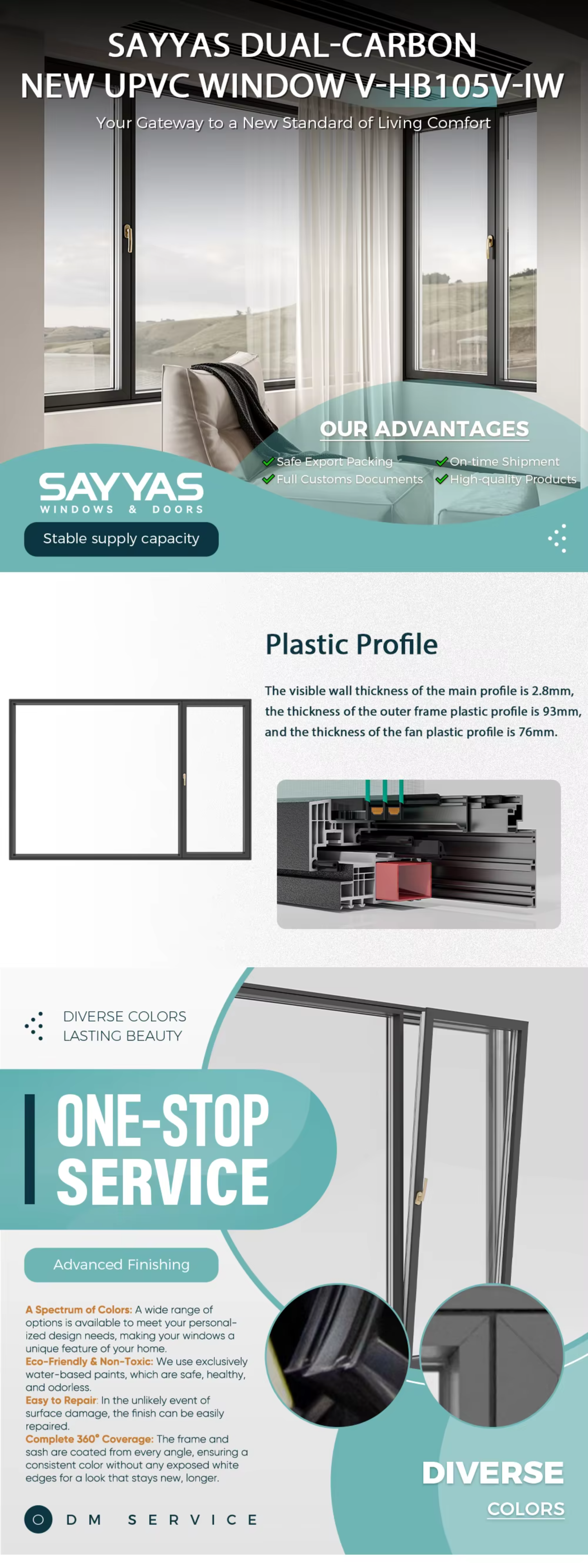

| Plastic Profile | Visible wall thickness 2.8mm; outer frame profile 93mm, sash profile 76mm; comply with GB/T8814-2017 Type-A PVC-U profile. V-welding process; mullion with mechanical screw connection & sealing plug to improve connection strength and waterproof performance; carbon-ceramic water-based paint coating |
| Steel Reinforcement | ≥2.0mm hot-dip galvanized steel liner, DX51D+Z material, zinc coating 275g/m², 48-hour salt spray test |
| Aluminum Surface Treatment | Imported AkzoNobel powder coating with 10-year warranty, electrostatic spraying process |
| Standard Colors |
PVC-U profile: Midnight Black, Ink Grey, Deep Mist Grey, Rich Tea Brown, Rice Beige, Fresh Green Outer aluminum: Satin Grey, Wild Goose Brown, Midnight Black, Misty Blue, Rich Tea Brown, Cloud White |
| Glass | Standard: 5GL clear+14Ar+5G clear+14A+5G clear triple-glazed double-cavity insulating glass; outward-in: tempered offline Low-E glass + argon gas filling + tempered clear glass + bendable aluminum spacer bar, film surface on the second side. Sash glass pre-installed in factory; fixed glass supplied loose for on-site installation |
| Hardware | Standard TOR hidden multi-point anti-burglary hardware, anti-theft lock block, standard stroke limiter |
| Handle | Custom Senying Hoppe high-grade handle. Optional TOR base-free handle (black); optional Roto base-free handle (matte black, pearl coffee, graphite grey, note required for drawing) |
| Screen Window | Not included |
| Frame-sash Sealing Strip | 5-channel EPDM sealing strips. Miter welding for screen-sash corner; group-injection welding for main frame sealing; miter bending for other joints |
| Glass Sealing Strip | EPDM sealing strip with miter-bending process |
| Glass Accommodation Range | Straight-slant edge profile: opening sash 39-54mm, fixed sash 40-51mm |
| Performance Parameters | Water tightness Grade 6 (ΔP ≥ 700Pa), Air tightness Grade 8 (q1 ≤ 0.5m³/(m·h)), Wind resistance Grade 9 (P3 ≥ 5000Pa), Heat transfer coefficient K value 1.2W/(m²·K) |
| Glass Inner & Outer Sealing Gasket | Water-expansion gaskets for fixed glass perimeter |
| Rebate Acceptance Range | Standard straight edge profile (fixed rebate: 30-33, 43-46mm; opening sash rebate: 30-33mm); Decorative strip rebate range (fixed rebate: 30-33, 43-46mm; opening sash rebate: 30-33mm) |
| Insulation & Sound Ratings | Water tightness Class 6 (ΔP ≥ 700Pa), Air tightness Class 8, Wind-load resistance Class 9 (P ≥ 5000Pa), Sound insulation Class 3-4 (30db ≤ Rw+Ctr < 40db), Thermal transmittance: 1.3W/(m²·K) < K < 1.7W/(m²·K) |

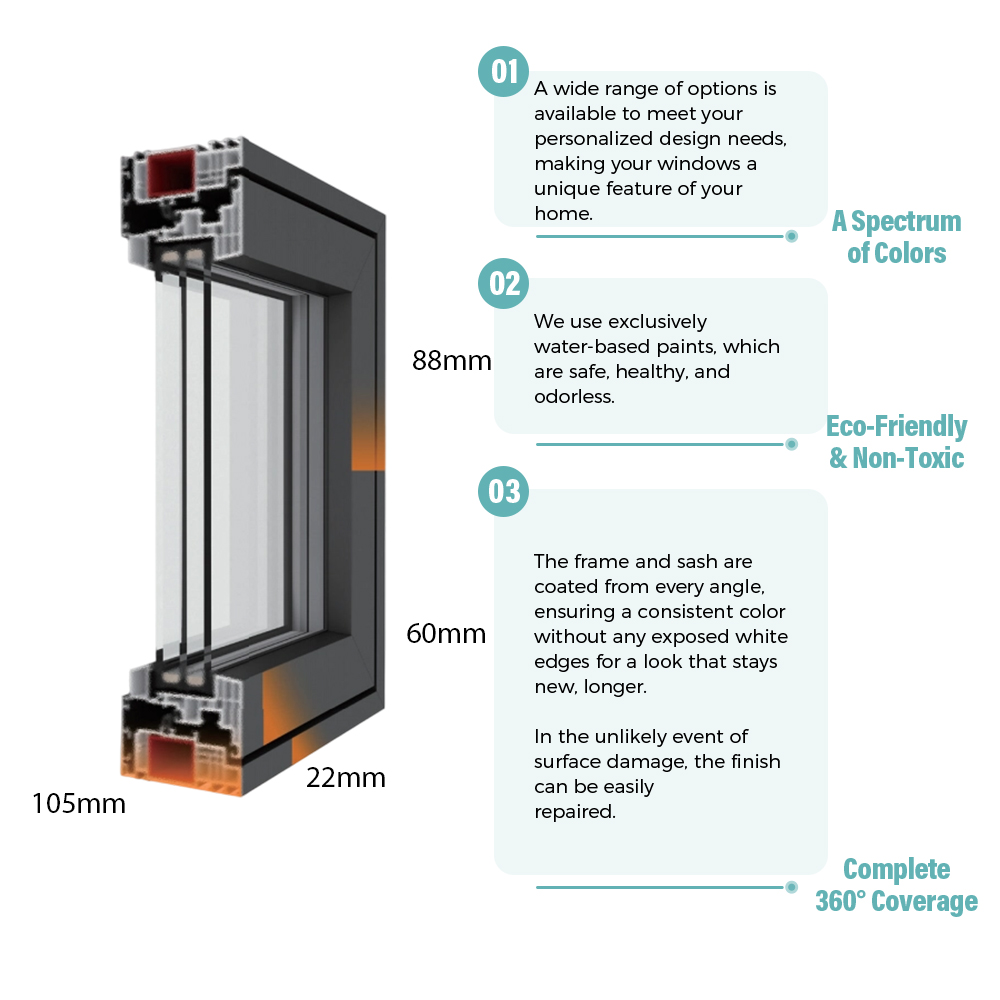

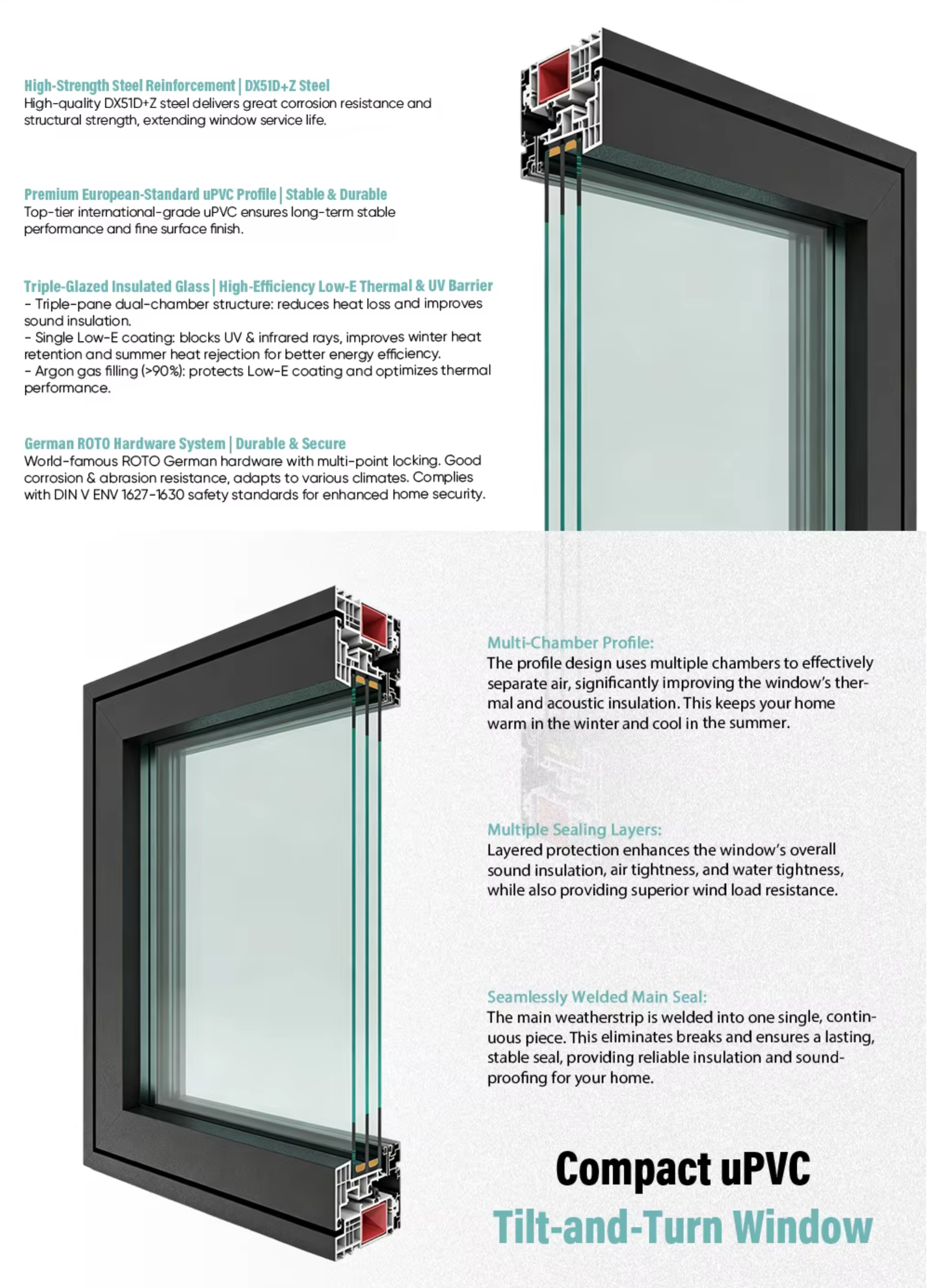

Product Engineering & Details

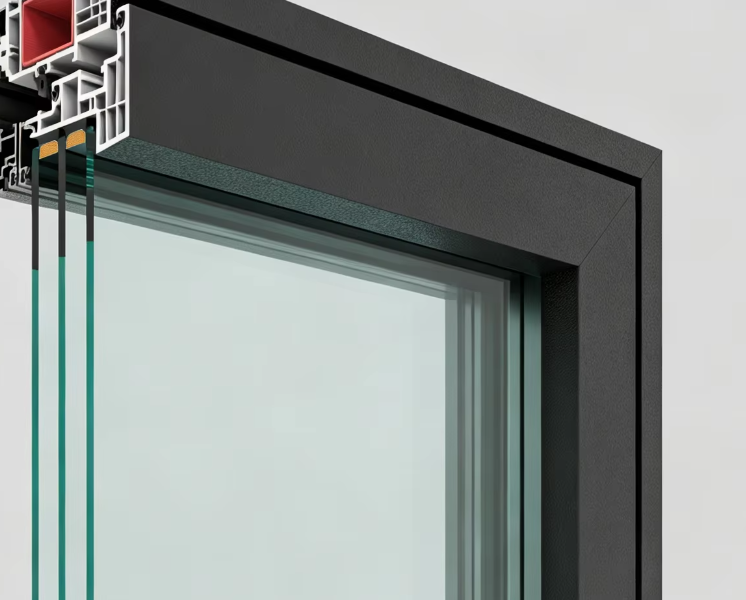

Guaranteed Durability
The perfectly sealed corners prevent leaks and loosening, ensuring your peace of mind for years to come.

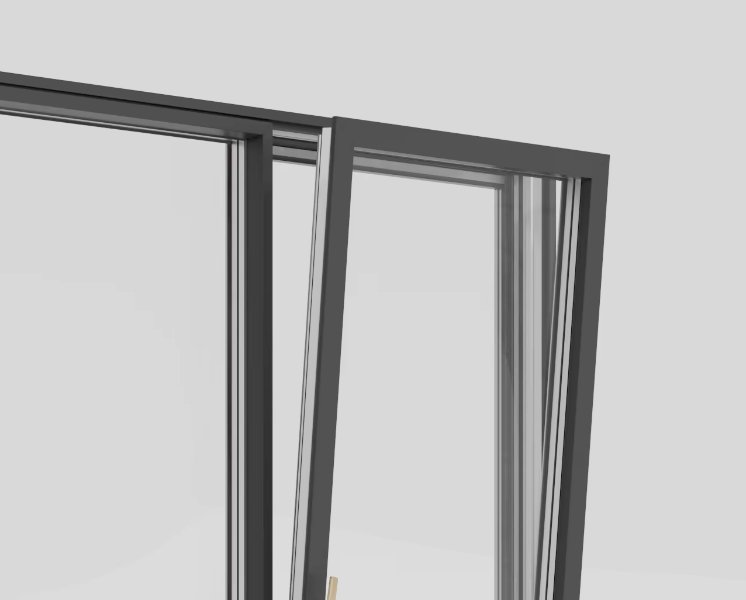

Enhanced Strength & Flawless Aesthetics
This technology not only improves corner strength but also gives the window a refined, seamless appearance with smooth, flowing lines.
World-Leading Italian GRAF Welding Equipment
We utilize advanced V-Perfect seamless joints, rounded corners, and an interlocking weld process.
About the Supplier
Founded in 1998, SAYYAS is China's first and currently the only publicly listed company in the windows & doors industry (stock code: 301227). SAYYAS was the first to introduce German wood windows and their associated technologies and complete production lines to China, capturing over 25% of the segmented market share. According to industry associations, SAYYAS has ranked first in production scale and market sales for many consecutive years. The production base covers a total area of approximately 150 hectares, with a total building area exceeding 270,000 square meters and a production capacity of over 2,000,000 square meters. Currently, SAYYAS has established an industrial layout with 2 centers, 2 locations, and 3 factories in Harbin, Nanjing.

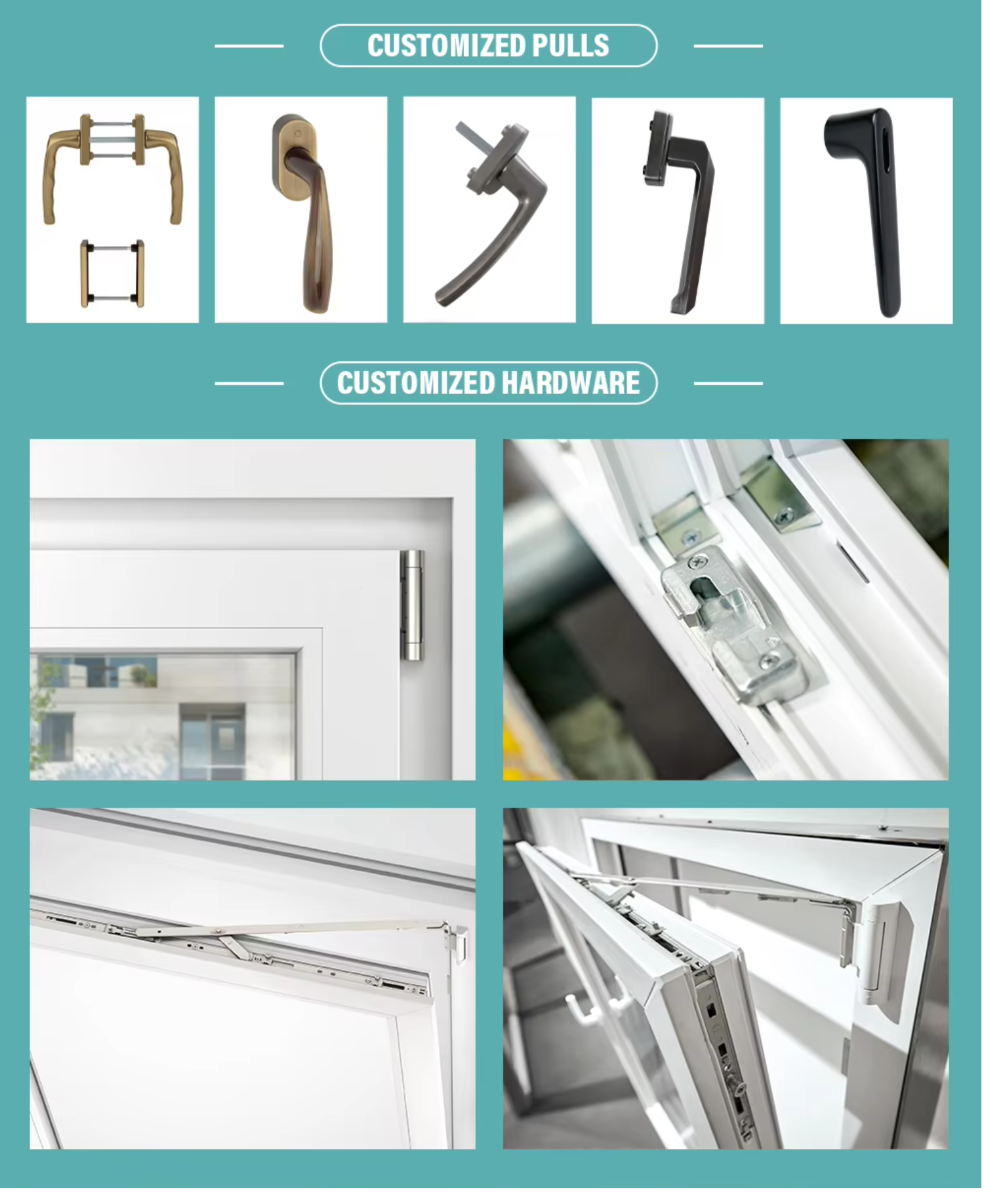

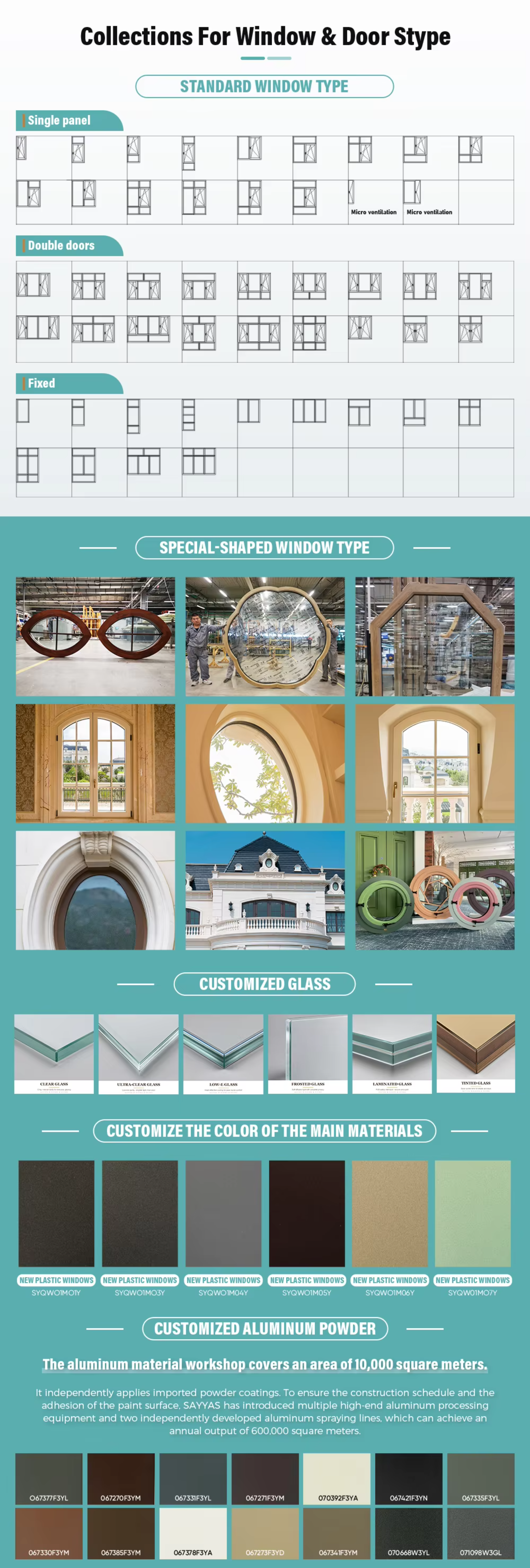

Customization Capabilities
Company Overview

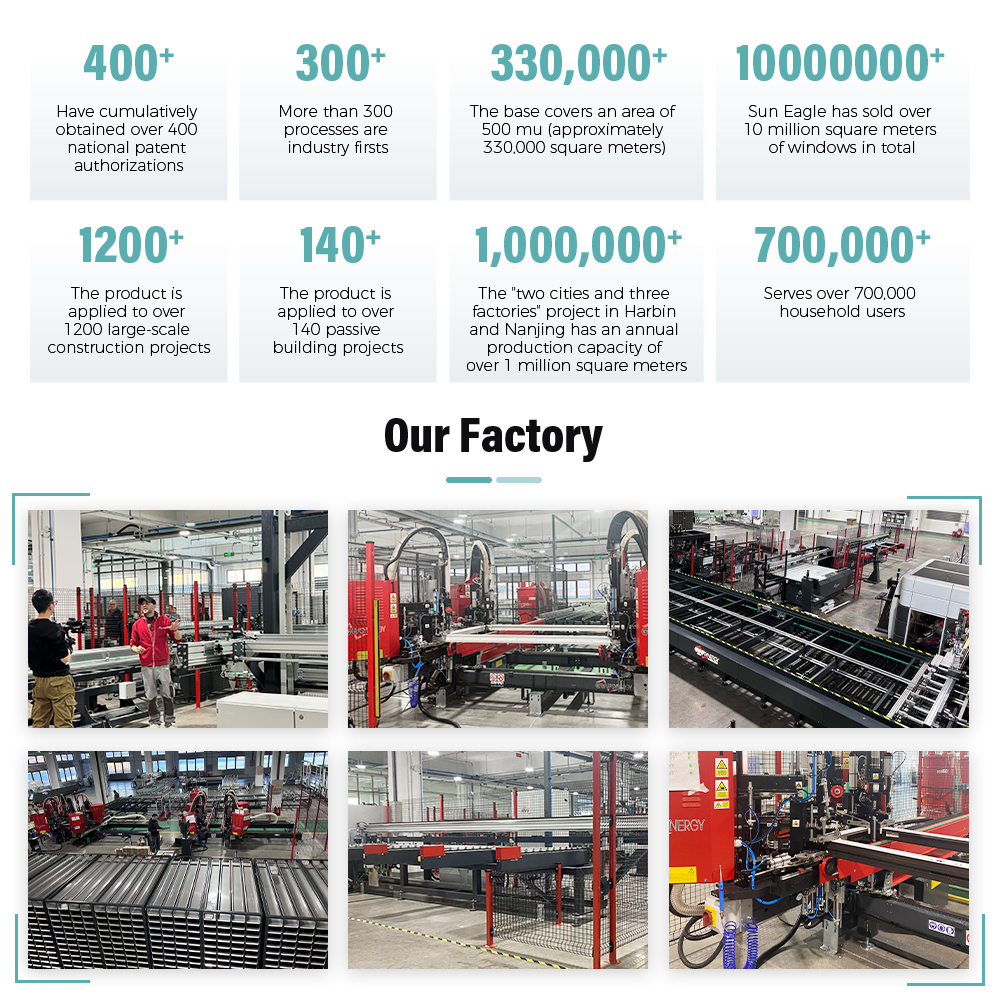

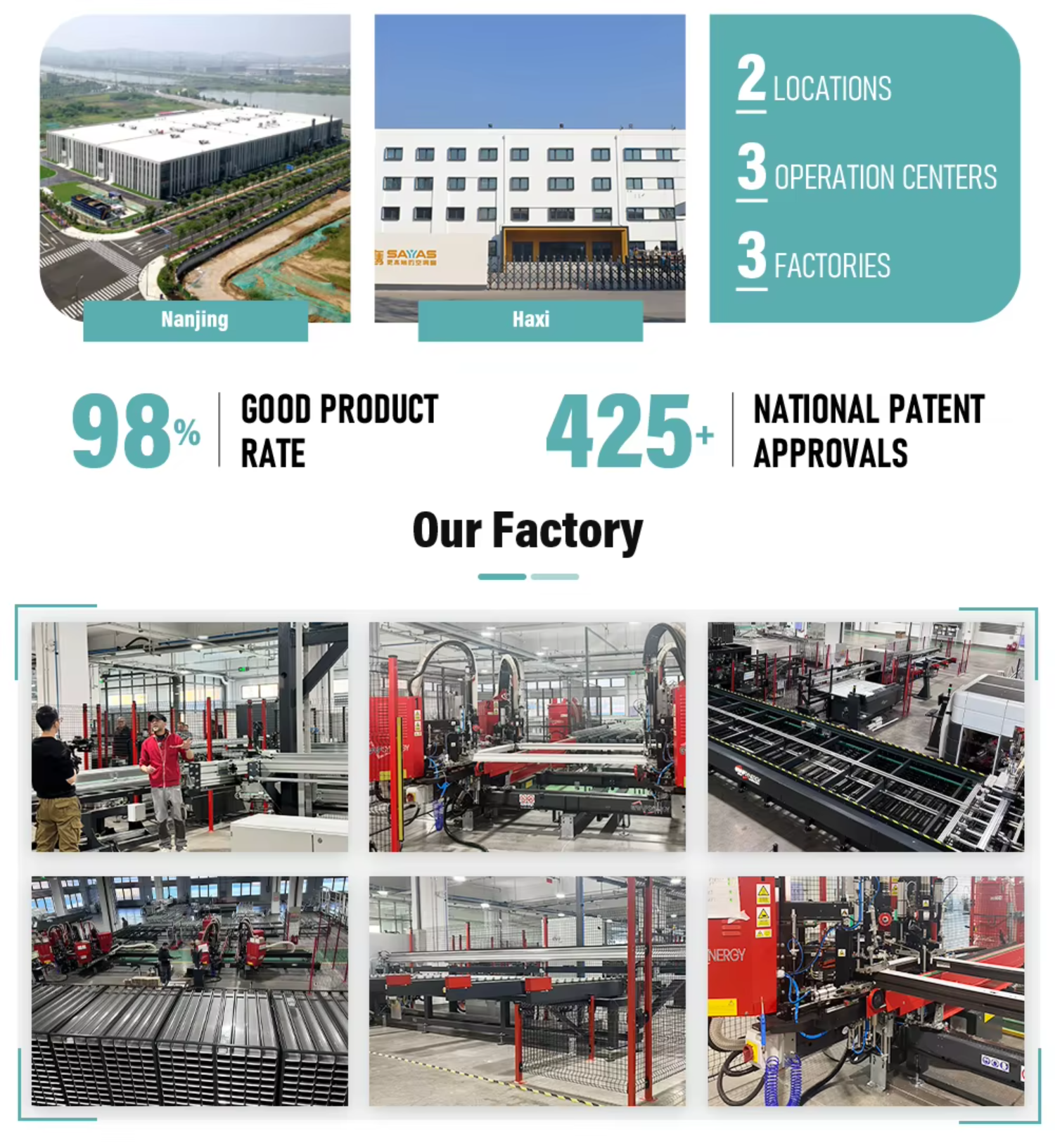

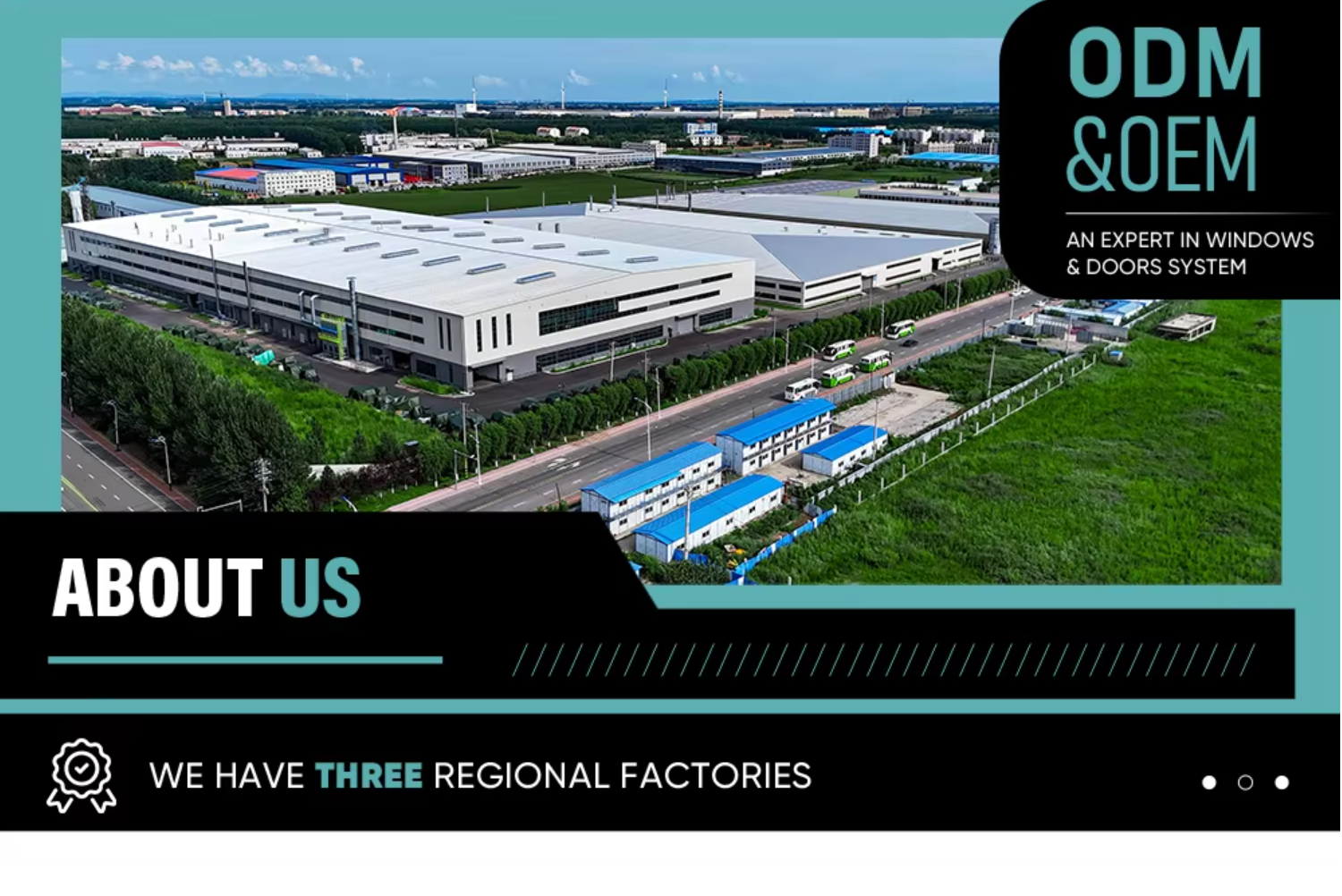

Factory Profile
Competitive Advantages

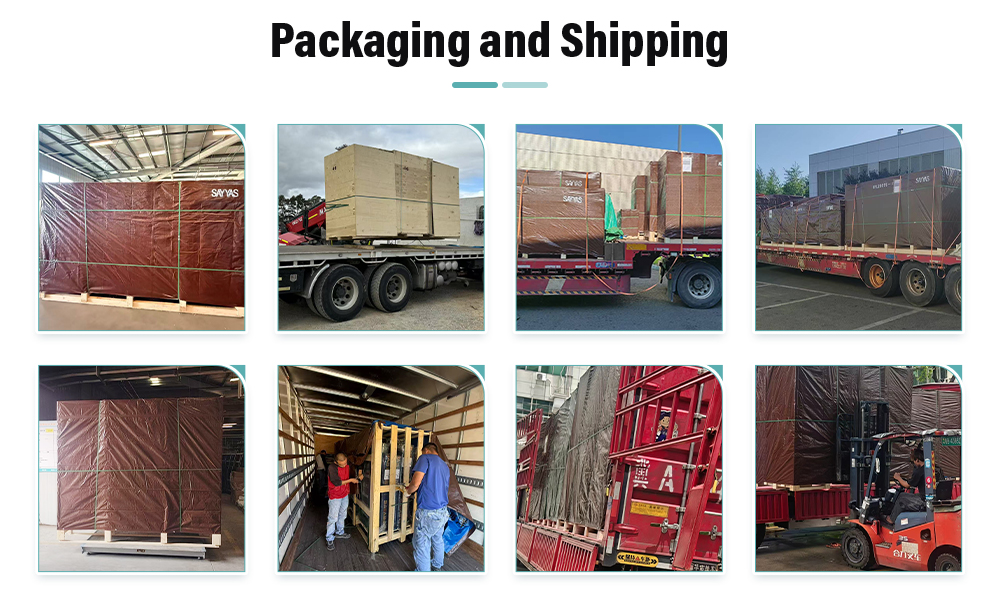

Packaging & Shipping Specifications
Frequently Asked Questions
Q Are you a factory or a trading company?
SAYYAS is a manufacturer and a publicly listed company on the Shenzhen Stock Exchange (Stock Code: 301227). We own two manufacturing bases in Harbin and Nanjing, China, covering a combined area of 330,000 square meters with over 1,400 employees. We are the world's largest aluminum-clad wood window manufacturer and the first Chinese window company to go public with whole-window as its core business.
Q What passive house certifications do your windows hold?
Our products meet global standards: US NFRC/NAMI/SGCC/IGCC, Canada CSA, Australia Standardmark/AGWA, EU CE, Japan fire rating, ISO9001. Full third-party test reports on air/water/wind resistance & thermal data are available on demand.
Q What materials are SAYYAS windows made of?
Three product lines: core aluminum-clad wood (6060-T66 aluminum outside, oak/larch/pine inside, S86/F120 etc.); multi-cavity thermal-break aluminum windows; cost-effective aluminum-clad uPVC (DC88/DC105). This structure ensures insulation, durability and warm indoor wood texture.
Q What is your production capacity and lead time?
Annual output: 400,000 m² wood-aluminum, 200,000 m² aluminum, 100,000 m² uPVC windows. Standard orders: 25-35 working days post deposit; big projects: 35-50 days. Shipping: FOB Dalian/CIF global, full/less container & air transport with real-time production updates.
Q Can you customize and what is your MOQ?
Full custom service: size within structural limits, full RAL aluminum finishes, optional wood species, double/triple Low-E argon laminated glass. MOQ: 10-20 per model; 1-2 sample windows accepted; bulk projects start from one 20ft container. Send specs for quotation.
Q Do you provide installation support and warranty?
Each order has paper & PDF installation guides with diagrams, free remote video installation support; large projects offer paid on-site supervision. Warranty: wood frame 10y, aluminum & hardware 5y, glass & gaskets 2y, spare parts in stock.
