Modern Customized China Super Energy Efficient Aluminium Clad Wood Glass Windows Passive Windows
Product Description
PRODUCT DESCRIPTION
Passive house is a building standard that is truly energy efficient, comfortable, affordable and ecological at the same time. It’s a construction concept that can be applied by anyone and that has stood the test of practice. A passive house window for example can reduce heat losses by more than 70% compared to existing double glazed windows. Passive house buildings not only save money over the long term, but also are surprisingly affordable to begin with. "Affordable Luxury" is guiding us to bring comfortable, quiet and luxury life to more and more families.

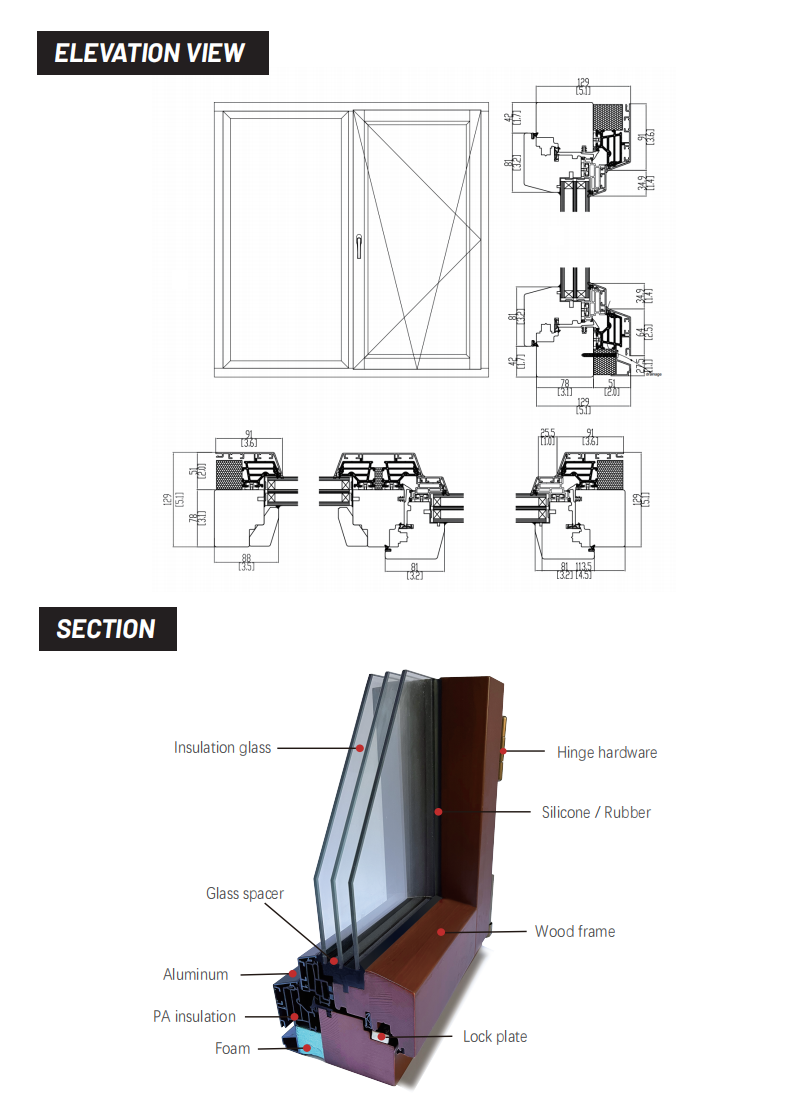

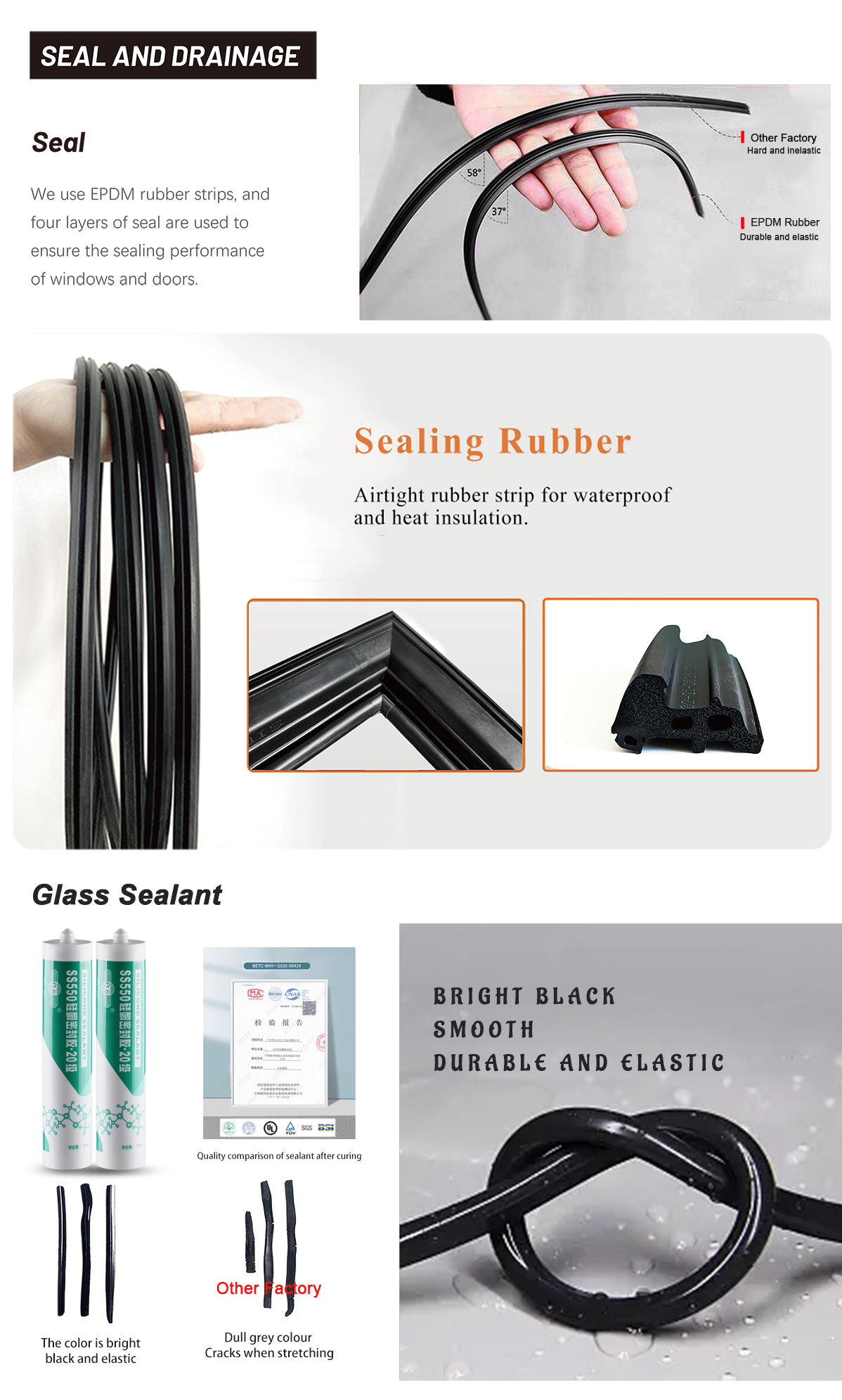

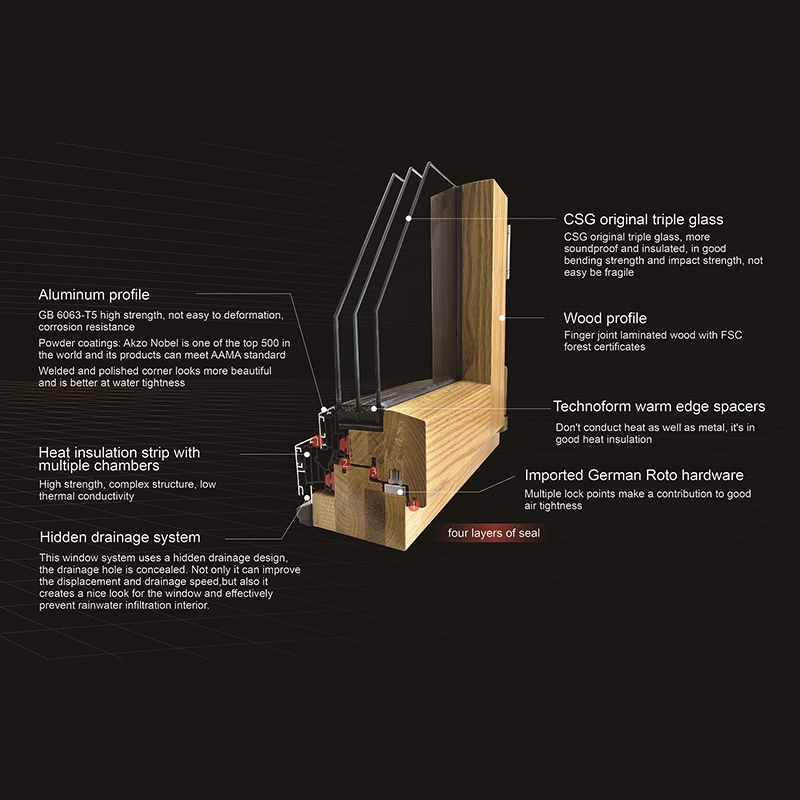

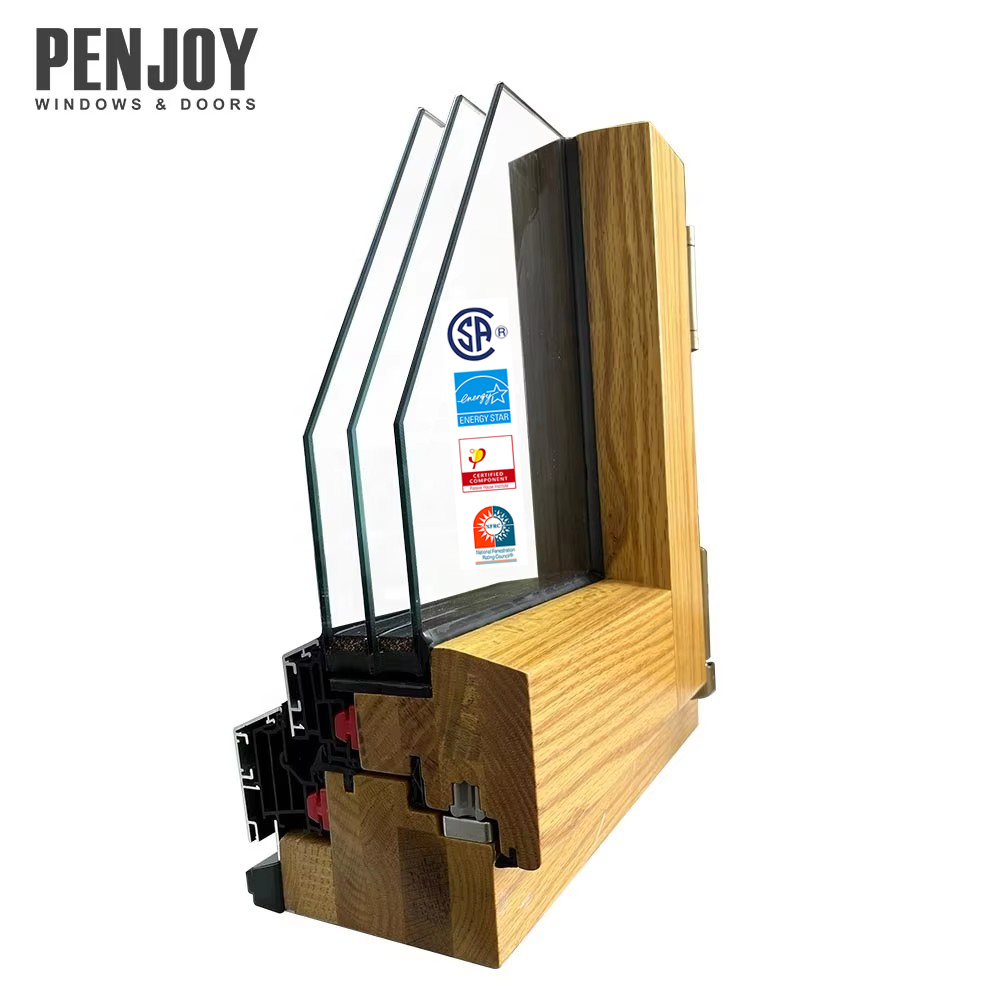

Best Performance: With total 130mm frame thickness and 4 layers of rubber strip, the wind load pressure and water penetration achieved the highest level of windows standard.

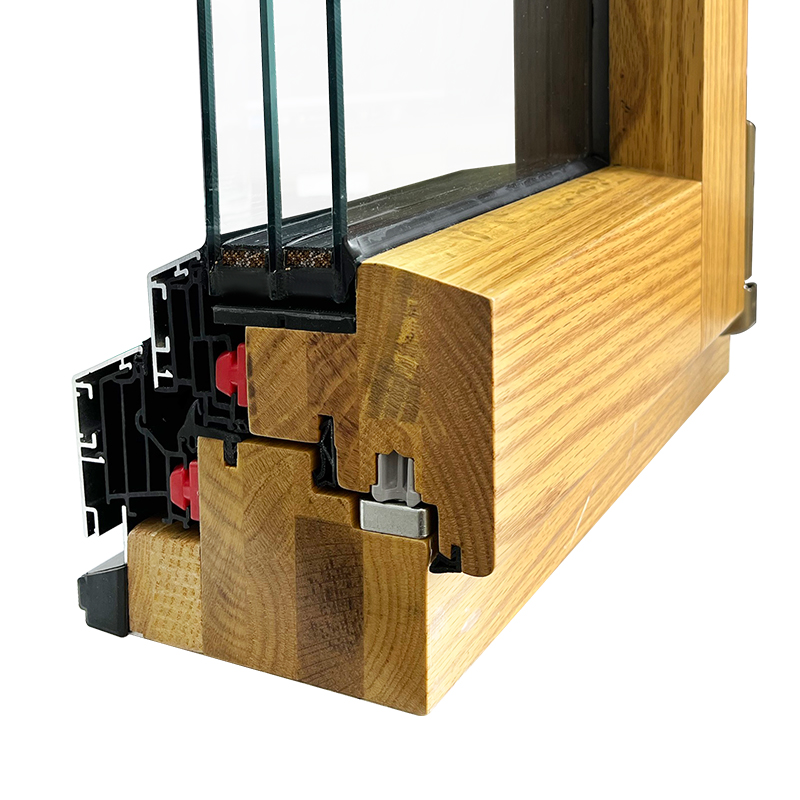

Superior Energy Rating: PH 130 features triple glass 5+16ar+5 low-E+16ar+5 low-E glass, warm edge spacers, and argon gas filling. The wood frame is non-conductive compared to aluminum, contributing directly to insulation. The whole window U-value reaches 0.789 W/(m²·K).
Eco-Friendly Wood Finish: High-specification coating using German Remmers environmental-friendly water-based lacquer ("2 times primer, 2 times finish"), purely plant-extracted and harmless to health.

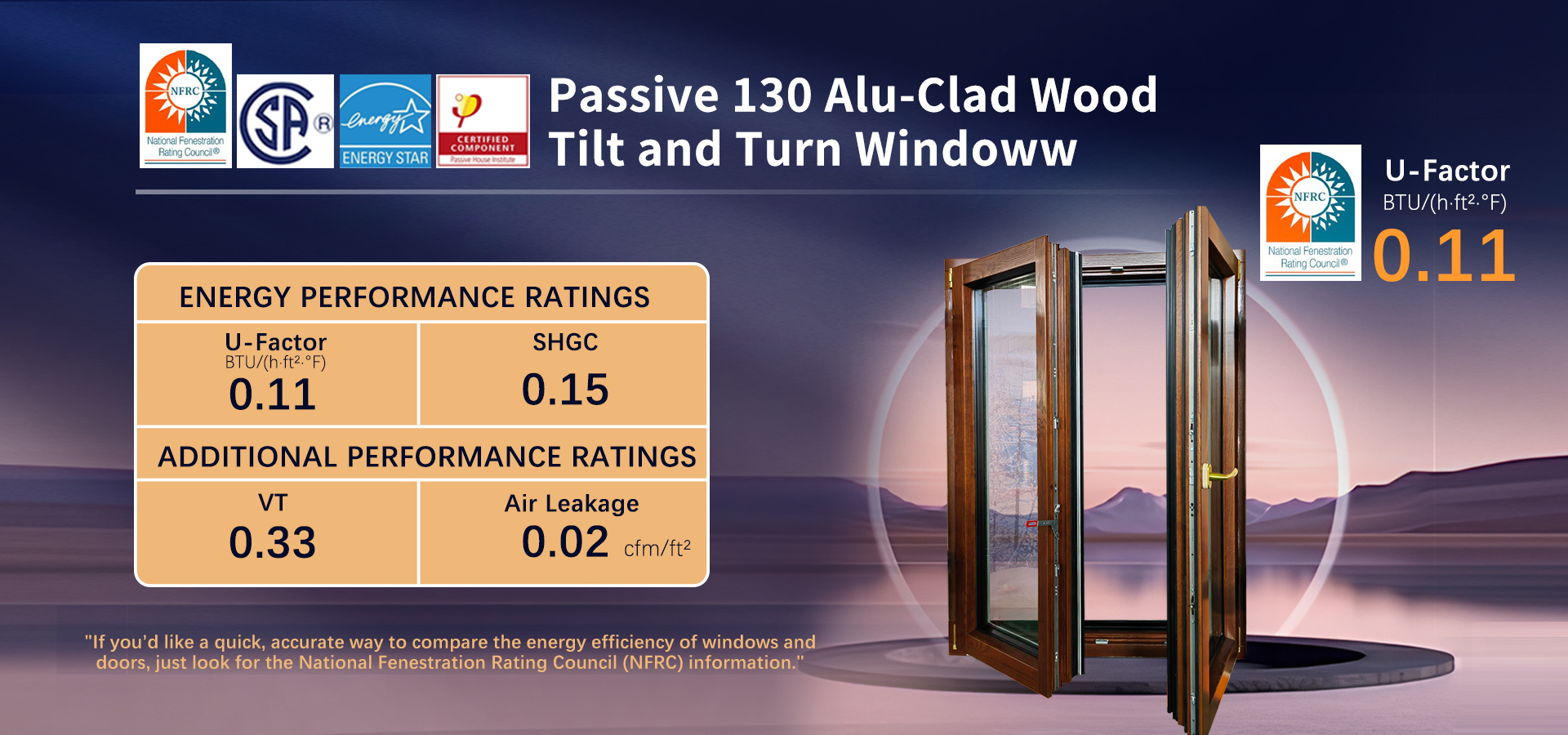

International Certifications: Certified by CSA, PHI, and NFRC, meeting Energy Star standards with an optimal U-Factor of 0.11 BTU/(h·ft²·°F).

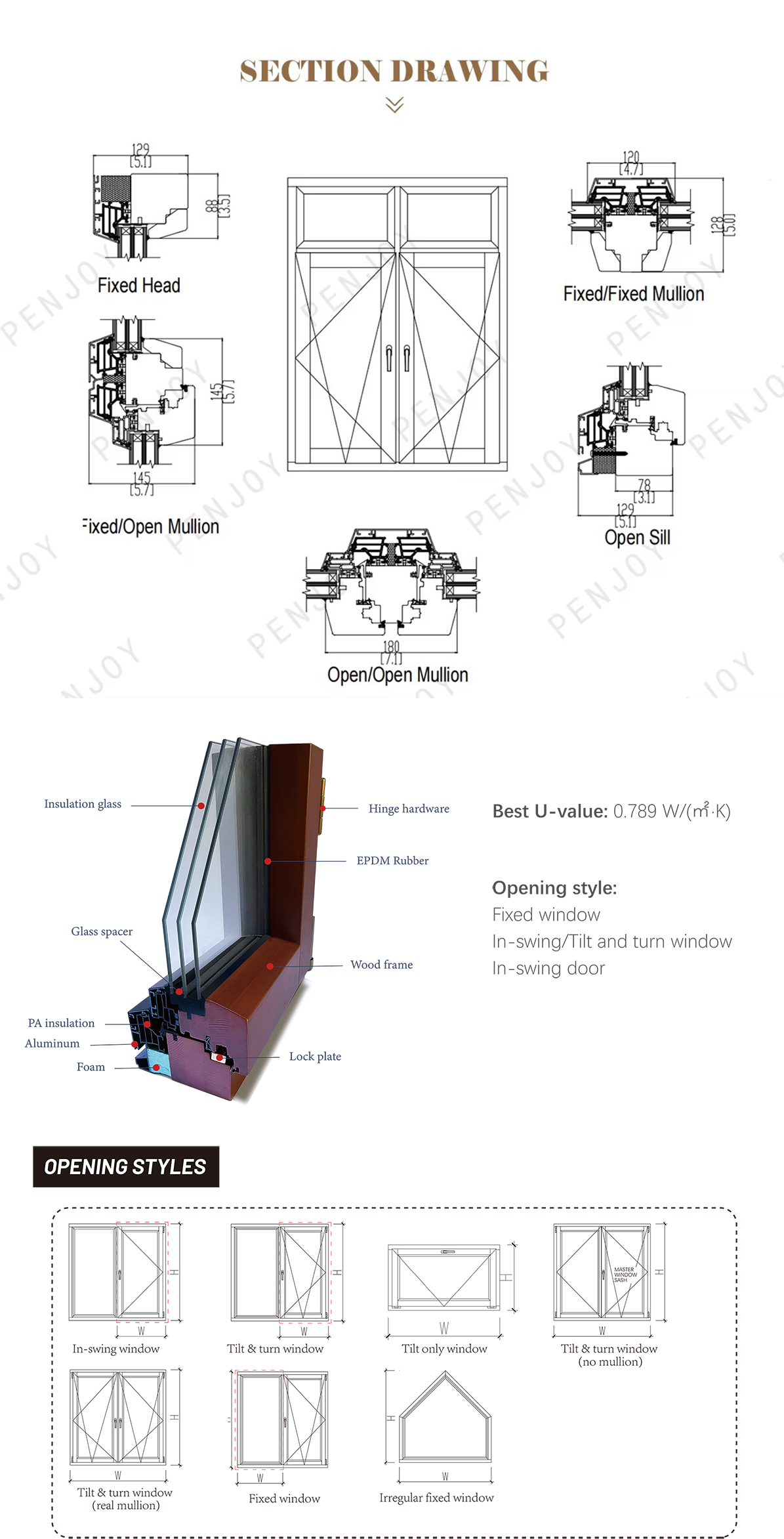

Technical Specifications & Custom Openings
We can customize various styles of the following types of openings: Fixed windows, In-swing/Tilt and turn windows, and In-swing doors.
| Frame profile | Aluminum clad wood |

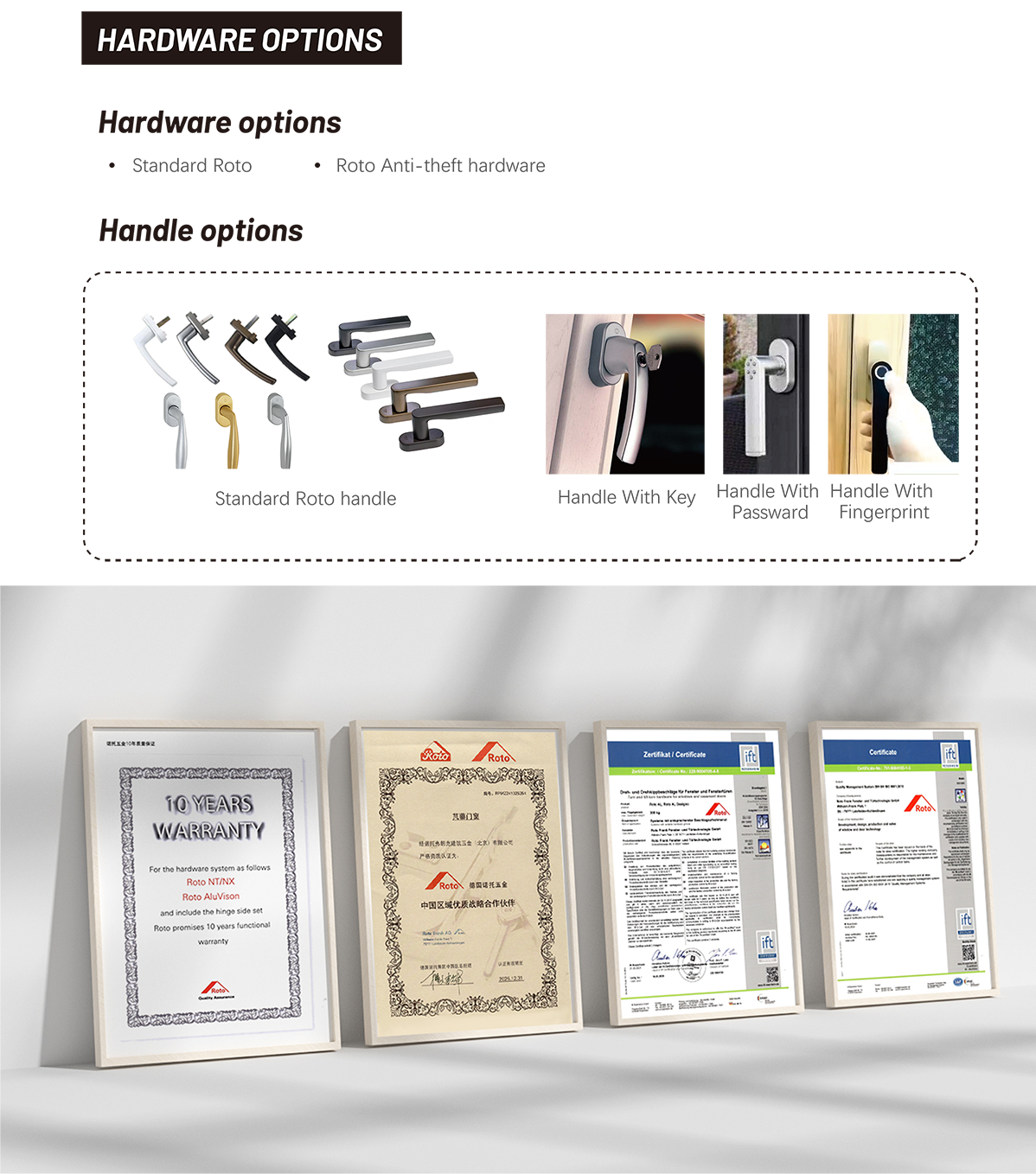

| Hardware | Imported German hardware: ROTO, Hoppe, Siegenia etc. |
| Finish | Aluminum: AKZO powder coating; Wood: Imported German water lacquer painting (Remmers is available) |
| Open style | Tilt and turn window; fixed window; turn only; tilt only; Hinge door |
| Glass | All tempered glass. Low-e, warm edge spacer, argon gas are available (additional configuration) |
| MOQ | 1 ㎡ |
| Certification | CSA / NFRC / PHI / CE |

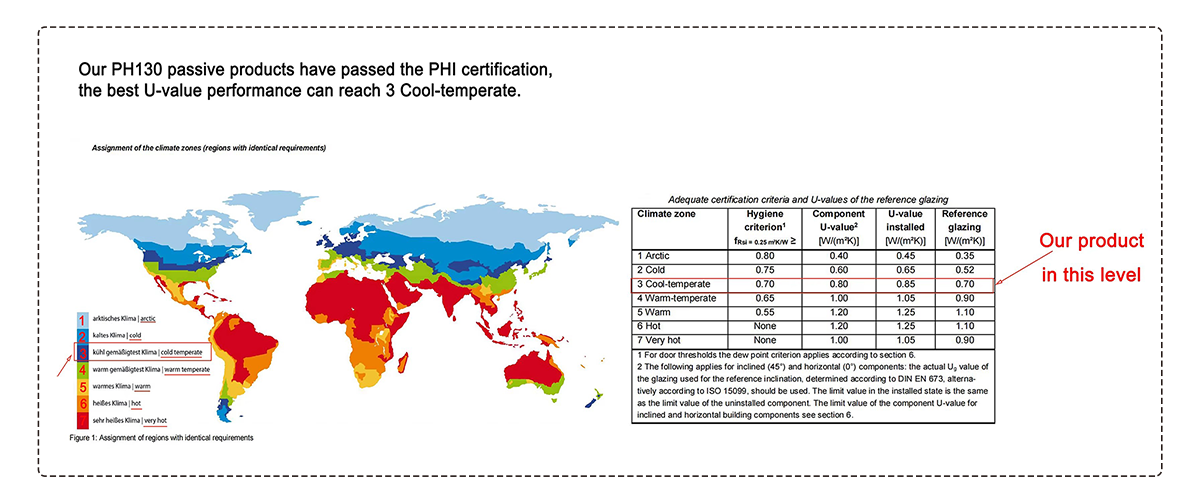

Our PH130 passive products have passed the PHI certification, the best U-value performance can reach 3 Cool-temperate.

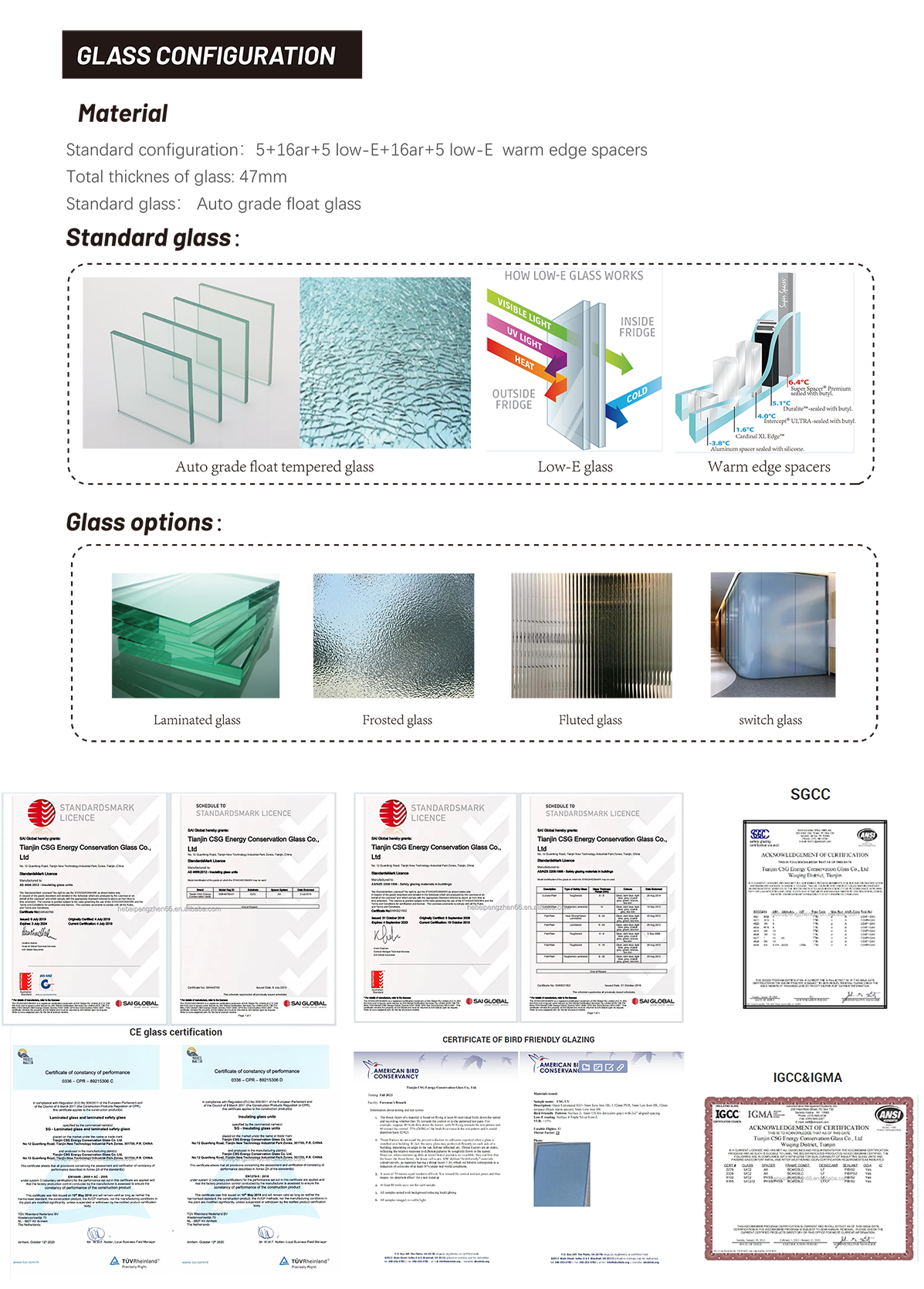

GLASS CONFIGURATION
Glass types can be customized.
Standard configuration: 5+16ar+5 low-E+16ar+5 low-E warm edge spacers.
Total thickness of glass: 47mm | Standard glass: Auto grade float glass.

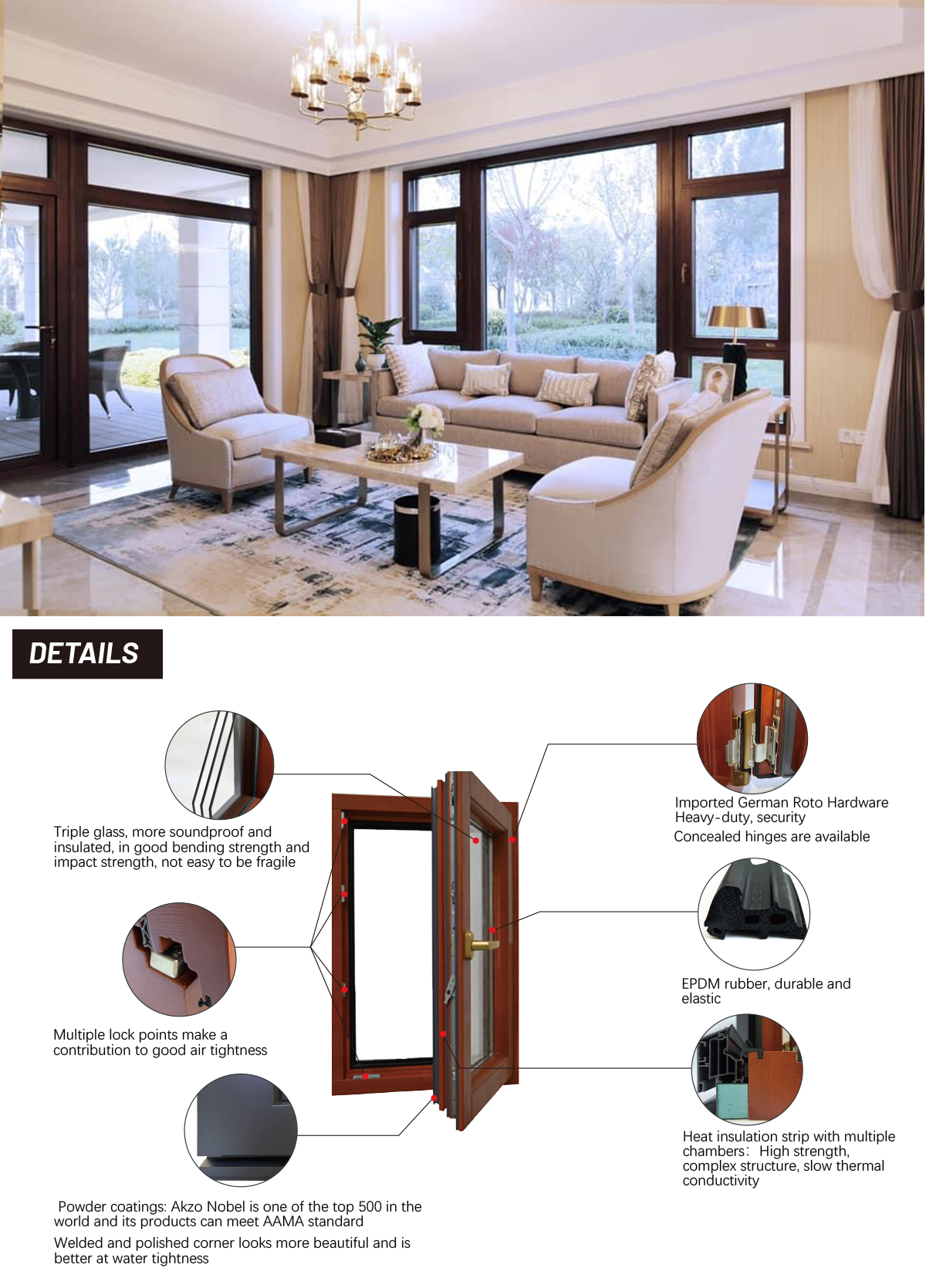

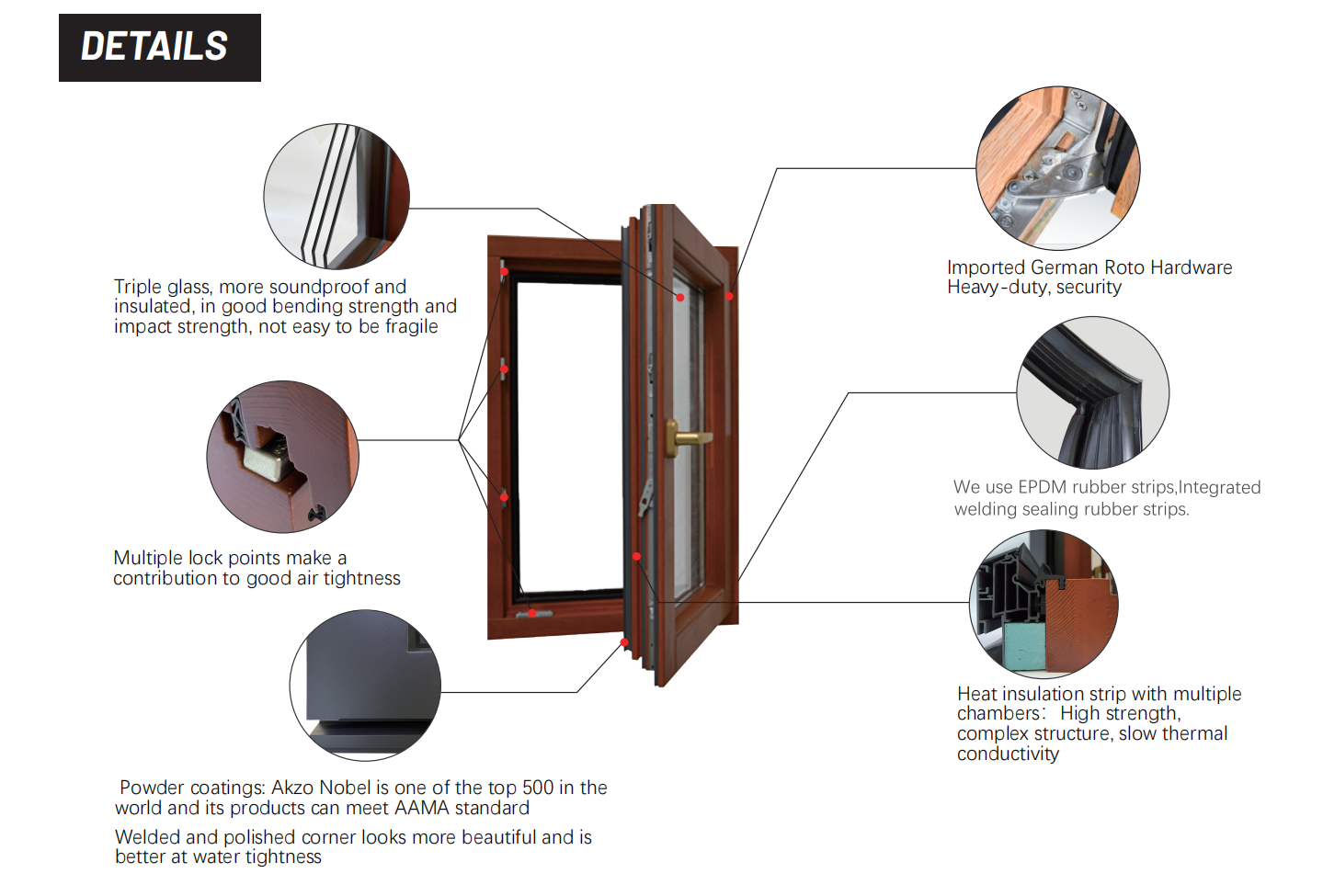

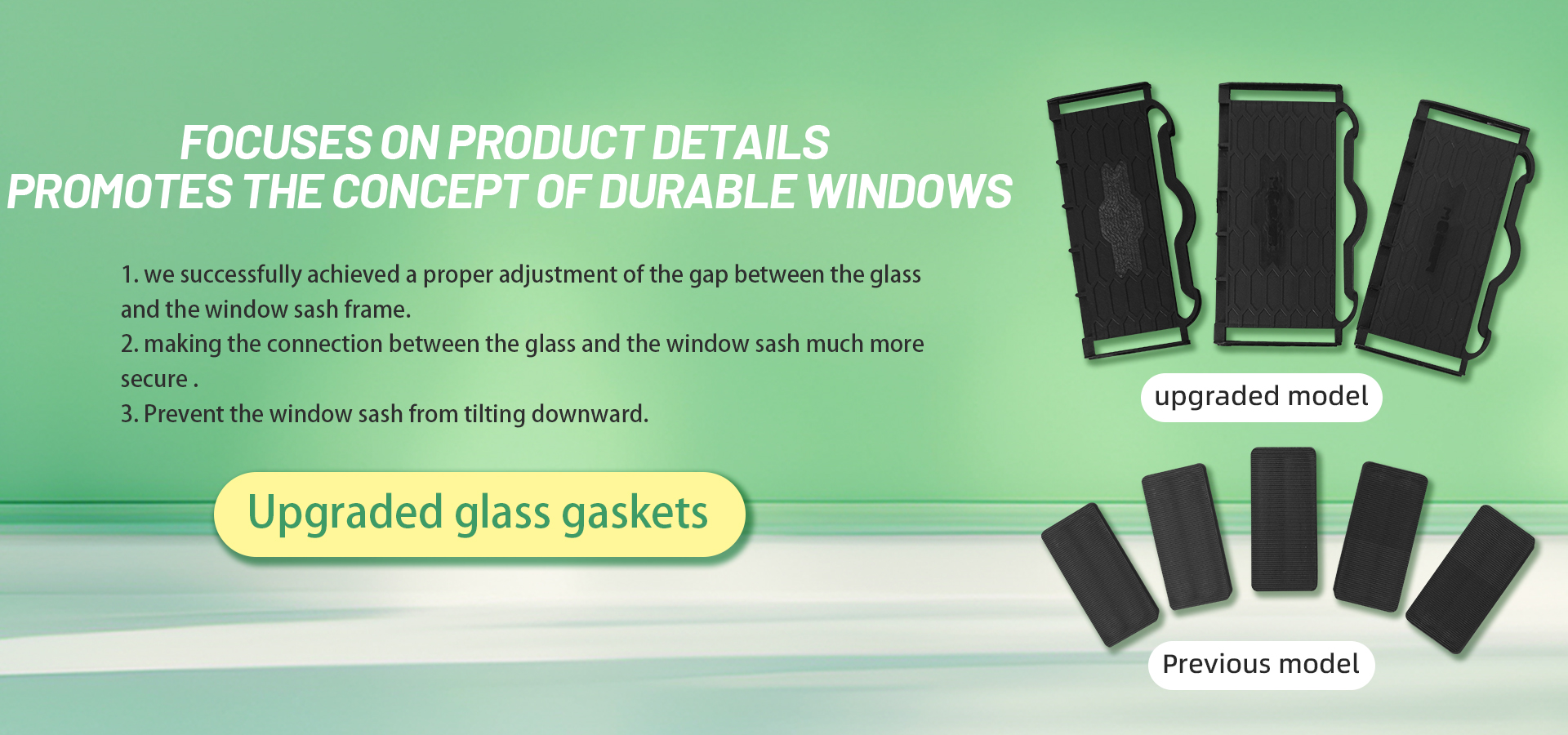

FOCUSES ON PRODUCT DETAILS - PROMOTES DURABLE WINDOWS
1. Successfully achieved a proper adjustment of the gap between the glass and the window sash frame.
2. Making the connection between the glass and the window sash much more secure.
3. Prevent the window sash from tilting downward.

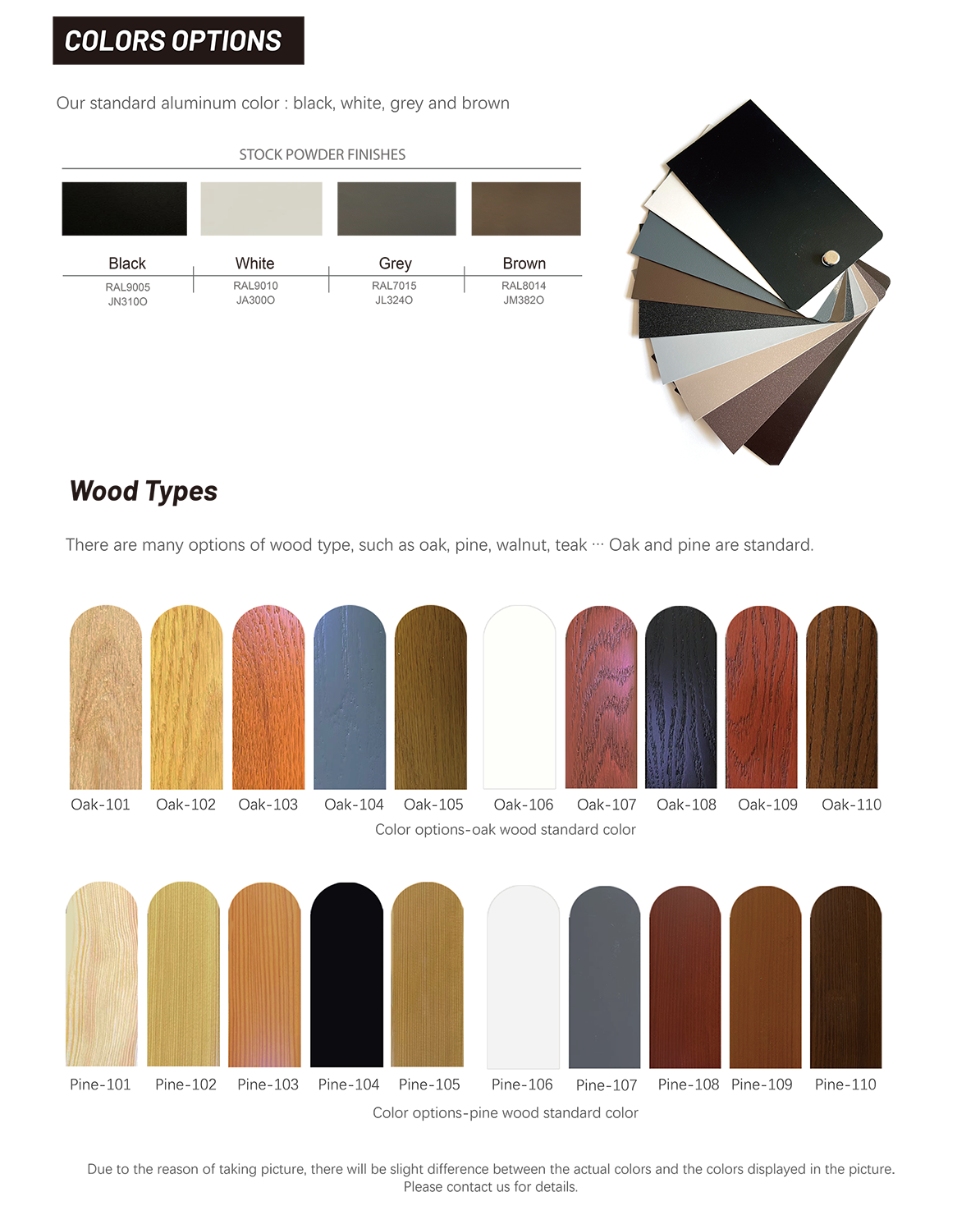

Colors & Material Customization
Standard aluminum color: Black, white, grey, and brown. More colors can be customized according to the RAL color chart.
Wood options: Many options available such as oak, pine, walnut, teak... Oak and pine are standard.

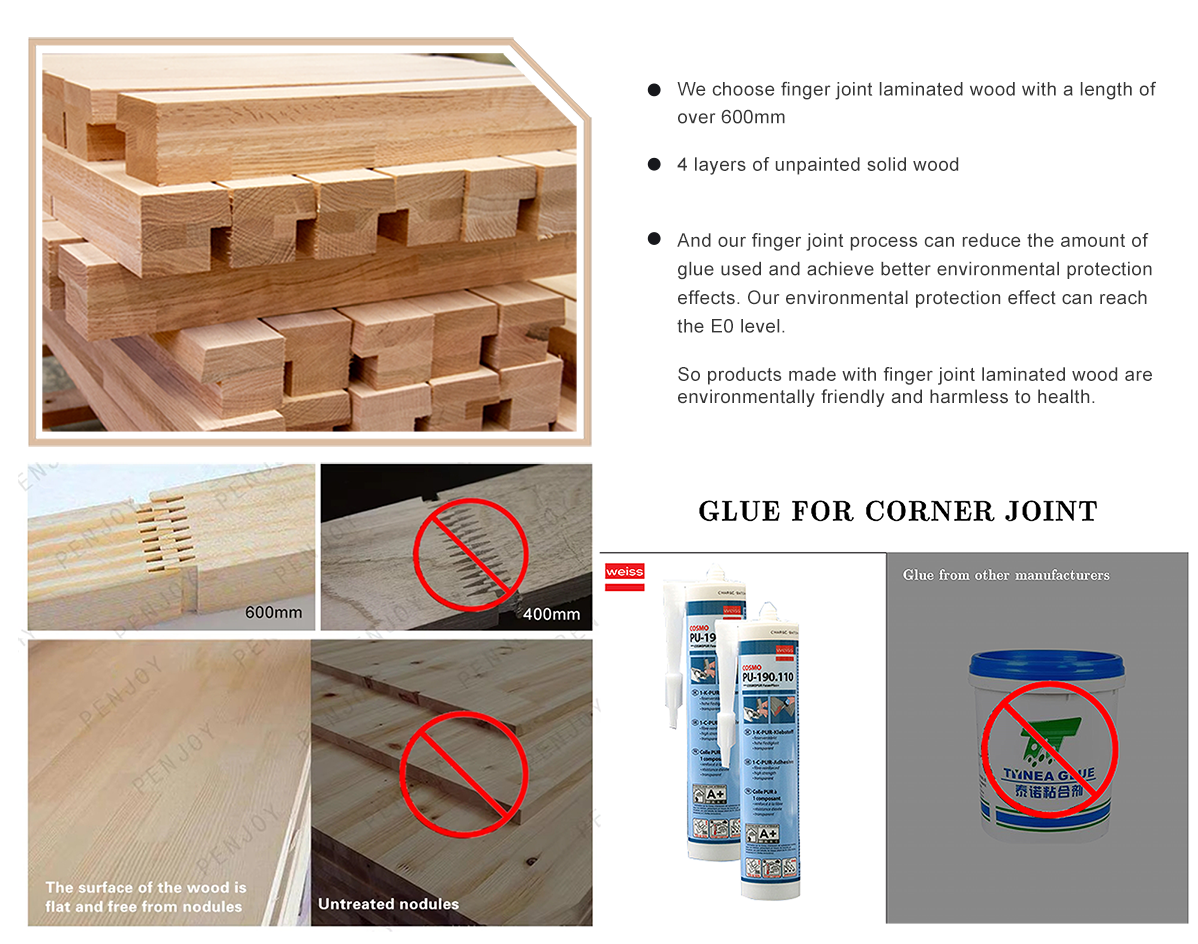

We choose finger joint laminated wood with a length of over 600mm and 4 layers of unpainted solid wood. Our finger joint process reduces the amount of glue used and achieves higher environmental standards, reaching the E0 level. Products made with finger joint laminated wood are environmentally friendly and harmless to health.
Premium Surface Coatings & Finishes

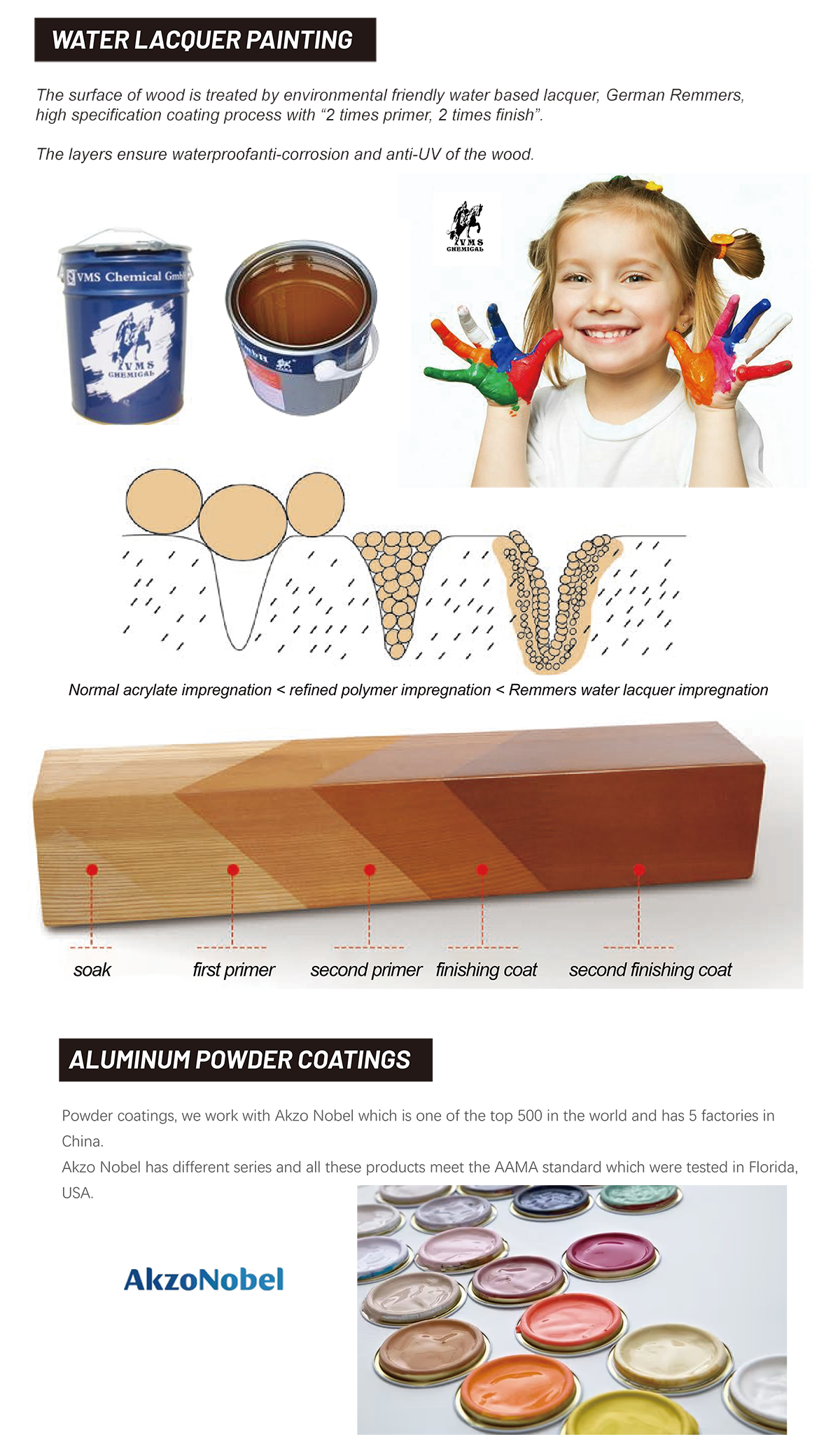

WATER LACQUER PAINTING: The surface of wood is treated by environmental friendly water based lacquer, German Remmers high specification coating process with "2 times primer, 2 times finish". The layers ensure waterproof, anti-corrosion and anti-UV protection of the wood.
ALUMINUM POWDER COATINGS: For powder coatings, we work with Akzo Nobel, one of the top 500 companies in the world with 5 factories in China. Akzo Nobel offers various series that meet the AAMA standard, tested in Florida, USA.

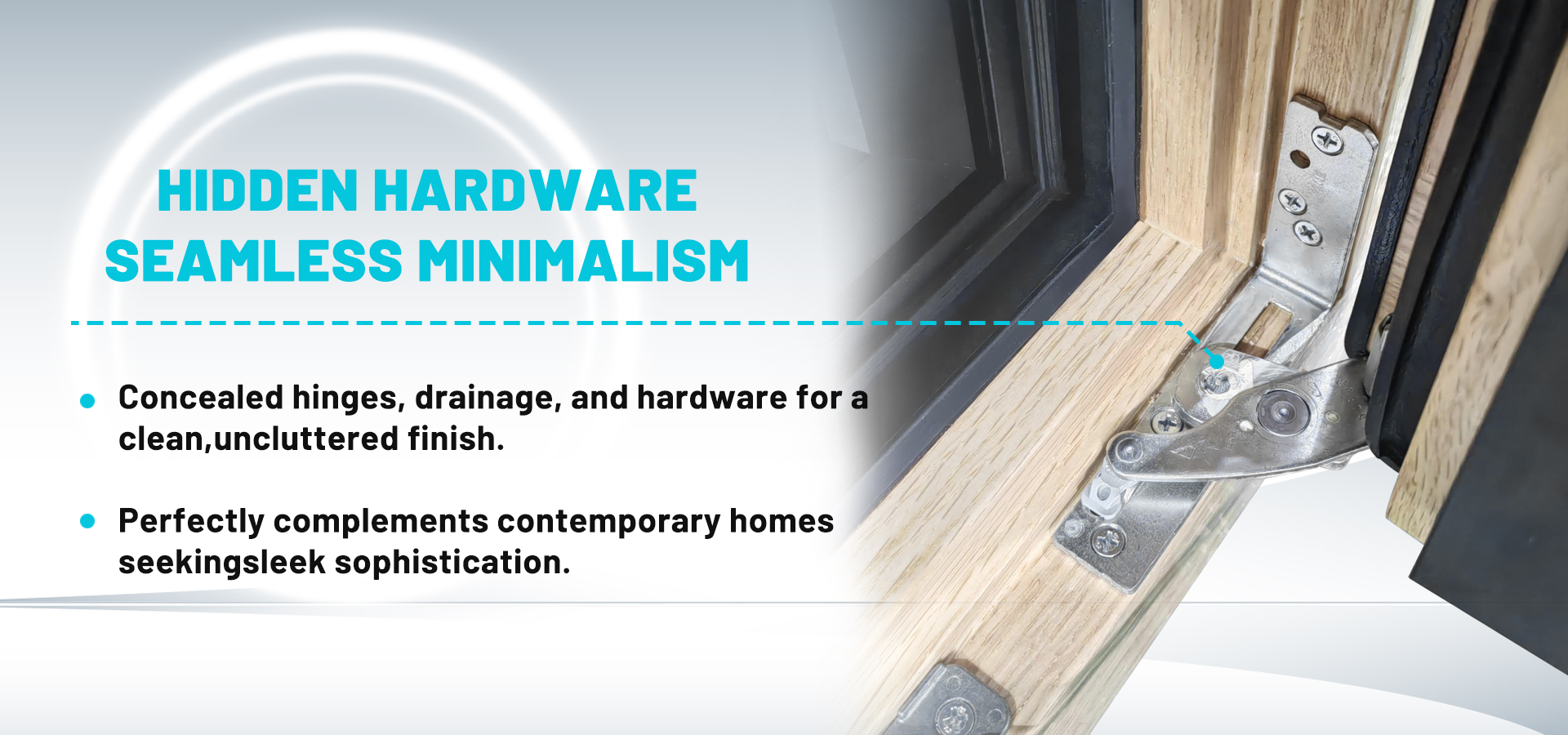

HIDDEN HARDWARE - SEAMLESS MINIMALISM

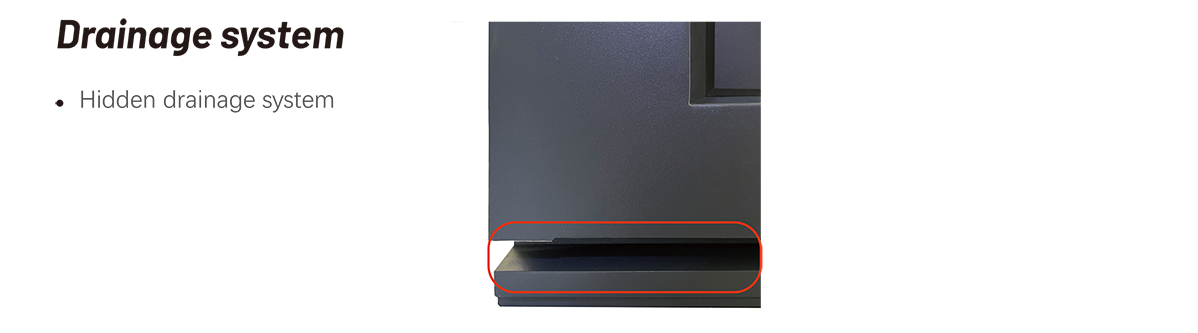

Concealed hinges, drainage, and hardware provide a clean, uncluttered finish. Perfectly complements contemporary homes seeking sleek sophistication. We utilize the German brand Noto and have established a strategic cooperative partnership with them. This collaboration ensures a ten-year warranty on our products, offering peace of mind regarding quality.

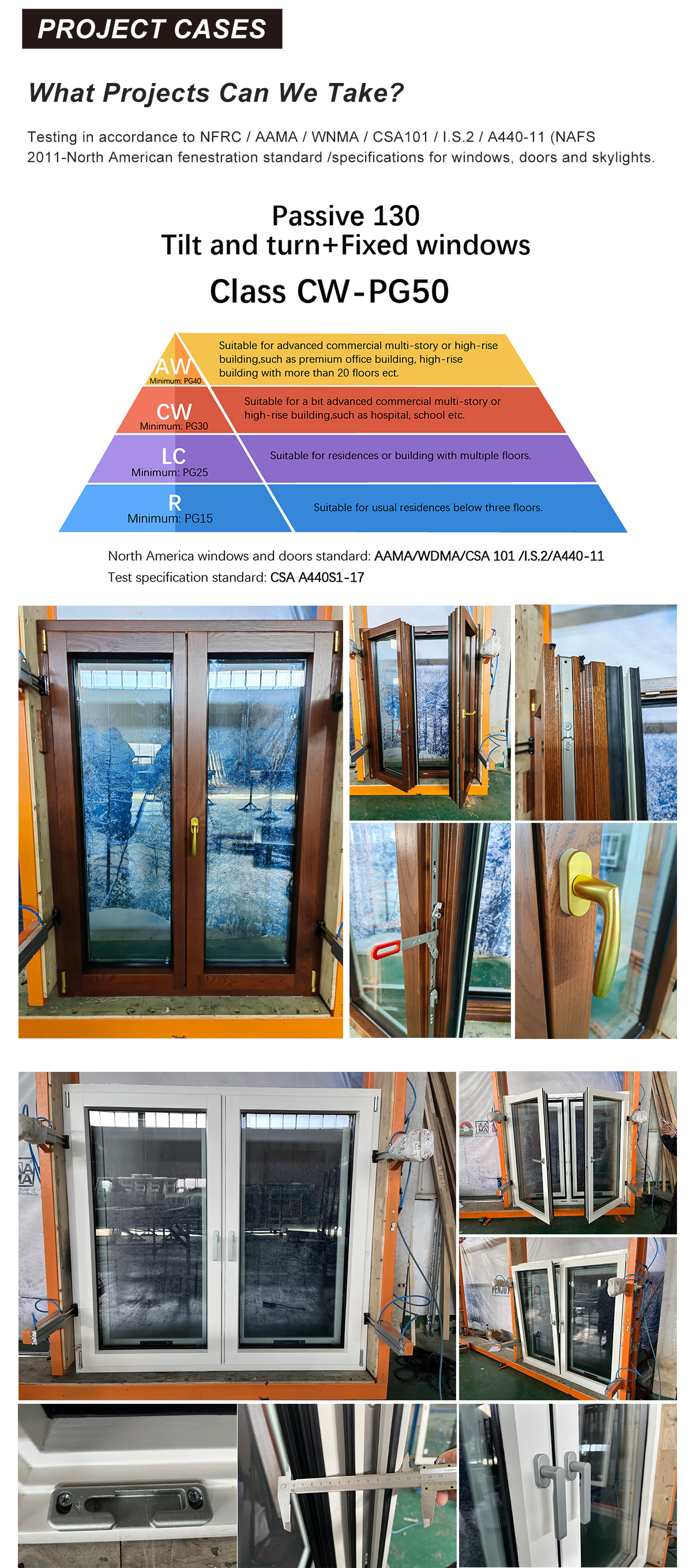

Product Gallery & Applications
About Hebei Penjoy Windows Doors Co., Ltd

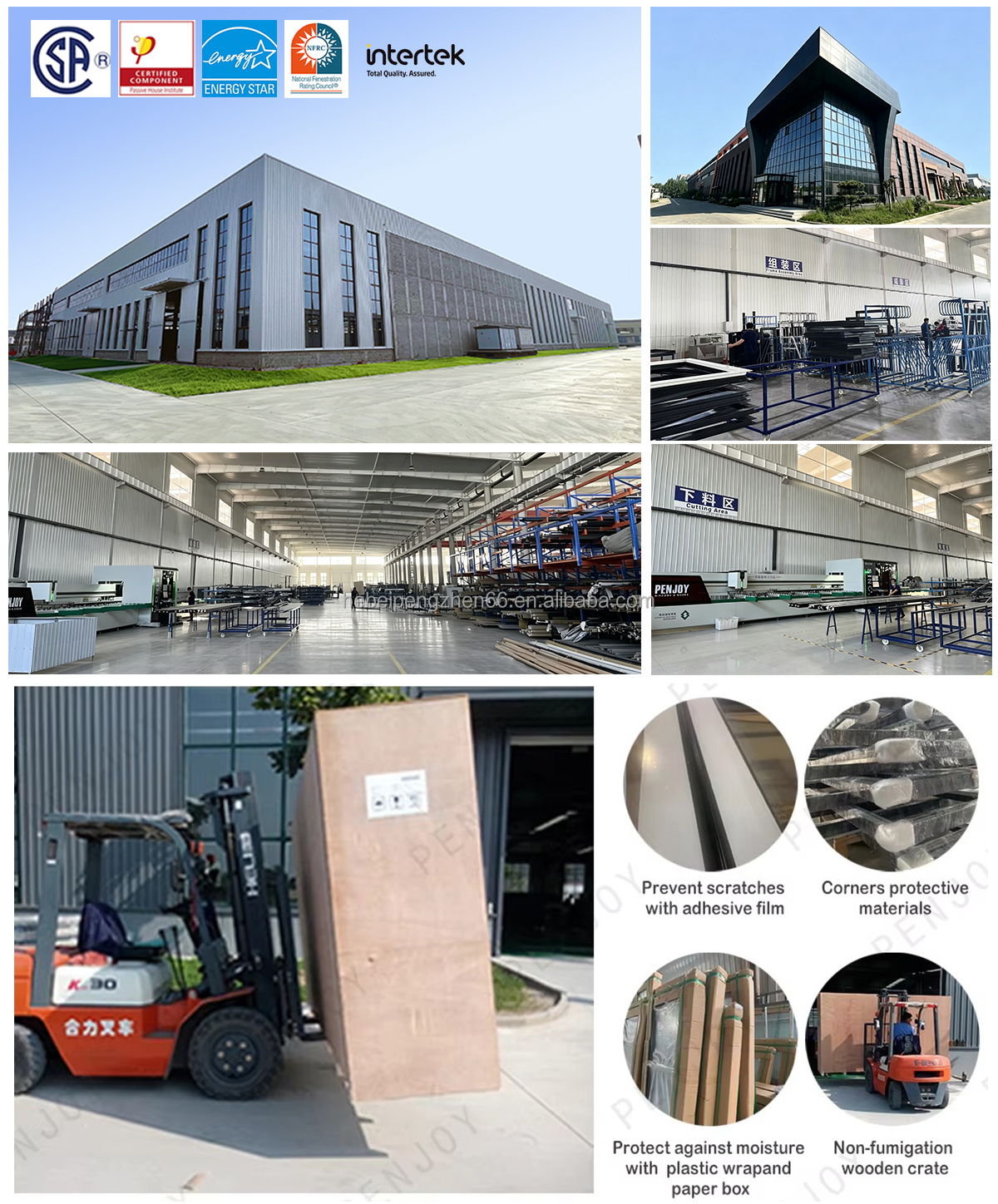

Hebei Penjoy Windows Doors Co.,Ltd is a professional windows and doors manufacturer located in Dingxing County, Baoding city, Hebei province, 60 km from Beijing Daxing Airport. Our portfolio includes thermal break aluminum windows & doors, wood windows & doors, and passive house windows & doors.
Our primary markets include America, Canada, Australia, and New Zealand. We have engineered custom solutions tailored strictly to local window standards and installation methods. All newly developed models are rigorously certified against the standards of these four countries to achieve industry-leading performance. Clients from Europe and worldwide are warmly welcome.
Passive house is a building standard that is truly energy efficient, comfortable, affordable, and ecological. Compared to double-glazed windows, our passive house windows reduce heat loss by over 70%. Guided by our concept of "Affordable Luxury," we bring quiet, comfortable living spaces within reach. If you have any new concepts or specifications, please contact us for custom engineering collaboration.
Frequently Asked Questions (FAQ)
Q1: What is the delivery time for passive house windows?
A: Standard production takes approximately 30 days after receipt of deposit and confirmation of technical drawings. Custom configurations for passive house windows require an additional 15 days.
Q2: What test reports and international certifications do you hold?
A: Penjoy has achieved major industry certifications including New Zealand standard NZS4211:2008, Australian standard AS2047:2014, and American/Canadian standard AAMA/WDMA/CSA/NAFS 2011, along with PHI and NFRC ratings.
Q3: What are the standard sizes and design options available?
A: All windows and doors are manufactured to custom dimensions. The maximum height of an operable window can reach 2100 mm. We engineer drawings and offer optimization suggestions per architectural demands.
Q4: What payment methods does your company support?
A: We accept T/T and Alibaba secure payment. Alternative payment terms are open to negotiation based on contract scale.
Q5: What is the warranty policy on your window assemblies?
A: We provide an official 10-year quality warranty supported directly through our strategic manufacturing partnerships and premium German components.
Q6: What makes passive house windows more energy efficient than double glazing?
A: By combining a 130mm thick non-conductive wood core, 4 layers of continuous sealing strips, warm edge spacers, and triple-pane argon-filled low-E glass, our windows reduce heat loss by over 70% compared to standard double glazing.
