MINGLEI Aluminum Window America High Efficiency Windows Aluminum Glass Casement Windows

Product Description

Window Product Overview

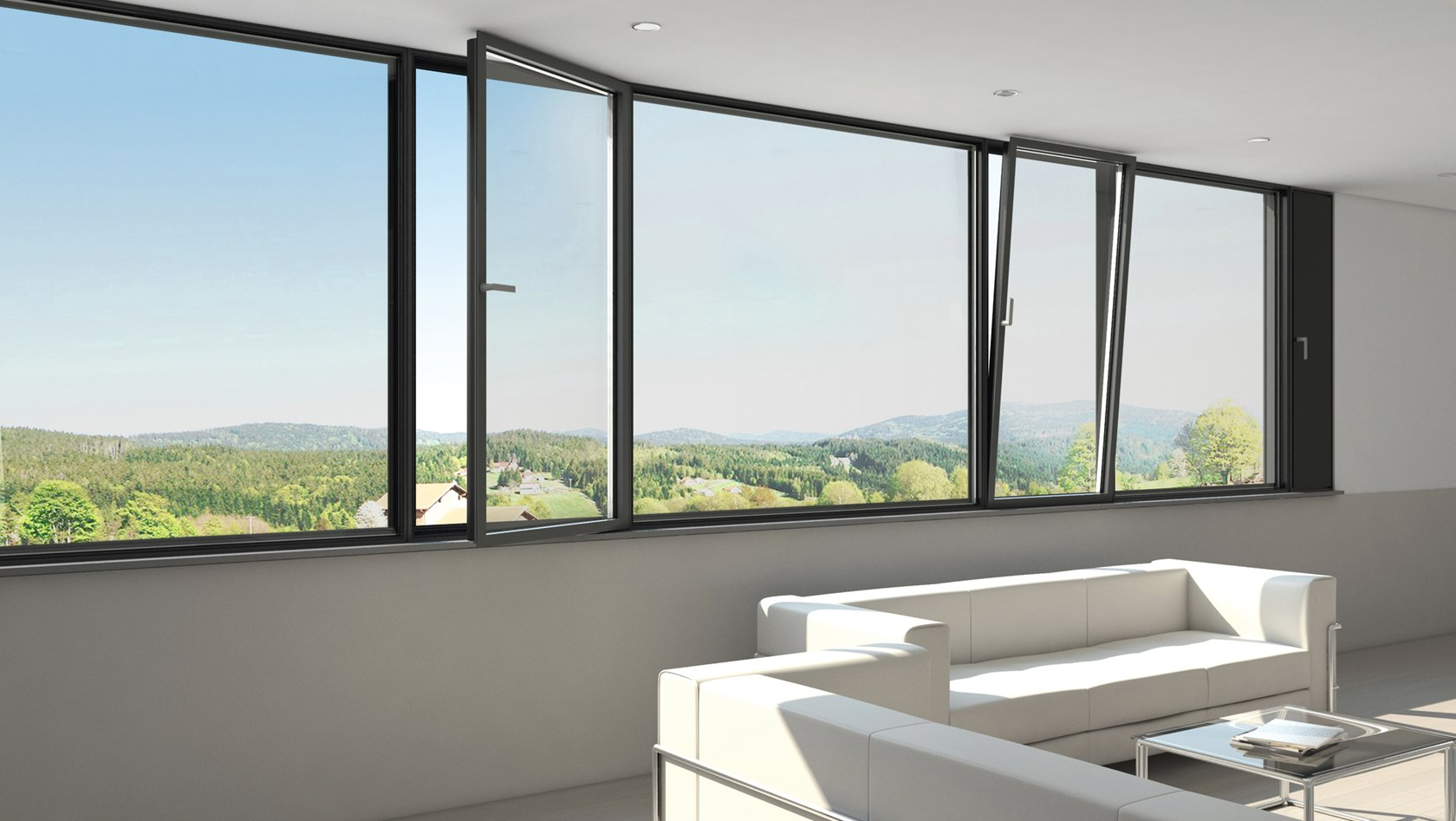

Aluminum Casement & Tilt Turn Windows-76 Series

Aluminum Casement & Tilt Turn Windows - 76 Series

Tilt and turn windows are a versatile European window style known for their dual-functionality, offering both a tilting and a turning (swinging inward) operation. The tilt function provides secure ventilation by opening slightly at the top, while the turn function allows for a full inward swing, similar to a casement window, for easy cleaning and maximum airflow.

When energy efficiency, durability, and comfort matter most - Minglei 76 Tilt Turn Windows serve as a great choice for superior insulation, reduced energy costs, and a quieter, more comfortable home in any climate.

Products Description
1. Profile 6060-T66 Thermal break aluminum alloy
2. Profile Brand Germany system, Domestic system
3. Surface Finish Powder coating, Anodized, Woodgrain transfer, Electrophoresis, Fluorocarbon paint.
4. Profile Thickness 1.8mm
5. Glass Option Triple insulated glass: 5/6mm + 16A + 5/6mm + 16A + 5/6mm, warm edge spacer Low-E & argon gas
6. Hardware Germany Siegenia hardware, Intruder resistance up to RC2
7. Thermal Strip 35.3mm PA66GF25 multi-cavity Nylon insulation strip
8. Screen Optional Stainless steel mesh screen / Fiberglass screen
9. Sunshading Blinds, roller shutter etc.
10. Applications Commercial building, Office, apartment, villa, basement, garden, hotel, hospital, residential housing.

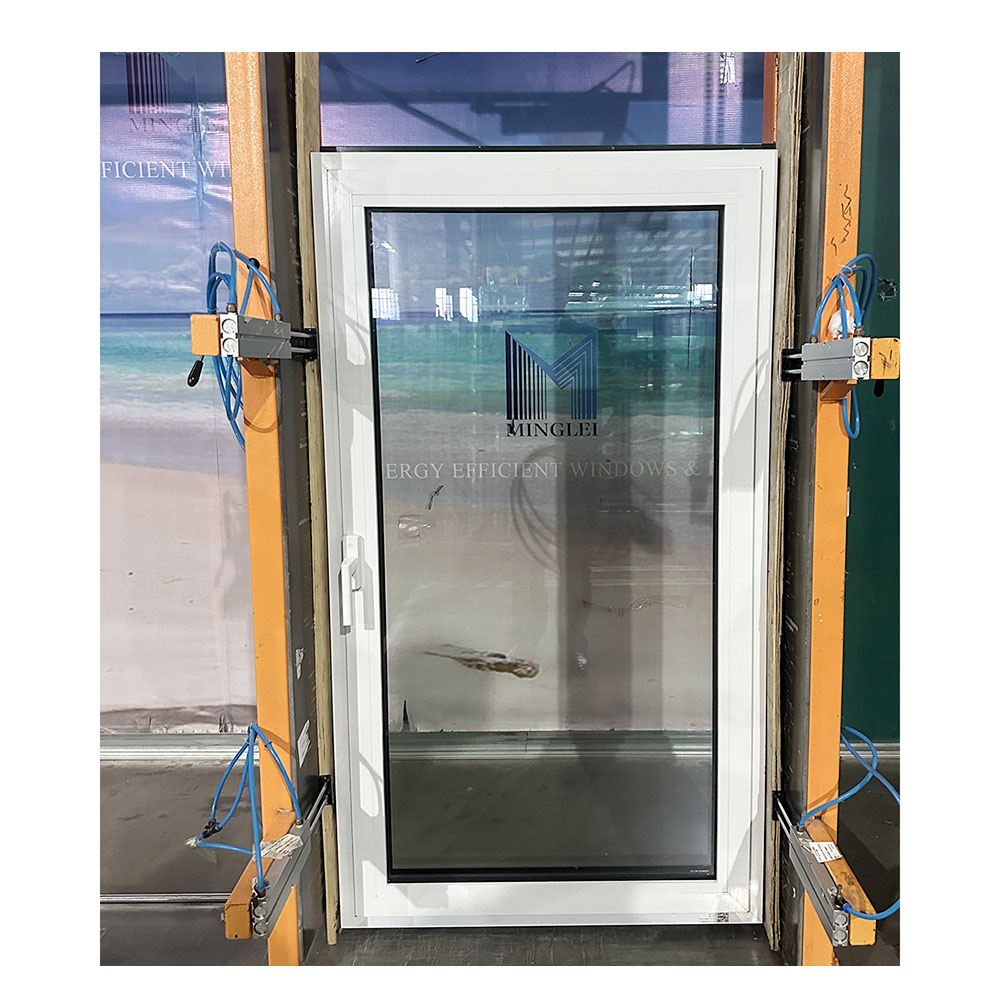

Tilt & Turn Window - Front
Tilt & Turn Window - Front

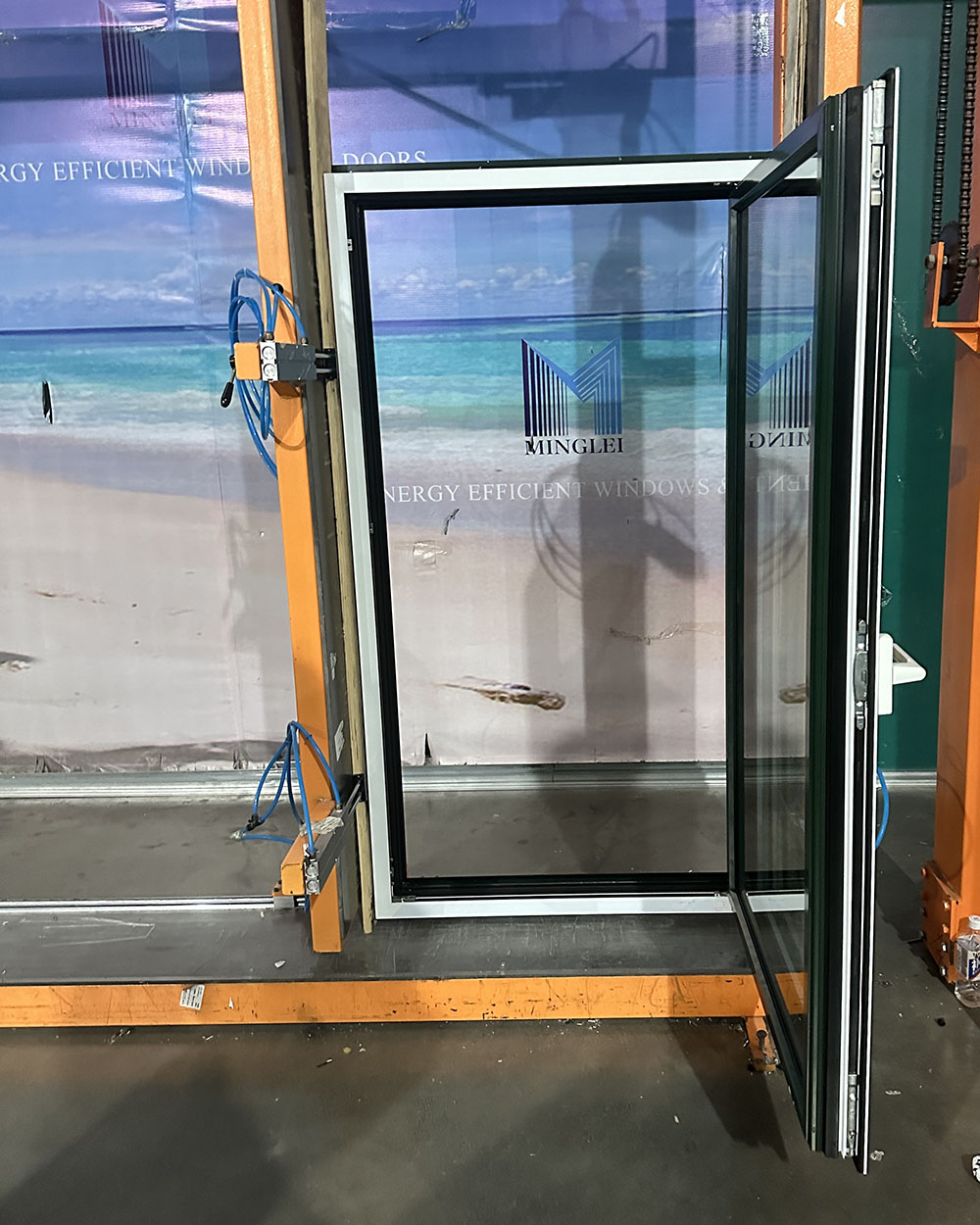

Tilt & Turn Window (Inward Opening)
Tilt & Turn Window (Inward Opening)

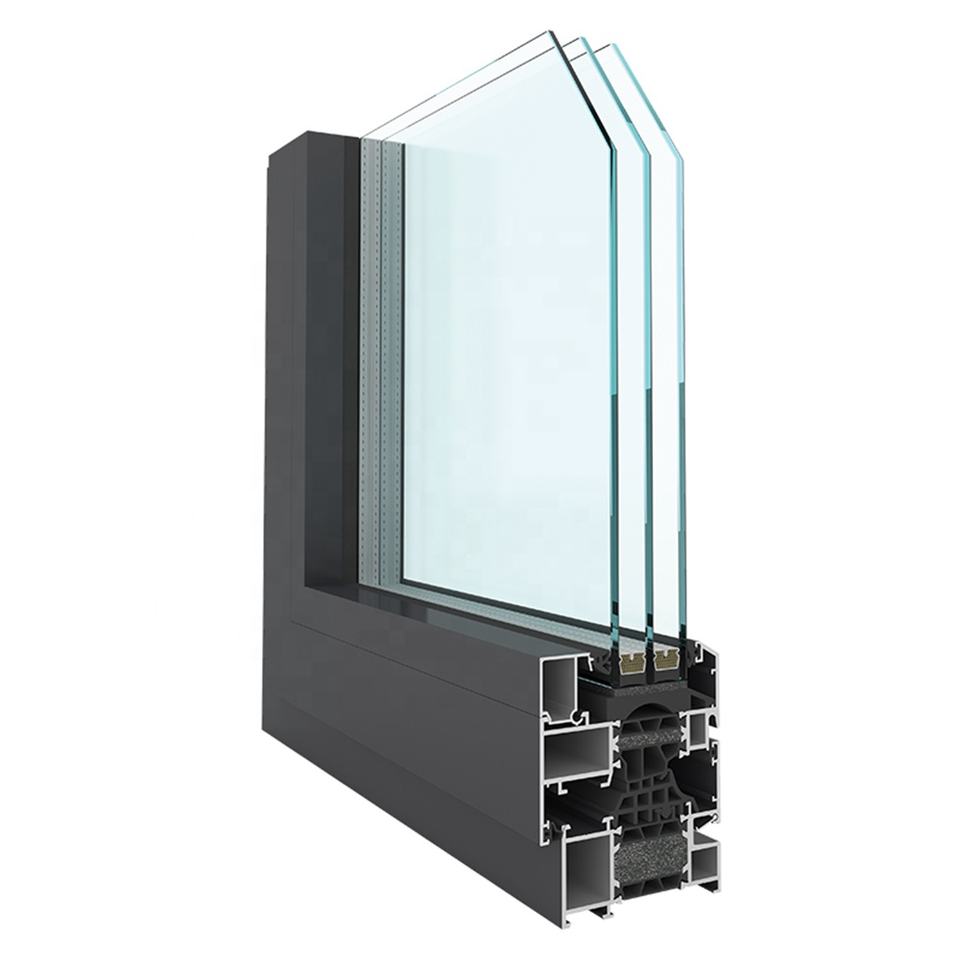

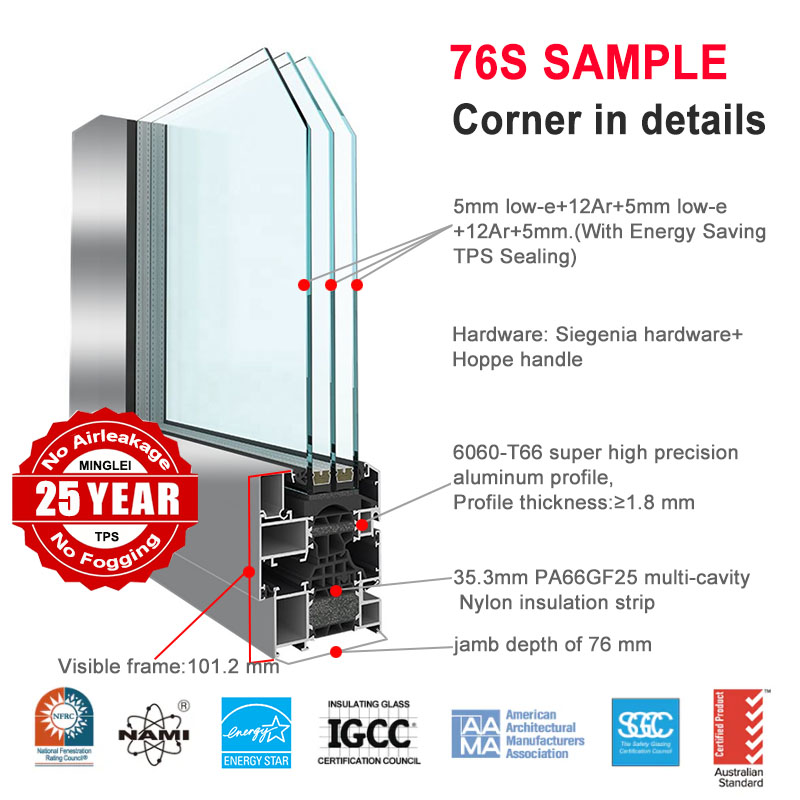

Cross Section
Cross Section

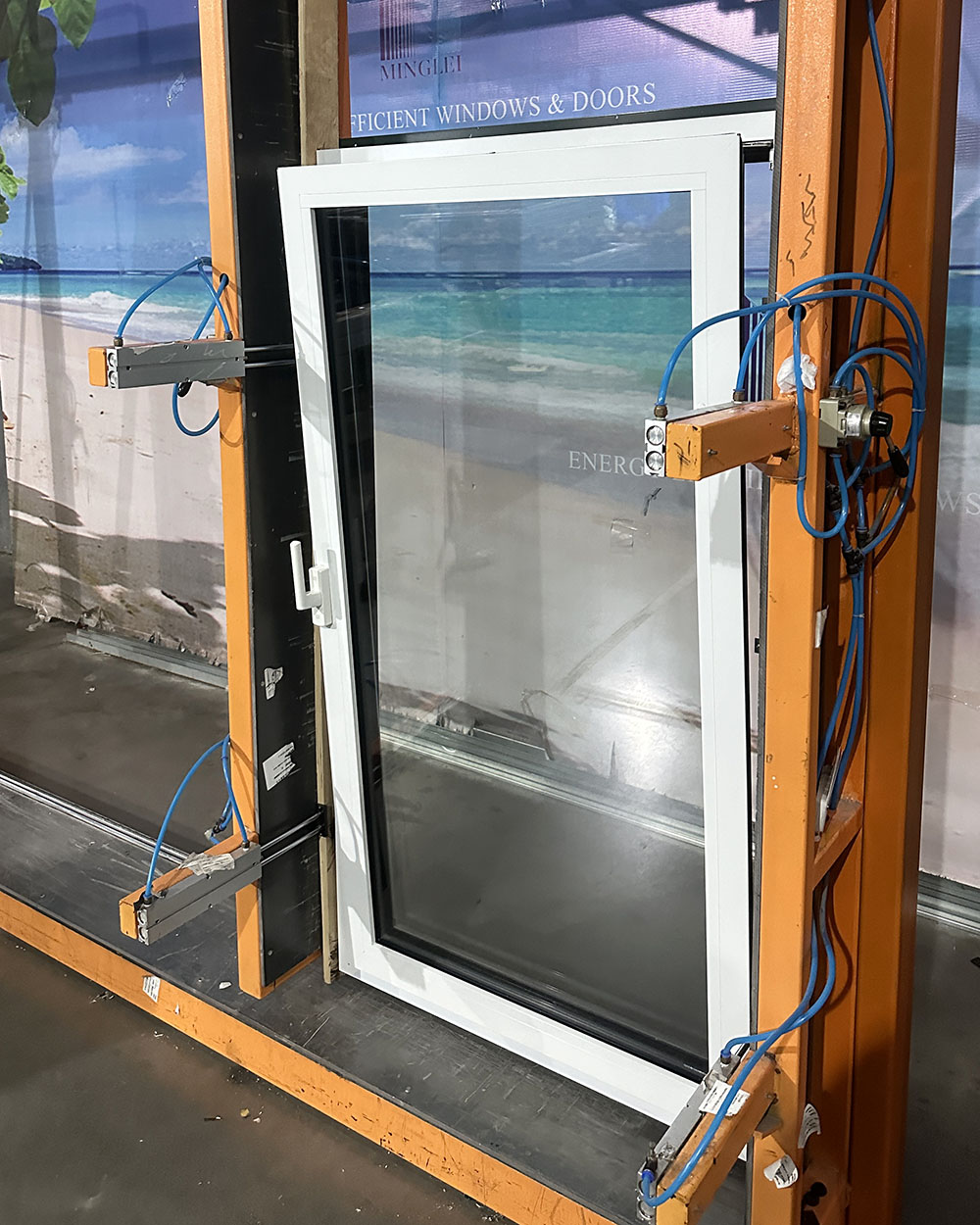

Tilt & Turn Window (Tilt Opening)
Tilt & Turn Window (Tilt Opening)
Ideal Solution for Commerce & Residence
Ideal Solution for Commerce & Residence

76 Series Tilt-Turn window is fully NFRC certified and ENERGY STAR® qualified, meeting strict U.S. standards for energy efficiency and performance (U-factor: 0.2). Tested and rated by the National Fenestration Rating Council (NFRC), it provides verified insulation values and solar heat gain control.

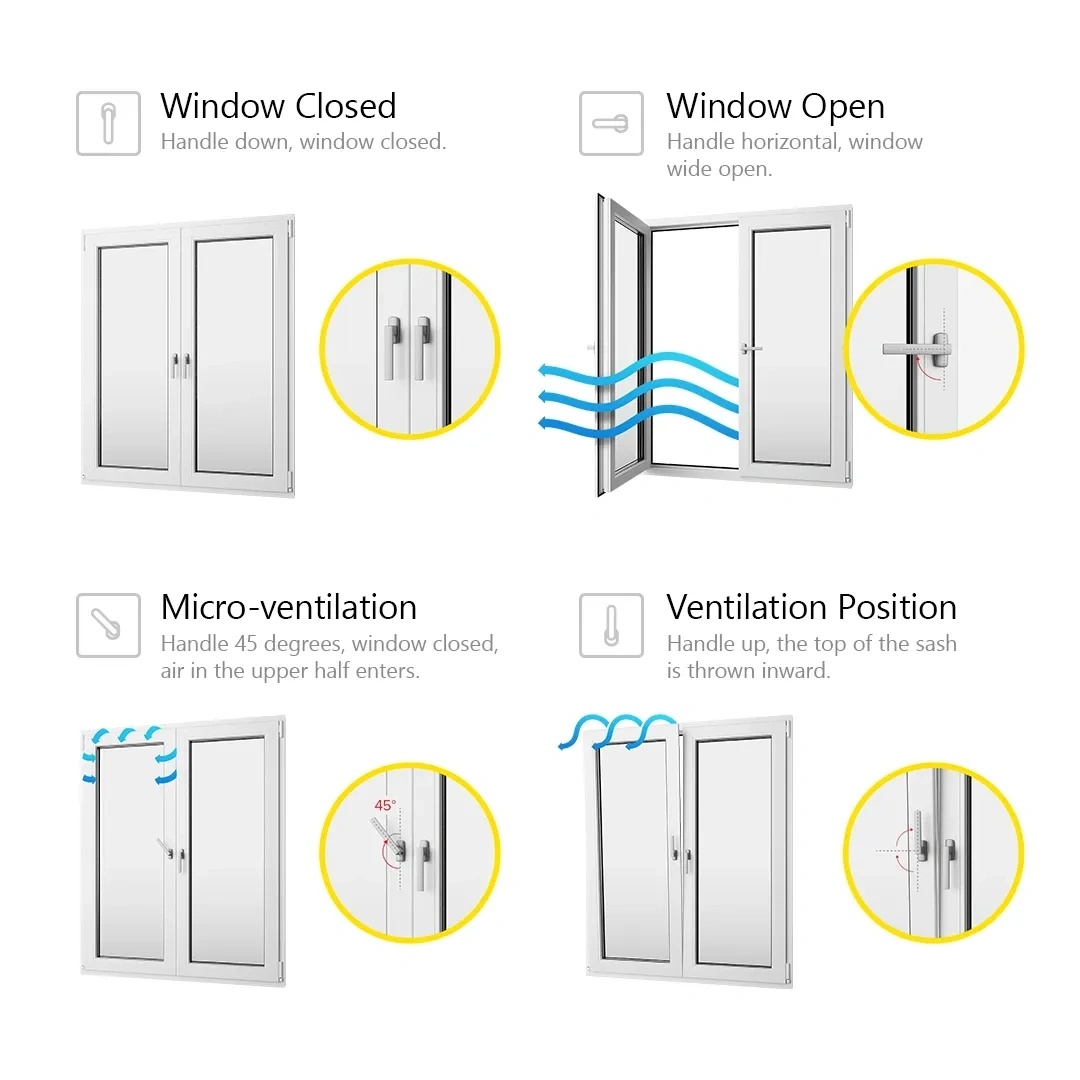

Tilt Turn Window Open Method
Open Method 1
Open Method 2
Open Method 3
Open Method 4
Open Method 5
Open Method 6
Open Method Overview
Aluminum Advantage

Advantage

For years, Aluminum windows have been specified by architects and builders for their overall strength and lasting value. Because of their rigidity, durability and narrow frames, aluminum windows can be configured into a wide variety of combinations that maximize views. Aluminum windows also are popular because of their low maintenance. They won't rust or rot. You don't have to paint them. And they're available with tough anodized or baked-on finishes.

ML 76S Series
ML 76S series NFRC & NAMI Certified Energy Saving system
ML 85 Series
ML 85 series Slim frame design system high insulation
ML 101 Series
ML101 Series Passive house system max insulation
Product Performance Comparison
Product Performance ML101 Series ML 85 Series ML 76S Series
European U-Value (Metric/SI) 0.79 W/(m²K) 1.19 W/(m²K) 1.19 W/(m²K)
American U factor (U.S./I-P) 0.14 0.21 0.21
Rw (dB) 38 35 35
Wind load resistance (Pa) ≥ 2400 Pa ≥ 2400 Pa ≥ 2880 Pa
Water tightness (Pa) ≥ 580 Pa ≥ 580 Pa ≥ 440 Pa
Canadian Air infiltration/exfiltration A3 level, Metric ≤0.07 L/s·m² | Imperial ≤ 0.014 cfm/ft² A3 level, Metric ≤0.07 L/s·m² | Imperial ≤ 0.014 cfm/ft² A3 level, Metric ≤0.19 L/s·m² | Imperial ≤ 0.038 cfm/ft²
Our Advantages

ONE OF LEADING MANUFACTURERS OF ENERGY EFFICIENT WINDOWS AND DOORS WITH ABUNDANT SERVICE EXPERIENCE

Minglei is a professional manufacturer of high quality windows and doors with 10+ years exporting experience with two state-of-the-art manufacturing bases with 300,000 m²/year production capacity. We have enjoyed a lot of five-star reviews & recommendations by global customers from more than 60 countries, 80% of whom are from the USA, Canada, Europe, and Australia.

Manufacturing Base Overview
Production Facility 1
Production Facility 2
Production Facility 3

CERTIFICATIONS

So far, We have certifications and test reports of Canada Energy Star, NFRC, NAMI, AAMA, AS2047 and CE etc.

Energy-efficient, exceptional quality, beautiful design, budget-friendly, those are all about our missions for windows and doors. With advanced & exquisite manufacturing technique, and abundant product application & service experience, Minglei team will fulfill Your needs and meet Your highest expectations.

Certificates Display

CORE ADVANTAGES OF ULTIMATE ENERGY SAVING, U-VALUE BENCHMARK PERFORMANCE

With "ultimate thermal insulation and energy saving" as its core R&D direction, Minglei Windows and Doors achieves an industry-leading U-value (the lowest U-value among similar products on the platform). Utilizing low-emissivity triple-glazed windows, warm edge spacers, argon gas filling, and a full-window thermal bridge blocking design, it maximizes the reduction of heat transfer between indoors and outdoors. Its winter heat retention and summer insulation effects far surpass conventional products, helping buildings reduce energy consumption by 30%-50%. This aligns with North American Energy Star energy conservation initiatives and saves users long-term energy costs, making it a preferred choice for green buildings.

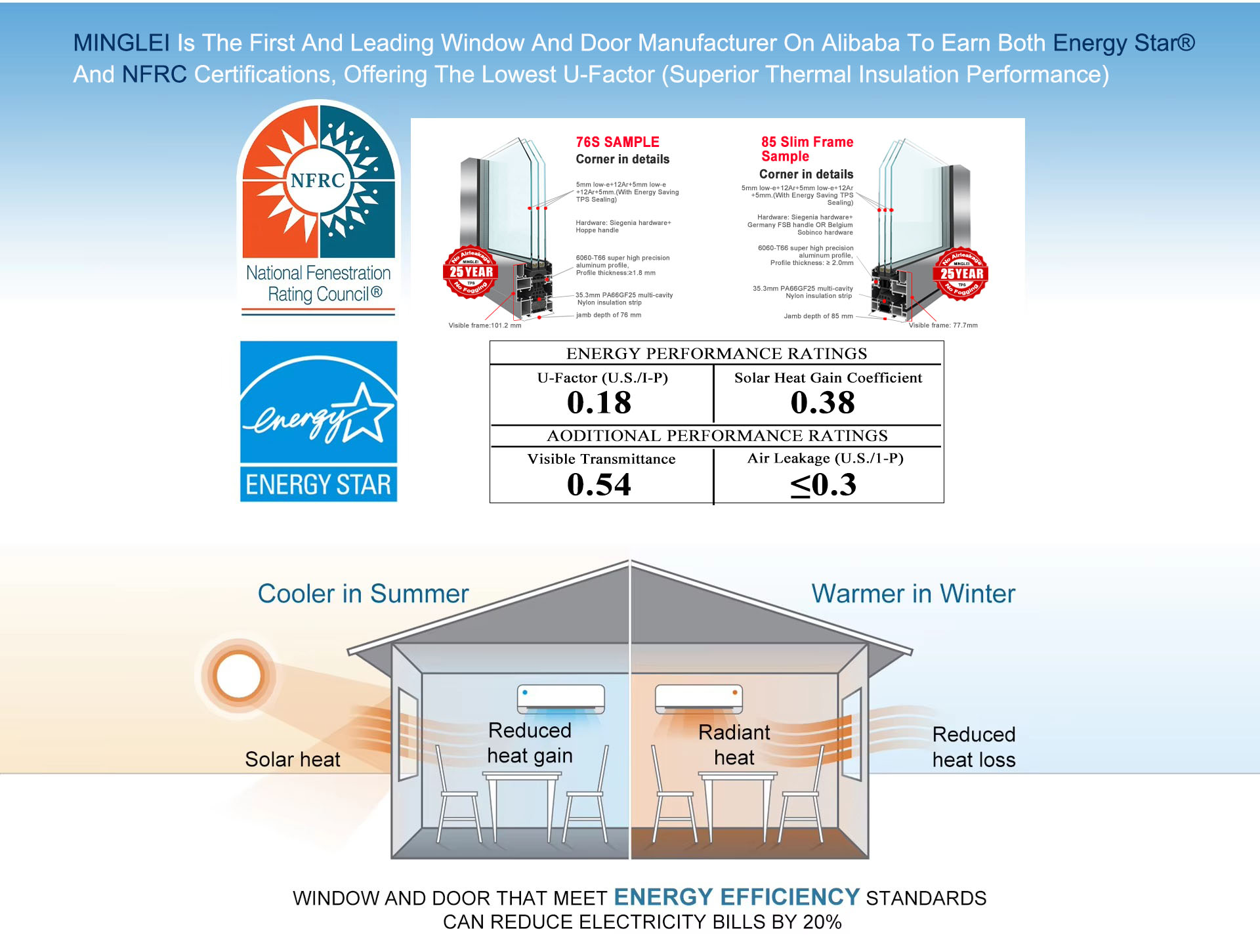

Energy Saving Performance

OUR COMPANY TAKES PRIDE IN OFFERING HIGH QUALITY WINDOWS & DOORS

We use high-grade raw materials, modern technology, cutting-edge manufacturing processes, and skilled workers to produce windows & doors that offer superior longevity, exceptional performance, and unmatched beauty.

Our windows and doors are manufactured flexibly for custom sizes, architectural shapes, colors and specialty finishes. Built to pass your local inspectors' verification under Canada & USA building codes, they are certified by Canada Energy Star, USA NFRC & NAMI to ensure they are energy efficient, safe and sturdy.

Factory Overview
Workshop 1
Workshop 2
Workshop 3
Workshop 4

PROVIDE FREE DESIGN ASSISTANCE TO OPTIMIZE YOUR PLAN & BUDGET

We look forward to long-term partnerships where our service and expertise in window and door systems save partners time and money. Having served the North American market for a decade, Minglei delivers professional planning and functional design at ideal prices for custom demands.

We offer no-cost design development and contract documentation with CAD & BIM drawings (elevations, details, installation design). We assist in accurate budget control by evaluating overall schematics—such as recommending cost-effective options in low-visibility or low-sunlight areas to help lower costs without compromising structural integrity.

LABOR COSTS MATTER DURING THE INSTALLATION PROCESS

We hold several international patents to reduce labor costs, such as our unique flanges and assembly-type tubular design. All our products are equipped with nail fin structures for quick and easy installation. Because installation labor can equal or exceed the product cost itself, our patented designs significantly boost efficiency and offer substantial on-site savings.

Installation Flange and Structure

QUICK PRODUCTION TIME, SAFE AND CONVENIENT LOGISTICS SERVICE

Our sufficient production capacity assures a 35-day delivery time upon drawing approval. Each window is individually packed with four layers before being placed into strong wooden crates. Weekly shipments to the USA guarantee products arrive in prime condition.

Packaging and Shipping

CONCERNS FOR SHIPPING

Whether importing for the first time or preferring not to manage logistics, customs, and tariffs, Minglei provides complete door-to-door (DDP) shipping services. We handle all import clearance, duties, and inland truck delivery to your specified location with transparent rates.

Logistics Network

AFTER SALE AND WARRANTY ARE GUARANTEED

Any questions during installation or regular use receive dedicated support within 24 hours. Minglei stands behind its NFRC-certified windows and doors with a comprehensive 10-year warranty. The TPS glazing units feature a 25-year warranty against seal failure, fogging, and air leakage.

Quality Warranty
Project Case

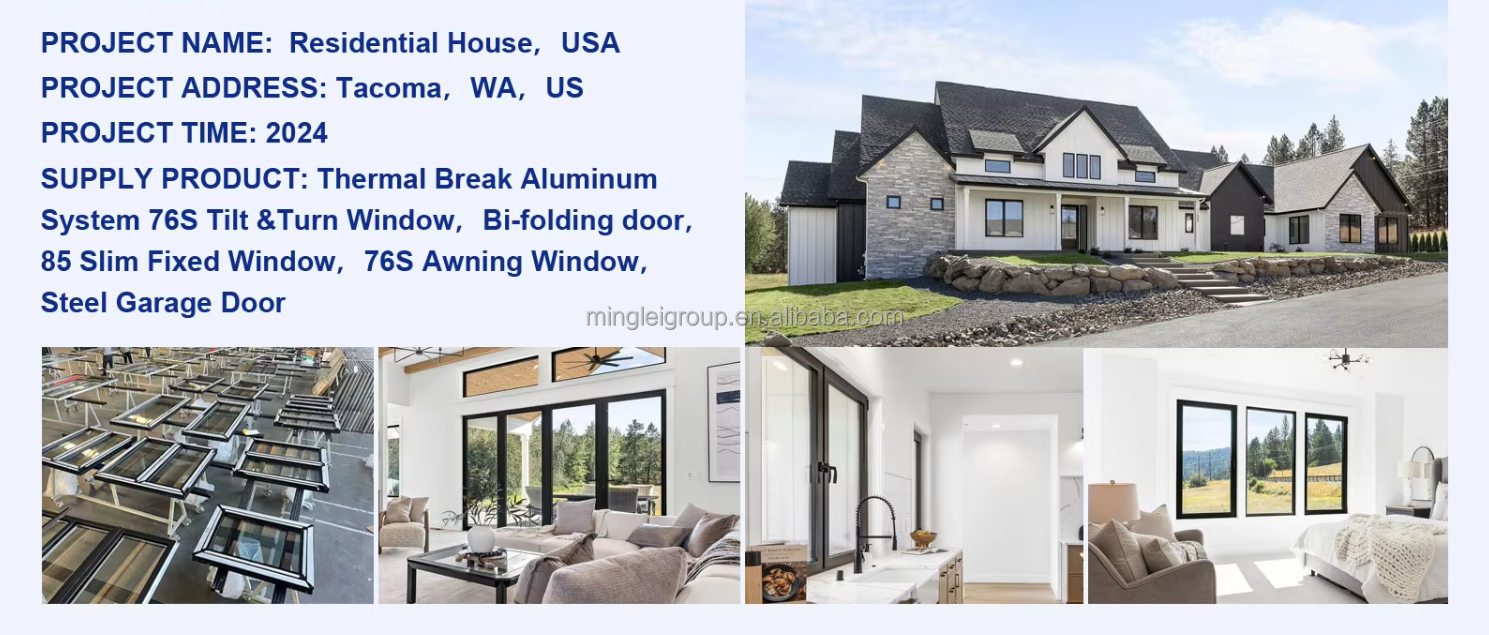

Project Case Study

Based on the client's specifications and Minglei's engineering solution, we supplied top-grade thermal insulation triple-glazed aluminum alloy doors and windows. Superior acoustic insulation, thermal efficiency, and wind-load performance materials were utilized throughout the building. Every window meets rigorous NFRC standards and Canada Energy Star certification, ensuring verified thermal performance and precise solar control.

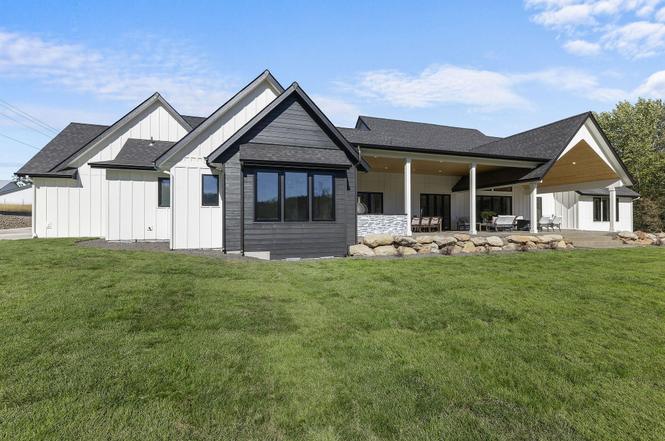

Customer Feedback Photos
Customer Feedback Photos

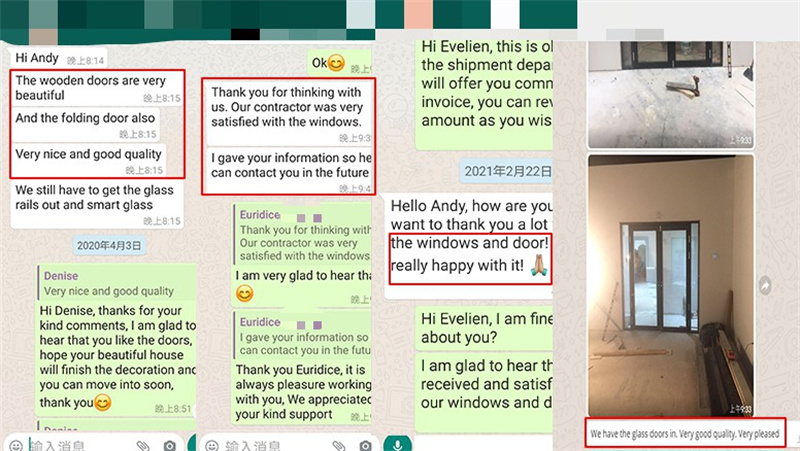

Genuine Customer Reviews
Genuine Customer Reviews
What Projects Can We Take?

Our windows and doors have been applied across more than two hundred international projects, including commercial and residential buildings, villas, apartments, and offices—earning continuous trust from property owners, retailers, general contractors, and real estate developers alike.

Frequently Asked Questions (FAQ)
Q: Are you a trading company or a manufacturer?
A: We are a dedicated manufacturer with our own export trading entity, specializing in high-performance energy-efficient windows and doors with over 10 years of international export experience.
Q: Are your products certified for international markets?
A: Yes. Our products carry official certifications and compliance test reports including Canada Energy Star, USA NFRC, NAMI, AAMA, Australia AS2047, and European CE standards.
Q: Can you provide fully customized services?
A: All units are built to order. We customize sizes, architectural profiles (arched, triangular, curved), operation methods (tilt-turn, inward swing, sliding), RAL colors, specialty glass coatings (Low-E, solar-control, acoustic), and advanced security hardware.
Q: Do the windows arrive pre-glazed or do they require onsite glass installation?
A: Our products are delivered fully assembled and glazed directly from the factory, complete with frames, insulated glass units, sashes, and hardware, ready for structural opening installation.
Q: What is the typical production and delivery schedule?
A: Typical production time ranges between 20 to 35 days starting from technical shop-drawing sign-off and receipt of deposit, followed by coordinated sea freight logistics.
Q: What warranty coverage is offered on your systems?
A: We provide a 10-year quality guarantee covering aluminum surface finishes and hardware functionality. Insulated glass units featuring TPS technology carry a 25-year warranty against gas loss and seal fogging.
