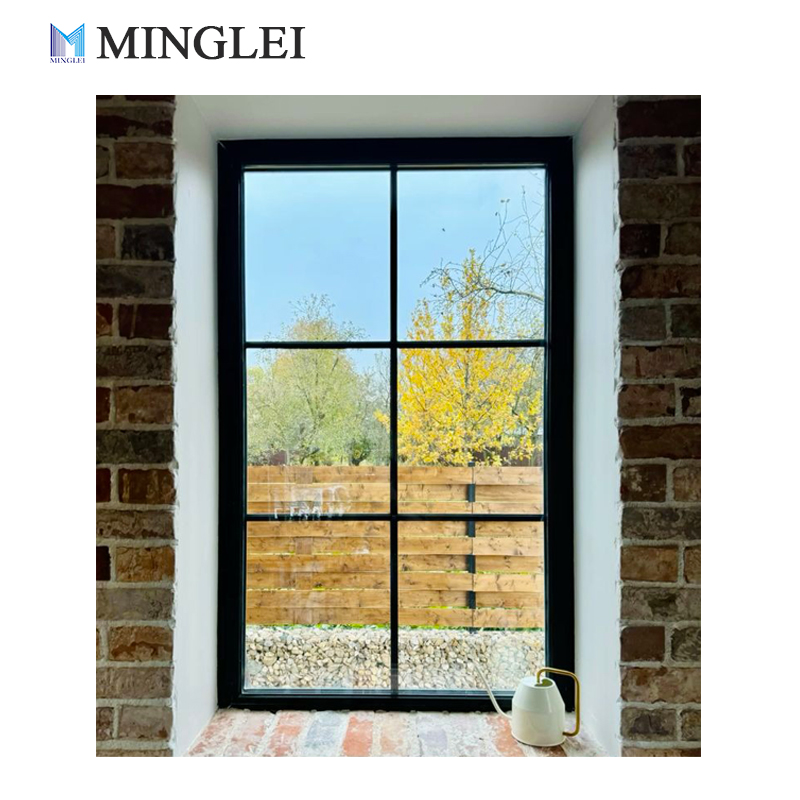

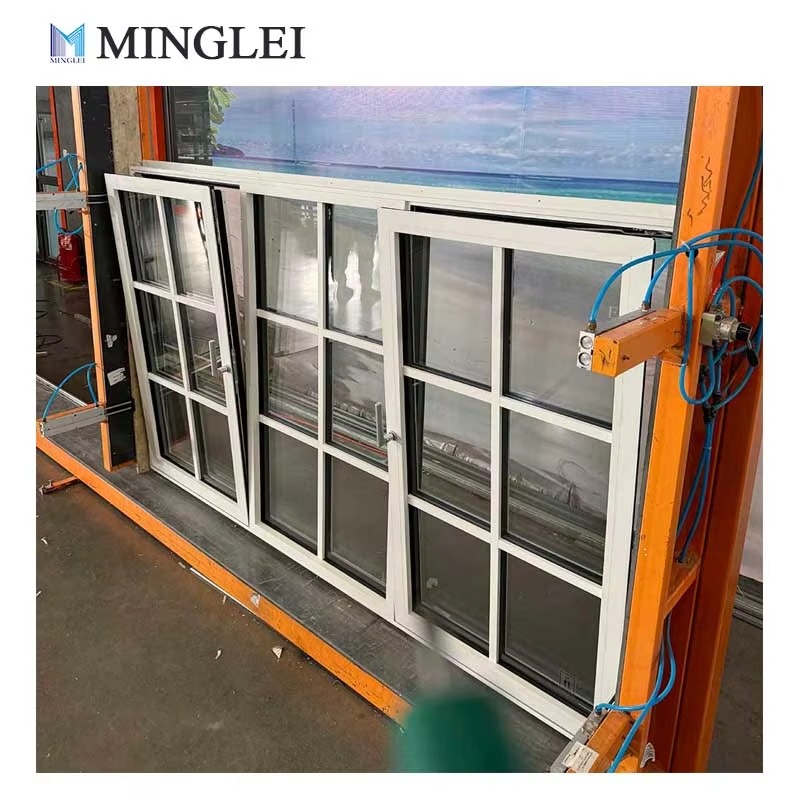

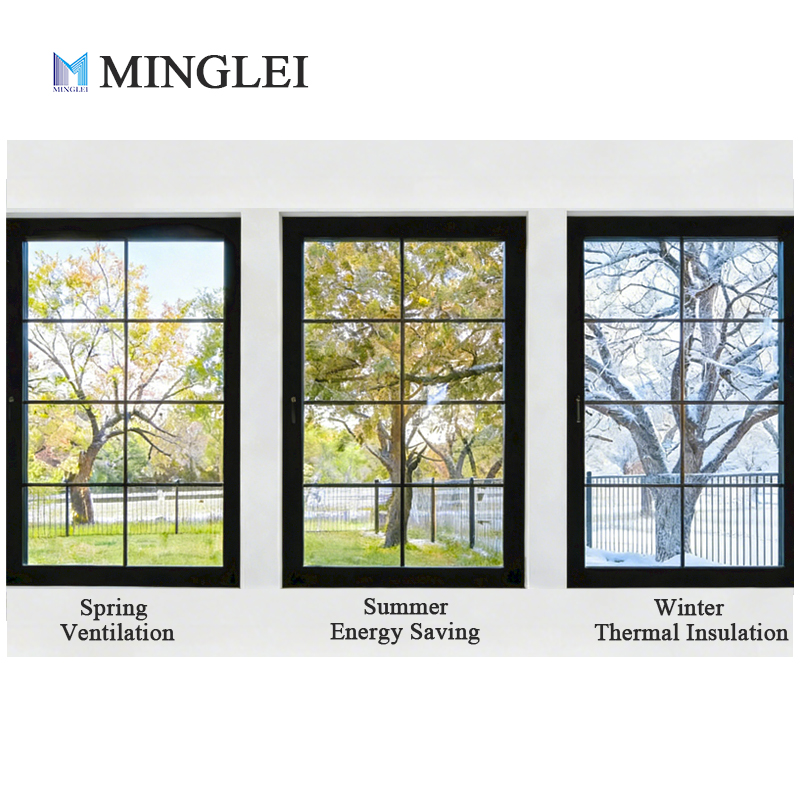

High Heat Insulation Energy Saving Black Aluminum Window Thin Profile Aluminium Windows and Doors Casement Windows for USA
Product Description

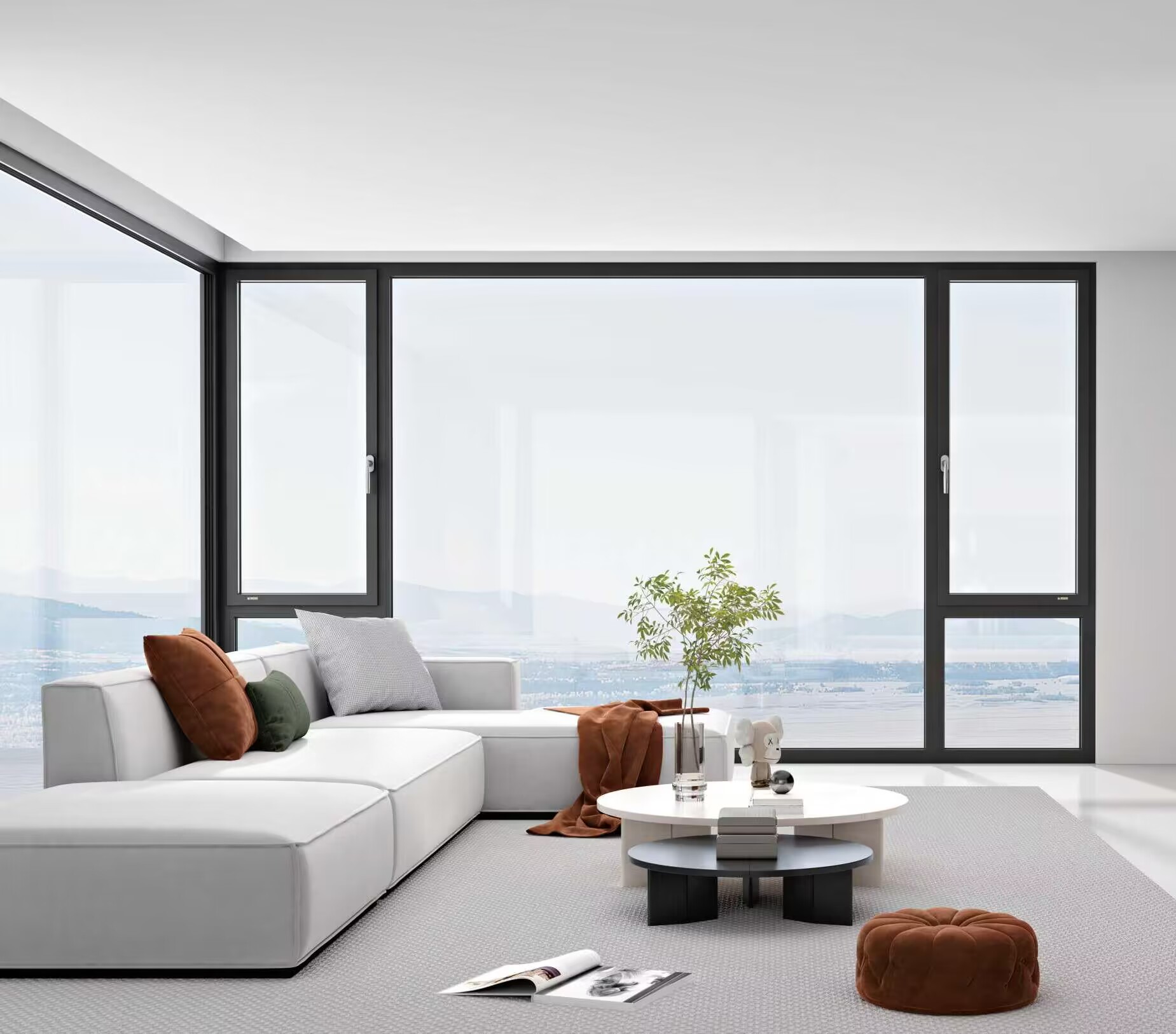

Aluminum Narrow Frame Tilt Turn Windows-85 Series
MINGLEI Narrow Frame Tilt Turn Window combines cutting-edge engineering with sleek, contemporary design to deliver the ultimate balance of style, durability, and energy efficiency.

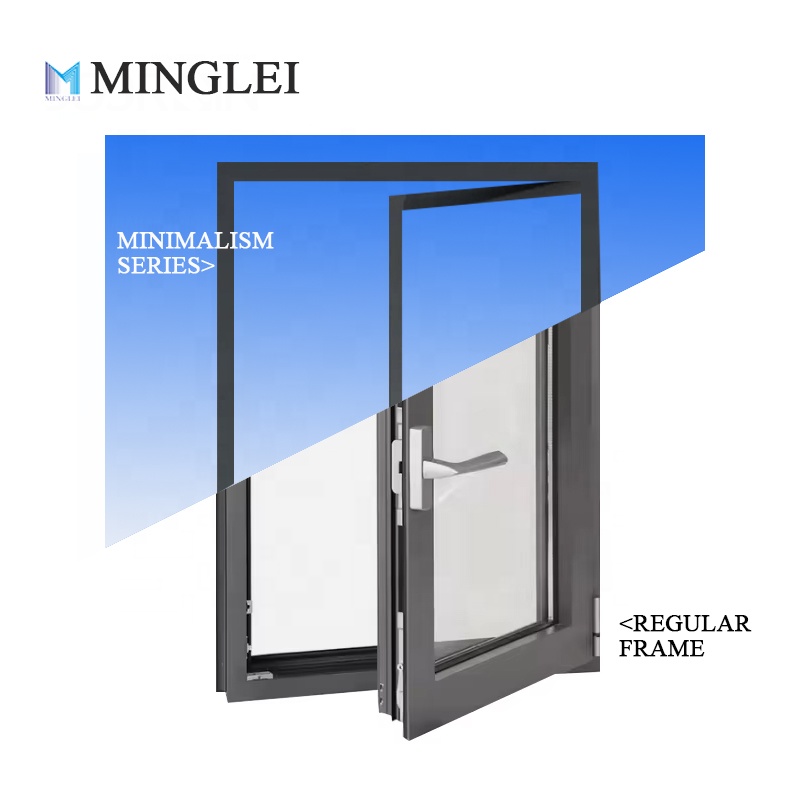

Feature 1 The extremely thin frame design minimizes visual obstruction, offering a wider field of view and better integrating outdoor scenery into the interior. Their sleek, simple lines align with modern aesthetic trends, elevating the overall appearance and design sophistication of the building.
Feature 2 Narrow frames adopt high-strength profiles, ensuring structural stability and safety without compromising on aesthetics.
Products Description
| 1. Profile | 6060-T66 Thermal break aluminum alloy |
| 2. Profile brand | Germany system, Domestic system |
| 3. Surface finish | Powder coating, Anodized, Woodgrain transfer, Electrophoresis, Fluorocarbon paint. |
| 4. Profile thickness | 2.0 mm |

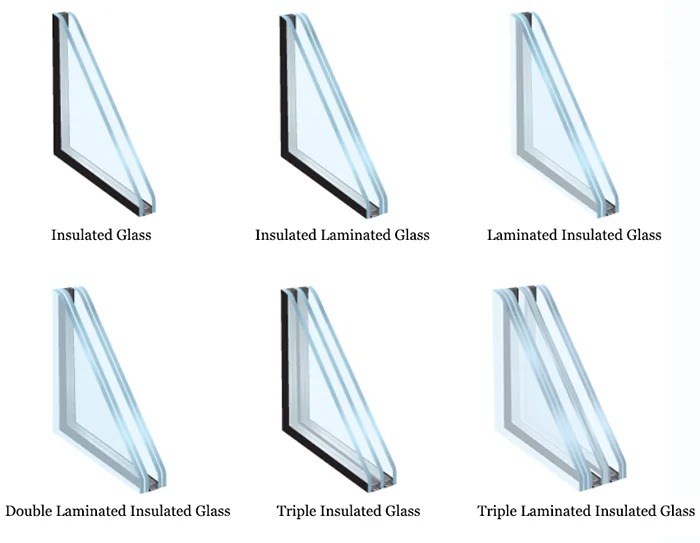

| 5. Glass option | Triple insulated glass: 5/6mm+ 16A+5/6mm+16A+5/6mm, warm edge spacer low-e & argon gas |

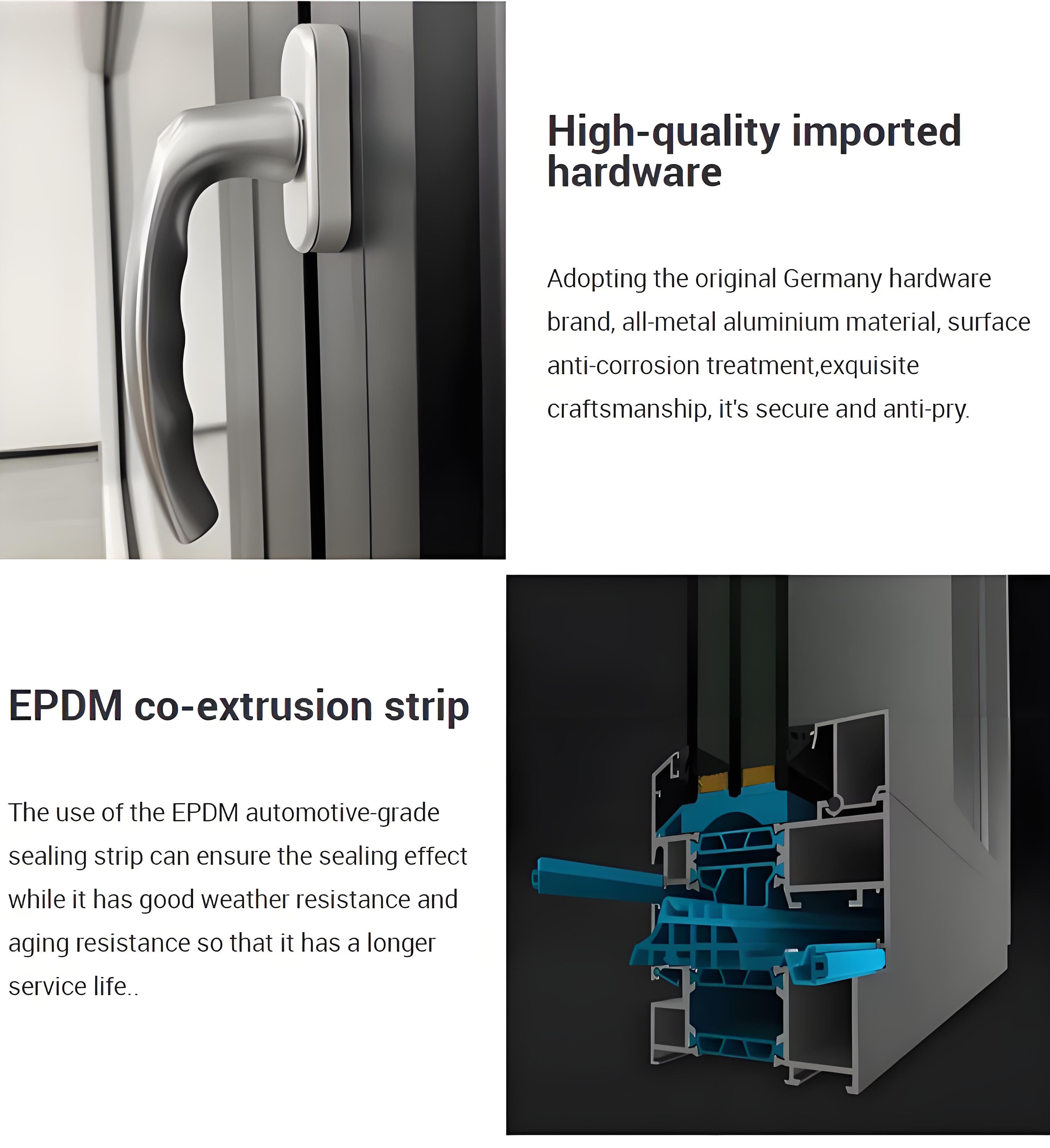

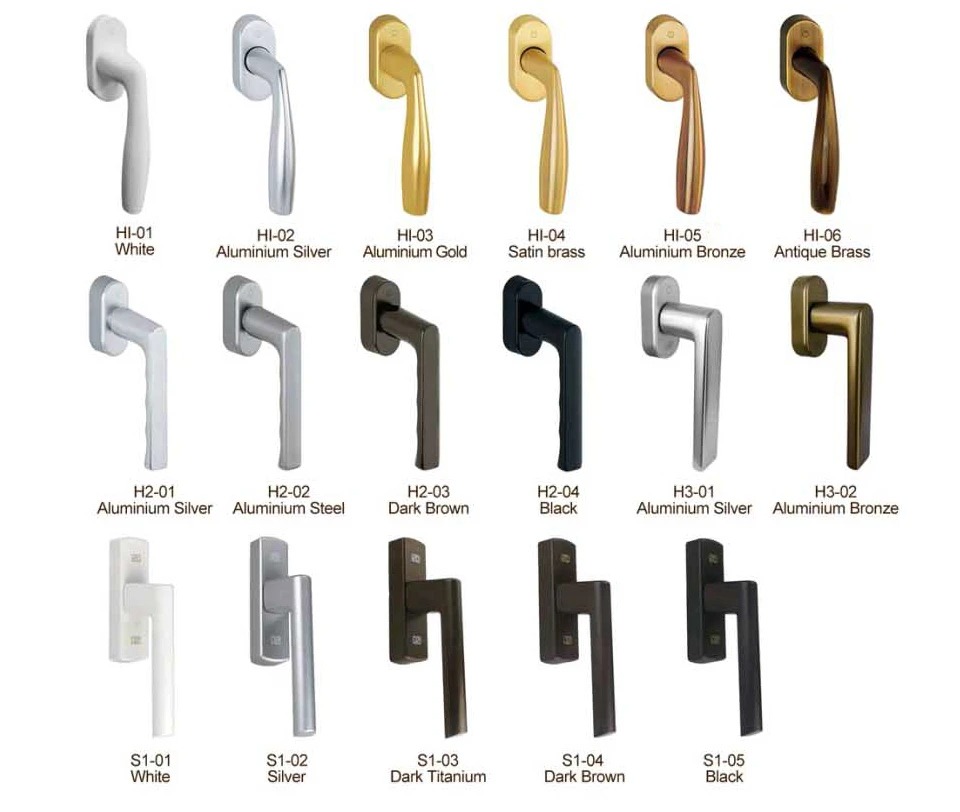

| 7. Hardware | Germany imported brand |
| 8. Seal & strip | Germany Originally imported EPDM Rubber sealing strip, black or grey color |
| 9. Screen optional | Stainless steel mesh screen |
| 10. Sunshading | Blinds, roller shutter etc |
| 11. Applications | Commercial building, Office, apartment, villa, basement, garden, hotel, hospital, residential housing. |

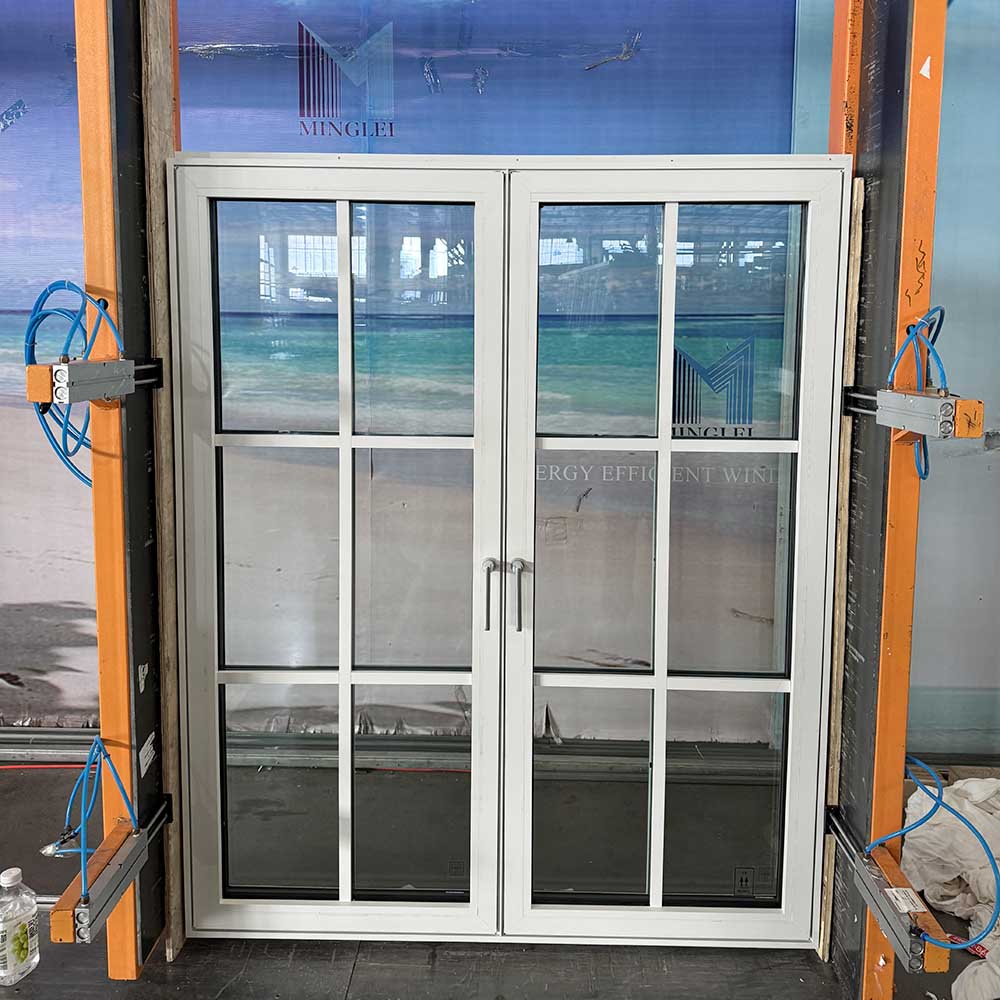

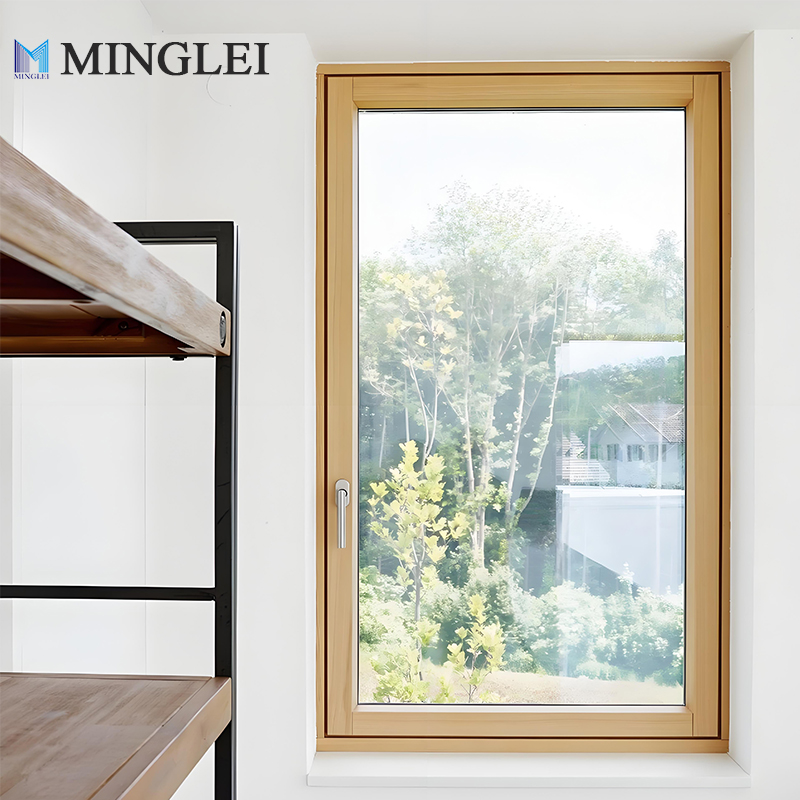

Tilt & Turn Window-Front

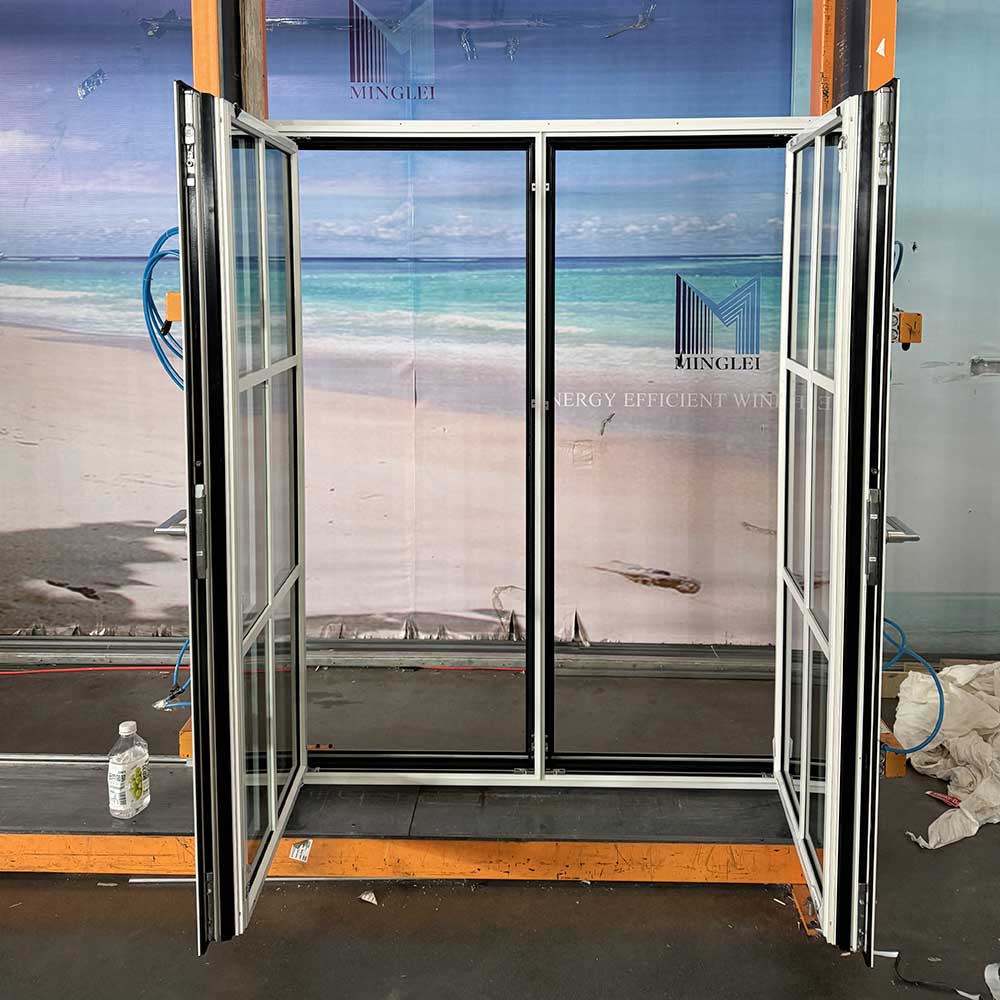

Tilt & Turn window (inward opening)

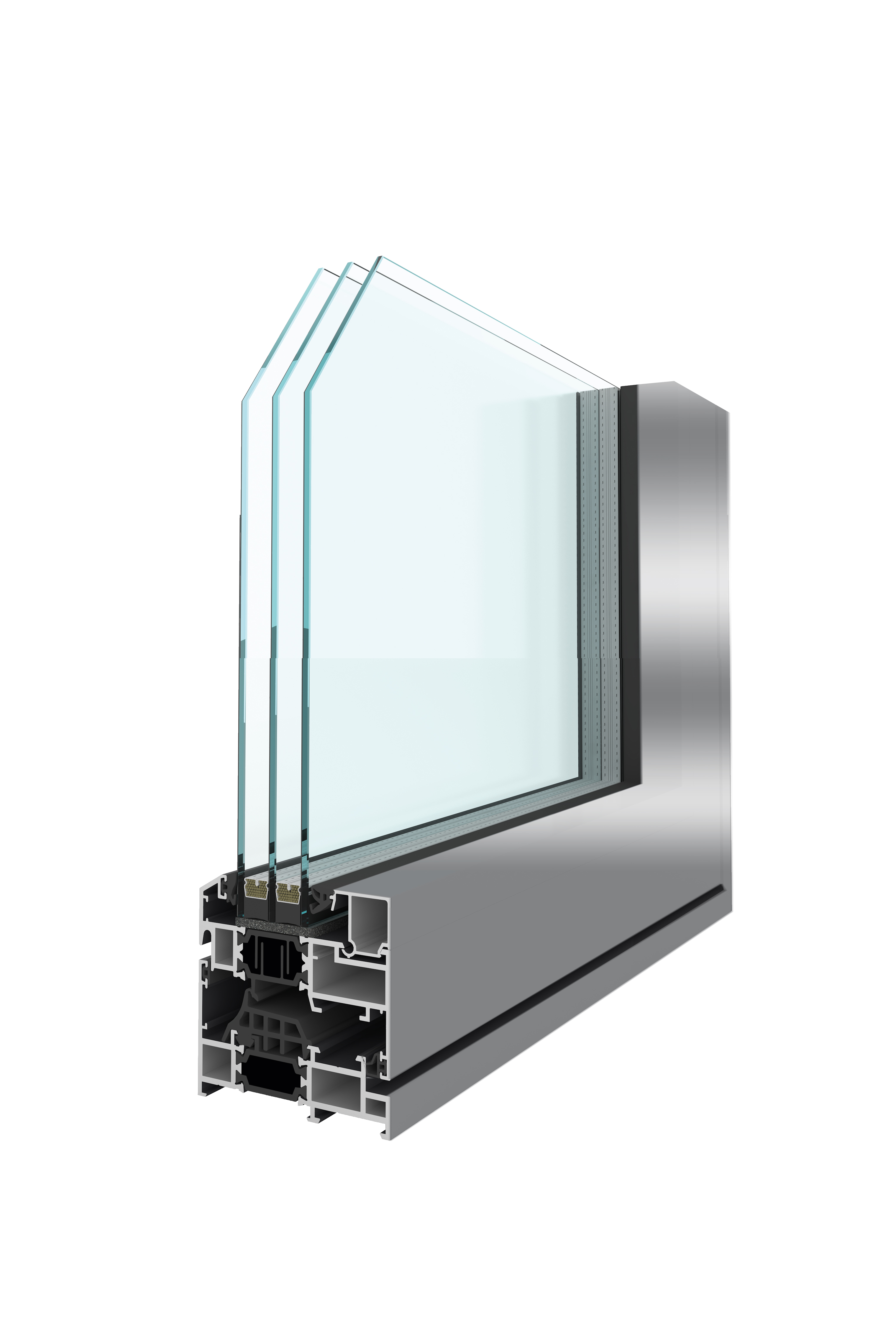

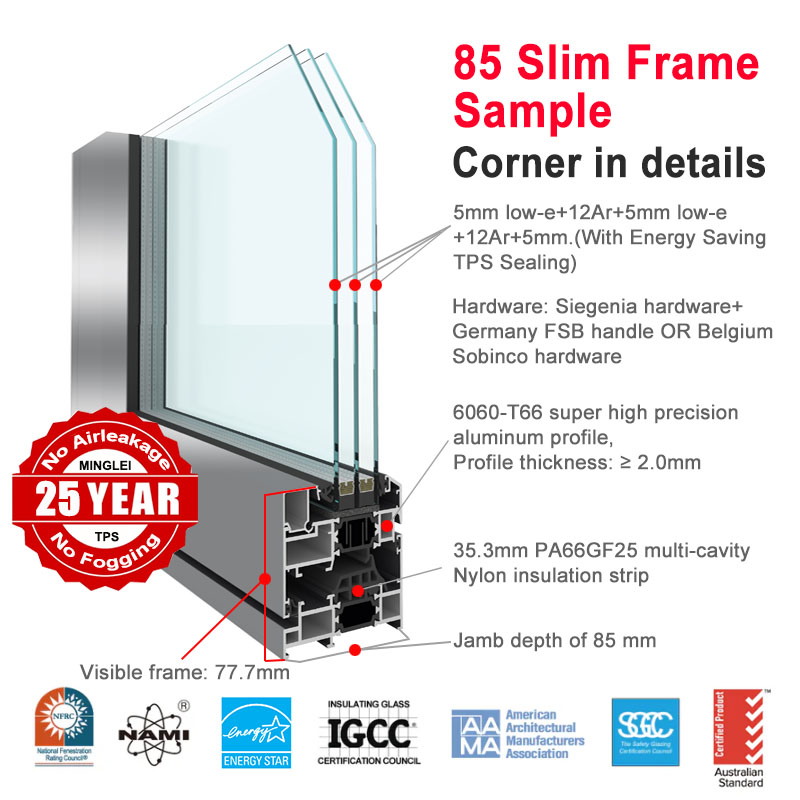

Cross Section
Tilt & Turn window (tilt opening)
Ideal Solution for Commerce & Residence

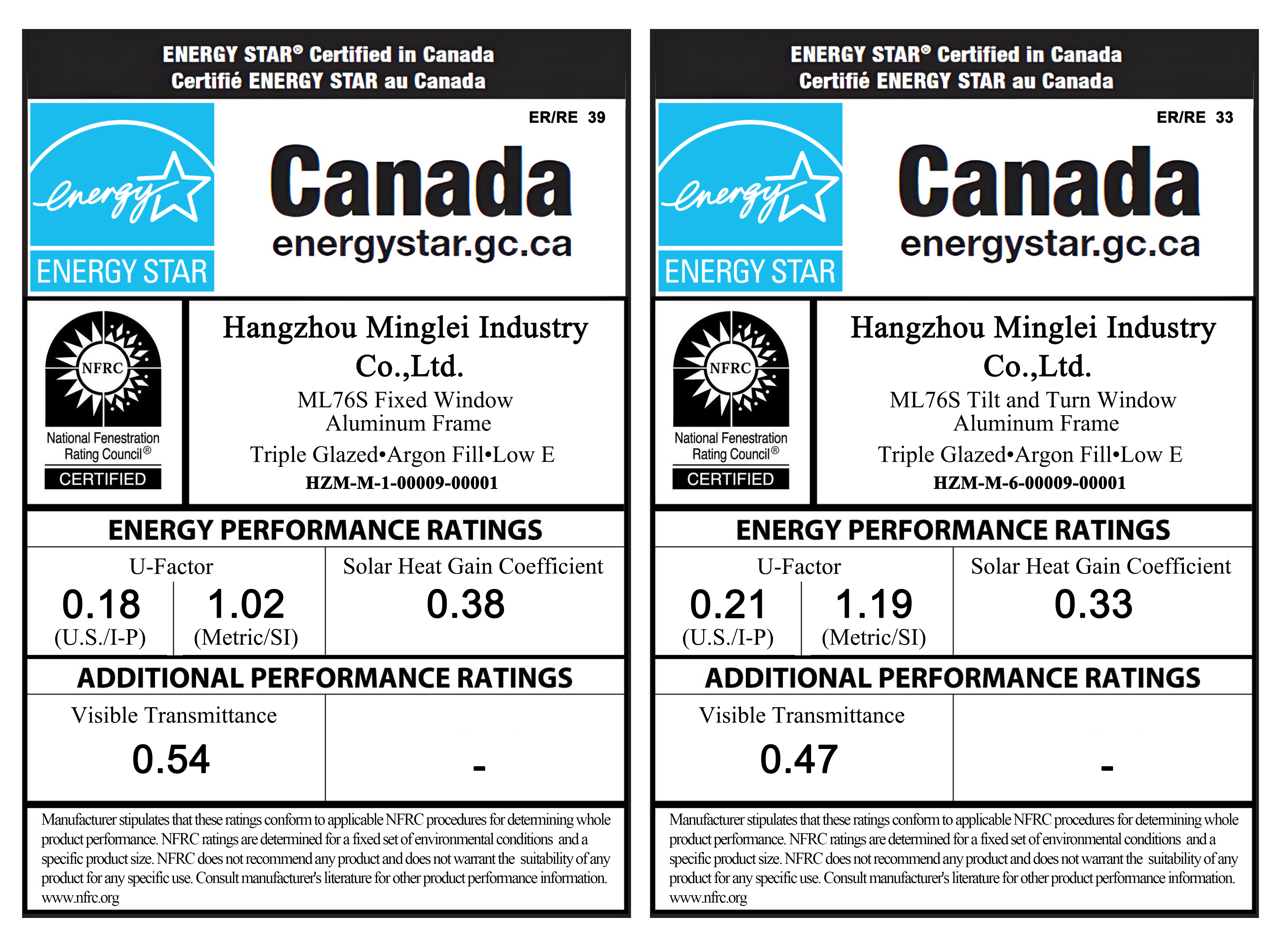

Tilt-Turn window is fully NFRC certified and ENERGY STAR® qualified, meeting strict U.S. standards for energy efficiency and performance (U-factor: 0.2). Tested and rated by the National Fenestration Rating Council (NFRC), it provides verified insulation values and solar heat gain control.
Advantage
For years, Aluminum window have been specified by architects and builders for their overall strength and lasting value. Because of their rigidity, durability and narrow frames, aluminum windows can be configured into a wide variety of combinations that maximize views. Aluminum windows also are popular because of their low maintenance. They won't rust or rot. You don't have to paint them. And they're available with tough anodized or baked-on finishes.

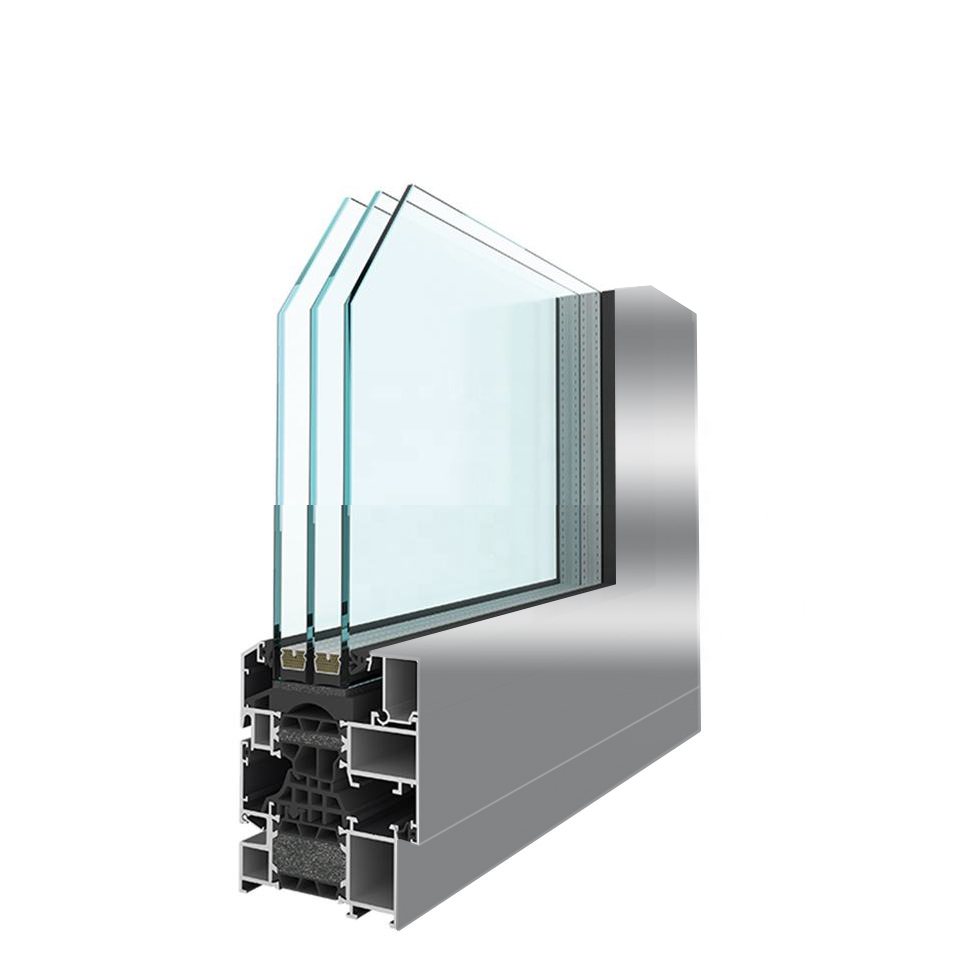

ML 76S series NFRC & NAMI Certified Energy Saving system
ML 85 series Slim frame design system high insulation

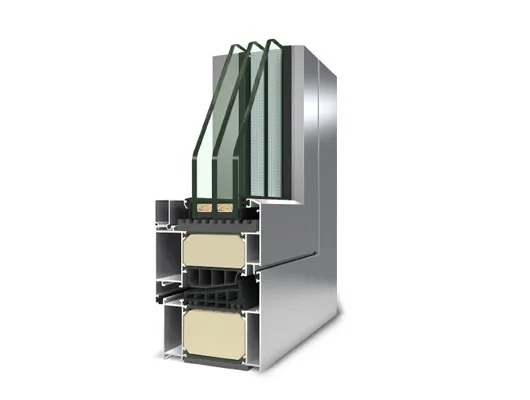

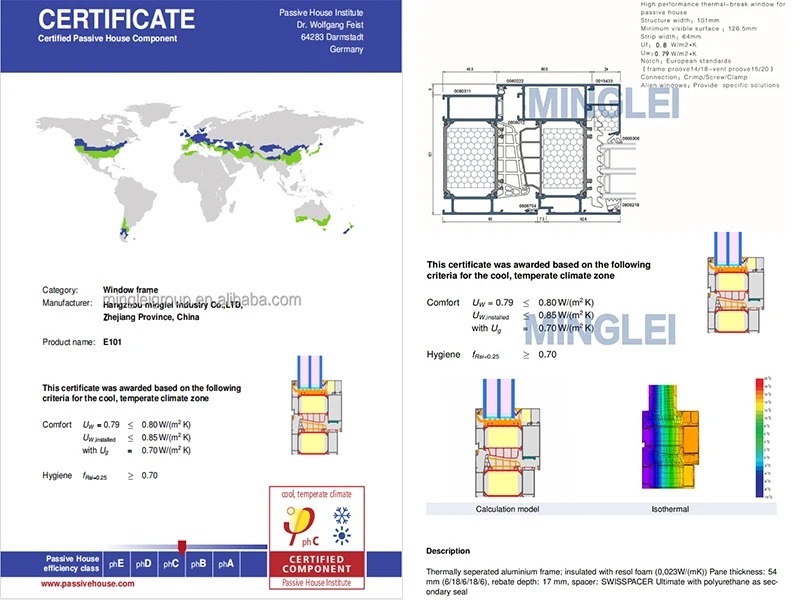

ML101 Series Passive house system max insulation
| Product performance | ML101 Series | ML 85 series | ML 76S series |
|---|---|---|---|
| European U-Value (Metric/SI) | 0.79 W/(m²K) | 1.19 W/(m²K) | 1.19 W/(m²K) |
| American U factor (U.S./I-P) | 0.14 | 0.21 | 0.21 |
| Rw (dB) | 38 | 35 | 35 |
| Wind load resistance (Pa) | ≥ 2400 Pa | ≥ 2400 Pa | ≥ 2880 Pa |
| Water tightness (Pa) | ≥ 580 Pa | ≥ 580 Pa | ≥ 440 Pa |
| Canadian Air infiltration/exfiltration | A3 level, Metric ≤0.07 L/sm² Imperial ≤ 0.014 cfm/ft² | A3 level, Metric ≤0.07 L/sm² Imperial ≤ 0.014 cfm/ft² | A3 level, Metric ≤0.19 L/sm² Imperial ≤ 0.038 cfm/ft² |
Our Advantages
ONE OF LEADING MANUFACTURERS OF ENERGY EFFICIENT WINDOWS AND DOORS WITH ABUNDANT SERVICE EXPERIENCE

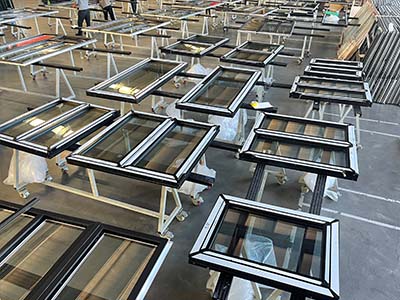

Minglei is a professional manufacturer of high quality windows and doors with 10+ years exporting experience with two state-of-the-art manufacturing base with 300,000㎡/year production capacity. We have enjoyed a lot of five-star reviews & recommendations by global customers from more than 60 countries, 80% of whom are from the USA, Canada, Europe, and Australia.
CERTIFICATIONS

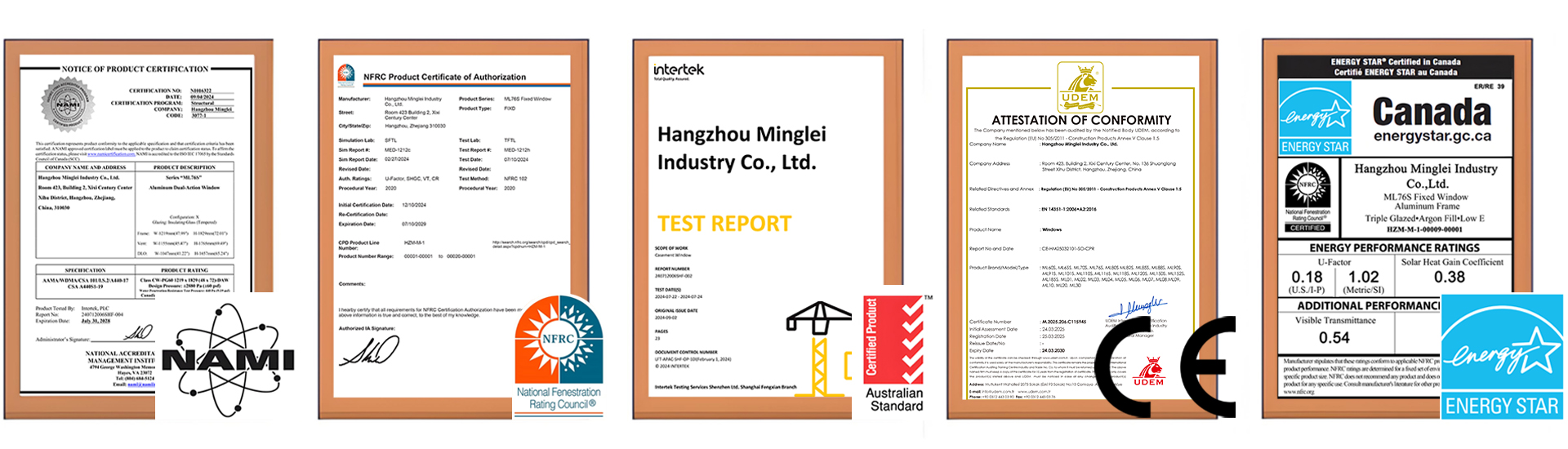

So far, We have certifications and test reports of Canada Energy Star, NFRC, NAMI, AAMA, AS2047 and CE etc.
Energy-efficient, exceptional quality, beautiful design, budget-friendly, those are all about our missions for windows and doors. With advanced & exquisite manufacturing technique, and abundant product application & service experience, Minglei team will fulfill Your needs and meet Your highest expectations.
CORE ADVANTAGES OF ULTIMATE ENERGY SAVING, U-VALUE BENCHMARK PERFORMANCE

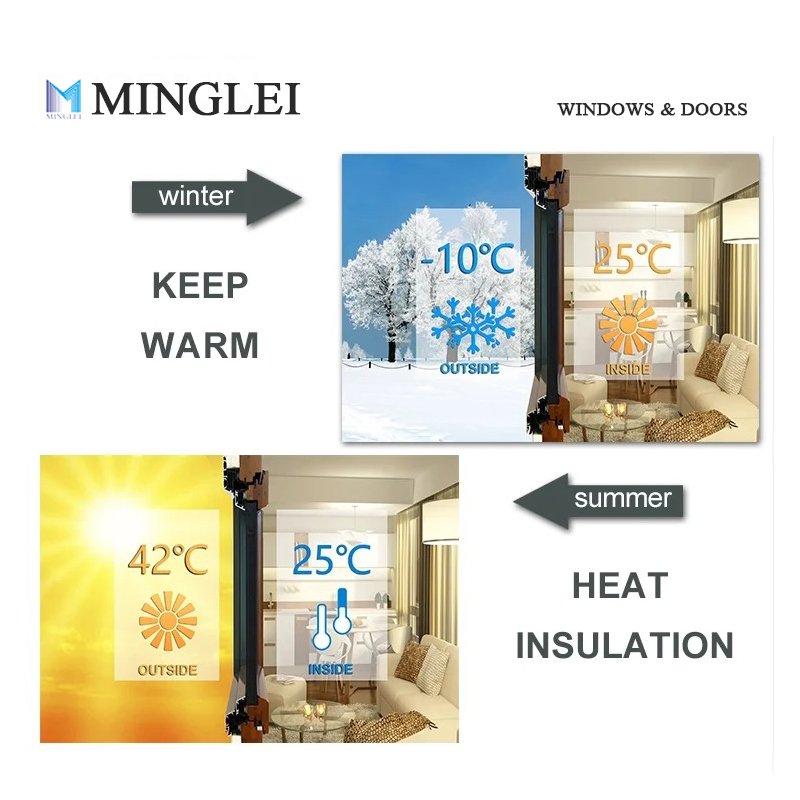

With "ultimate thermal insulation and energy saving" as its core R&D direction, Minglei Windows and Doors achieves an industry-leading U-value (the lowest U-value among similar products on the Alibaba platform). Utilizing low-emissivity triple-glazed windows, warm edge spacers, argon gas filling, and a full-window thermal bridge blocking design, it maximizes the reduction of heat transfer between indoors and outdoors. Its winter heat retention and summer insulation effects far surpass conventional products, helping buildings reduce energy consumption by 30%-50%. This aligns with North American Energy Star energy conservation initiatives and saves users long-term energy costs, making it a preferred choice for green buildings.
OUR COMPANY TAKES PRIDE IN OFFERING HIGH QUALITY WINDOWS & DOORS

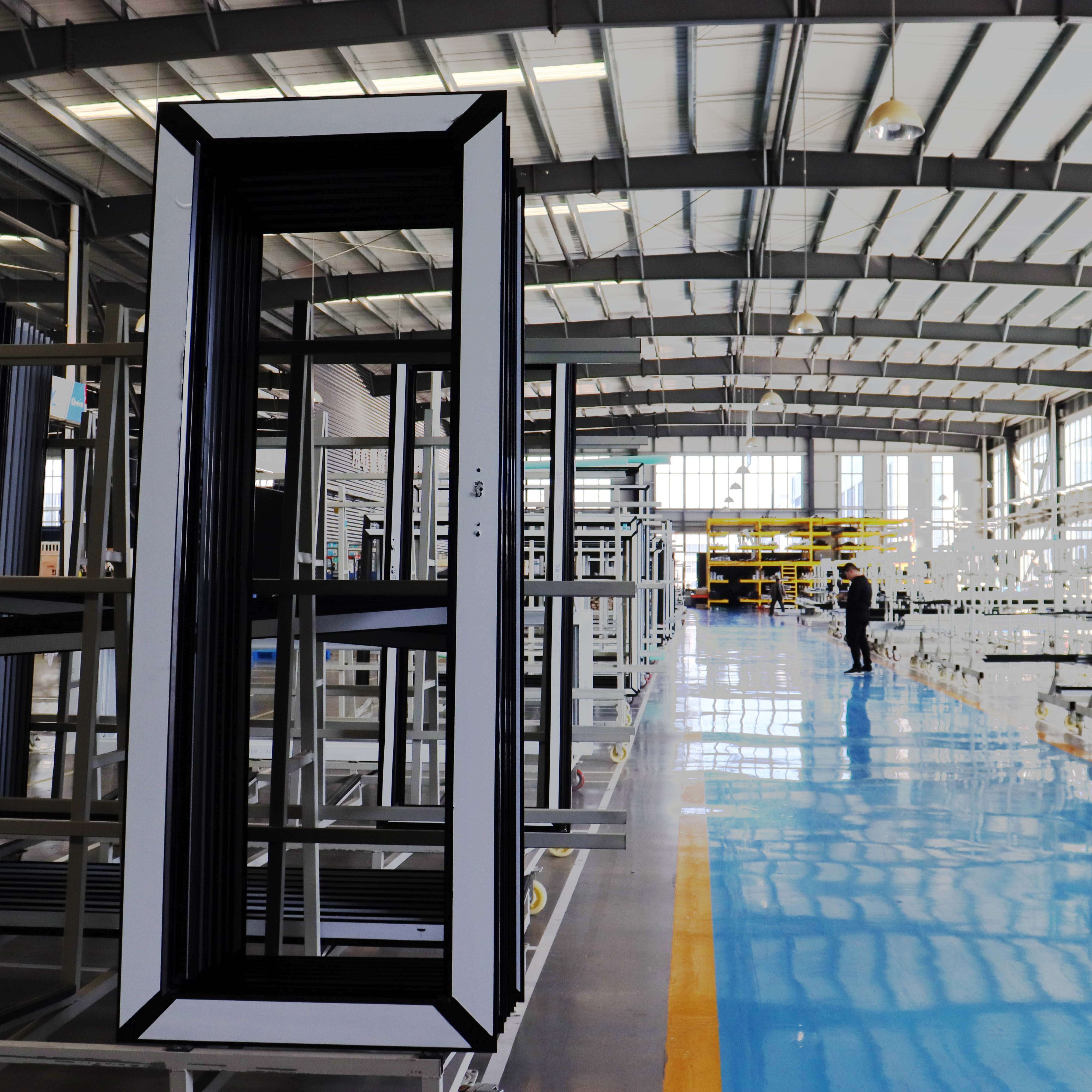

We use high-grade raw materials, modern technology, and cutting-edge manufacturing processes, and skilled workers to produce windows & doors that offer superior longevity, exceptional performance, and unmatched beauty.
Our windows and doors are with flexible manufacturing for custom sizes, architectural shapes, colors and specialty finishes. The windows and doors are certified by Canada energy star, USA NFRC & NAMI, which made to pass your local inspectors' verification and are built under Canada & USA building codes so you can rest assured that they are energy efficient, safe and sturdy.
PROVIDE FREE DESIGN ASSISTANCE TO OPTIMIZE YOUR PLAN & BUDGET
We are very happy and look forward to a long-term partnership with you, as with our other partners in US, where our service and strength in window and door expertise can help our partners save more time and money.
Minglei has been working for the North American market for a decade, we provided the most professional plan and meaningful design with ideal price to meet all our client’s highly customized demands. With our own expertise we provide no-cost design development & contract documentation with CAD & BIM drawings, including elevation & details & installation design. Helping clients to accurately control budgets by analyzing the overall plan, including to provide the schematic design to help determine products within cost parameters. Such as use lower cost products in inconspicuous locations to reduce the overall budget: If the direction is not under long time sunlight, do not use Low-E glass; use PVC windows or aluminum windows instead of solid wood windows in unimportant rooms such as toilets or storage rooms.
LABOR COSTS TAKES MATTER DURING THE INSTALLATION PROCESS

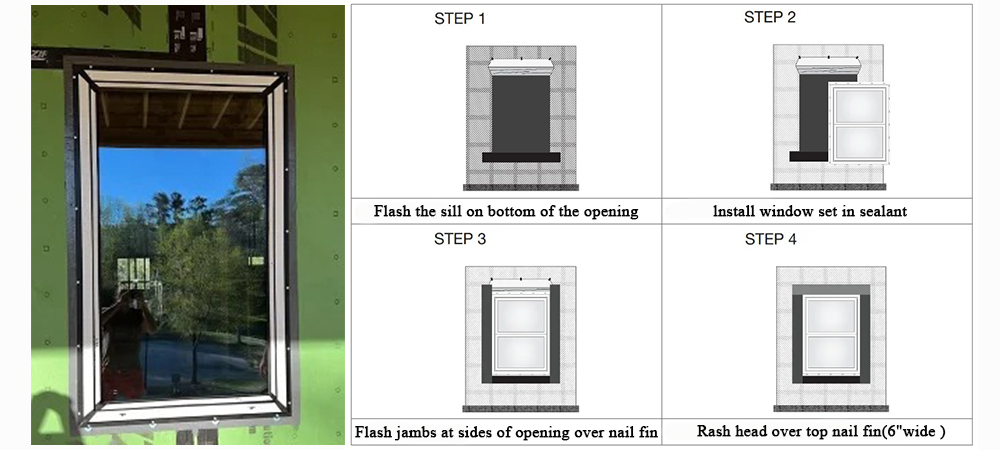

We have several international patents to reduce clients’ labor costs, such as our unique flanges and assembly type tubular design, which is different from the other products on the market. What sets us apart among Chinese counterpart is that all our products are equipped with nail fin structures for quick and easy installation. Labor costs during installation may exceed of the window and door price, therefore, our exclusive patent allows users to not only get a significant increase in installation efficiency, but also greatly reduce the labor cost of window and door installation. A cost that may bring you unexpected savings that far exceed the price difference you may care about now.
QUICK PRODUCTION TIME, SAFE AND CONVENIENT LOGISTICS SERVICE
Our sufficient production capacity can assure You 35 days delivery time upon drawing approval.

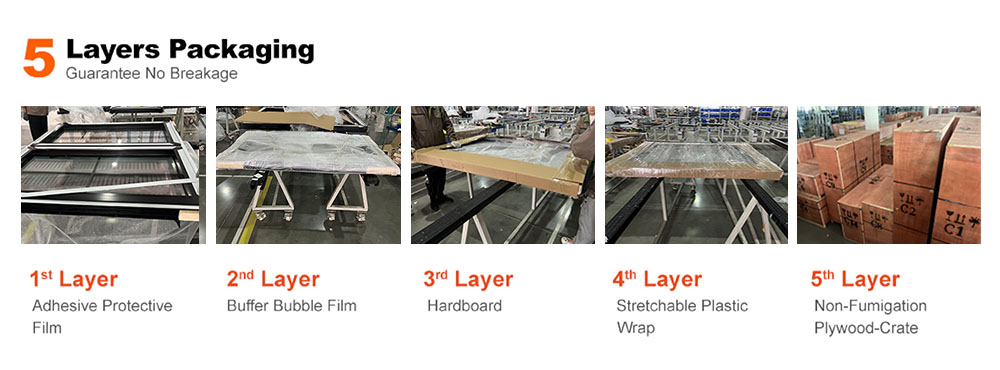

Each window is individually packed by four layers, and then go into strong wooden boxes.
We send out windows and doors to USA weekly, can ensure that your products will arrive at the sites in good condition after long-distance transportation.
CONCERNS FOR SHIPPING
Maybe this is your first time to import, do not understand import procedure; Or feel it is time-consuming to deal with customs, logistic & tariffs. You can just drop to us.
We can provide one-stop door to door or DDP shipping service, handling all your import customs clearance & duties, truck delivery to Your appointed address with fair & transparent costs.
AFTER SALE AND WARRANTY ARE GUARANTEED
No matter what issues You faced during the installation or after use, You will be treated as new customers and get fast response within 24 hours.
Minglei offers exceptional quality products and the best services. Customers are not only obtaining the most desirable windows and doors, but also getting the peace of mind that Minglei will stand behind its NFRC certified windows and doors for 10 years warranty.

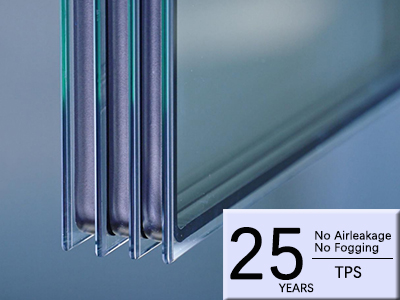

The TPS glazing unit ensures that no air leakage and fogging issues on (IGU) products for 25 YEARS WARRANTY.
Welcome to Contact us for Warranty policy
Project Case

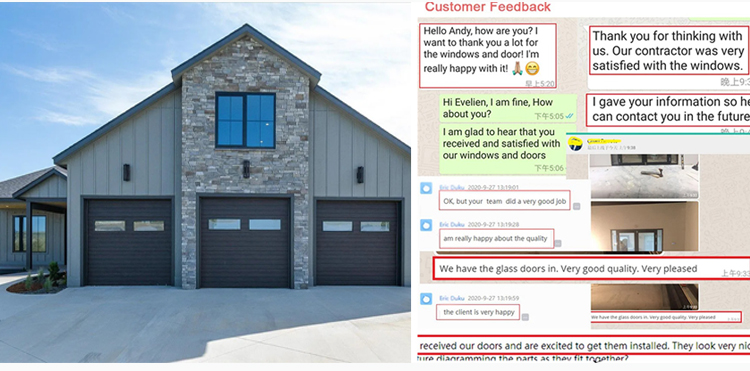

This project is a luxury mansion for a customer located in Spokane WA USA; based on the client’s requirements and minglei’s solution, we recommended top-grade thermal insulation triple-glazed aluminum alloy doors and windows. Top-grade sound insulation, heat insulation and windproof materials were used in the doors and windows of the whole house. The customer was very satisfied.
Project Summary
1 Technoform Bautec warm edge strip greatly improves thermal insulation performance.
2 Roto & Siegenia German-made hardware systems provide higher strength, cutting-edge function, and aesthetics.
3 Tempered safety glass complies with international standards to face all kinds of extreme weather or safety issues.
4 Durable extruded aluminum nail fin makes the installation much easier and convenient, which greatly reduces labor costs.
5 After installations, the client’s feedback with full of satisfaction proving that Minglei provided the best solutions for each of our projects.
What Projects Can We Take?

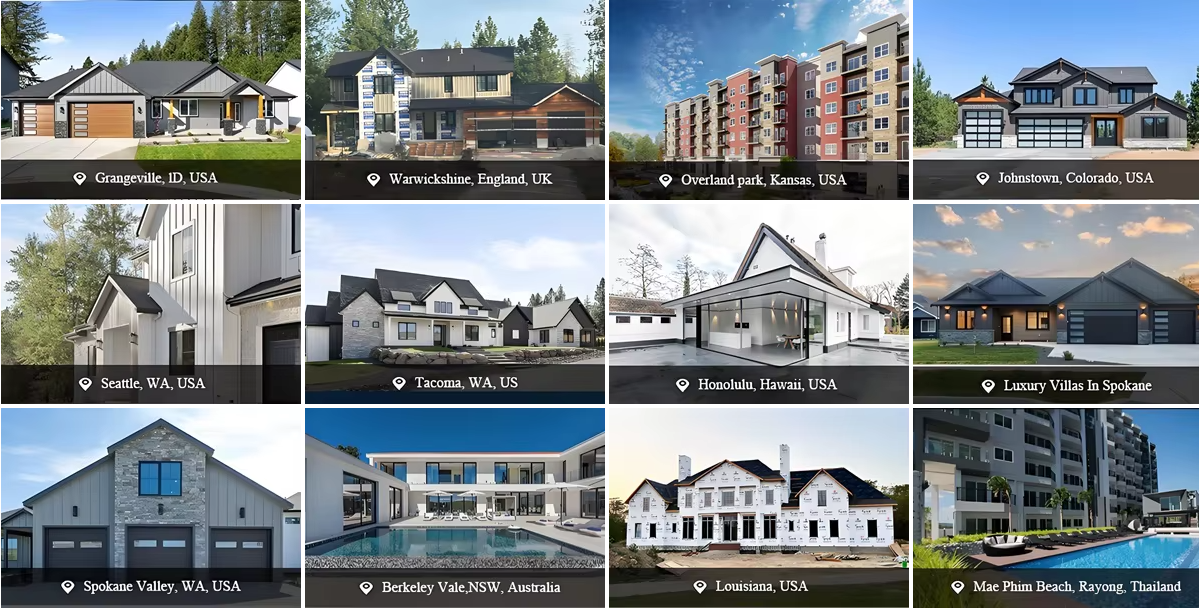

Our windows and doors were applied on more than two hundred overseas projects, including commercial and residential buildings, villas, apartments, offices etc. and gained wide praises from customers like house owners, retailers, contractors and real estate developers etc.
Frequently Asked Questions
Q Are you a trading company or a manufacturer?
We are a manufacturer with our own trading company, engaged in energy-efficient windows & doors manufacturing with more than 10 years of exporting experience.
Q Are your products certified?
Yes, we have certifications and test reports for Canada Energy Star, USA NFRC, NAMI, AAMA, Australia AS2047, and CE, among others.
Q Can you provide customized services? What personalized needs do you support?
As windows and doors are customized products, we manufacture according to customer specifications. We support size customization, architectural shapes (round, triangle, arched), opening methods (inward opening, tilt-and-turn, outward opening, overhang, push-pull), RAL color customization, glass configurations (Low-E, UV-resistant, anti-glare, soundproof), and hardware upgrades.
Q Will we need to install the glass on-site or do your windows come pre-glazed?
Our windows and doors are complete, factory-finished units with glass, frame, sash, and hardware fully installed, so you can fit them directly into your wall opening.
Q What is your production and delivery time?
Delivery typically takes 20-35 days following deposit receipt and approval of shop drawings, which ensure all precise window specifications prior to manufacturing.
Q What is your warranty policy and after-sales support?
We provide a 10-year quality warranty covering aluminum frames and German-made hardware, plus a 25-year warranty on TPS insulated glass units against leakage and fogging. Replacement parts are dispatched quickly via international courier in the event of quality issues.
