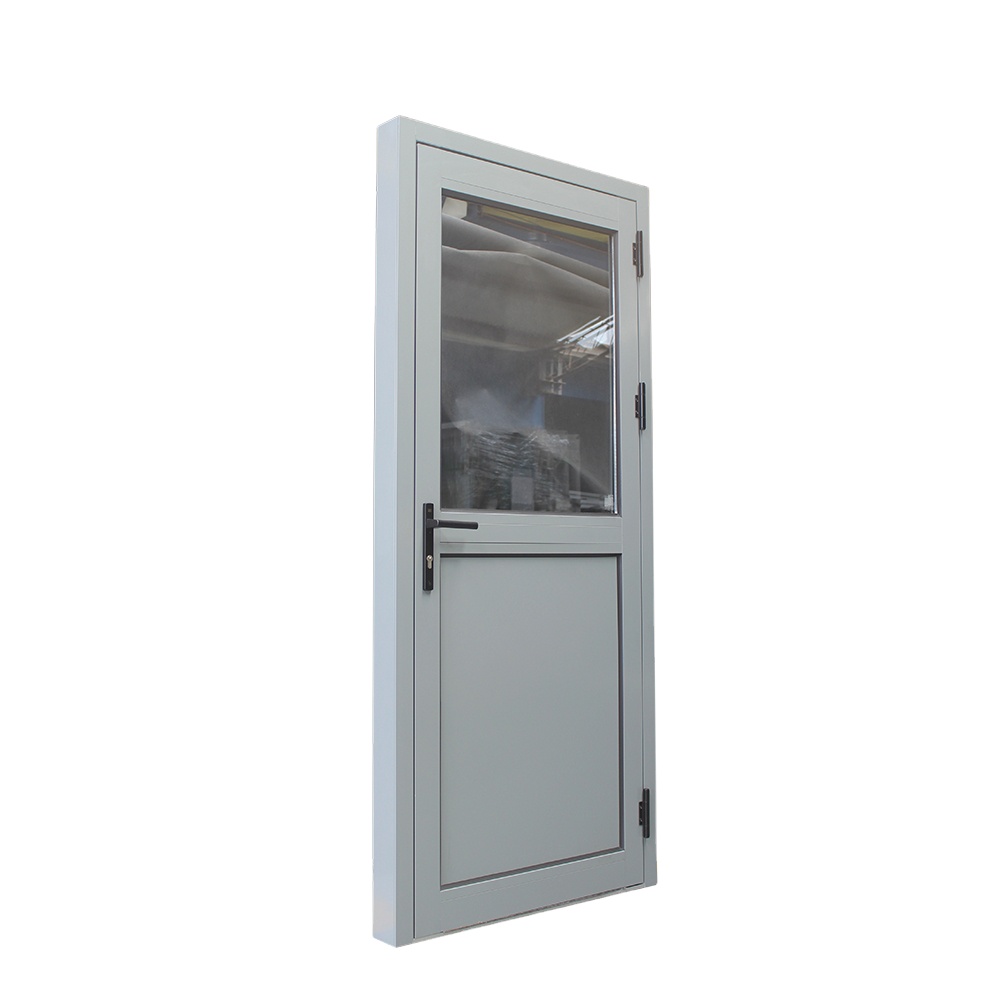

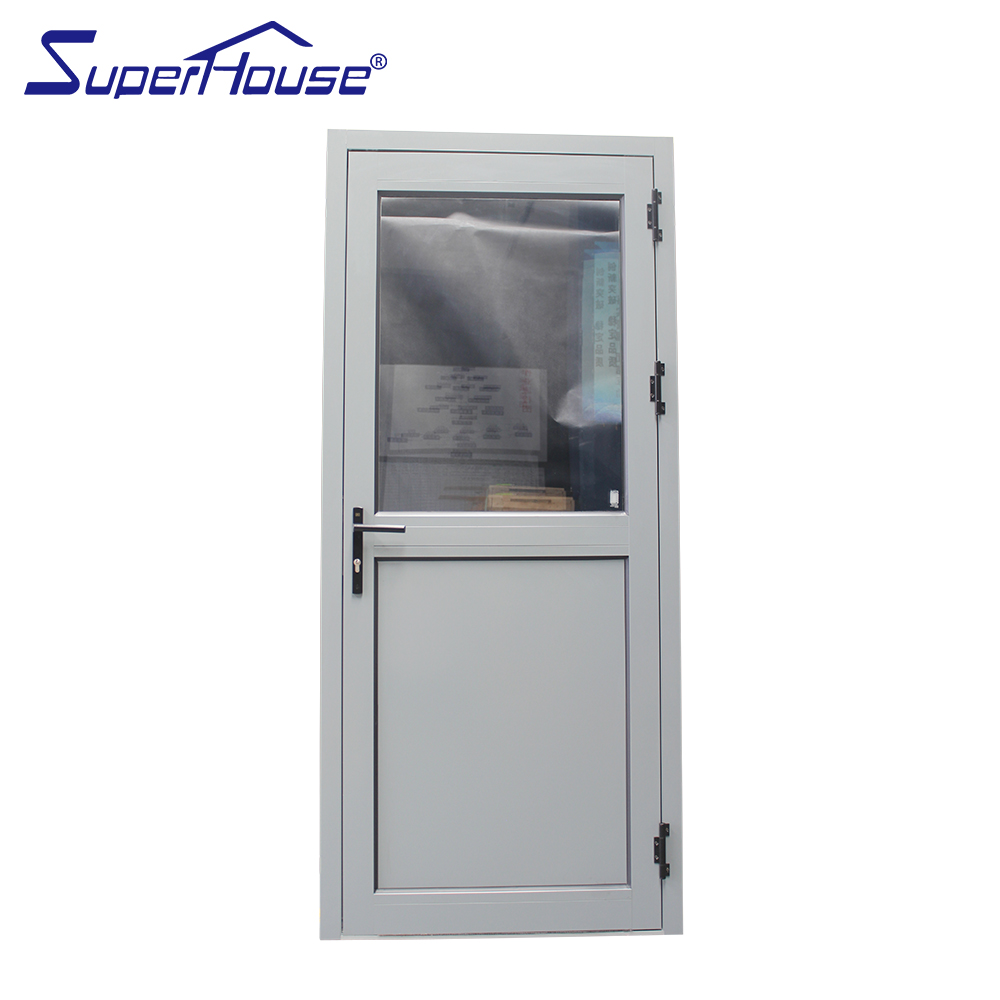

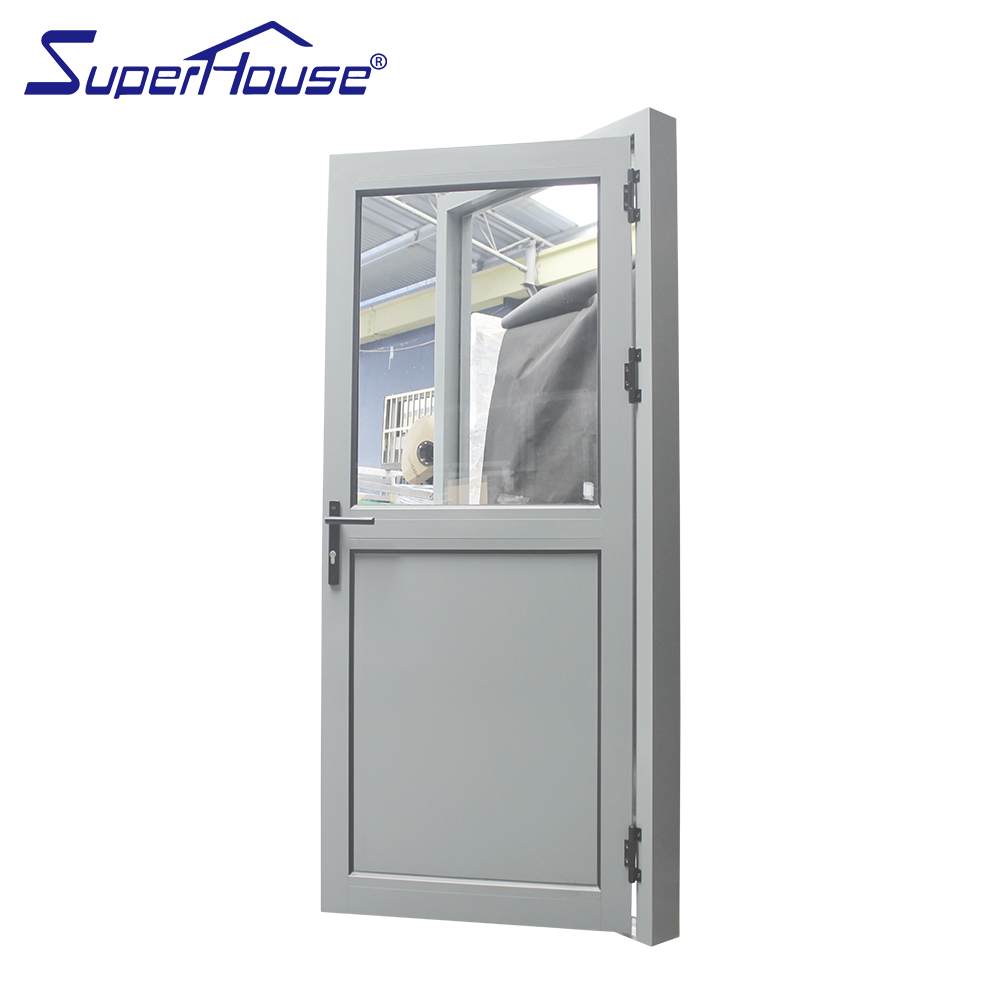

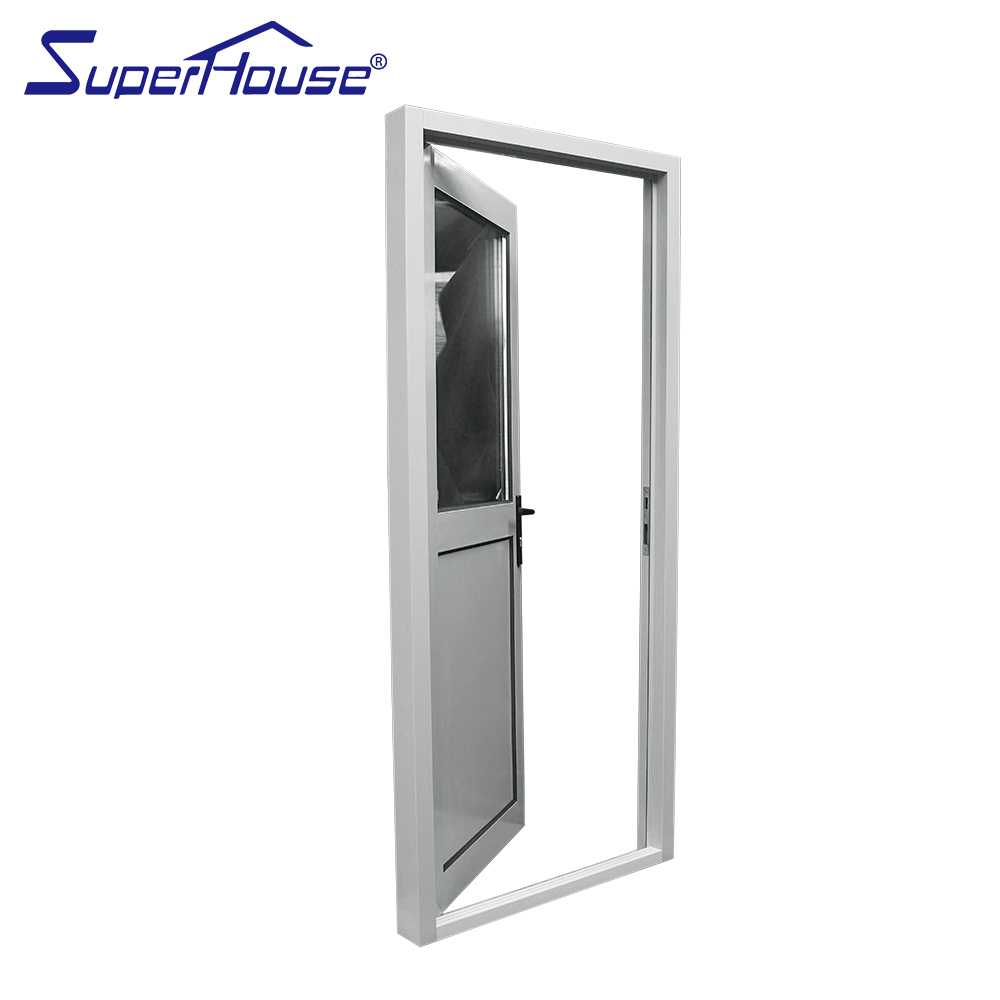

AS2037 NFRC Half Glass Half Aluminum Casement Door
Product Description
Aluminum hinged door, has a hinge to fix the door frame, and the hinge of the swing door is installed beside the door, so that the door can be opened inward or outward. The material of the aluminum alloy is relatively durable in the door material, so it is popular.
Aluminum swing door is also divided into a single door and a double door. A single door requires only one door plate, and the door opening method is opened or opened in one direction. Double door opening requires two door panels, which are opened in both directions when opening the door.
First of all, the aluminum alloy itself has good plasticity and is easy to process.
Secondly, the corrosion resistance ratio of the aluminum alloy is very strong, and the service life of the door is long.
The high-end aluminum alloy swing doors are mostly double-layer hollow design, which not only has very good sound insulation effect, but also has air tightness and water tightness.
| Profile | Type | Aluminium 6063-T5 & 6063-T6, or customized |
|---|---|---|
| Thickness | 2.0mm, 2.5mm | |
| Color | Grey, black, ect | |
| Glass | Type | Toughened, tempered, frosted, single, double, triple, etc |
| Color | Blue, Transparent, European grey, glazed colour, etc | |
| Surface Treatment | Powder coated, Pvdf, anodized | |
| Hardware | Australian hardware | |
| Europe brand hardware | ||
| Top Chinese hardware | ||
| Screen Netting | Fiberglass | |
| Stainless steel | ||
| Opening Style | Sliding, hinged, folding, fixed, tilt and turn, awning, hung, electrical | |
| Others | According to your requirements | |
In the past few years, Superhouse exported various kinds of aluminium hinged doors, inculding residential doors, commercial doors.
Different Buyer, Different Choice.
We are capable of customizing any kind of aluiminium hinged doors according to customer's demand. Here are some exported products showed below.
In general, most of us spend much time indoor, however, the complexity and variety of the outdoor natural environment cause much trouble to our indoor office and life, including cold, heat, noise, hurricane, impact, rainstorm, and so on.
The doors and windows bring us sunshine, ventilation, beauty, good view, but it is also a weak place for the house to withstand extreme outdoor conditions. Therefore, choosing high performance windows and doors for your house, you will get a safe and comfortable indoor environment.
Superhouse P80 System is excelent heat insulating function, which belong to our star system wtih very high quality and with kick plate. It could realized inwards opening, outwards opening, low doorsil and high dooill. With design of lit & sliding door, and bi-folding door. Also there are different kinds of hardware to choose and it could meet C and U Groove with multi point locking system.
Technical Data:
Visible Width (Frame)
51.2mm
Visible Width (Sash)
81.5mm
Profile Depth (Frame)
79mm
Profile Depth (Sash)
89mm
Depth of Glass Groove
27mm
Glass Thickness
25mm
Performance:
Thermal Insulation
U ≤ 1.4 W/m²K
Acoustic Performance
≤ 45 dB
Air Tightness
≤ 0.4m³/(m²h)
Wind Load Resistance
≥ 0.5KPa
Water Penetration
≥ 600Pa
What are the main advantages of aluminum swing doors?
Aluminum alloy swing doors offer exceptional plasticity for custom fabrication, high corrosion resistance, and an extended service life. High-end variants featuring double-layer hollow designs also deliver superior acoustic insulation, air tightness, and water tightness against severe outdoor elements.
Can these aluminum hinged doors be configured for both inward and outward opening?
Yes, our aluminum hinged door systems—including the star Superhouse P80 System—can be customized for inward opening, outward opening, and can be designed with either low or high doorsills according to project specifications.
What glass configurations and thicknesses are supported?
The system accommodates glass thicknesses up to 25mm with a 27mm groove depth. Available options include toughened, tempered, frosted, single, double, and triple-glazing in transparent, blue, European grey, or custom glazed colors.
What hardware options and locking systems are available?
We offer premium Australian hardware, European brand hardware, and top Chinese hardware solutions compatible with C and U groove designs, complete with secure multi-point locking systems.
What is the thermal and acoustic performance rating of the P80 System?
The Superhouse P80 system provides thermal insulation rated at U ≤ 1.4 W/m²K and an acoustic performance barrier capable of dampening noise down to ≤ 45 dB, along with wind resistance ≥ 0.5KPa and water tightness ≥ 600Pa.
Are these aluminum doors suitable for commercial and residential applications?
Yes, they are engineered for both residential and commercial architecture, supporting single-door and double-door formats as well as lift & slide or bi-folding configurations.
