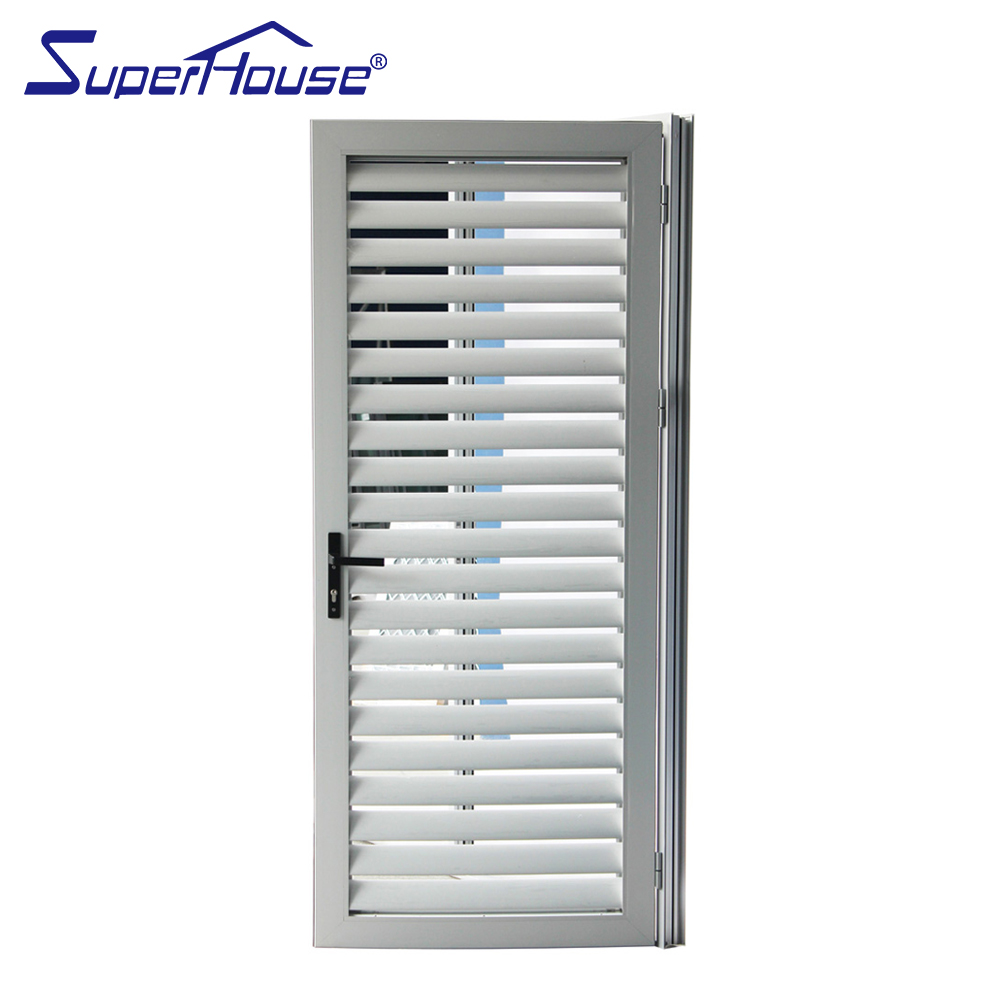

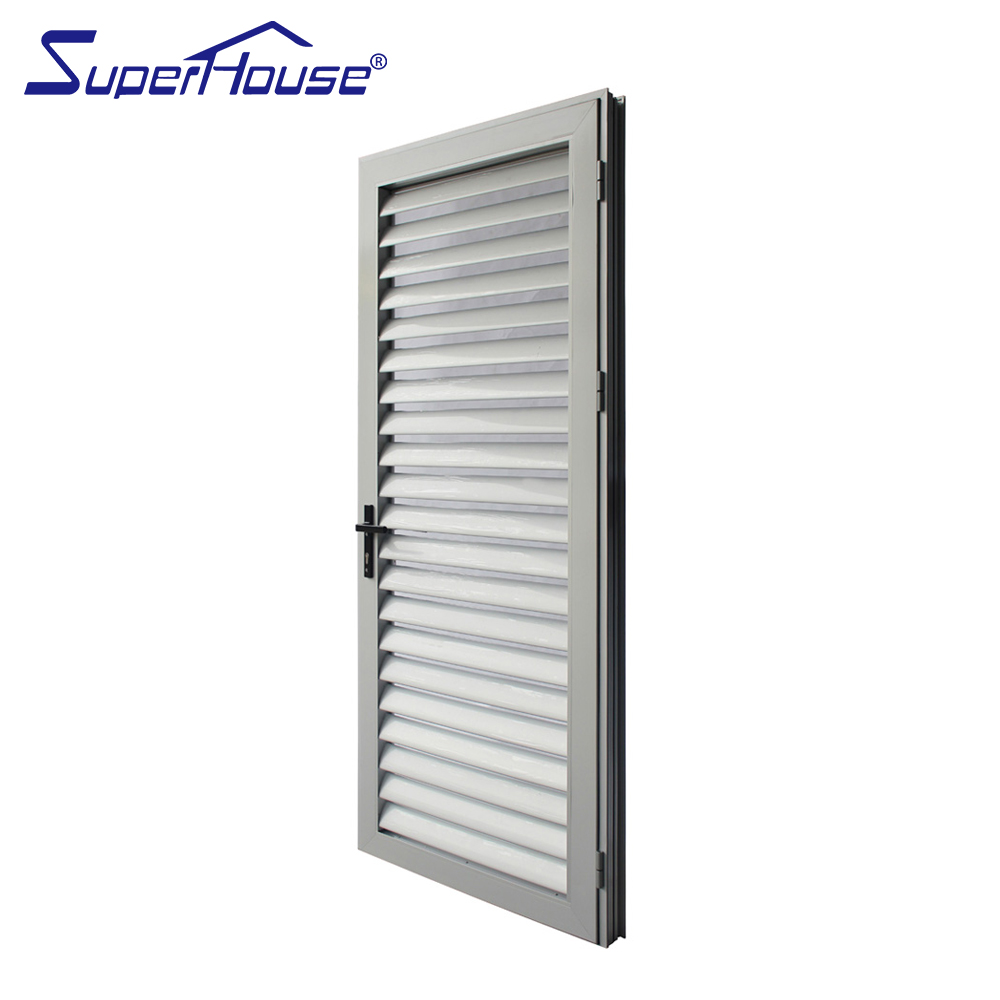

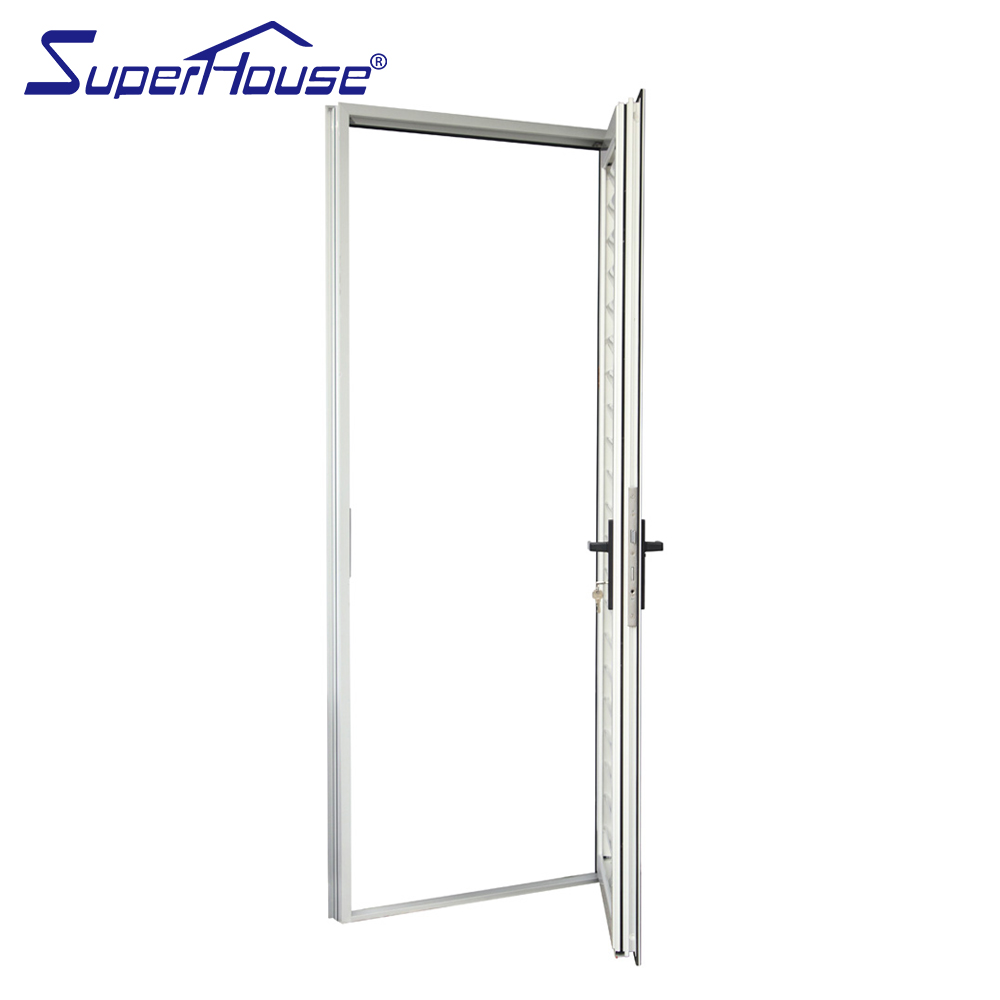

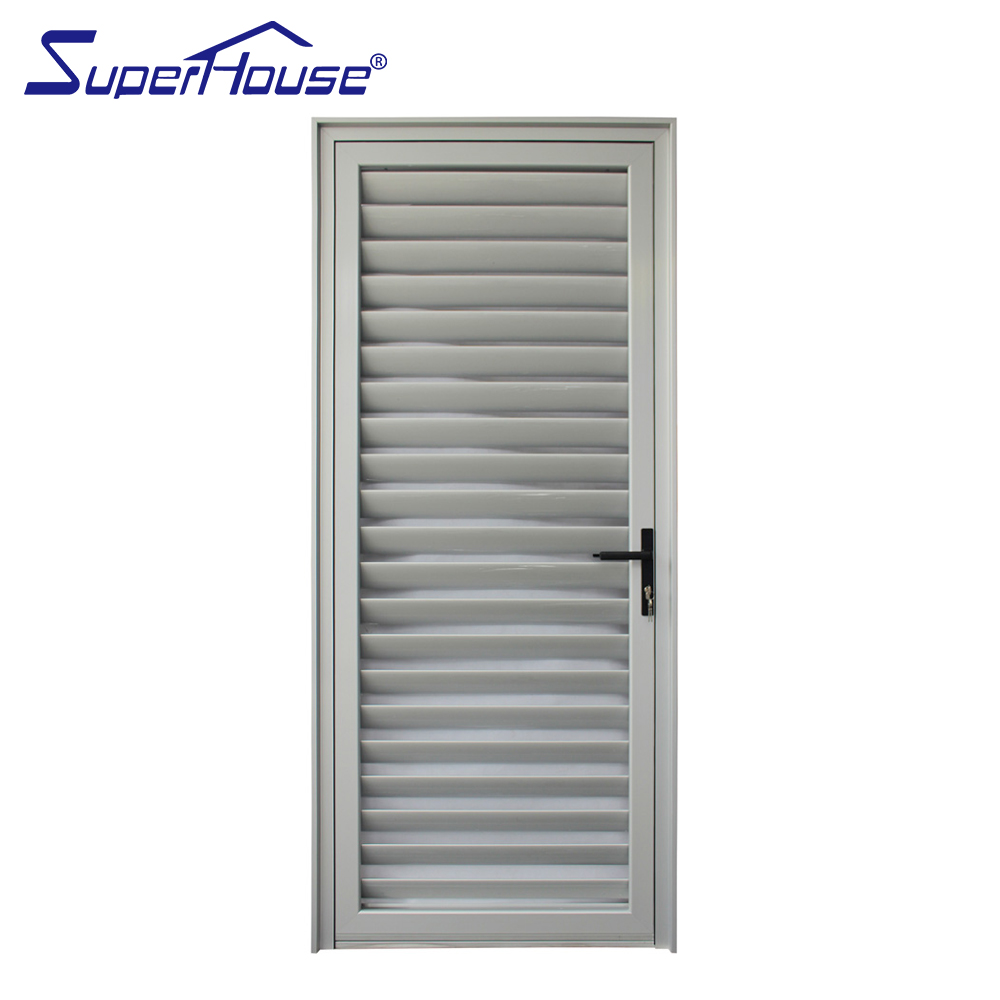

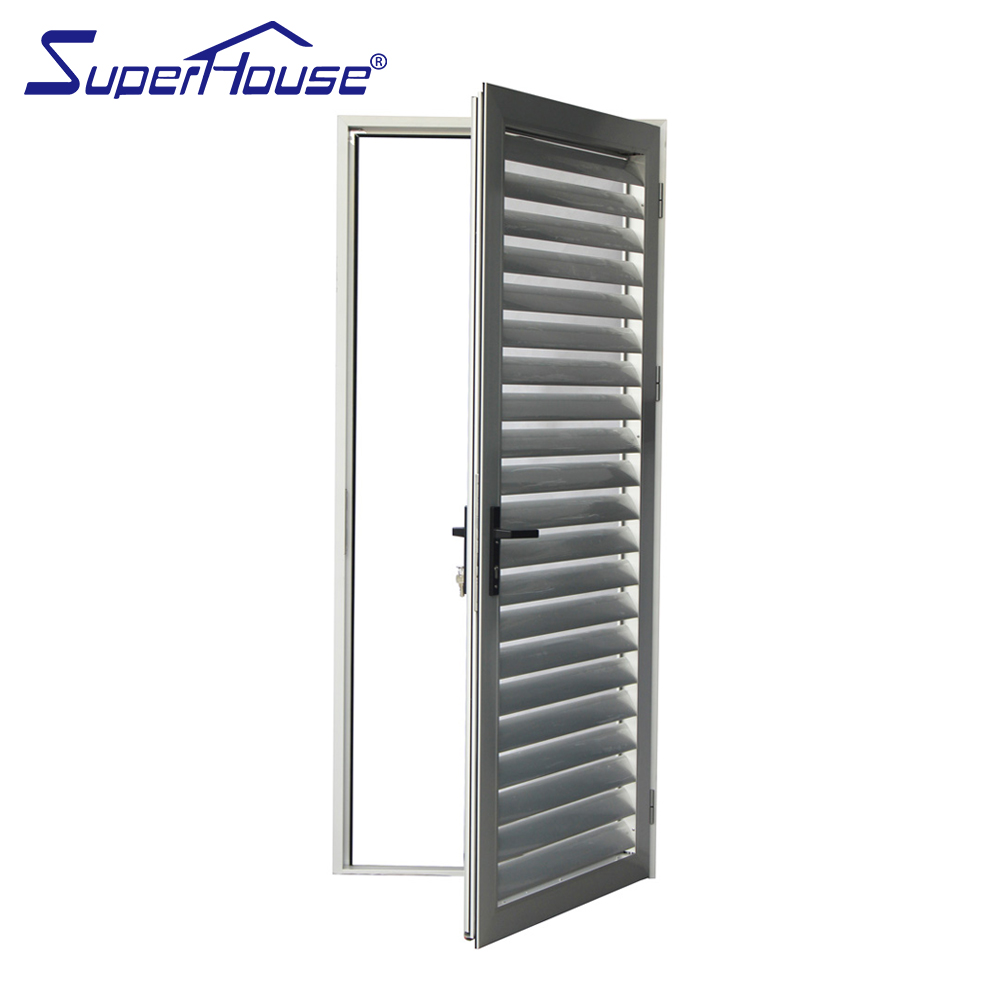

AS 2047 NFRC Standard Aluminum Louver Hinged Door
Product Description
Aluminum hinged doors utilize secure hinges to fix the door frame, installed conveniently on the side to allow flexible inward or outward opening paths. Aluminum alloy is recognized as an exceptionally durable entrance solution, making it widely favored across modern architectural applications.
Depending on structural requirements, aluminum swing doors are available in both single-door and double-door configurations. Single systems feature a single panel swinging smoothly along one directional axis, while double setups operate with twin panels swinging together to generate wide, uninterrupted access.
Superior Durability & Formability
Aluminum alloy offers excellent structural plasticity for seamless custom manufacturing, paired with exceptional corrosion resistance for a decades-long lifespan.
Acoustic & Thermal Performance
Featuring a double-layer hollow design that delivers premium acoustic insulation, structural air tightness, and reliable water-tight security.
Indoor Climate Defense
Defends living spaces against outdoor environmental extremes including severe cold, intense heat, street noise, storm rains, and heavy wind pressure.
Product Specifications
| Profile | Type | Aluminium 6063-T5 & 6063-T6, or customized |
| Thickness | 2.0mm, 2.5mm | |
| Color | Grey, Black, etc. | |
| Glass | Type | Toughened, Tempered, Frosted, Single, Double, Triple, etc. |
| Color | Blue, Transparent, European Grey, Glazed color, etc. | |
| Surface Treatment | Powder coated, PVDF, Anodized | |
| Hardware | Australian standard hardware, European brand hardware, Top Chinese brand hardware | |
| Screen Netting | Fiberglass, Stainless steel mesh | |
| Opening Style | Sliding, Hinged, Folding, Fixed, Tilt & Turn, Awning, Hung, Electrical | |
| Others | Fully customized according to architectural requirements | |
Over recent years, Superhouse has delivered diverse ranges of high-caliber aluminium hinged doors worldwide, servicing both custom luxury residences and expansive commercial projects. By adapting to bespoke functional requirements, our production line meets individual demands accurately.

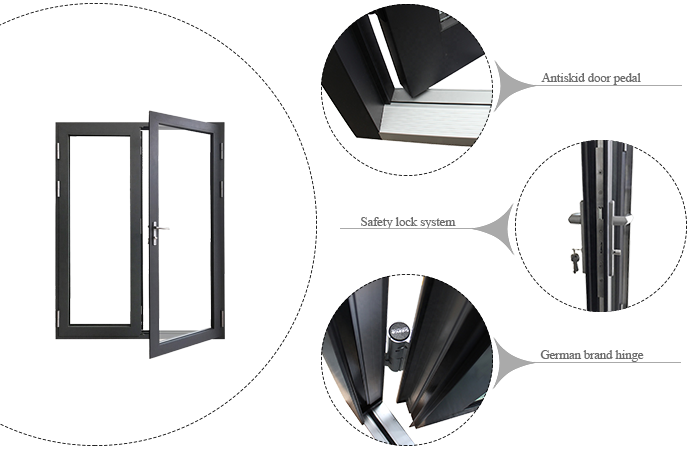

Superhouse P80 System stands as our flagship platform, engineered with exceptional thermal break insulation and integrated kick plates. It effortlessly supports inward or outward swings, varied sill elevations (low accessibility sill or weather-sealed high door sill), alongside configurations for lift & slide or bi-folding designs. It accommodates varied top-tier hardware assemblies compliant with C and U standard grooves utilizing multi-point locking mechanisms.
Technical Dimensions
Visible Width (Frame):51.2 mm
Visible Width (Sash):81.5 mm
Profile Depth (Frame):79.0 mm
Profile Depth (Sash):89.0 mm
Glass Groove Depth:27.0 mm
Glass Thickness:25.0 mm
Engineering Performance Ratings
Thermal Insulation:U ≤ 1.4 W/m²K
Acoustic Performance:≤ 45 dB
Air Tightness:≤ 0.4 m³/(m²·h)
Wind Load Resistance:≥ 0.5 KPa
Water Penetration:≥ 600 Pa
Frequently Asked Questions
1. What are the key architectural advantages of aluminum hinged doors?
Aluminum hinged doors combine exceptional structural rigidity with superior anti-corrosion properties. They deliver robust weather resistance, elevated thermal insulation, reliable acoustic barriers, and operate seamlessly over years of frequent use.
2. Can aluminum hinged swing doors be built for both inward and outward opening?
Yes, our aluminum hinged door systems are fully adaptable, allowing for both inward and outward swing trajectories to suit internal room clearances or specific regional architectural guidelines.
3. What glass options are supported by the aluminum frame?
The systems accommodate multiple glass configurations including tempered, toughened, frosted, tinted, and low-E options across single, double, or triple glazing layers up to standard 25mm depths.
4. How do these doors withstand severe weather and water infiltration?
Utilizing multi-point locking mechanisms, advanced EPDM weatherstripping gaskets, and engineered sill drains, the system achieves wind load resistance ≥ 0.5 KPa and water tightness ≥ 600 Pa.
5. What surface treatments and color choices are available?
We offer durable exterior surface treatments including architectural powder coating, fluorocarbon (PVDF) spraying, and anodizing, supplied in standard architectural grey, sleek black, or bespoke project finishes.
6. Are these doors compatible with international building standards?
Yes, our systems are manufactured and tested to meet stringent performance benchmarks including Australian AS 2047 and American NFRC performance certifications.
