Engineered Aluminium Flush Window Series
Precision-fabricated coplanar flush sash systems engineered for luxury residential villas, high-performance office towers, and demanding tropical coastal climates. Each system integrates seamless multi-point perimeter compression locking, polyamide PA66 GF25 thermal barriers, and concealed aerodynamic drainage pathways.
Hurricane Impact Double Glazed Flush French Casement System
Engineered for cyclonic zones with multi-layer structural SentryGlas/PVB laminates, heavy-duty 2.0mm 6063-T6 aluminum alloys, and flush coplanar exterior sightlines.
Inspect Engineering Specs

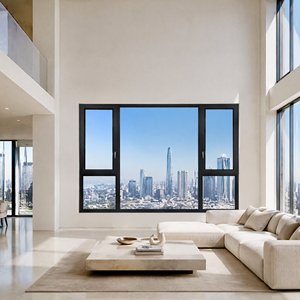

Acoustic Thermal Isolation Flush Architectural Casement
Designed for high-density metropolitan zones, this flush sash casement combines asymmetric acoustic glass packs with dual continuous co-extruded EPDM gaskets.
Inspect Engineering Specs

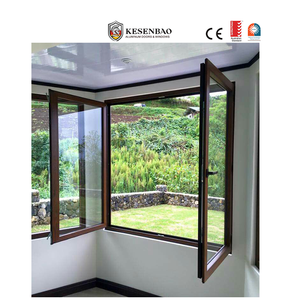

Double Glazed High-Security Flush Casement with Screen
Featuring a high-tensile 304 marine-grade stainless steel diamond flyscreen flush-nested within the sub-frame, delivering insect and intruder exclusion without bulky extrusions.
Inspect Engineering Specs

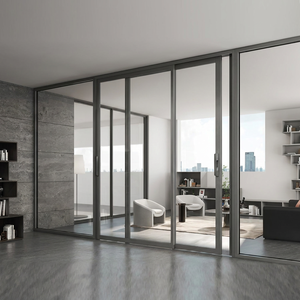

Series 110 Dual Coplanar Interior/Exterior Flush Window
True planar alignment on both internal and external elevations. Equipped with 24mm continuous polyamide thermal struts for optimal whole-window U-factors in severe climates.
Inspect Engineering Specs
Commercial-Grade Flush Aluminum Villa & Hotel Window
A favorite among luxury hospitality developments, offering Qualicoat Class 2 electrostatically applied powder finishes, concealed heavy-load friction stays, and smooth swing kinematics.
Inspect Engineering Specs
2.0mm Heavy-Duty Architectural Flush Casement System
Features structural 2.0mm aluminum extrusions with a patented triple-barrier sealing threshold designed to prevent capillary water intake under torrential tropical squalls.
Inspect Engineering Specs
UV-Shield Soundproof Double Glazed Flush Casement
Integrated with double-silver sputtered Low-E coatings that deflect up to 88% of solar infrared heat while preserving crystal-clear optical transparency and flush external lines.
Inspect Engineering Specs
Modern Aerodynamic Flush Aluminium Project Window
Precision 45-degree mechanically crimped and corner-injected sealant joints create an impenetrable thermal envelope with hidden sash hinges for sleek architectural facades.
Inspect Engineering SpecsThe Mechanics of Coplanar Flush Engineering vs. Traditional Casements
Modern architectural paradigms require razor-sharp sightlines without the stepped frame-to-sash offsets of legacy windows. Achieving true flush geometry demands strict metallurgical tolerances and patented drainage solutions.
Coplanar Planar Alignment
Unlike conventional lipped casements where the sash overlaps the masterframe exterior by 8mm to 12mm, our flush sash rests in the identical 2D plane as the outer perimeter frame. This eliminates stepped shadow lines, offering a clean monolith facade favored by minimalist and Bauhaus architecture.
Multi-Cavity PA66 Thermal Struts
Aluminum's inherent thermal conductivity (160 W/m·K) is mitigated by incorporating 24mm to 34mm reinforced polyamide PA66 GF25 isolation bridges. Combined with polyurethane thermal core foams, the systems achieve whole-window thermal transmittance figures down to Uw 1.2 W/m²·K.
Concealed Cascade Pressure Drainage
Traditional face-drainage weep hole caps disrupt flush aesthetics. DERCHI systems utilize hidden pressure-equalized cascade drainage slots beneath the lower exterior frame profile. Gravity drainage channels discharge water up to 650 Pa positive wind-driven rain head pressure.
Standard Testing Criteria: Flush Architectural Systems vs. Standard Commercial Windows
| Testing Metric & International Code | DERCHI Tested Flush Casement | Standard Commercial Windows | Architectural Impact |
|---|---|---|---|
| Wind Resistance (AS 2047 / ASTM E330) | N6 Rating (≥ 4500 Pa Service / 6000 Pa Ultimate) | N3 - N4 (1500 Pa - 2500 Pa) | Guarantees zero profile deflection or glass pullout in cyclone-prone coastal high-rises. |
| Water Penetration Resistance (EN 12208) | Class E750 / E900 (Up to 900 Pa static head) | Class 4A - 7A (150 Pa - 300 Pa) | Continuous co-extruded vulcanized EPDM center fin prevents interior water ingress during monsoons. |
| Air Infiltration Tightness (ASTM E283) | < 0.05 L/s·m² (Level 4 Air Permeability) | 0.30 - 0.50 L/s·m² | Eliminates envelope drafting, drastically reducing HVAC building cycle load for Net-Zero targets. |
| Acoustic Attenuation (ISO 717-1 / ASTM E413) | Rw / STC 42 - 47 dB (with Acoustic PVB) | STC 28 - 32 dB | Blocks ultra-low urban rumble and aircraft flight path decibel spikes inside interior suites. |
Guangdong Dejiyoupin (DERCHI): Foshan's Premier Window Manufacturing Base
From single luxury villas to high-volume commercial towers across Australia, New Zealand, North America, and Europe, our industrial fenestration facility provides verified supply chain predictability, fully audited engineering, and strict ISO 9001 quality assurance.
End-to-End Precision: From Raw Billet to Assembled Envelope
At our Foshan industrial complex, we take nothing for granted. High-purity 6063-T6 aluminum ingots undergo precision CNC profile machining, robotic polyurethane injection, automated hydraulic corner crimping, and triple-phase laser-guided quality audits before pre-glazing and packaging.
-
Certified Compliance for Oceania & North America: Tested fully to AS 2047 (N6 cyclone rating), AS 1288 safety glazing, CE, and ISO 9001 standards.
-
Free Architectural CAD & BIM Coordination: Dedicated in-house structural engineers furnish custom shop drawings, wind load calculations, and BIM Revit files directly to your design teams.
-
Marine-Grade Finishing Plant: Automated vertical powder coating supporting AkzoNobel Interpon D2525, PPG fluorocarbon (PVDF), and Qualicoat Class 2 hyper-durable coastal specifications.
Future Procurement & Engineering Trends in Aluminium Flush Windows (2025–2030)
Major developers, commercial specifiers, and facade consultants are shifting procurement strategies. The global flush fenestration market is transitioning from purely aesthetic hardware toward intelligent, high-efficiency, decarbonized building envelopes.
Decarbonized Circular Aluminum
Global carbon tariffs (such as EU CBAM) are compelling Tier-1 factories to source hydro-powered, low-carbon certified aluminum billets (under 4.0 kg CO2/kg Al). Developers increasingly mandate Environmental Product Declarations (EPD) to achieve LEED Platinum and Green Star certifications.
Triple Glazing & Aerogel Inserts
Thermal envelope codes are forcing whole-window U-factors below 1.0 W/m²·K. Modern flush systems incorporate vacuum insulated glass (VIG) or triple-pane assemblies infused with inert krypton/argon gases and aerogel-filled thermal strip chambers to eliminate edge-of-glass condensation.
Motorized Concealed Actuation
Flush sashes are integrating miniaturized 24V DC chain actuators concealed inside the sash rebate. Governed by building management systems (BMS), these systems execute natural night-purging and automated smoke ventilation without visible exterior hinge hardware.
Bushfire (BAL-40) & Cyclonic Hardening
With changing planetary climate patterns, fenestration must resist high-energy debris impacts and ember attacks. Procurement contracts in Australia and North America specify flush windows capable of surviving bushfire flame immersion and cyclonic positive/negative wind reversal loads.
B2B Quality Control Checklist for Offshore Factory Procurement
When importing custom aluminium flush casements from China, overseas contractors and developers must enforce rigid verification protocols to prevent on-site delays, water leakage, or compliance rejections.
1. Corner Joinery & Mechanical Crimping
Inspect the mitered joints. Low-cost workshops screw profiles together without corner brackets. High-performance factories employ heavy hydraulic crimping machines with dual-component corner insertion sealant (epoxy/polyurethane resin) injected into the extrusion cavities to ensure airtight structural rigidity.
2. Gasket Materiality: EPDM vs. PVC
Never accept PVC weatherstrips. Over 3 to 5 years, PVC plasticizers evaporate under UV exposure, turning brittle and causing seal failure. Demand continuous vulcanized, sulfur-cured EPDM or silicone co-extruded gaskets engineered to retain 95%+ elastic memory over 25 years.
3. Hardware Kinematics & Friction Hinges
Flush windows require specialized concealed hinges that swing open and out simultaneously so the sash does not bind against the flush exterior sub-frame. Confirm hardware is crafted from heavy-gauge austenitic 304/316 stainless steel tested to 50,000 continuous opening/closing duty cycles.
Frequently Asked Sourcing & Engineering Questions
Direct answers to the common technical, manufacturing, and shipping inquiries raised by architects, developers, and facade engineers.
How do aluminium flush windows ensure watertightness without an exterior overlapping sash lip?
Can your factory produce flush casement windows that satisfy Australian AS 2047 and AS 1288 requirements?
What surface finishes are recommended for extreme coastal projects located within 1 km of the sea?
1. Qualicoat Class 2 / AAMA 2604 / 2605 Super-Durable Powders (such as AkzoNobel Interpon D2525) with a minimum dry film thickness of 60–80 microns, backed by a 15–25 year anti-corrosion factory guarantee; or
2. Polyvinylidene Fluoride (PVDF) Fluorocarbon Coatings applied in a 3-coat/2-bake automated process that offers maximum resistance to salt spray, extreme UV degradation, and chemical etching. All external fastening hardware and hinges must simultaneously be specified in marine-grade AISI 316 stainless steel.
What is the typical production lead time and export crating protocol for commercial projects?
Can flush windows incorporate integrated flyscreens without compromising the coplanar aesthetic?
How do you verify thermal performance metrics (U-factor and SHGC) before mass manufacturing?
Partner with a Global Leader in Flush Fenestration
Whether you require complete window schedules priced for a high-end multi-villa estate, custom structural shop drawings for a bespoke architectural landmark, or volume manufacturing for an apartment complex, our factory engineers are ready to assist with full technical support.
