Impact Rated
Hurricane Impact Double Glazed Aluminum Sliding Windows
- Glazing: 6mm+12A+6mm Impact Laminated
- Wind Pressure: Up to N6 Performance
Product Recommendation
Engineered Aluminium Systems & Heavy-Duty Door Solutions
Explore our precision-manufactured fenestration portfolio. From hurricane-resilient hinged entrance systems to ultra-slim casements and high-security doors, each unit is manufactured under rigorous ISO 9001 quality assurance and tested to international structural wind-load parameters.
Impact Rated
Acoustic Series
RG50 Casement Door Soundproofing Double Tempered Glass Aluminum Doors
- Profile Depth: 50mm High-Yield Alloy
- Acoustic Damping: Rw > 38 dB
High Security
Modern Minimalist Anti-Theft Cast Aluminum Security Entry Door
- Core: Solid Cast Aluminum Structure
- Finish: Multi-Layer Fluorocarbon PVDF
Architectural
Heavy Duty Aluminum Multi Slide Patio Door for Hotel Luxury Villa
- Hardware: Heavy-Duty German Rollers
- Sightline: Ultra-Slim Interlock Design
Custom Curve
Wood Grain Aluminum Arched Casement Windows
- Curvature: High-Precision CNC Bending
- Surface: Sublimated Wood-Grain Transfer
Pivot Axis
Alucasa Modern Design Entrance Pivot Front Aluminum Door
- Mechanism: Concealed Hydraulic Floor Spring
- Capacity: Sash Weight up to 450 kg
Thermal Barrier

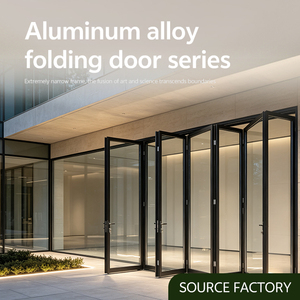

Aluminium Bifold Folding Patio Door Thermal Break System
- Thermal Break: Polyamide PA66 GF25
- Sealing: Continuous EPDM Triple Gasket
High Insulation
RG65 Custom Thermal Insulation Windproof Casement Windows
- Profile: 65mm Multi-Cavity Structural Core
- U-Factor: Low Uw < 1.4 W/m²K
Executive White Paper
Global Sourcing Benchmark: China's Aluminium Hinged Door Industrial Ecosystem
Over the past decade, architectural demand for high-performance fenestration has transitioned from basic aesthetic framing to advanced building-envelope engineering. As the international building sector responds to tighter carbon neutrality targets, strict energy conservation mandates, and severe extreme-weather events, the specification of exterior hinged doors requires unprecedented structural discipline.
China has solidified its position as the premier manufacturing powerhouse for architectural aluminium systems, driven by deep vertical integration across raw primary bauxite smelting, 6063-T5/T6 billet extrusion, computerized thermal-barrier knurling, robotic PVDF/fluorocarbon coating lines, and integrated CNC hardware milling. As an engineering-first supplier, our Foshan manufacturing facility bridges the critical divide between cost competitiveness and strict international regulatory compliance.
Core Technical Value: While conventional fabricators assemble generic profiles with commercial tolerances, high-tier OEM/ODM manufacturing demands automated corner crimping with dual-component structural adhesives, high-precision thermal expansion calculations, and third-party certified structural testing under AS 2047, CE, and ASTM specifications.
Whether procuring for luxury multi-residential developments in Melbourne, beachfront villas in New Zealand, or commercial headquarters across North America, global procurement directors require direct visibility into extrusion alloy composition, hardware cyclic endurance ratings, and micro-meter anodizing thickness.
Verified Infrastructure
Precision Scale: 180,000 m² High-Capacity Manufacturing Base
Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) represents the pinnacle of Chinese fenestration engineering. With more than a quarter-century of technical experience, our vertically integrated plant delivers turnkey architectural solutions to contractors and facade engineers worldwide.
180,000m²
Production Infrastructure
25+
Years Engineering Expertise
600+
Certified Technicians
100+
Patents & Global Standards
Certified AS 2047 N6 Wind Pressure Resistance
Engineered for cyclonic zones and oceanic gust conditions. Our systems endure severe deflection testing exceeding 4500 Pa positive/negative structural loads with water penetration resistance surpassing 450 Pa.
AS 2047 Tested
N6 Rating
AAMA / WDMA
ISO 9001 & UL Fire-Rated Assurance
Full material traceability from raw alloy ingot analysis to final batch inspection. Options for UL-certified fire-rated cores tailored to hospitality, high-traffic commercial corridors, and institutional developments.
ISO 9001:2015
CE Certified
UL Fire Resistance
Full BIM & CAD Engineering Coordination
Free shop drawings matching your architectural door schedule. Dedicated structural engineers review wall junction details, thermal anchoring, sub-sills, and perimeter sealing prior to extrusion cutting.
Shop Drawings
BIM Revit Models
AEST/NZST Hours
Engineering Baseline
Technical Comparison: Architectural Hinged Door Configurations
Review structural configurations, thermal coefficients, and hardware integrations across our primary hinged and pivot door production lines.
| System Classification | Alloy & Wall Spec | Thermal Barrier | Glazing Options | Max Sash Weight | Acoustic & Wind Rating |
|---|---|---|---|---|---|
| RG50 Heavy Casement Hinged | 6063-T5 / 2.0mm - 2.5mm | Multi-Cavity PA66 GF25 (24mm) | 5+12A+5 / 6+16A+6 Low-E | 160 kg / leaf | Rw 36 dB / 3500 Pa |
| Thermal Break Premium French Door | 6063-T6 / 2.5mm - 3.0mm | Polyamide Technoform (34mm) | 6Low-E+12Ar+6+12Ar+6 Triple | 220 kg / leaf | Rw 42 dB / 4000 Pa |
| Solid Cast Aluminium Security Door | High-Density Alloy / 8mm-12mm Plate | Polyurethane Core + Thermal Stop | Solid Panel / Bulletproof Glass | 380 kg / leaf | Class RC3/RC4 Security |
| Architectural Pivot Entrance System | Structural Aluminum Box Extrusion | Integrated Perimeter Dual Break | 8+1.52PVB+8 Laminated Double | 450 kg / leaf | AS 2047 N6 Wind Rated |
Strategic Sourcing Intelligence
Future Procurement Trends in Aluminium Hinged Doors
Anticipate market transitions, tightening environmental regulations, and intelligent automation across the commercial and residential fenestration landscape over the next five years.
Passivhaus Thermal Standards (Uw < 0.8)
Global building codes increasingly penalize high thermal transmittance. Sourcing requirements are transitioning rapidly toward multi-chamber polyamides, aerogel cavity insulation, and warm-edge vacuum glazing combinations.
Ultra-Low U-Value
Decarbonization
Smart Biometric & IoT Hardware Integration
Modern luxury entryways require concealed multi-point electro-mechanical locking systems. Buyers favor suppliers providing pre-wired concealed cabling raceways, facial-recognition compatibility, and home automation connectivity.
Smart Entry
Motorized Multipoint
C4/C5 Marine-Grade Anti-Corrosion Finishes
Due to coastal urban expansion, high-salinity air degradation has become a top warranty liability. Procuring Qualicoat Seaside-class fluorocarbon PVDF powder coating and 25-micron hard-coat anodizing is now standard requirement.
ASTM B117
Qualicoat Class 2
Supply-Chain Verification & Traceability
B2B importers are mitigating geopolitical and project-delay risks by choosing direct factory manufacturers possessing full in-house tooling, extrusion anodizing, CNC fabrication, and containerized seaworthy packing lines.
Direct Manufacturer
Zero Intermediaries
Technological Innovations
State-of-the-Art Material Science in Modern Aluminium Hinged Doors
How progressive metallurgical formulation, acoustic decoupling, and heavy-load hardware geometry have redefined the capabilities of architectural hinged doors.
Primary 6063-T6 Precision Alloys vs. Recycled Scrap
Structural stability under severe thermal cycling begins at the billet level. We exclusively utilize primary 6063-T6 virgin billets with controlled magnesium-silicon ratios, preventing profile bowing, web cracking, and micro-porosity during extreme summer surface heating.
3D Adjustable Concealed Stainless Steel Hinges
Eliminate unsightly exterior barrel hinges and vulnerability to forced entry. Our heavy-duty 3D adjustable concealed hinge mechanisms support dynamic sash weights over 250 kg while allowing precision multi-axis alignment on-site (+/- 3mm horizontal, vertical, and compression).
Multi-Tier EPDM Continuous Vulcanized Gasket Seals
Inferior PVC weatherstrips crack and shrink under solar ultraviolet exposure, leading to wind whistle and air leaks. We incorporate closed-cell automotive-grade vulcanized EPDM gaskets with continuous corner vulcanization, guaranteeing continuous air tightness.
Procurement Knowledge Base
Frequently Asked Questions: Sourcing Aluminium Hinged Doors from China
Key commercial, structural, and logistical insights compiled by our senior facade engineering team for international buyers, developers, and project specifiers.
How do DERCHI aluminium hinged doors guarantee compliance with Australian Standard AS 2047?
Our aluminium door systems undergo physical laboratory testing adhering strictly to AS 2047 requirements, which encompasses AS 4420 test methods for fenestration products. Key test metrics verified include:
- Structural Deflection Test: Sustaining serviceability wind loads up to N6 ratings without permanent plastic deformation.
- Air Infiltration: Tested to air conditioning level standards (below 0.3 L/s·m² for low infiltration).
- Water Penetration Resistance: Proven watertightness up to 450 Pa test pressure using stepped sill chambers.
- Ultimate Limit State Wind Load: Enduring over 4500 Pa cyclic positive and negative pressures. Complete NATA-accredited test reports are supplied alongside CAD shop drawings.
What surface finish options are recommended for coastal or harsh marine environments?
For installations within 1 to 5 kilometers of open sea, standard architectural powder coating is vulnerable to filiform corrosion and salt pitting. We prescribe two primary protective treatments:
- Fluorocarbon PVDF (Kynar 500 / Hylar 5000): Applied in a three-coat, two-bake automated electrostatic line with dry film thickness exceeding 40-50 microns, tested to 4000+ hours ASTM B117 salt spray.
- Architectural Hard-Coat Anodizing (Grade AA25): Delivering an anodic oxide film thickness of 25 microns or higher, providing extreme scratch resistance and impervious barrier against marine chlorine ions.
What is the standard production lead time and export packaging protocol for ocean freight?
Custom OEM/ODM orders follow a streamlined manufacturing timeline: CAD shop drawing approval takes 3 to 5 business days, followed by extrusion, CNC machining, glass processing, and pre-assembly in 25 to 35 calendar days. For maritime shipping safety, every door undergoes a 4-tier packaging standard:
- Protective blue electrostatic film applied across all bare metal surfaces.
- Sash and frame corners enveloped in reinforced shock-absorbent EPE foam corner protectors.
- Waterproof polyethylene wrapping with enclosed silica gel desiccant bags to prevent moisture hazing.
- Heavy-duty fumigation-free solid plywood crates engineered for fork-lift offloading at port or job site.
Can DERCHI engineer oversized architectural hinged and pivot doors with smart lock integrations?
Yes. We routinely fabricate oversized entrance systems exceeding 3500mm in height and 1800mm in width per sash. For such large-format spans, our engineering office designs reinforced structural corner braces and utilizes concealed German or Japanese hydraulic floor-spring pivot hardware rated to 450 kg sash loads. All doors can be pre-milled and wired for motorized smart locks, fingerprint scanners, intercom buzzers, and automated concealed door closers.
What quality control and Factory Acceptance Tests (FAT) are executed prior to container dispatch?
100% of our exported doors undergo trial assembly in our Foshan facility prior to crating. Our QC inspection protocol covers:
- Dimensional Tolerance Check: Frame diagonal discrepancy under 1.5mm across spans.
- Optical Alignment: Verification of miter joint flushness and sealant injection continuity.
- Operating Force Test: Sash opening force, latch engagement, and lock cylinder key rotation smoothness.
- High-resolution photographic and video inspection records are delivered to the client prior to balance payment release.
Accelerate Your Project with China's Premier Door Manufacturer
Whether you are sourcing custom architectural hinged doors, thermal break casements, or high-security pivot doors, our engineering team in Foshan is ready to review your schedules, provide CAD details, and deliver factory-direct project estimates.
24-Hour Engineering Turnaround
Compliant with AS 2047, CE & ISO
Free Project CAD Shop Drawings
