Featured Aluminum Crittall-Style Door Systems
Engineered with high-tensile 6063-T6 aluminum profiles, narrow heritage sightlines, and modular acoustic glass configurations. Fully certified to international fenestration standards including AS 2047, CE EN 14351, and ASTM fenestration testing.
Interior Heritage

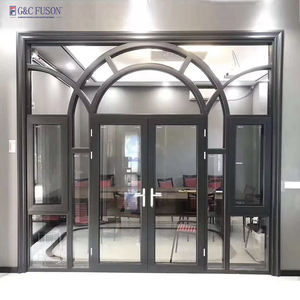

Casement Swing

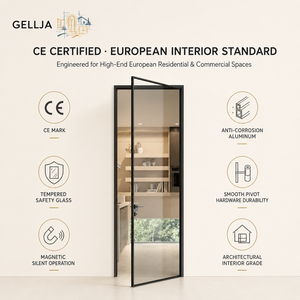

Narrow Stile

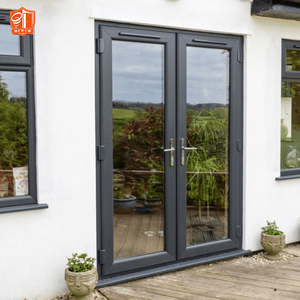

Arch French
Thermal Break
European Retro
Italian Minimalist
Oceania Certified
The Engineering Paradigm Shift: Why Aluminum Dominates Modern Crittall Architectural Fenestration
Evaluating structural kinematics, carbon footprint, life-cycle thermal performance, and precision extrusion manufacturing in high-demand residential and commercial projects.
Originating in the late 19th century in Essex, England, the classic hot-rolled steel Crittall door revolutionized modernist fenestration with its distinctive slim transoms, structural astragal mullions, and rectilinear glazing grids. However, contemporary building regulations—notably European EN standards, Australia's National Construction Code (NCC 2022), and North American ASHRAE 90.1 energy performance mandates—have exposed significant structural and thermal liabilities in legacy steel fabrications.
Hot-rolled solid steel suffers from excessive heat conductibility (thermal conductivity λ ≈ 50 W/m·K), high material density causing significant dead-load on hinges, and vulnerability to electrochemical oxidation in maritime and sub-tropical microclimates. Today, international commercial developers and high-end residential architects are overwhelmingly pivoting to advanced extruded aluminum alloy (AA6063-T6 / AA6060-T66) Crittall-style systems engineered with thermal barrier polyamides (PA66 GF25), CNC-milled internal lockcases, and high-performance flurocarbon (PVDF) powder coats.
| Performance Parameter | Extruded Architectural Aluminum (DERCHI Systems) | Traditional Hot-Rolled Solid Steel | Standard Low-Tier Aluminum Importers |
|---|---|---|---|
| Extrusion Alloy & Temper | 6063-T6 / 6061-T6 (Wall: 2.0-3.0mm) | Low-Carbon Solid Hot-Rolled Steel | Recycled Billet Scrap / 6063-T5 (Wall: <1.4mm) |
| Thermal Transmittance (U-Value) | Uw 1.3 - 1.8 W/m²·K (Polyamide Break) | Uw 3.8 - 5.4 W/m²·K (Severe Condensation) | Uw 3.2 - 4.5 W/m²·K (Non-broken / Poor gasket) |
| Corrosion & Salt Spray Resistance | 3,000 hrs Salt Fog (Qualicoat / C5 Marine) | Requires regular zinc priming; prone to rust | 500 hrs Salt Fog (Standard interior powder) |
| Sightline Minimalist Profile | 18mm - 38mm engineered slim profile | 25mm - 32mm solid steel bar | 50mm - 75mm clunky residential profile |
| Acoustic Attenuation (Rw / STC) | Rw 36 - 42 dB (Acoustic PVB Laminated IGU) | Rw 28 - 32 dB (Single/thin glazed limitation) | Rw 25 - 30 dB (Standard monolithic float) |
| International Compliance | AS 2047, AS 1288, CE EN 14351, NFRC, ISO 9001 | Regional bespoke welding certificates | Self-declared factory conformity |
Top 10 Aluminum Crittall Style Doors Exporters & Global Supply Chain Landscape
How leading industrial exporters are tiered based on engineering customization, profile extrusion purity, automated CNC glass processing, and regional compliance frameworks.
In global door and facade procurement, identifying a supplier capable of executing authentic heritage aesthetics without sacrificing airtightness (air infiltration ≤ 0.1 m³/h·m) or structural deflection limits requires rigorous due diligence. The international market for aluminum Crittall-style doors is bifurcated between high-cost bespoke European workshops and high-capacity precision industrial manufacturers centered in Foshan, China—the world's capital of architectural aluminum processing.
Tier 1: Vertically Integrated Industrial Giants (DERCHI / Foshan)
Characterized by massive 180,000+ m² facilities, fully automated Swiss Gema powder-coating lines, in-house extrusion billet inspection, and full AS 2047 / CE testing facilities. Offers the optimal balance of strict quality control, CAD/BIM shop drawing customization, and high-volume container cost efficiency.
Tier 2: European Heritage Systems Fabricators
UK, Belgian, and German profile systems fabricators with unmatched industrial design legacy. Exceptional aesthetic detailing and thermal performance, though accompanied by 16-24 week delivery lead times, severe container shipping costs for export, and strict minimum order quantity limitations.
Tier 3: North American Custom Millwork & Assembers
Domestic assemblers utilizing imported or domestic extrusions. Strong local building code alignment (Florida Hurricane Impact, NFRC energy tables), but burdened with high retail dealer markups (+150-250%) compared to factory-direct industrial manufacturing exporters.
The 6 Critical Verification Benchmarks for Commercial Exporters
1. Extrusion Tolerance & Corner Crimping
Premium manufacturers employ CNC corner joint cleats injected with two-part polyurethane structural adhesive (corner angle crimping < 0.1mm tolerance) ensuring long-term rigidity against sash sagging under glass dead load.
2. True Astragal Bars vs. Glued Grids
Verify whether the supplier provides authentic structural astragal bars with internal spacer bars (Duplex system) or mere surface-taped decals that detach within 2-3 years under thermal expansion cycles.
3. Polyamide Thermal Barrier Technology
For exterior French or pivot Crittall doors, specify PA66 GF25 (25% glass fiber reinforced polyamide) thermal break strips to eliminate cold-bridging, frame sweating, and interior plaster mold formation.
Future Procurement & Architectural Design Trends in Crittall Fenestration
How smart building envelopes, ultra-low carbon alloys, oversized floor-to-ceiling pivot mechanics, and acoustic zoning are redefining specifications.
Monolithic Oversized Pivot Systems
Architects are scaling Crittall doors to monumental heights (up to 4.2m) with hidden bottom-pivot hydraulic closers capable of supporting up to 500kg sash loads with smooth self-closing speed control.
Smart Glass & Dynamic Privacy
Integration of Polymer Dispersed Liquid Crystal (PDLC) switchable smart glazing within classic Crittall gridded frames, allowing commercial meeting rooms and master suites to transition instantly from transparent to frosted.
Low-Carbon Recycled Aluminum
Stringent ESG mandates require B2B exporters to supply Environmental Product Declarations (EPDs). Sourcing doors extruded from hydro-powered green aluminum reduces embodied carbon below 4.0 kg CO₂/kg Al.
Concealed Smart Security Hardware
Crittall narrow stiles now accommodate 3D biometric fingerprint readers, motorized multi-point German mortise locks, and magnetic contact sensors fully concealed within the 20mm aluminum profile cavity.
Why Global Importers Partner with Guangdong Dejiyoupin Doors and Windows (DERCHI)
Over 25 years of engineering leadership, 180,000 square meters of production infrastructure, and relentless testing for demanding global climates.
Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) represents the pinnacle of Chinese precision fenestration manufacturing, ranked consistently among China's top 10 premium door and window brands. With an advanced 180,000 m² industrial production base in Foshan, Guangdong, DERCHI integrates the entire value chain: in-house CNC profile milling, precision robotic corner crimping, automated glass tempering, cleanroom IGU assembly, and rigorous pre-shipment structural testing.
Unlike trading entities or fragmented fabricators, DERCHI operates a certified R&D testing laboratory that verifies every batch against rigorous international criteria—including Australian Standard AS 2047 (achieving N6 extreme wind ratings), CE EN 14351-1, ISO 9001, FCC, and RoHS. With over 600 skilled master craftsmen, 30+ patented technological breakthroughs, and dedicated English-speaking sales engineering teams operating aligned with AEST, NZST, and North American business hours, we eliminate risk, delays, and communication barriers for offshore projects.
180,000 m² Mega Facility
Unrivaled production scale supporting massive multi-family developments, hotel commercial contracts, and fast container turnaround times without subcontracting risks.
Free CAD & BIM Drawings
Our dedicated fenestration engineers translate your architectural elevations into millimetre-accurate 2D CAD shop drawings and 3D BIM models before extrusion cutting begins.
Export Crating & Biosecurity
Packed in non-coniferous fumigation-free plywood crates with reinforced corner steel brackets, moisture-absorbing desiccant, and shock-cushioned pearl cotton for zero-breakage transit.
AS 2047 & N6 Wind Rating
Independently tested for positive and negative wind pressure up to 4500 Pa, water penetration resistance up to 700 Pa, and complete air tightness for cyclonic and coastal exposure.
Frequently Asked Questions: Sourcing & Engineering Aluminum Crittall Doors
Straightforward, technical answers for builders, procurement directors, and fenestration estimators.
What are the key technical differences between authentic steel Crittall doors and DERCHI aluminum Crittall-style doors?
Do DERCHI aluminum door systems comply with Australia's AS 2047 and New Zealand NZS 4211 standards?
How do you construct the interior grilles? Are they true divided lites (TDL) or simulated divided lites (SDL)?
What surface finish options are available, and what is their durability in harsh marine or coastal environments?
What is the standard lead time, packaging method, and sea-freight logistics protocol for container exports?
Request CAD Shop Drawings & Factory-Direct Quotations
Send your architectural schedules, door elevations, or window schedules. Our bilingual fenestration sales engineers will return complete system cross-sections, thermal calculations, and transparent B2B pricing within 24 hours.
