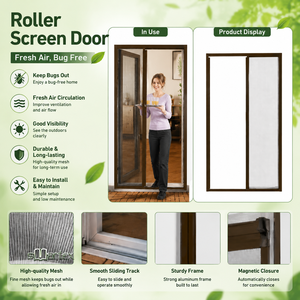

Retractable Pleated Insect Screen Door System Fiberglass Mesh Aluminum Roller

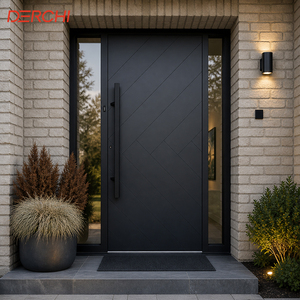

Commercial Fire Rated Aluminum Entry Exterior Security Door System
Eco-Friendly Aluminum Frame Glass Screen Hinge Door Mosquito Netting
Modern Solid Core Wooden Interior Door with Aluminum Frame for Commercial
Structural Architecture of OEM/ODM Aluminum Clad Windows
A rigorous examination of thermal expansion mitigation, bi-material decoupling, and multi-barrier weatherproofing in commercial composite fenestration.
Differential Thermal Expansion
Aluminum extrusions exhibit a thermal expansion coefficient of approximately 23.2 × 10⁻⁶/K, whereas structural solid wood (such as Siberian Larch or White Oak) expands at roughly 5.0 × 10⁻⁶/K longitudinally. Standard rigid fasteners produce shearing failure, frame bowing, and air leakage under severe temperature deltas. Our OEM/ODM systems employ independent polyoxymethylene (POM) slide-clips that absorb up to 3.8mm of differential movement while maintaining hermetic frame clamping.
POM Sliding Clip MatrixAlloy Metallurgy & Timber Curing
Exterior shielding profiles utilize 6063-T6 or 6060-T66 architectural grade aluminum with a minimum wall thickness of 1.8mm to 2.2mm, powder-coated to AAMA 2605 or Qualicoat Class 2 fluorocarbon specifications. Interior structural timbers undergo multi-stage kiln drying and finger-jointing, stabilizing moisture content precisely between 8% and 12% to eliminate warping, knot weeping, or micro-cracking across sub-zero and tropical climate zones.
AAMA 2605 / 8-12% MC TimberTriple EPDM Vulcanized Gasketing
Air permeability and driving rain ingress are governed by three continuous, vulcanized ethylene propylene diene monomer (EPDM) gaskets configured in pressure-equalized rain-screen chambers. The center gasket acts as the primary thermodynamic barrier, shifting the condensation isotherm to the exterior side of the thermal break, securing water tightness ratings exceeding 900 Pa in strict laboratory wind-tunnel evaluations.
900 Pa Rain-Screen Defense| Performance Characteristic | OEM/ODM Aluminum Clad Timber | Thermally Broken Aluminum | Standard uPVC / Vinyl | Solid Wood (Unclad) |
|---|---|---|---|---|
| Overall U-Factor (Uw) | 0.78 – 1.10 W/m²·K | 1.30 – 1.80 W/m²·K | 1.20 – 1.60 W/m²·K | 1.20 – 1.45 W/m²·K |
| Condensation Resistance (CRF) | > 78 (Ultra-Low Risk) | 58 – 65 (Moderate) | 60 – 68 (Moderate) | 70 – 74 (Low) |
| Structural Wind Load (AS 2047) | N6 Rating / > 4500 Pa | N5 – N6 / Up to 4500 Pa | N2 – N3 / 1500 – 2000 Pa | N3 – N4 / 2500 Pa |
| Exterior Maintenance Interval | 25+ Years (Fluorocarbon) | 20+ Years (Powder Coat) | 8 – 12 Years (UV Degradation) | 3 – 5 Years (Repaint / Reseal) |
| Acoustic Insulation (Rw + Ctr) | Rw 42 – 48 dB (with DGU/TGU) | Rw 36 – 40 dB | Rw 32 – 36 dB | Rw 38 – 42 dB |
| Embodied Carbon & Life Expectancy | 45+ Years / Low Net Carbon | 30+ Years / High Embodied CO₂ | 15 – 25 Years / High Plastic Footprint | 30 Years / High Chemical Sealant Use |
Strategic Sourcing & Procurement Trends for Global Façade Buyers
Market intelligence for real estate developers, commercial contractors, and facade consultants navigating 2025–2030 sustainability mandates.
1. Passivhaus & Zero-Carbon Codes
Global regulatory bodies—including the EU Energy Performance of Buildings Directive (EPBD), US Energy Star Version 7.0, and Australia's 7-star NatHERS National Construction Code (NCC)—are eliminating non-composite fenestration from premium specs. Tier-1 developers are abandoning standard vinyl and solid metal frames in favor of factory-certified aluminum clad timber systems with Uw ≤ 0.8 W/m²·K to secure LEED Platinum and BREEAM Outstanding credits.
LEED / BREEAM / NCC 20222. Direct OEM/ODM Customization & BIM
Traditional procurement through multi-tiered domestic distribution adds 35% to 55% in distributor markups and creates disconnected engineering liability. Global B2B buyers now partner directly with certified OEM/ODM manufacturers capable of supplying BIM Level 2 families, automated CNC shop drawings, and tailored structural mullion profiles directly aligned with architectural schedules prior to raw material extrusion.
Direct-from-Factory Accountability3. Supply Chain Resiliency & Crating
Post-pandemic ocean transit economics dictate that container utilization and zero-defect transit packaging are central to commercial margins. Sophisticated exporters provide fumigated A-frame timber crating with shock-watch sensors and customized LCL/FCL consolidation, eliminating corner deformation and salt-air corrosion across 45-day maritime voyages to Sydney, Auckland, Vancouver, Long Beach, and Hamburg.
Marine-Grade Logistics EngineeringTechnological Innovations in Aluminum Clad Fenestration
The convergence of German precision joinery, structural bonding chemistry, and smart building automation.
Aerogel & Warm-Edge Spacers
Replacing traditional aluminum glass spacers with Swiss-engineered composite TPS (Thermoplastic Spacer) and aerogel cavity perimeter insulation, reducing linear thermal bridging (Psi value ψ) down to 0.028 W/m·K.
5-Axis CNC Corner Joinery
Utilizing high-speed German profile machining centers with automated dual-component polyurethane structural bonding and mechanical cold crimping, delivering frame squareness tolerances within ±0.5mm across 3.5m tall sashes.
Concealed German Hardware
Integration of Siegenia and Roto hardware with completely concealed multi-point perimeter locking, integrated anti-lift cams, and magnetic contact reed switches for central Building Management System (BMS) integration.
Active Solar & VIG Glazing
Hybrid assemblies pairing Vacuum Insulated Glass (VIG) with Low-E soft coatings, achieving centre-of-glass Ug ratings of 0.45 W/m²·K in a slim 28mm total glazing unit, fully compatible with electrochromic dynamic tinting.
Global Production Scale, Precision Facilities & Testing Rigor
Operating from Foshan, Guangdong—the world capital of precision fenestration engineering—Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) operates one of Asia's most advanced smart window plants.
Frequently Asked Questions by Commercial Buyers & Importers
Clear, engineering-backed answers addressing compliance, testing, logistics, lead times, and fabrication tolerances.
How do you verify compliance with AS 2047, NFRC, or CE building codes?
Every fenestration series exported by our factory undergoes physical chamber testing by accredited NATA/ILAC third-party laboratories. We supply comprehensive engineering documentation with every commercial order, including certified test reports verifying positive/negative wind pressure deflection, air leakage resistance, water penetration limits, and NFRC-certified U-factor / SHGC thermal simulation schedules required by city certifiers.
How do aluminum clad windows prevent interior wood rotting from condensation?
Our systems incorporate a thermodynamic pressure-equalization cavity between the exterior aluminum cladding and interior wood core. This space contains continuous bottom weep slots and top convective ventilation channels. Any incidental condensation or moisture is channeled into an external drainage groove, while the POM clips isolate the wood from direct metal contact, preventing capillary water transfer.
What timber species are available, and how is the wood treated?
Standard architectural offerings include Siberian Larch, European White Oak, FSC-certified North American Red Oak, and Select Radiata Pine. All timber is multi-laminated and vacuum-impregnated with non-toxic, eco-friendly waterborne biocides and anti-fungal treatments from Sikkens/Remmers Germany. This protects against wood rot, blue stain fungus, and insect damage while maintaining open-pore breathability.
What exterior coatings do you specify for coastal or high-salinity zones?
For installations situated within 1 kilometer of breaking surf or in high-industrial chemical regions, we mandate AkzoNobel Interpon D2525 ultra-durable powder coating or PPG Duranar 70% PVDF fluorocarbon coatings meeting AAMA 2605 and Qualicoat Class 2. All exterior fasteners and hardware linkages are upgraded to AISI 316 marine-grade stainless steel to prevent galvanic corrosion.
What is the standard production lead time and minimum order quantity (MOQ)?
Standard lead times range from 25 to 35 business days following final architectural CAD shop drawing sign-off and color sample approvals. Because we maintain flexible OEM/ODM CNC batch manufacturing, our standard MOQ is 50 square meters for custom residential projects and up to 20,000+ square meters for phased multi-family and commercial developments. Expedited prototype production is available.
How do you protect oversized and heavy units during international sea shipping?
Every window assembly is protected with peel-coat protective film across all profiles, reinforced plastic corner guards, and wrapped in multi-layer heavy-gauge polyethylene. Units are strapped vertically onto fumigated steel-reinforced A-frame timber pallets compliant with ISPM 15 standards. Moisture-absorbing desiccant packs and container desiccants prevent maritime transit moisture build-up.
Can you provide factory-applied glazing with customized Low-E configurations?
Yes. We operate our own automated insulating glass lines equipped with Lisec robotic sealing and Bystronic glass cutting. We offer double (DGU) and triple (TGU) glazing with Saint-Gobain or CSG high-performance solar control Low-E coatings, argon or krypton gas cavity fills, laminated acoustic PVB/SentryGlas interlayers, and ceramic frit silk-screen patterns tailored to your SHGC project targets.
What warranty structures and site support do you offer international developers?
We provide a 10-year comprehensive structural frame warranty, a 10-year insulated glass hermetic seal warranty against internal fogging, and a 5-year hardware performance warranty. In addition to providing detailed bilingual installation manuals and 3D exploded shop drawings, our structural engineers deliver live remote video support to site supervisors during local commercial installation.
Ready to Engineer Your Project's Custom Fenestration Schedule?
Send our senior engineering desk your door and window schedule, architectural elevations, or tender specifications. We provide complimentary CAD detail shop drawings, preliminary structural wind load evaluations, and transparent factory-direct commercial estimates within 24 business hours.
