Do DERCHI entry doors comply with Australian standards?

Our aluminium door systems have been tested to AS 2047, achieving an N6 wind rating together with air infiltration, water penetration and operating-force performance. Test reports and certificates are supplied with your project documentation so your certifier or council can review them.

Can you ship entry doors to New Zealand and the Pacific Islands?

Yes. We export by sea in FCL or LCL containers to major Australian ports such as Sydney, Melbourne, Brisbane, Perth and Adelaide, to Auckland and other New Zealand ports, and to Pacific destinations including Fiji and Papua New Guinea. Every door is protected in export-grade crating.

Which door material is best for coastal homes in Australia and New Zealand?

For salt-laden coastal air we recommend 316 stainless steel doors or aluminium doors with a marine-grade powder-coated or fluorocarbon finish, paired with stainless steel hardware. Our engineers will recommend a finish based on your site's distance from the coast.

Do you make custom-size and oversized pivot doors?

Yes. Sizes, finishes, glazing, handles and locking systems are fully customised, including large pivot doors for villas and commercial lobbies. Our in-house engineering team provides free CAD shop drawings that match your door schedule before production.

What installation support do you provide?

Each order ships with installation drawings and manuals, and our English-speaking engineers provide video guidance and remote support during Australian and New Zealand business hours.

Engineering Architectural Fenestration

OEM/ODM Aluminium Small Windows Manufacturers & Exporter

Precision thermal break profiles, extreme cyclone resistance, and custom fenestration engineering fabricated to AS 2047, CE, and ISO 9001 global building standards.

Engineered Lineup

Factory-Engineered Aluminium Small Window Configurations

Explore our precision-milled compact fenestration portfolio engineered for residential developments, commercial high-rises, and extreme climatic applications worldwide.

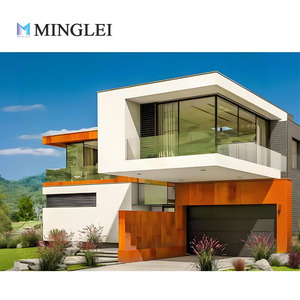

Slim Minimalist MINGLEI Minimal Slim Frame Aluminum Alloy Windows

MINGLEI Minimal Slim Frame Windows

Narrow sightline 6063-T5 framing with integrated polyamide insulation barriers. Designed for modern luxury facades seeking frameless aesthetics.

View Specification

Thermal Break RG50 Heat Insulation Residential Aluminum Casement Windows

RG50 Residential Casement Windows

Cost-effective 50mm system with multi-chamber thermal breaks and triple-seal EPDM gaskets. Tailored for large-scale multi-unit developments.

View Specification

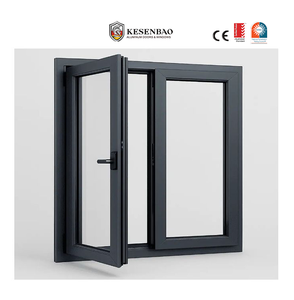

AS 2047 Tested Australian Energy Efficiency Aluminium Awning Casement Windows

Oceania Awning & Casement Systems

Tested to AS 2047 standards for air infiltration and water intrusion. Perfect for coastal kitchens, bathrooms, and sub-tropical high-ventilation zones.

View Specification

Security Multi-Point Aluminum Narrow Frame Double Glazed Casement Window

Double Glazed Anti-Theft Casement

Reinforced narrow frame engineering integrated with multi-point locking mechanisms and low-E laminated acoustic double glazing.

View Specification

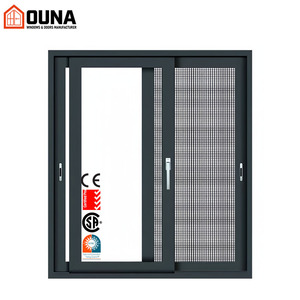

N6 Wind Rating OUNA Hurricane Impact Thermal Break Aluminum Sliding Windows

OUNA Hurricane Impact Sliding Units

Structural wind pressure resistance tested to N6 cyclone standards. Includes drainage tracks, heavy-duty rollers, and anti-lift safety anchors.

View Specification

Acoustic Shield Ultra Slim Thermal Break Aluminum Casement Windows

Ultra Slim Hotel Casement Windows

Commercial-grade slimline extrusion with sound dampening up to Rw 42 dB. Ideal for luxury hospitality suites and boutique compact bedrooms.

View Specification

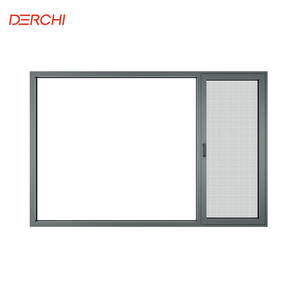

Energy Star DERCHI Modern Slim Frame Aluminum Casement Windows

DERCHI Architectural Slim Casements

Advanced U-value performance down to 1.3 W/m²K using dual Low-E argon-filled IGUs. Premium powder-coated architectural finish.

View Specification

Cabinet & Utility Modern Aluminum Kitchen Bathroom Cabinet Doors

Moisture-Proof Utility Openings

High-precision aluminum base profiles for high-humidity residential utility and service zones. Shipped factory-direct from regional manufacturing hubs.

View Specification

Need Custom Sizing, CAD Shop Drawings, or Project Schedules?

Our dedicated bilingual structural engineers review opening parameters and provide comprehensive CAD/BIM shop drawings within 24 hours.

Technical White Paper

Structural Integrity, Thermal Physics, and Engineering Criteria

Understanding why precision architectural small windows require rigorous manufacturing controls, finite element analysis (FEA), and strict metallurgical certifications.

Thermal Barrier Thermodynamics

Compact window units experience intensified edge thermal bridging. We mitigate envelope heat loss using multi-cavity PA66-GF25 continuous glass fiber polyamide barrier strips, lowering system thermal transmittance (Uf) below 1.5 W/m²K.

Dynamic Water & Air Sealing

High wind pressures test perimeter seals exponentially on small casement and awning sashes. Our assemblies utilize three-tier co-extruded vulcanized EPDM gaskets engineered for compression recovery under cyclic hydrostatic loads up to 1000 Pa.

Metallurgical Alloy Integrity

Small frame geometry demands supreme tensile yield strength to avoid sash warping. We solely cast 6063-T5/T6 architectural aluminum billets with controlled magnesium-silicon ratios, achieving minimum tensile strengths exceeding 205 MPa.

Micron-Tolerance CNC Machining

Operating tolerances of +/- 0.2mm on automatic four-axis CNC centers guarantee mechanical corner cleat alignment and seamless pneumatic crimping, delivering airtight joint retention under seismic and cyclic wind stresses.

Performance Characteristic	Test Methodology / Standard	OEM Custom Specification	Export Quality Compliance
Structural Wind Load Resistance	AS 2047 / ASTM E330 / EN 12210	Class N6 (≥ 4500 Pa Deflection / 6750 Pa Ultimate)	Exceeds Cyclonic Tier
Thermal Transmittance (Uw)	ISO 10077-2 / NFRC 100	1.1 – 1.6 W/m²K (Triple / Double Glazed Warm-Edge)	Passive House Capable
Water Infiltration Resistance	AS 2047 / ASTM E547 / EN 12208	Static 700 Pa – Dynamic 1000 Pa Watertight Head	Zero Infiltration
Acoustic Isolation (Rw / STC)	ISO 10140 / ASTM E90	Rw 36 dB – 44 dB with Acoustic PVB Lamination	Highway / Urban Rated
Surface Protection Longevity	AAMA 2604 / AAMA 2605 / Qualicoat Class II	Fluorocarbon PVDF or Qualicoat Marine Grade ≥ 65μm	Coastal 25-Year Life

Strategic Sourcing

Future Procurement & Sourcing Trends for Aluminium Small Windows

Shifts across international building codes, sustainability mandates, and logistical constraints driving developer specifications through 2030.

Zero-Carbon Aluminium & Circularity

Developers increasingly mandate Environmental Product Declarations (EPDs). Future procurement prioritizes secondary recycled billet streams and hydro-powered smelting that reduce embedded carbon below 4.0 kg CO2e per kg of primary aluminum profile.

Prefabrication & Sub-Frame Integration

To cut on-site trade labor costs, major commercial builders in North America and Australasia are moving toward factory-assembled sub-frames with pre-installed perimeter expanding flashing membranes, shortening on-site install durations by 40%.

Smart Automation & Micro-Ventilation

Compact high-level clerestory and awning windows are rapidly shifting to integrated concealed brushless DC actuators linked via BACnet or Zigbee to Smart Building Management Systems (BMS) for nightly automated purge cycles and indoor IAQ regulation.

Coastal Marine Fluorocarbon Demands

Driven by intensive shoreline multi-residential development, procurement demands have upgraded from standard polyester powder coats to 3-coat Kynar 500 / Hylar 5000 fluorocarbon systems that resist continuous 4,000-hour salt spray exposure.

Manufacturing Infrastructure

Guangdong Dejiyoupin (DERCHI) Factory Strengths

Ranked among China's Top 10 fenestration and door brands, our fully integrated Foshan production base provides unmatched capacity, rigorous compliance, and direct factory accountability.

180,000m²

Integrated Manufacturing Base

25+

Years Fenestration Engineering

600+

Skilled Specialists & Engineers

100+

International Patents & Certs

Full-Cycle Architectural Customization

We provide 100% architectural custom tailoring from initial concept CAD shop drawings and die extrusion prototyping to hardware integration and glass matching—all managed strictly in-house to maintain design intent.

Oceania & Global Standard Certifications

Our fenestration and door assemblies are fully certified to Australian AS 2047 (achieving N6 ratings), CE standards, ISO 9001 quality frameworks, and UL fire-rated specifications, accompanied by complete accredited test documentation.

Direct Ocean Freight & Engineering Support

Operating direct containerized FCL/LCL shipping to major seaports across Sydney, Melbourne, Auckland, North America, and Europe. Supported by English-speaking structural facade engineers operating in your local time zone.

DERCHI 180,000 square meter intelligent manufacturing base in Foshan

DERCHI international quality certifications, patents, and test reports

Procurement Clarity

Frequently Asked Questions for OEM/ODM Small Window Importers

Key technical, compliance, and logistical clarifications for architectural specifiers, general contractors, and trade procurement directors.

What minimum thermal performance (U-values) can be achieved in compact frames?

Small windows possess a high ratio of frame to glass area, making profile thermal conductivity decisive. By utilizing multi-chamber polyamide thermal break bridges (24mm to 34mm) coupled with triple-pane Low-E insulated glass units (IGUs) filled with 90% Argon gas and warm-edge spacer bars, we achieve complete window U-values (Uw) ranging between 1.1 and 1.5 W/m²K, easily surpassing strict North American IECC and Australian NCC thermal envelope standards.

How do you verify compliance with AS 2047 and local building codes?

Every window series destined for the Australian, New Zealand, or North American markets undergoes testing at NATA-accredited or recognized international laboratories. We supply comprehensive formal test reports covering structural deflection (AS 4420.2), operating force (AS 4420.3), air infiltration (AS 4420.4), water penetration resistance (AS 4420.5), and ultimate strength (AS 4420.6) reaching cyclonic N6 pressure thresholds (>4500 Pa).

What are the minimum order quantities (MOQ) and production lead times for OEM/ODM orders?

For standard extrusion profiles in factory stock RAL colors, our minimum order quantity starts as low as 20 m² or small sample batches for mock-up validation. Bespoke architectural dies and custom color finishes typically require an initial run of 50 m². Standard production lead times run between 25 and 35 days post-CAD drawing approval, with containerized sea freight managed via full container load (FCL) or consolidated less-than-container load (LCL).

How are small windows packaged to prevent deflection and glass rupture in transit?

Our export crating exceeds standard ocean transport requirements. Windows receive protective PE electrostatic film across all aluminum profiles, rigid corner guards, and bubble-wrap buffering. Units are then secured in fully enclosed, fumigated, heat-treated plywood crates engineered with internal cushioning blocks and steel band strapping. Each crate contains desiccants to prevent condensation damage during transit across varying climatic zones.

Which surface finishes offer maximum longevity for harsh coastal environments?

For projects located within 1,000 meters of open ocean or in industrial chemical zones, we specify 2-coat or 3-coat fluorocarbon PVDF finishes (conforming to AAMA 2605) or Qualicoat Seaside-class certified powder coatings with pre-anodized chemical pre-treatment. These coatings withstand over 4,000 hours of continuous acetic acid salt spray (AASS) testing without blistering, chalking, or color fading.

Do you provide engineering shop drawings and BIM coordination before fabrication?

Yes. Our bilingual engineering office produces exhaustive AutoCAD shop drawings detailing sill pans, perimeter head flashings, anchor bracket intervals, dynamic loads, and mullion structural moments. We also furnish 3D Revit/BIM models to facilitate clash detection and smooth digital coordination between general contractors, facade consultants, and structural engineers.

Request a Technical Consultation or Direct Factory Quotation

Submit your opening schedules, architectural specifications, or project drawings to receive a transparent manufacturer quotation within 24 hours.
