Engineered Architectural Systems & OEM Product Lines
Explore our precision-fabricated door and window systems, engineered to satisfy high-wind loads, stringent U-factor benchmarks, and bespoke commercial aesthetic parameters.
Direct-From-Factory Advantage: The DERCHI Engineering Edge
Operating as Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI), our facility eliminates intermediary markups and communication gaps, delivering certified OEM/ODM architectural solutions worldwide.
AS 2047 & NFRC Certified Systems
Our fenestration assemblies undergo exhaustive physical chamber testing. From N6 ultimate wind pressure validation (over 4500 Pa) down to air infiltration and cyclical water penetration tests up to 700 Pa, each profile configuration matches strict international building codes across Australasia, North America, and Europe.
- Achieved N6 rating for high-velocity cyclone regions
- Full acoustic attenuation testing up to STC 45 dB
- Certified water resistance barriers and sub-sill drainage
Free CAD, Revit & Shop Drawing Engineering
OEM procurement fails when structural coordination is left to guesswork. Our dedicated technical office provides parametric BIM objects, shop drawings, and wind-load deflection calculations directly to developer and architect teams, confirming anchoring, expansion gaps, and interface details prior to production.
- Complimentary structural shop drawing service
- 3D Revit and IFC building information files
- Detailed perimeter flashing and thermal break analysis
Marine-Grade Surface Treatments
Fenestration profiles installed in coastal environments require exceptional corrosion resilience. DERCHI integrates automated vertical fluorocarbon (PVDF) and AkzoNobel powder coating plants that satisfy AAMA 2605 specifications, guaranteeing resistance to salt spray, pitting, and UV degradation for decades.
- AAMA 2605 certified fluorocarbon finishes
- 316-grade stainless hardware for extreme saline exposure
- Minimum 3000-hour neutral salt spray test verification
Engineering Specifications Matrix: Architectural Fenestration
Direct comparative breakdown of our core custom aluminum profiles, thermal barriers, and glazing structures for global commercial and luxury residential tenders.
| System Class | Structural Alloy | Thermal Break Tech | Glazing Configurations | Acoustic & U-Factor Specs |
|---|---|---|---|---|
| Heavy-Duty Pivot Systems | 6063-T6 Architectural (2.5mm - 3.0mm wall) | Polyamide PA66 GF25 Isobaric Bar | Double/Triple Tempered Low-E + Argon (Up to 42mm IGU) | U ≤ 1.4 W/m²K · STC 42 dB |
| Soundproof Honeycomb Panels | Solid Cast & Aviation Alum-Alloy Plate | High-density Aluminum Micro-Cell Honeycomb | Composite Structural Aluminum Core Plate | Solid Barrier · STC 46 dB |

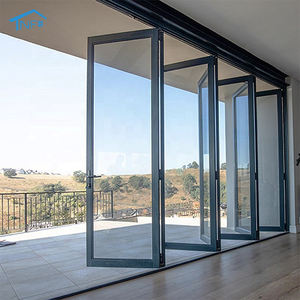

| Exterior Minimalist Sliding/Bifold | 6060-T6 High Tensile (2.0mm - 2.5mm wall) | Multi-Chamber Technoform Insulating Strips | 6mm+12Ar+6mm Warm-Edge Spacer Triple Low-E | U ≤ 1.2 W/m²K · STC 39 dB |
| Cyclonic Casement Series | 6063-T5 Structural (1.8mm - 2.2mm wall) | Multi-cavity PA66 Thermal Insulator | Laminated SGP Impact Glass (8mm + 1.52SGP + 8mm) | Design Load 5000 Pa · AS 2047 N6 |
Macro Procurement Trends & Next-Gen Technological Innovations
A critical evaluation of how changing building energy codes, automated manufacturing, and smart home ecosystems are altering commercial OEM fenestration sourcing.
Decarbonization & Low-Carbon Aluminum Sourcing
Global procurement teams are shifting focus from simple initial purchase cost to complete lifecycle emissions. Modern project schedules mandate documented embodied carbon calculations. Our foundry lines are scaling the adoption of hydro-powered, green-smelted primary billets, ensuring OEM extrusions comply with upcoming EU Carbon Border Adjustment Mechanism (CBAM) regulations and LEED v4.1 certification requirements without compromising tensile performance.
Oversized Pivot Formats & Concealed Hardware
The global luxury sector is moving toward monumental openings—doors exceeding 4 meters in height and 2 meters in width. Managing these wind-load and dead-load challenges demands floor-concealed hydraulic pivots with programmable damping, integrated magnetic drop-down seal mechanisms for airtight threshold transitions, and carbon-fiber reinforced core chambers that eliminate sag across long-term thermal cycling.
Dynamic Electrochromic & Smart Glazing
Fixed Low-E glass is giving way to dynamic glazing systems directly integrated into custom OEM doors. By applying low-voltage conductive metal oxide coatings, glass tint levels adjust automatically via BMS sensors or IoT controllers. This active solar heat gain coefficient (SHGC) modulation slashes HVAC peak cooling loads by up to 28% in tropical and high-insolation climates while maintaining daylight autonomy.
OEM Aluminum & Glass Doors Sourcing Guidelines
In-depth technical answers addressing structural certification, project workflows, freight mitigation, and precision customization.
How does the factory verify structural compliance with local wind-load codes like AS 2047 or ASTM E330?
What is the standard manufacturing lead time for fully bespoke door schedules and shop drawings?
How does your export packaging prevent glass deflection and finish damage during long sea transit?
Can the factory incorporate third-party hardware, smart locks, and access control integrations?
What warranty terms and quality validation records are supplied to developers and specifiers?
Launch Your Custom OEM Project with Factory Direct Engineering
Connect directly with our senior fenestration engineers in Foshan. Submit your project door schedule, BIM elevations, or custom architectural parameters for detailed CAD drafting and transparent factory quotations.
