Acoustic Rated
Honeycomb Core
Rw 38dB
Extruded 6063-T5
High-Performance Portfolio
Featured Architectural Aluminium Grill Doors & Heavy-Duty Systems
Examine our certified product lineup precision-extruded from primary 6063-T5/T6 billet alloy, complete with stainless security meshes, acoustic honeycomb fills, multi-point locking, and thermal performance engineered to pass rigorous international building codes.
Acoustic Rated
Heavy Commercial
Storefront Mall
Reinforced Rail
Heavy Duty
Aluminum Sliding Window Commercial Shop Front Storefront Building Entrance Mall Showroom
Minimalist Bar
16mm Slim Stile
Metal Bar Grill
Patio Systems
Aluminum Profile Sliding Door Slim Extruded Frameless Patio Guangdong Vertical Metal Bar Glass Alloy Custom Frame Manufacturer
Cyclone Impact
N6 Wind Rating
Low-E Glazing
Folding System
Hurricane Proof Aluminum Exterior Door Balcony Patio Lowe Glass Aluminum Bifold Folding Door
Anti-Theft Class 4
Security Entry
Multi-Lock Pin
Outdoor Alloy
Modern Minimalist Anti-Theft Aluminum Alloy Door Security Entry Side Opening Sliding For Commercial Outdoor Garden For Apartment
NFRC Certified
Colonial Grill
French Casement
Double Glazed
NFRC Standard Luxury Double Tempered Glazing Aluminum French Casement Windows for Grill Design
Thermal Break
Ultra-Narrow
Double Glass
Villa Grade

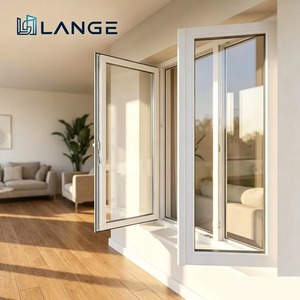

LANGE Modern Minimalist Aluminum Alloy Doors And Windows Ultra-narrow Aluminum Alloy Window Double Glass Window For House
Integrated Screen
304 SS Screen
NFRC Thermal
Architectural
NFRC Custom Double Glazed Aluminum Casement windows With Screens For Villa House Project
Engineering & Metallurgy
Structural Integrity, Profile Geometry & Security Grill Metallurgy
Why international general contractors, structural engineers, and facade consultants are phasing out mild steel and hollow timber in favor of high-yield architectural aluminium alloy grill assemblies.
Alloy Chemistry & Tensile Yield
Our grill systems utilize virgin 6063-T5 and structural 6063-T6 architectural billets. Unlike recycled ingot scraps containing excessive iron contaminants that induce galvanic pitting, our primary extrusions achieve an ultimate tensile strength exceeding 215 MPa and yield strength exceeding 170 MPa.
- Extrusion wall thickness: 2.0mm to 3.5mm critical stiles
- Brinell Hardness (HB): ≥ 75 for maximum anti-pry rigidity
- Polyamide PA66GF25 thermal insulation barrier insertion
Grill Geometry & Security Infills
The architectural security grill is no longer a superficial decorative add-on. We embed interlocking solid structural bars, high-tensile 304/316 marine-grade stainless wire screens (0.8mm-1.0mm diameter wire with 11x11 mesh weave), or precision CNC-milled cast aluminum relief plates directly into deep profile channels.
- Knife-shear tested to AS 5039 / AS 5041 standards
- Anti-jimmy flange interlocks along active jambs
- Concealed stainless steel fixings prevent external tampering
Surface Passivation & Coastal Finishes
For installations in extreme littoral zones (Australia Gold Coast, Pacific Islands, Mediterranean coastlines, and Florida Keys), standard finishes disintegrate. We apply Qualicoat Class 2 / AAMA 2605 certified fluorocarbon PVDF finishes or 25-micron hard-anodized passivations resisting 3,000+ hours of continuous neutral salt spray.
- Zero chalking or fading under extreme UV radiation
- AkzoNobel Interpon D2525 ultra-durable powders
- C5-M marine atmospheric corrosion protection class
Engineering White Paper Insight: In heavy cyclonic and storm-prone territories, entry grill doors undergo severe cyclical pressure differentials. DERCHI's proprietary corner-crimping methodology utilizes hydraulic corner-cleats injected with two-part polyurethane structural adhesive (epoxy cold-welding), delivering torsional rigidity 3.8 times higher than conventional screwed mechanically-joined miter frames.
Material Performance Matrix
Comprehensive Benchmarking: Aluminium Grill Doors vs. Alternative Materials
An empirical comparative assessment for commercial developers, specifiers, and procurement directors evaluating lifecycle costs, structural deflection, corrosion rates, and testing certifications.
| Evaluation Parameter | DERCHI Engineered 6063-T6 Aluminium Grill | Traditional Wrought Iron / Mild Steel | uPVC / Vinyl Security Composite | Solid Timber with External Steel Grille |
|---|---|---|---|---|
| Structural Strength-to-Weight | Superior (High strength / Low dead load) | High strength, excessive mass (>120kg/m²) | Low rigidity; prone to creep and sagging | Moderate; subject to seasonal moisture deflection |
| Corrosion in Coastal Zones (ISO 9223) | Class C5-M (Zero oxidation with PVDF) | Severe red rust; blistering paint; high maintenance | Resistant, but suffers chalking & embrittlement | Rot, fungal decay, termite intrusion risk |
| Wind Pressure & Cyclone Resistance | AS 2047 N6 (Pass > 4500 Pa) | High strength, but water leakage at joints | Fails cyclical pressure in Category 4+ storms | Variable; structural failure at glue lamination |
| Thermal Break Efficiency (U-factor) | Uw 1.4 - 1.8 W/m²K (PA66GF25 Strip) | Thermal bridge disaster (Uw > 5.8 W/m²K) | Good insulation (Uw 1.6 - 2.0 W/m²K) | Good natural insulator, seals degrade rapidly |
| Security & Intrusion Defense | RC3 / RC4 Multi-Point Shootbolt | High brute force, vulnerable at hinge pins | Easily breached with thermal/cutting tools | Vulnerable around lock mortise pocket |
| Maintenance Lifecycle Cost (30 Years) | Near Zero (Periodic fresh water rinse) | Very High (Frequent wire brushing & repainting) | Replacement required at year 12-15 | High (Re-staining, oiling, warping adjustment) |
Market Intelligence & Forecasts
Future Procurement & Manufacturing Trends in Aluminium Grill Doors (2025–2030)
How macroeconomic shifts, building envelope decarbonization, smart building automation, and supply chain consolidation are reshaping global door purchasing decisions.
1. Convergence of Architectural Minimalism with Security Grills
Historic architectural paradigms forced architects to choose between unobstructed panoramic sightlines and fortress-like security. The prevailing trend across Australasia, North America, and high-end Southeast Asian developments is the "Invisible Security" paradigm.
By recessing 0.9mm 316-marine mesh into ultra-narrow vertical stiles (under 18mm face visual width) and integrating internal structural mullions, door assemblies deliver both uncompromised clear glass aesthetics and absolute intrusion resistance against sledgehammer, crowbar, and ballistic attacks.
2. Mechatronic Hardware & Biometric Building Management Integration
Manual lever mortises are being superseded by automated multipoint lock integration directly tied to Crestron, Control4, or KNX building automation protocols. DERCHI's direct factory engineering integrates motor-driven multi-locking bolts concealed in the extruded door frame cavity.
Doors open via 3D facial recognition, encrypted RFID, smartphone NFC, and hidden fingerprint scanners positioned seamlessly on bespoke pull bars, featuring battery backup mechanisms capable of sustaining 5,000 continuous lock cycles during electrical power grid disruption.
3. Decarbonization & Low-Carbon Recycled Extrusions
With major real estate institutional investors adhering to LEED Platinum, BREEAM, and Green Star benchmarks, door procurement mandates complete transparency in embodied carbon. Sourcing strategies focus on factories powered by hydro/solar energy utilizing circular scrap recycling.
DERCHI provides verifiable Environmental Product Declarations (EPD), certifying cradle-to-gate carbon emissions below 4.0 kg CO2e per kg of finished fabricated aluminum frame, while maximizing operational thermal isolation via double/triple argon-gas insulated glass units.
4. Direct-from-Source OEM/ODM Modular Project Bundling
Developers are eliminating intermediate distributors and local broker markups (which traditionally inflate product pricing by 45%–70%). Forward-thinking procurement teams contract directly with end-to-end mega-factories capable of delivering unified architectural schedules.
DERCHI fulfills comprehensive architectural schedules under one roof: luxury pivot entry doors, heavy-duty sliding grill doors, high-acoustic honeycomb doors, and fire-rated casement systems—all calibrated to uniform anodizing/coating finishes and crated for sequential installation floor-by-floor.
Factory Authority & Production Scale
Guangdong Dejiyoupin (DERCHI) Industrial Strength
Ranked among China's Top 10 High-End Door & Window Brands, DERCHI operates one of the nation's premier intelligent production ecosystems in Foshan, Guangdong.
Precision CNC Fabrication & Total In-House Quality Control
Spanning over 180,000 square meters of state-of-the-art production base and driven by a specialized workforce of over 600 skilled technicians and engineers, DERCHI controls every stage of door manufacturing. From raw aluminum billet testing, 5-axis CNC extrusion milling, dual-component corner crimping, and automated powder coating to micro-gap EPDM seal insertion, our lines operate within exacting tolerance margins of ±0.3mm.
Having supplied world-class residential and commercial developments across Australia, New Zealand, North America, and the Pacific Islands for over 25 years, our door systems possess full compliance with the Australian AS 2047 standard (achieving extreme N6 cyclonic wind testing), ISO 9001 quality management, CE European safety norms, and UL fire ratings.
AS 2047 Certified
N6 Wind Rating & Water Seal
ISO 9001:2015
Zero-Defect Quality Assurance
AAMA 2605 / Qualicoat
C5-M Ultra Marine Coating
NFRC / CE Marked
Thermal & Acoustic Laboratory Verified
Procurement Intelligence
B2B Sourcing FAQ: Aluminium Grill Doors from China
Direct, transparent answers addressing technical standards, logistics, warranty compliance, and on-site assembly for overseas general contractors, distributors, and developers.
How does DERCHI verify AS 2047 and local wind-load compliance for overseas projects?
Our door and grill assemblies are subjected to physical testing in accredited NATA-equivalent laboratories. Testing cycles evaluate positive and negative structural wind pressures (up to N6 cyclonic rating >4500 Pa), water penetration resistance under dynamic pressure (exceeding 450 Pa), and air infiltration rates compliant with AS 2047, AS 1170, and ASTM E330. Full laboratory test reports and formal certificates are released alongside detailed shop drawing submittals for local certifier sign-off.
What is the standard manufacturing tolerance and QA procedure for custom-sized orders?
We adhere to EN 12020-2 precision extrusion tolerances and fabrication diagonals within ±1.0mm. Prior to batch shipping, every single unit undergoes 100% pre-assembly in our Foshan facility. Our QC team verifies squareness, smooth roller glide, multi-point locking throw engagement, weatherstrip compression, and surface film thickness. Pre-dispatch photographic and video inspection records are uploaded directly to the client's procurement portal for inspection approval.
How are heavy aluminium grill doors packaged to prevent damage during ocean transit?
Fragile surfaces are protected by a three-layer defense system: (1) low-tack protective PE film covering 100% of the visible aluminum frame and glass; (2) shock-absorbing high-density polyethylene foam edge corner bumpers; (3) fully enclosed, fumigation-free solid plywood export crates reinforced with internal steel strapping. Crates are equipped with desiccant packs to neutralize marine condensation (container rain) during multi-week ocean transit across equatorial routes.
Can you provide customized BIM models and CAD shop drawings before contract signing?
Yes. Our dedicated in-house facade engineering department consists of 30+ senior draughtsmen and structural consultants. Once you provide the window and door schedule or rough architectural CAD plans, we deliver shop drawings within 48 to 72 hours. These drawings explicitly map out frame depth, anchoring bracket spacing, sub-sill flashing integration, glazing pocket clearances, grill bar cross-sections, and wall interface details ready for integration into your Master Revit model.
What surface treatment is best for beachfront properties situated within 500 meters of the ocean?
Standard polyester powder coatings undergo filiform corrosion and blistering within 24 to 36 months in salt-spray zones. For marine environments, we exclusively recommend PVDF fluoropolymer 3-coat systems (70% Kynar 500 resin) or 25-micron architectural hard anodizing. Combined with 316-grade austenitic stainless steel security mesh and A4-grade stainless fasteners, this specification guarantees 25+ years of service life without structural oxidation or coating breakdown.
What is the standard production lead time and minimum order quantity (MOQ) for custom projects?
Because we operate scalable extrusion and CNC lines over 180,000 square meters, our typical production lead time ranges from 25 to 35 calendar days following shop drawing and color sample sign-off. We accommodate both boutique luxury projects (single custom villa door packages) and multi-container commercial hotel or residential development orders with zero MOQ constraints on standard architectural profile systems.
Partner with China's Premier Door Engineering Factory
Whether you require custom hurricane-rated bifold grill doors, ultra-slim sliding patio systems, or heavy commercial entrance portals, DERCHI delivers factory-direct pricing, guaranteed engineering compliance, and complete project accountability from concept to jobsite container delivery.
