High-Performance Architectural Openable & Operable Door Systems
Engineered for luxury residential villas, high-exposure coastal developments, and commercial architectural envelopes. All units fabricated utilizing high-tensile 6063-T5/T6 structural aluminium extrusions with multidirectional thermal barrier technics.

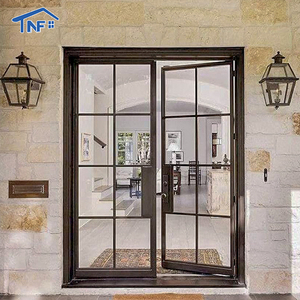

Modern Thermal Insulation Villa Casement Glass Door (French Style SDL)
- Profile Depth: 75mm Thermal Break
- Thermal Bridge: PA66GF25 24mm
- Glazing Spec: 5mm+12A+5mm Low-E
- Acoustic Rating: Rw ≥ 38 dB

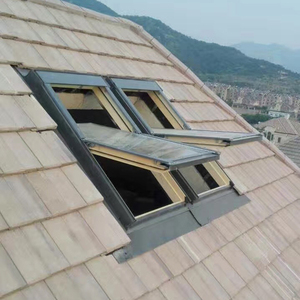

Electric Operable Aluminium Skylight Roof Windows with Integrated Blinds
- Motorization: 24V DC Linear Actuator
- Water Penetration: 600 Pa Tightness
- Automation: Rain/Wind Sensor Bus
- Glazing Spec: 6mm+16A+6mm Lam.

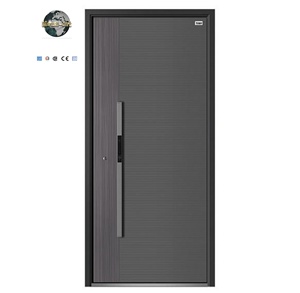

Minimalist Anti-Theft Aluminium Alloy Commercial & Apartment Entry Door
- Alloy Grade: 6063-T6 Structural
- Wall Thickness: 2.5mm Heavy Duty
- Locking Standard: Multi-Point Anti-Intrusion
- Finish: Fluorocarbon PVDF
Precision Architectural Safety Multi-Point Lock & Flush Handle Assemblies
- Material: 304/316 Stainless Steel
- Cycle Testing: 200,000 Action Cycles
- Salt Spray Test: ASTM B117 ≥ 1,000 hrs
- Compatibility: Narrow Stile Formats
Solid Aluminium Soundproof Door with High-Strength Honeycomb Core
- Core Geometry: Aviation Aluminium Comb
- Sheet Thickness: 3.0mm Cast/Extruded Plate
- Sound Isolation: Rw 42 dB Lab Certified
- Weathering Seal: Dual Co-extruded EPDM
Ultra-Narrow Frame Double Glazed Swing Balcony & Casement Operable Unit
- Visible Sightline: 18mm Minimalist Stile
- Wind Load Design: AS 2047 N6 Approved
- Glazing Fill: Argon 90% Warm Edge
- U-Factor: 1.4 W/m²·K
Heavy-Duty Glazed Lift-and-Slide Patio Door for Expansive Openings
- Sash Capacity: Up to 450 kg Per Leaf
- Track Config: Zero-Barrier Flush Sill
- Waterproofing: Sub-sill Drainage Weir
- Roller System: German Tandem Bogies
Commercial Structural Double-Glazed Hurricane & Windproof Swing Door
- Ultimate Wind: > 4,500 Pa (N6 Cyclonic)
- Air Infiltration: < 0.1 L/s·m²
- Security Mesh: 0.8mm Marine 316 Mesh
- Application: Coastal High-Rise / Villas
Guangdong Dejiyoupin (DERCHI): Foshan's Benchmark in Architectural Fenestration
Recognized consistently within the top 10 premium architectural door and window enterprises in China, Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) operates as an elite tier-1 fabrication conglomerate headquartered in Nanhai District, Foshan. For over 25 years, our engineering divisions have mastered the metallurgy, thermal physics, and structural kinematics required to produce world-class operable fenestration systems.
Operating within an expansive 180,000 square meter intelligent manufacturing mega-base, our facility integrates high-precision German 5-axis CNC machining, automated robotic powder coating lines, and an in-house destructive wind/water testing laboratory. DERCHI offers commercial contractors, developers, and architectural specifiers total end-to-end sovereignty—from alloy billet extrusion to shop-drawing signoff and direct export logistics.
Technological Evolutions Shaping Aluminium Openable Doors
The convergence of Passivhaus thermal envelope targets, extreme weather events driven by climate turbulence, and architectural demands for micro-sightlines is forcing radical transformations in aluminium fenestration engineering.
Aerogel & Continuous Polyamide Thermal Barriers
Traditional single-strut thermal barriers are being replaced by multi-chambered PA66GF25 (polyamide reinforced with 25% glass fiber) profiles incorporating silica aerogel insulating cores. This design curtails conductive thermal bridging, driving whole-door assembly U-values down to ≤ 0.95 W/(m²·K), compliant with European Passivhaus and ultra-low energy building mandates.
Severe-Weather & Cyclonic N6 Engineering
Coastal and tropical high-rise installations demand unprecedented structural resistance. Advanced corner-crimping utilizing dual pneumatic structural adhesive injection (Henkel/Chemlok polymers) paired with reinforced stainless steel deadbolts enables DERCHI swing and casement assemblies to comfortably surpass 4,500 Pa positive/negative wind pressures (AS 2047 N6 rating) without permanent frame deflection.
Concealed Hardware & Micro-Stile Aesthetics
Architects are driving interlock and perimeter frame visibility down to the microscopic limit. Emerging designs employ fully concealed 180-degree heavy-duty hinges (supporting leaf weights in excess of 200 kg) alongside flush floor track integration featuring hidden sub-floor perimeter drainage cascading through stainless steel siphon channels.
Global Sourcing Trends & Supply Chain Modernization
How international general contractors, facade engineers, and institutional importers are restructuring their supply chain strategies to de-risk delivery times, lower landed costs, and enforce strict ESG accountability.
Direct-from-Fabricator Integration
Bypassing intermediary trading houses to collaborate directly with OEM/ODM powerhouses like DERCHI in Foshan, capturing 28% to 42% cost efficiencies while ensuring shop drawing authoring is handled directly by factory CAD/BIM engineers.
Low-Carbon Circular Aluminium
Mandatory adoption of certified low-carbon aluminium billets smelted using renewable hydro-power, supported by ISO 14025 Environmental Product Declarations (EPD) to satisfy LEED v4.1 and BREEAM green building point thresholds.
BIM-to-Robotic Fabrication
Complete digitization of fenestration schedules. Architectural Revit/IFC models are imported directly into DERCHI's ERP, driving automated CNC corner-crimping, hardware recess routing, and automated glass bonding.
Digital Pre-Assembly Inspections
Replacing physical overseas factory visits with ultra-high-definition 360° VR verification and live cloud video sign-offs, validating squareness tolerances (±0.5mm) and sealing continuity prior to containerized sea-crating.
| Evaluation Parameter | DERCHI (Foshan Direct Precision) | Western European Tier-1 Fabricators | Generic Chinese Trading Resellers |
|---|---|---|---|
| Alloy Purity & Temper | ✓ Primary 6063-T5/T6 Billet (0.45-0.9% Mg-Si) | ✓ Primary EN AW-6060 / 6063 | ⚠ Blended scrap secondary melts; inconsistent temper |
| Thermal Infill Formulation | ✓ Technoform PA66GF25 Extruded Strips | ✓ Certified PA66GF25 Insulators | ⚠ Degraded PVC / Recycled nylon (fails after 3 winters) |
| Compliance Certification | ✓ Full AS 2047 (N6), CE, ISO9001, UL Reports | ✓ EN 14351-1, CE, Passivhaus | ⚠ Bogus unverified laboratory certificates or expired marks |
| Average Lead Time (Custom Villa) | 20 - 28 Production Calendar Days | 12 - 20 Weeks Average Lead Time | Variable / Unpredictable (35 to 70+ days) |
| Cost Index per M² Glazed | Benchmark Competitive Index (1.0x Base) | Premium High Index (2.4x - 3.2x) | Unstable Volatile (0.75x - 0.95x with hidden QA risks) |
| Custom CAD & Engineering Support | ✓ In-House Engineering (AEST/NZST Timezone) | ✓ Comprehensive Local Support | ✗ No engineering staff; sales broker intermediaries only |
Engineering Anatomy of Premium Openable Door Assemblies
Why profile wall gauge, corner joint mechanical crimping, and EPDM vulcanization formulate the technical foundation of commercial-grade architectural longevity.
Microstructure & Extrusion Tolerance
The structural integrity of an aluminium door subjected to relentless cyclical deflection begins at the atomic crystalline level of the extrusion billet. DERCHI specifies exclusively primary 6063-T5 and structural 6063-T6 aluminium alloy, verified through optical emission spectrometry to guarantee magnesium (0.45-0.90%) and silicon (0.20-0.60%) elemental balances.
Unlike standard window extrusions with thin 1.2mm profiles, our openable door collections mandate a minimum structural wall thickness ranging between 2.0mm and 3.0mm across primary load-bearing jambs, transoms, and sash stiles. This guarantees dimensional stabilization under severe torsional forces, eliminating sash sagging and preserving perimeter gasket compression across decades of high-frequency operation.
Surface Passivation & Marine-Grade Finishes
Oceanic, tropical, and severe urban environments subject exterior coatings to aggressive atmospheric chloride ions and relentless ultraviolet degradation. Standard architectural coatings inevitably suffer from filiform corrosion, chalking, and delamination within 36 to 48 months of seaside exposure.
DERCHI integrates a multi-stage chemical pretreatment line (chromate-free zirconium conversion coating) followed by automated electrostatic deposition of AkzoNobel or PPG 70% Kynar 500 PVDF (Fluorocarbon) coatings, or certified Qualicoat Class 2 superdurable powder formulations. Our systems exceed 3,000 hours in accelerated neutral salt spray testing (ASTM B117) without film blistering, ensuring architectural finish warranties spanning up to 25 years.
Frequently Asked Questions for Importers, Architects & Builders
Clear, uncompromised answers regarding certification, logistical crating, hardware customisation, and warranty structures when procuring direct from our Foshan manufacturing base.
Our door and window systems have undergone rigorous physical destructive testing in NATA-accredited test facilities, successfully certifying compliance with AS 2047, including ultimate structural deflection (N6 rating exceeding 4,500 Pa), AS 1288 safety glazing specifications, operational force limits, air infiltration rates, and water tightness pressures up to 600 Pa. Complete laboratory test certificates, engineering calculations, and Form 15 compliance documentation are issued with every order for swift council certifier approvals.
Standard manufacturing duration is 20 to 28 calendar days from the official sign-off of final CAD shop drawings. Maritime transit from Foshan / Shenzhen / Guangzhou ports is typically 12 to 16 days to major Australian ports (Sydney, Melbourne, Brisbane), 18 to 22 days to Auckland/Lyttelton in New Zealand, and 16 to 22 days to the US West Coast (Long Beach, Oakland). We manage full FCL container consolidations or ISPM-15 compliant crated LCL shipments directly to your project jobsite or regional depot.
Yes. DERCHI maintains direct OEM procurement integration with top European hardware masters including Siegenia, Hoppe, GU, Roto, and Savio, alongside DERCHI's proprietary heavy-duty multi-point stainless steel hardware systems. We seamlessly integrate concealed automatic electromechanical drives, biometric fingerprint recognition handles, card-access escutcheons, and automated building management systems (KNX / RS485 / Zigbee protocols).
Every shipment follows our multi-tier industrial export packing standard: extruded profiles are enveloped in scratch-resistant peelable PE film, edges are armored with reinforced corner caps, complete leaves are wrapped in high-density EPE shock-absorbent foam, and entire assemblies are hermetically packed into custom fumigated plywood crates (certified to ISPM-15 standards) equipped with integrated fork-lift runners, desiccant pouches, and tip-and-tilt shock indicators.
Yes. Our dedicated in-house technical engineering team prepares comprehensive architectural shop drawings at zero charge based upon your architectural schedules, elevation plans, and window schedules. Submittal packages detail exact wall interface flashing details, structural anchoring points, extrusion profiles, thermal break paths, drainage routes, and glass engineering data, ensuring total design coordination before a single billet of aluminium is cut.
DERCHI provides an industry-leading comprehensive commercial warranty: 10 to 25 years on structural aluminium frame extrusion integrity and surface coating stability (dependent on whether marine PVDF or powder coating is specified), 10 years on hermetic seal durability of double/triple insulated glass units against seal failure or internal condensation, and 5 years on all mechanical moving hardware with immediate global replacement part dispatch.
Initiate Your Direct Factory Fenestration Specification
Send your architectural schedules, CAD floor plans, or project bill of quantities directly to our engineering division. Receive full parametric shop drawings, thermal calculations, and competitive factory-direct pricing within 24 hours.
