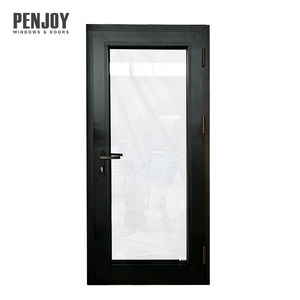

Penjoy Thermal Break Triple Glazed Aluminum Doors
View Details
NFRC Double Glazed Black Aluminium Casement Windows
View Details
Luvindow Historic Aluminium Clad Wood Tilt Turn Windows
View Details
Modern Aluminium Front Door With Large Tempered Glass
View Details

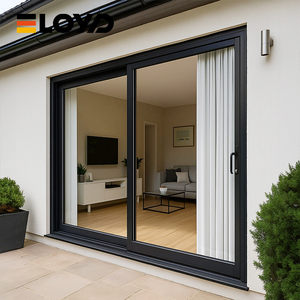

Modern Aluminium Alloy Glass Patio Sliding Door
View Details
Solid Core Melamine Interior Door with Aluminium Frame
View Details
Italian Modern Slim Aluminium Glass Kitchen Doors
View Details
High Quality Aluminium Alloy RV Caravan Hatch Door
View DetailsEngineering Large-Span Aluminium Fenestration: Technical Whitepaper
Modern architectural design is defined by expansive glazing, continuous daylighting, and seamless transitions between indoor and outdoor living environments. However, scaling aluminium windows to monumental dimensions—exceeding story-height thresholds of 3,500 mm to 6,000 mm—presents severe mechanical, thermal, and structural challenges. As a premier CE Certified Aluminium Big Windows Factory & Supplier, our engineering matrix solves structural deflection, wind load stresses, thermal bridging, and acoustic isolation through rigorous finite element analysis (FEA) and European EN 14351-1 standard testing.
Structural Load Dynamics
Large glazing units require precision extruded 6063-T6 or 6060-T66 aluminium alloy framing. Our structural mullions engineered for oversized big windows exhibit high moment of inertia ($I_x$ values exceeding $120 \text{ cm}^4$), preventing structural glass displacement under extreme wind pressure loads up to $6.0 \text{ kPa}$ (equivalent to Category 5 typhoons).
Advanced Thermal Breaks
To eliminate the thermal conductivity of raw aluminium ($K \approx 160 \text{ W/m}\cdot\text{K}$), our systems incorporate multi-cavity Technoform polyamide PA66GF25 (25% glass fiber reinforced) thermal insulation strips. This achieves ultra-low frame U-values ($U_f \le 1.1 \text{ W/m}^2\cdot\text{K}$), satisfying strict European Passive House standards.
Air & Water Tightness
Utilizing co-extruded EPDM continuous weather gaskets alongside vulcanized corner keys, our big windows ensure triple-stage pressure-equalized sealing. Internal drainage channels efficiently evacuate condensate and rainwater under dynamic pressures up to $1050 \text{ Pa}$ (Class 9A under EN 12208).
CE EN 14351-1 Performance Specifications & Compliance Matrix
Every fenestration assembly manufactured at our Foshan facility undergoes continuous factory production control (FPC) verified by accredited third-party notified bodies. Below is the certified technical performance metric for our big window series:
| Performance Test Standard | European Norm (EN) Standard | Achieved Certification Level | Engineering Impact for Big Windows |
|---|---|---|---|
| Air Permeability | EN 12207 | Class 4 ($Q_{100} \le 3 \text{ m}^3/\text{h}\cdot\text{m}^2$) | Eliminates structural air leakage; prevents energy loss in high-rise applications. |
| Water Tightness | EN 12208 | Class E1050 (Delta P = $1050 \text{ Pa}$) | Zero water penetration during torrential rainfall and extreme atmospheric pressure. |
| Resistance to Wind Load | EN 12210 | Class C5 / P3 ($2000 \text{ Pa}$ Design / $3000 \text{ Pa}$ Safety) | Deflection limit $\le L/300$; structural frame stability across big glass panels up to $12 \text{ m}^2$. |
| Acoustic Performance | EN ISO 140-3 | $R_w (C; C_{tr}) = 45 \text{ dB}$ (Triple Glazed) | Substantial attenuation of urban street noise and low-frequency aircraft rumble. |
| Thermal Transmittance | EN ISO 10077-2 | $U_w \le 0.79 \text{ W/m}^2\cdot\text{K}$ (Warm Edge + Low-E) | Optimizes solar heat gain coefficient (SHGC) while minimizing indoor heating and cooling demands. |
B2B Procurement Guide: Sourcing Big Windows directly from Factory Suppliers
Procuring large architectural windows directly from overseas manufacturers offers substantial cost efficiencies—often reducing fenestration budgets by 30% to 50% compared to domestic assembly integrators. However, direct factory sourcing requires a disciplined approach to risk management, engineering verification, and logistics logistics planning.
1. CAD/BIM Shop Drawing Verification
Before profile cutting begins, our engineering department provides free, full-scale 2D/3D CAD shop drawings detailing wall anchoring interfaces, flashing pans, expansion joints, and glass bite depth. This step eliminates on-site installation dimensional mismatches.
2. Raw Material Traceability
Ensure your supplier utilizes virgin primary aluminum ingots (Grade 6063) rather than recycled scrap metal which compromises tensile strength. All our extrusions come with chemical mill test certificates (MTC) matching EN 755-2 standards.
3. Structural Glass Packaging
Big windows require tempered safety glass (EN 12150) or laminated glass (EN 14449). Transporting units exceeding 300 kg per panel requires custom steel A-frame crating with moisture-proof vacuum wrapping to withstand ocean container transit.
Future Trends in Big Window Manufacturing & Architectural Glazing
As global carbon-neutral mandates enforce stricter building energy codes (such as the EU Energy Performance of Buildings Directive and Australia National Construction Code Section J), the fenestration manufacturing landscape is undergoing rapid technological evolution. Below are the core technological vector shifts shaping the future of big windows:
Vacuum Insulated Glass (VIG) Integration
While traditional double-glazed units rely on argon gas fill within a 12mm to 16mm cavity, next-generation big windows are adopting Vacuum Insulated Glass (VIG). By creating a $0.1 \text{ mm}$ high-vacuum gap sealed with inorganic micro-pillars, VIG achieves a thermal center-of-glass value ($U_g$) as low as $0.40 \text{ W/m}^2\cdot\text{K}$ in a profile thickness under $10 \text{ mm}$, radically slimming heavy window profiles.
Slim-Frame Motorized Panoramic Operability
Architects increasingly demand minimal sightlines where visible aluminum frames are under $20 \text{ mm}$. To operate heavy big window sashes weighing up to $800 \text{ kg}$, suppliers are integrating concealed linear actuators and smart motor automation connected to building management systems (BMS) via Modbus or Zigbee protocols.
Electrochromic Smart Tinting & Aerogels
Dynamically switchable dynamic electrochromic glass allows big windows to modulate light transmission from 60% down to under 1% upon receiving electric current. Concurrently, aerogel-infused thermal break cavities provide near-zero thermal conduction, setting a new benchmark for net-zero energy architectural envelopes.
Why Partner With Our Manufacturing Facility?
Operating out of Foshan, Guangdong—the world’s primary capital for high-end aluminium extrusion and fenestration technology—Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) stands among the top 10 door and window manufacturers nationwide. Our factory combines automated German CNC profile machining, electrostatic powder coating, and rigorous quality assurance.
180,000 m² Factory Base
Equipped with fully automated double-head cutting saws, multi-axis CNC milling centers, and automatic glass insulating production lines handling extreme dimensions.
Global Compliance
Holding official certifications for CE (EN 14351-1), AS2047 (Australia N6 rating), NFRC (North America Energy Star), and ISO 9001 strict quality management certification.
100+ Technology Patents
In-house R&D engineering team continually innovating structural mullion reinforcements, concealed drainage mechanics, and high-security multi-point hardware lock systems.
End-to-End Export Logistics
Comprehensive ocean export packaging: custom heavy-duty steel crates, corner protectors, desiccant packs, and full container load (FCL) / LCL direct ocean shipment handling.
